NCP110-AHXEK (2007)
Toyota Ist

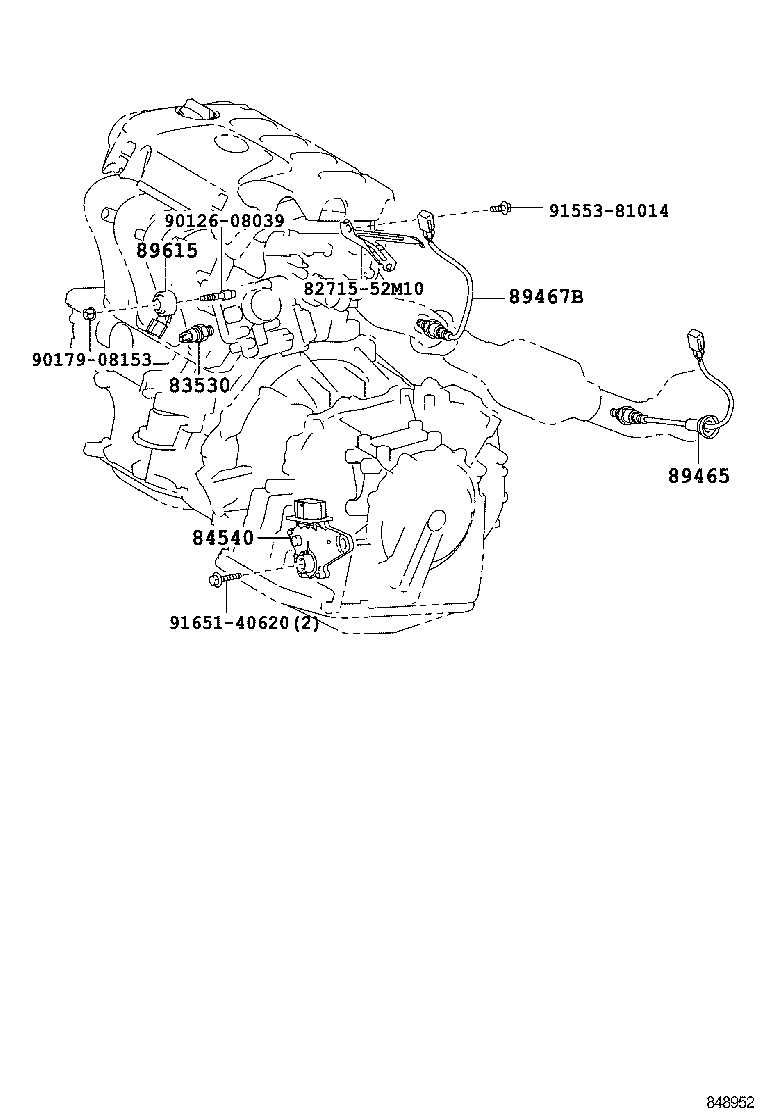

ILLUST NO. 1 OF 9(0707- )NCP11#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NCP11#..CBU |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
NCP11#..CBU |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12A90 |
NCP110..CBU |
1 | ||
| 89465-52480 |
NCP110..CBU |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52010 |
NCP110..CBU |
1 | ||
| 89467-12180 |
NCP110..CBU |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NCP11#..CBU |
1 | ||
| Common parts | ||||
| 82715-52M10 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||

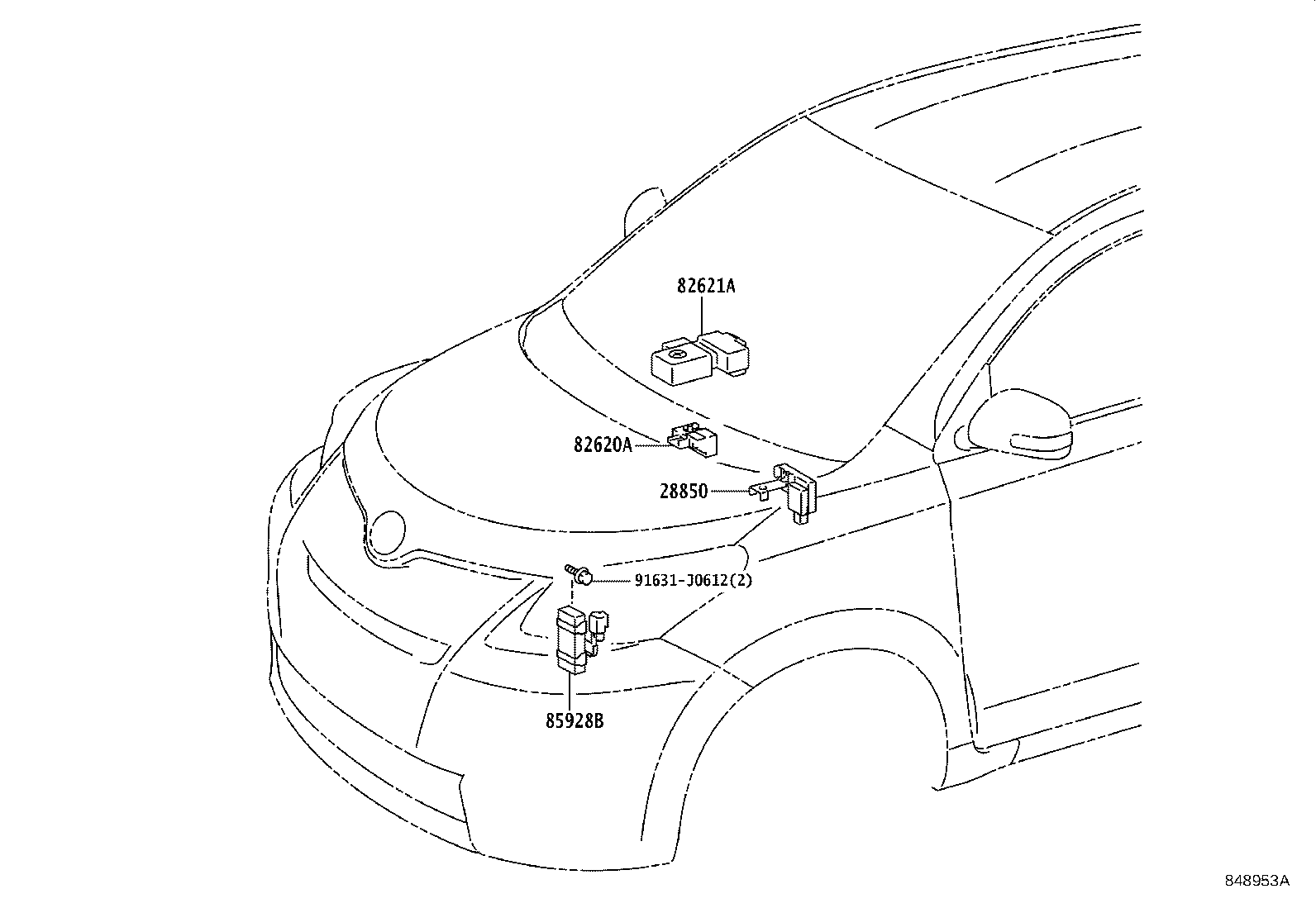

ILLUST NO. 2 OF 9(0707-1008)ZSP110 ; (0707- )NCP11#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-40010 |
1NZFE..NCP11#..CBU |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52050 |
NCP11#..CBU |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52120 |
NCP11#..CBU |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52032 |
NCP11#..CBU |
1 | ||
| 85928-52030 |
NCP11#,ZSP110..CBU |
1 | ||
| Common parts | ||||
| 91631-J0612 | ||||
ILLUST NO. 4 OF 9(0707-1008)ZSP110 ; (0707- )NCP11#
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
1NZFE..NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
1NZFE..NCP11#..CBU |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
NCP11#..CBU |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NCP11#..CBU 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08296 |
NCP11#..CBU 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08295 |
NCP11#..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NCP11#..CBU 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08296 |
NCP11#..CBU 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08295 |
NCP11#..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NCP11#..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
NCP11#..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
NCP11#..CBU 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
NCP11#..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09025 |
NCP11#..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
NCP11#..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NCP11#..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
NCP11#..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
NCP11#..CBU 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
NCP11#..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09025 |
NCP11#..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
NCP11#..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-52010 |
NCP110..CBU |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-52040 |
NCP110..CBU |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-52080 |
NCP11#..CBU |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-52090 |
NCP11#..CBU |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-52100 |
NCP11#..CBU |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52N21 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82730-52N20 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82730-52K70 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82730-52K60 |
NCP11#..CBU |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
NCP11#..CBU |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
NCP11#..CBU |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
NCP11#..CBU |
1 | ||
| 84340-69025 |
NCP11#,ZSP110..CBU |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NCP11#..CBU |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
NCP11#,ZSP110..CBU |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-30060 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 85903-60010 |
NCP11#..CBU |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
NCP11#..X..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP) |
1 | ||
| 90987-02027 |
NCP11#..G..CBU |
1 | ||
| 90987-02027 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 90987-02027 |
NCP11#..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP) |
1 | ||
| 90987-02027 |
NCP11#..X..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 90987-02027 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP) |
1 | ||
| 90987-02027 |
NCP11#..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
NCP11#..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 85930K - RELAY, ACC, NO.2 | ||||
| 90987-04004 |
NCP11#..CBU |
1 | ||
| 90987-04004 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52271 |
NCP11#..CBU JTEKT/DENSO |
1 | ||
| 89650-52270 |
NCP11#..CBU JTEKT/DENSO |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-52160 |
NCP110..X..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝ(装飾有り) |
1 | ||
| 89960-52160 |
NCP110..CBU |
1 | ||
| 89960-52160 |
NCP110,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-1E320 | ||||
| 90159-40278 | ||||
| 90159-70004 | ||||
| 90179-06115 | ||||
| 91553-80612 | ||||
| 93315-14012 | ||||
| 93568-55016 | ||||

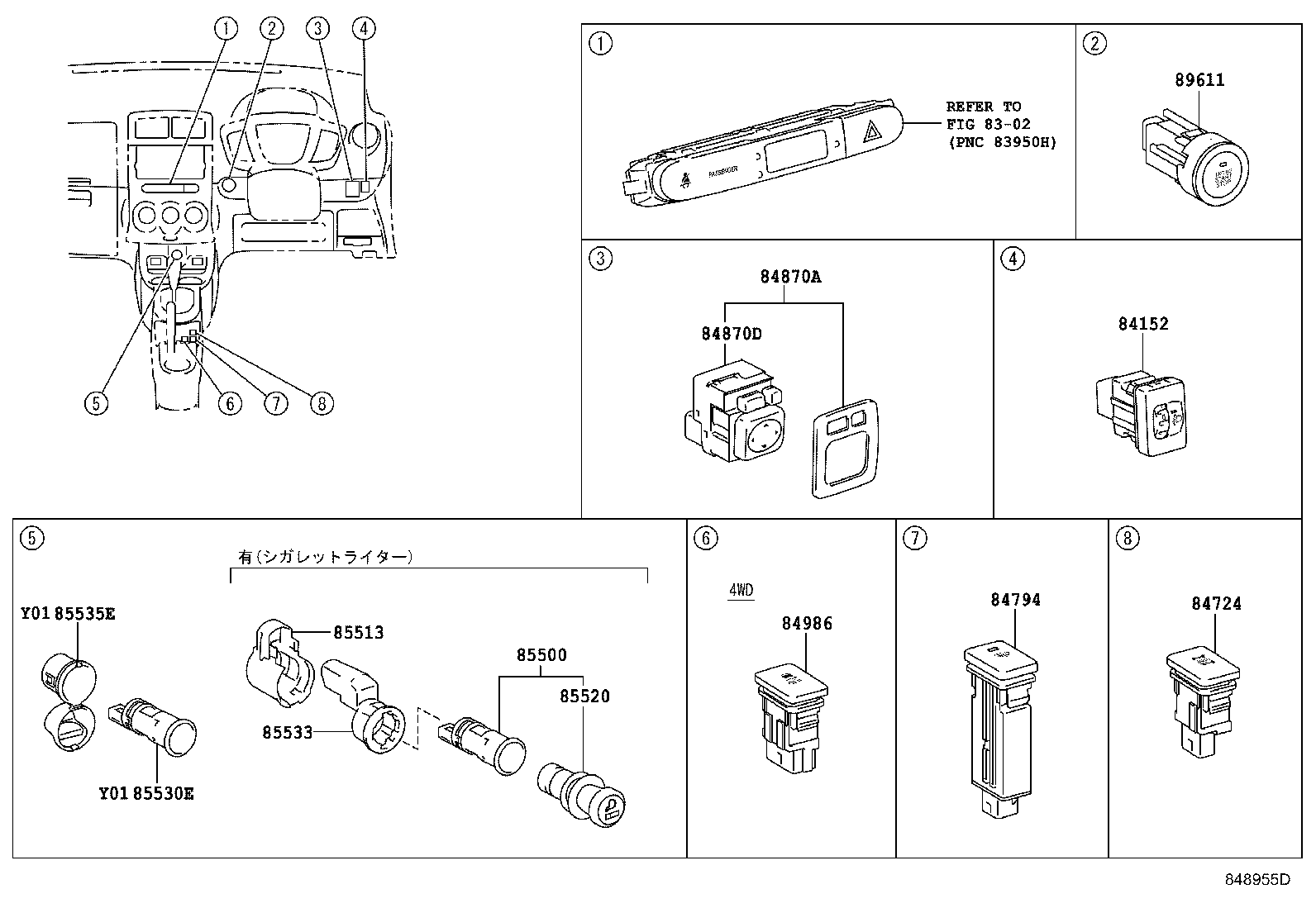

ILLUST NO. 5 OF 9(0707-1008)ZSP110 ; (0707- )NCP11#
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52120 |
NCP11#..X..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝ(装飾有り) |
1 | ||
| 84152-52120 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84152-52120 |
NCP11#,ZSP110..CBU |
1 | ||
| 84152-52121 |
NCP11#..X..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝ(装飾有り) |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-52020 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 84794-52021 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
NCP11#..CBU |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52040 |
NCP11#..CBU |
1 | ||
| 84986 - SWITCH, VEHICLE STABILITY CONTROL | ||||
| 84986-12010 |
NCP11#..CBU |
1 | ||
| 84986-12010 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 84986-12011 |
NCP11#..CBU |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-26040 |
NCP11#,ZSP110..CBU 灰皿−有り(分離式)&ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85500-26040 |
NCP11#,ZSP110..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
NCP11#,ZSP110..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
NCP11#..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
NCP11#..CBU |
1 | ||
| 85530-52010 |
NCP11#..CBU |
1 | ||
| 85530-52010 |
NCP11#..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85530-42010 |
NCP11#..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
NCP11#,ZSP110..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-52050 |
NCP11#,ZSP110..CBU |
1 | ||
| 85535-52050 |
NCP11#,ZSP110..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85535-52052 |
NCP11#..CBU |
1 | ||
| 85535-52051 |
NCP11#..CBU |
1 | ||
| 85535-52051 |
NCP11#..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 85535-52052 |
NCP11#..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52020 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89611-52022 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89611-52023 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89611-52021 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||

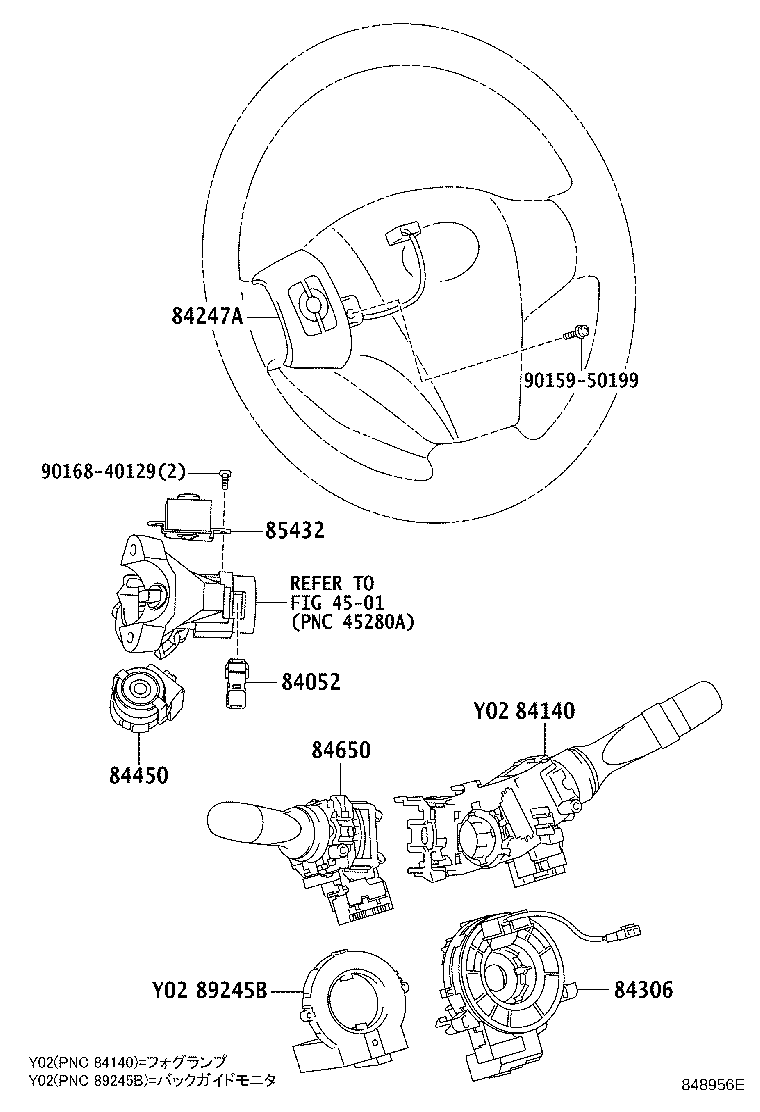

ILLUST NO. 6 OF 9(0707-1008)ZSP110 ; (0707- )NCP11#
ｲｸﾞﾆｯｼｮﾝ & ｺﾝﾋﾞﾈｰｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NCP11#..CBU |
1 | ||
| 84052-71010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-52090 |
NCP11#..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP) |
1 | ||
| 84140-12590 |
NCP11#..X..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84140-52110 |
NCP11#,ZSP110..G..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 84140-52130 |
NCP11#..X..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 84140-52120 |
NCP11#,ZSP110..G..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 84140-52100 |
NCP11#,ZSP110..G..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84140-12600 |
NCP11#..X..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 84140-52120 |
NCP11#..X..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 84140-12590 |
NCP11#..X..CBU |
1 | ||
| 84140-52100 |
NCP11#..X..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP) |
1 | ||
| 84140-52090 |
NCP11#,ZSP110..G..CBU |
1 | ||
| 84140-52100 |
NCP11#..G..CBU |
1 | ||
| 84140-52180 |
NCP11#..X..CBU |
1 | ||
| 84140-52120 |
NCP11#..G..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 84140-52090 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP) |
1 | ||
| 84140-12600 |
NCP11#..X..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 84140-52180 |
NCP11#..X..CBU “C Package” |
1 | ||
| 84140-52110 |
NCP11#..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 84140-52130 |
NCP11#..X..CBU “C Package”&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 84140-52120 |
NCP11#..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 84140-52100 |
NCP11#..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP) |
1 | ||
| 84140-52110 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-52070 |
NCP11#,ZSP110..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 84247-52090 |
NCP11#..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52090 |
NCP11#..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 84306-12100 |
NCP11#..CBU |
1 | ||
| 84306-52090 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
NCP11#..CBU |
1 | ||
| 84450-71010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42130 |
NCP11#..CBU |
1 | ||
| 84652-42132 |
NCP11#..CBU |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 85432-71010 |
NCP11#..CBU |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 89245-12020 |
NCP11#..CBU |
1 | ||
| 89245-12020 |
NCP11#,ZSP110..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

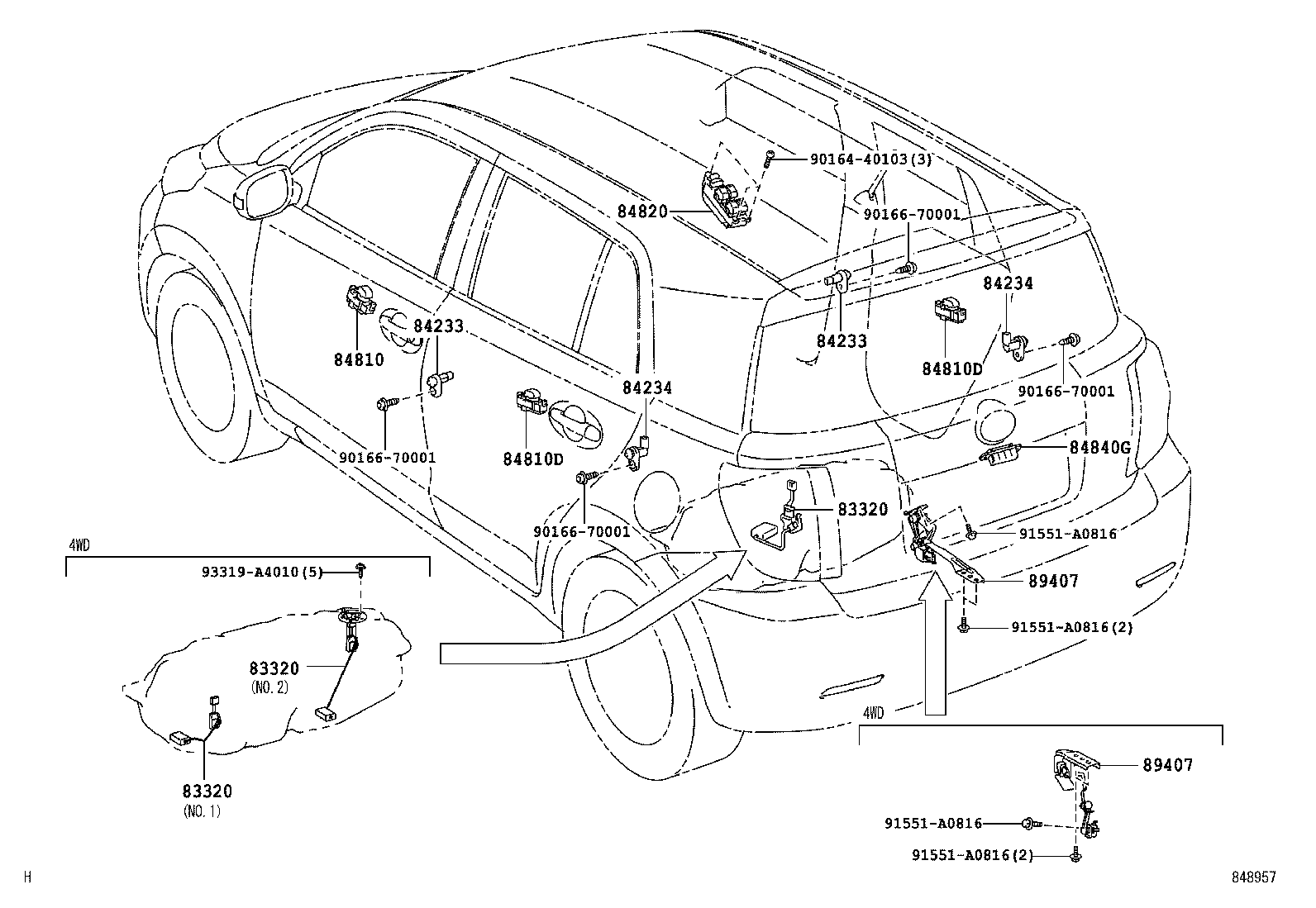

ILLUST NO. 8 OF 9(0707-1008)ZSP110 ; (0707- )NCP11#
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾗｯｹﾞｰｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52181 |
NCP110,ZSP110..CBU |
1 | ||
| 83320-52261 |
NCP110..CBU |
1 | ||
| 83320-52260 |
NCP110..CBU |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52181 |
NCP110,ZSP110..CBU |
1 | ||
| 83320-52261 |
NCP110..CBU |
1 | ||
| 83320-52260 |
NCP110..CBU |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52181 |
NCP110,ZSP110..CBU |
1 | ||
| 83320-52261 |
NCP110..CBU |
1 | ||
| 83320-52260 |
NCP110..CBU |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52230 |
NCP11#..CBU |
2 | ||
| 84231-52010 |
NCP11#..CBU |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52230 |
NCP11#..CBU |
2 | ||
| 84231-52010 |
NCP11#..CBU |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP11#..CBU |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP11#..CBU |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
NCP11#..CBU |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
NCP11#..CBU |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
NCP11#..CBU |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12530 |
NCP11#..CBU |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28040 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 84840-28030 |
NCP11#..CBU |
1 | ||
| 89407 - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH | ||||
| 89407-52140 |
NCP110..CBU |
1 | ||
| 89407-52140 |
NCP110..X..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝ(装飾有り) |
1 | ||
| 89407-52140 |
NCP110,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 89407 - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH | ||||
| 89407-52140 |
NCP110..CBU |
1 | ||
| 89407-52140 |
NCP110..X..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝ(装飾有り) |
1 | ||
| 89407-52140 |
NCP110,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 91551-A0816 | ||||
| 93319-A4010 | ||||

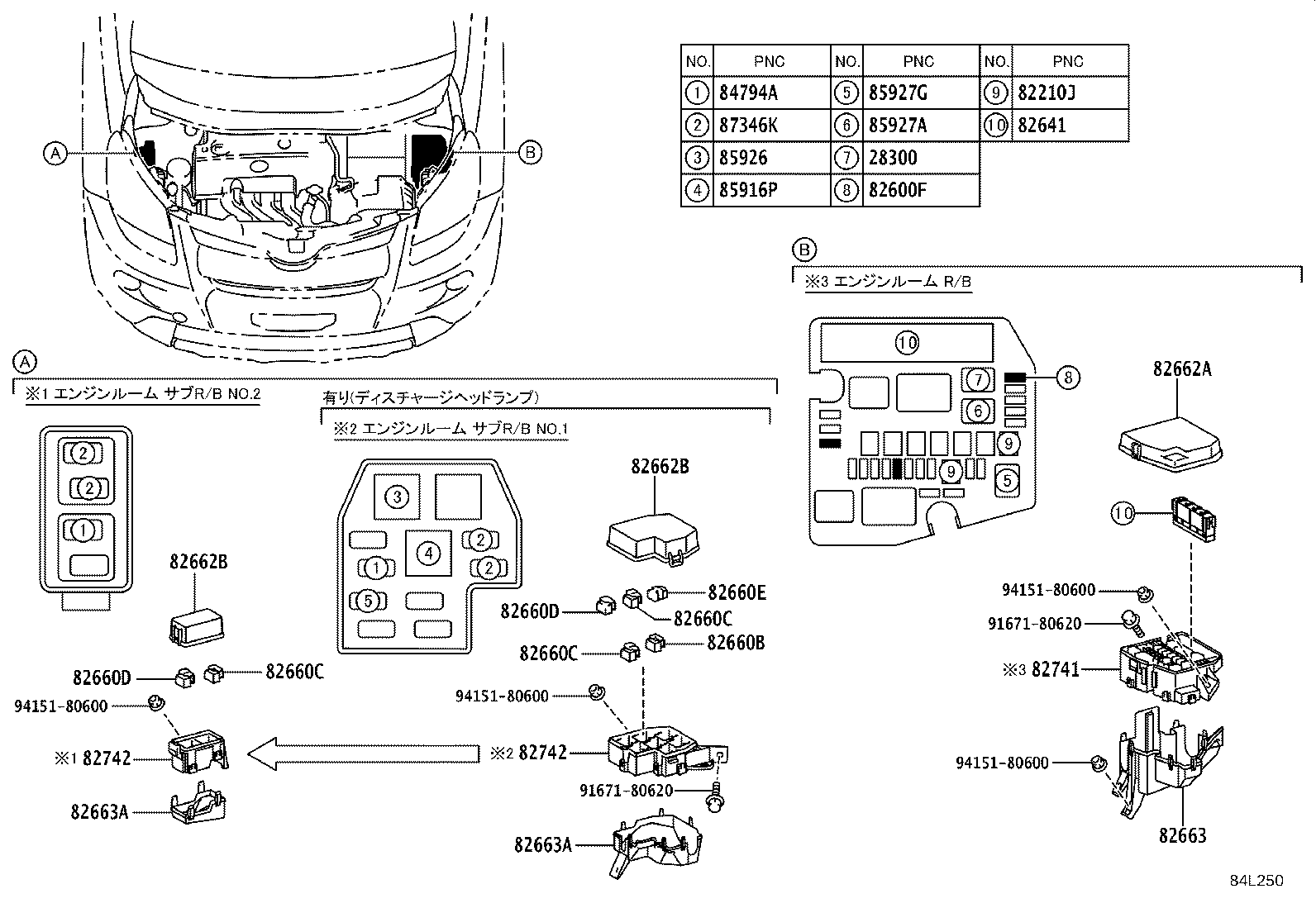

ILLUST NO. 3 OF 9(0707-1008)ZSP110 ; (0707- )NCP11#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
1NZFE..NCP11#..CBU |
1 | ||
| 28300-28010 |
1NZFE..NCP11#..CBU |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NCP11#..CBU 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08296 |
NCP11#..CBU 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08295 |
NCP11#..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NCP11#..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
NCP11#..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
NCP11#..CBU 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
NCP11#..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09025 |
NCP11#..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
NCP11#..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
NCP11#..CBU |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-0H070 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-0H070 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-0H070 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-0H070 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-0H070 |
NCP11#..CBU |
1 | ||
| 82660-0H070 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-0H070 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-0H070 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52020 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82660-52020 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..X..CBU “C Package”&寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82660-52020 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..X..CBU “C Package”&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82660-52020 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52020 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..X..CBU “C Package”&寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82660-52020 |
NCP11#..CBU |
2 | ||
| 82660-52020 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52020 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82660-52020 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..X..CBU “C Package”&寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82660-52020 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..X..CBU “C Package”&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82660-52020 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52020 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..X..CBU “C Package”&寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82660-52020 |
NCP11#..CBU |
2 | ||
| 82660-52020 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52020 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82660-52020 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..X..CBU “C Package”&寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82660-52020 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..X..CBU “C Package”&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82660-52020 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52020 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..X..CBU “C Package”&寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82660-52020 |
NCP11#..CBU |
2 | ||
| 82660-52020 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660-52020 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-52010 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-52010 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82660-52010 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82660-52010 |
NCP11#..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-52010 |
NCP11#..CBU |
1 | ||
| 82660-52010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52010 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-52010 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-52010 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82660-52010 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82660-52010 |
NCP11#..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-52010 |
NCP11#..CBU |
1 | ||
| 82660-52010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52010 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-52010 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-26270 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-26270 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-26270 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-26270 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-26270 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-26270 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-26270 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660-26270 |
NCP11#..CBU |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52290 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52290 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52280 |
NCP11#..X..CBU “C Package”&寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82662-52280 |
NCP11#..X..CBU “C Package”&寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82662-52290 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52290 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52290 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52290 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52290 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52290 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52280 |
NCP11#,ZSP110..CBU |
1 | ||
| 82662-52280 |
NCP11#..X..CBU “C Package”&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82662-52280 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82662-52290 |
NCP11#..CBU |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52320 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52350 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82662-52320 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52320 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52350 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82662-52320 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52350 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 82662-52320 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52320 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52350 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82662-52350 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82662-52320 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52320 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52350 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82662-52320 |
NCP11#..CBU |
1 | ||
| 82662-52350 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82662-52350 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82662-52350 |
NCP11#..X..CBU “C Package”&寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82662-52350 |
NCP11#..X..CBU “C Package”&寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82662-52350 |
NCP11#..X..CBU “C Package”&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52320 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52350 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82662-52320 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52320 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52350 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82662-52320 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52350 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 82662-52320 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52320 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52350 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82662-52350 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82662-52320 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52320 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52350 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82662-52320 |
NCP11#..CBU |
1 | ||
| 82662-52350 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82662-52350 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82662-52350 |
NCP11#..X..CBU “C Package”&寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82662-52350 |
NCP11#..X..CBU “C Package”&寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82662-52350 |
NCP11#..X..CBU “C Package”&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52031 |
NCP11#..CBU |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52060 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82663-52070 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82663-52070 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82663-52070 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82663-52070 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 82663-52070 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..X..CBU “C Package”&寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82663-52070 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..X..CBU “C Package”&寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82663-52070 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82663-52060 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82663-52070 |
NCP11#..CBU |
1 | ||
| 82663-52060 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82663-52070 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..X..CBU “C Package”&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52060 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82663-52070 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82663-52070 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82663-52070 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82663-52070 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 82663-52070 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..X..CBU “C Package”&寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82663-52070 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..X..CBU “C Package”&寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82663-52070 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82663-52060 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82663-52070 |
NCP11#..CBU |
1 | ||
| 82663-52060 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82663-52070 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP11#..X..CBU “C Package”&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-52031 |
NCP11#,ZSP110..CBU |
1 | ||
| 82741-52041 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52041 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52041 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52041 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52041 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52031 |
NCP11#..X..CBU “C Package”&寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82741-52041 |
NCP11#..CBU |
1 | ||
| 82741-52031 |
NCP11#..X..CBU “C Package”&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82741-52041 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52031 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82741-52041 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52041 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52031 |
NCP11#..X..CBU “C Package”&寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52050 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 82741-52050 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82741-52050 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82741-52050 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82741-52050 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82741-52050 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82741-52060 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52060 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52060 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52060 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52060 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52050 |
NCP11#..X..CBU “C Package”&寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82741-52060 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52050 |
NCP11#..X..CBU “C Package”&寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82741-52060 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52060 |
NCP11#..CBU |
1 | ||
| 82741-52050 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82741-52060 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52050 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82741-52050 |
NCP11#..X..CBU “C Package”&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52050 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 82741-52050 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82741-52050 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82741-52050 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82741-52050 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82741-52050 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82741-52060 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52060 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52060 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52060 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52060 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52050 |
NCP11#..X..CBU “C Package”&寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82741-52060 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52050 |
NCP11#..X..CBU “C Package”&寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82741-52060 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52060 |
NCP11#..CBU |
1 | ||
| 82741-52050 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82741-52060 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-52050 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82741-52050 |
NCP11#..X..CBU “C Package”&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 90987-02025 |
NCP11#..X..CBU “C Package” |
1 | ||
| 90987-02025 |
NCP11#..CBU |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
NCP11#..X..CBU “C Package” |
1 | ||
| 90987-04010 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 90987-04010 |
NCP11#..CBU |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NCP11#..CBU |
1 | ||
| 85927G - RELAY, AIR CONDITIONER WATER PUMP | ||||
| 90987-04010 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
3 | ||
| 90987-02027 |
NCP11#..CBU 寒冷地仕様 |
3 | ||
| Common parts | ||||
| 91671-80620 | ||||
| 94151-80600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
