NCP110-AHXEK (2007)
Toyota Ist

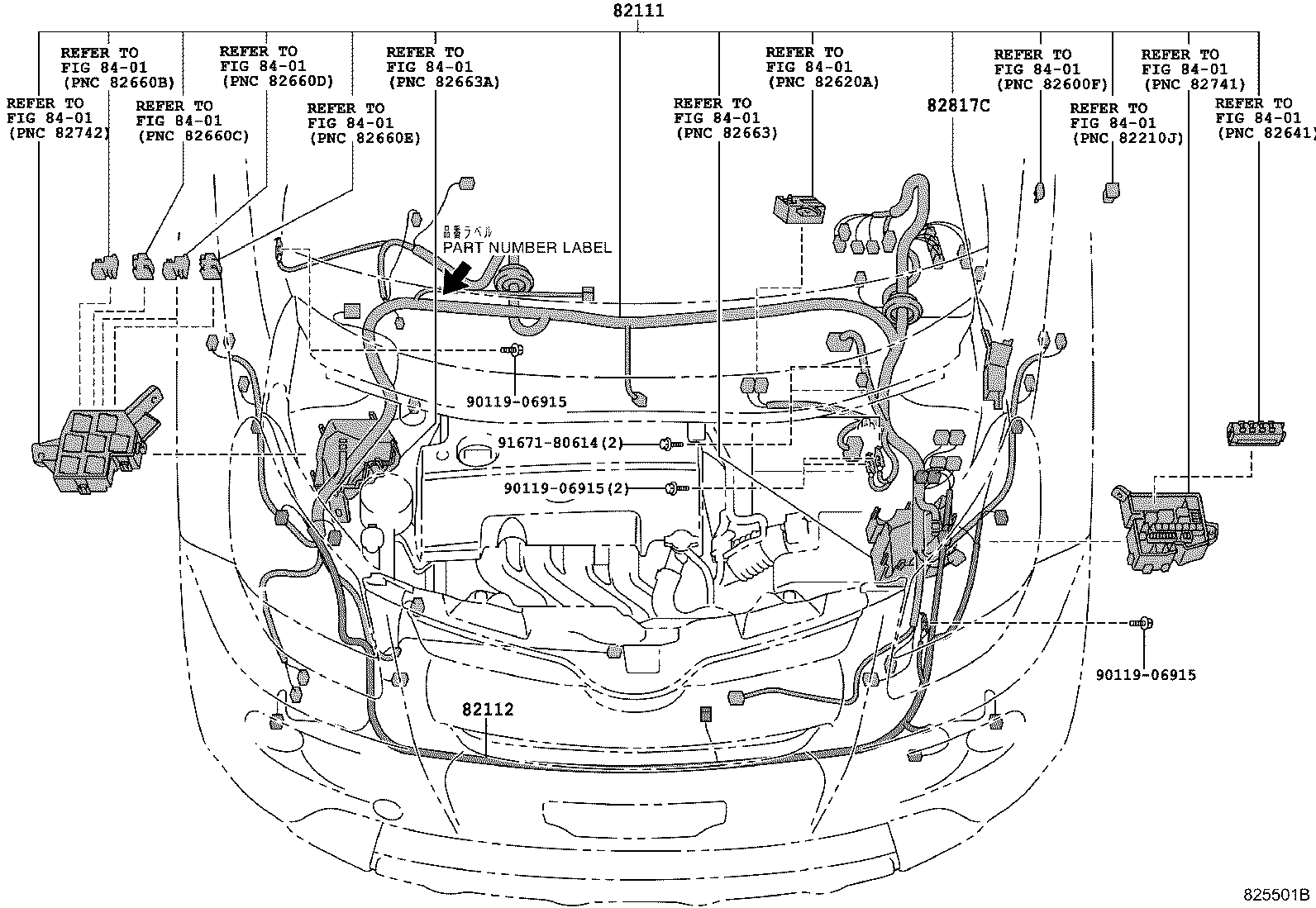

ILLUST NO. 1 OF 9(0707-1008)ZSP110 ; (0707- )NCP11#
ｴﾝｼﾞﾝ ﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-52N40 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82111-52N40 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 82111-52N30 |
NCP11#..CBU |
1 | ||
| 82111-52N50 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52N40 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82111-52N60 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82111-52N60 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82111-52N50 |
NCP11#..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52N70 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52N51 |
NCP11#..CBU |
1 | ||
| 82111-52N60 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82111-52N31 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82111-52N50 |
NCP11#..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52N70 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52N50 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52N71 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82111-52N70 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-52N72 |
NCP11#..CBU |
1 | ||
| 82111-52N41 |
NCP11#..X..CBU “C Package”&寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82111-52N62 |
NCP11#..X..CBU “C Package”&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82111-52N60 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82111-52N61 |
NCP11#..X..CBU “C Package”&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82111-52N61 |
NCP11#..X..CBU “C Package”&寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82111-52N70 |
NCP11#..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-52320 |
NCP11#,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82112-52310 |
NCP11#,ZSP110..CBU |
1 | ||
| 82112-52320 |
NCP11#..CBU |
1 | ||
| 82112-52310 |
NCP11#..X..CBU “C Package”&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝ(装飾有り) |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52580 |
NCP11#..CBU |
1 | ||
| 82817-52511 |
NCP11#,ZSP110..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

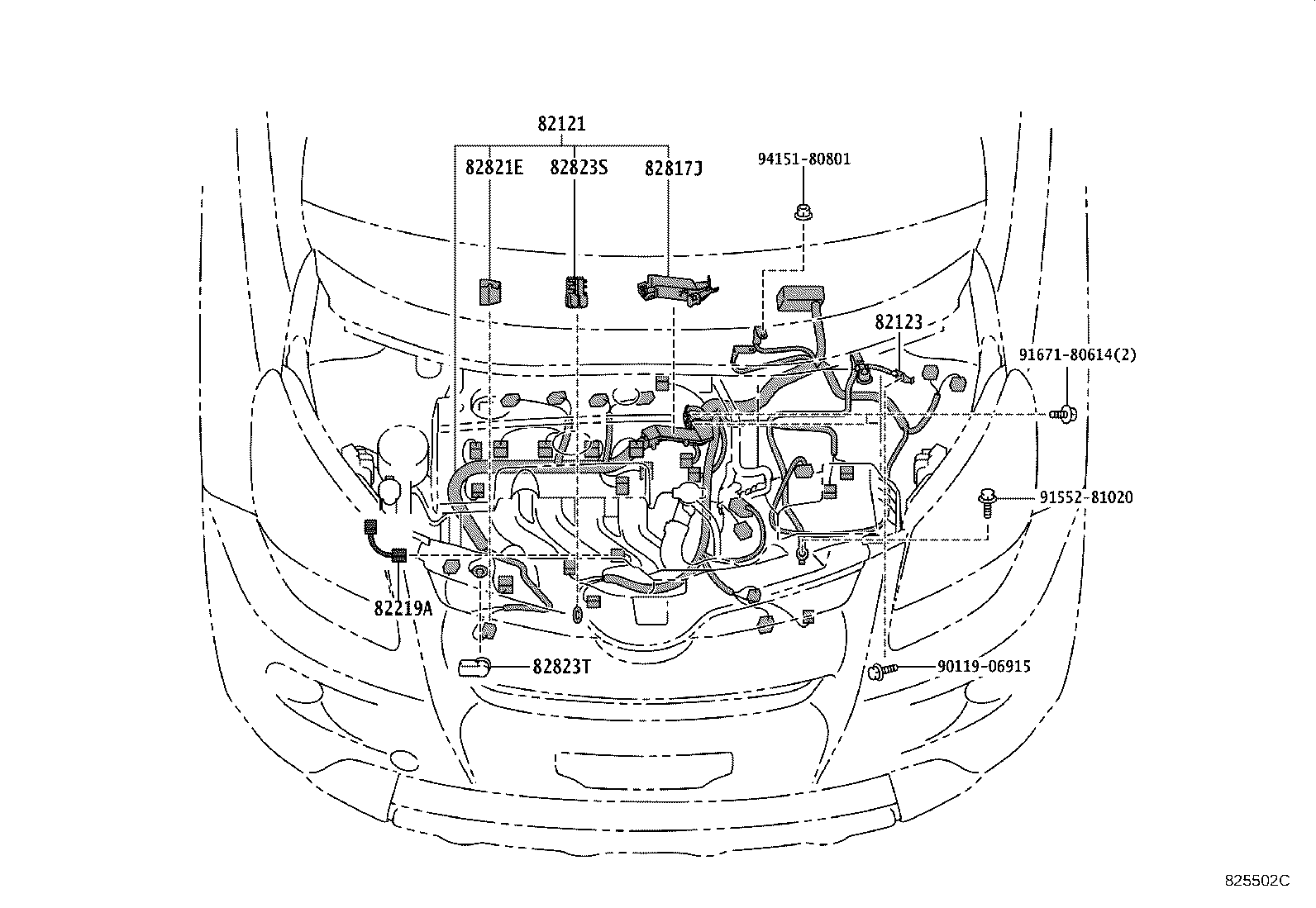

ILLUST NO. 2 OF 9(0707- )NCP11#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-52E71 |
NCP11#..CBU |
1 | ||
| 82121-52E70 |
NCP11#..CBU |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-52230 |
NCP11#..CBU |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-52040 |
NCP11#..CBU |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-52610 |
NCP11#..CBU |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20410 |
NCP11#..CBU |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
NCP11#..CBU |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NCP11#..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91552-81020 | ||||
| 91671-80614 | ||||
| 94151-80801 | ||||

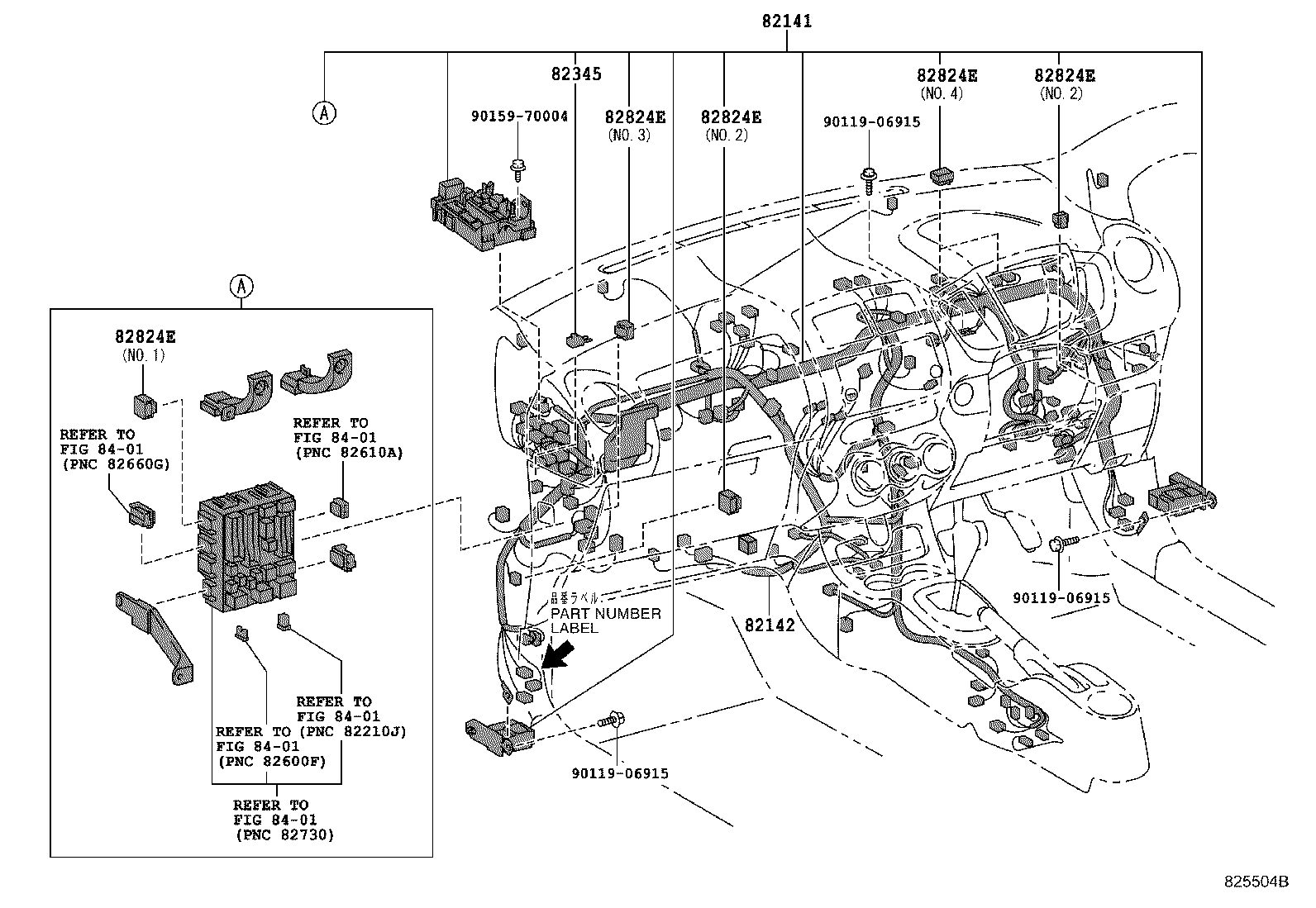

ILLUST NO. 3 OF 9(0707-1008)ZSP110 ; (0707- )NCP11#
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-5CM90 |
NCP110..CBU 寒冷地仕様 |
1 | ||
| 82141-5CM90 |
NCP110..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82141-5CM90 |
NCP110..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CM90 |
NCP110..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用6ｽﾋﾟｰｶ(DVDﾅﾋﾞ)&ETC−有り |
1 | ||
| 82141-5CM90 |
NCP110..X..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5CM90 |
NCP110..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ)&ETC−有り |
1 | ||
| 82141-5CM90 |
NCP110..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ETC−有り |
1 | ||
| 82141-5CM90 |
NCP110..X..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CM90 |
NCP110..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ)&ETC−有り |
1 | ||
| 82141-5CM90 |
NCP110..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CM90 |
NCP110..X..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5CM90 |
NCP110..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ETC−有り |
1 | ||
| 82141-5CM90 |
NCP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ)&ETC−有り |
1 | ||
| 82141-5CM90 |
NCP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82141-5CM90 |
NCP110..X..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ETC−有り |
1 | ||
| 82141-5CM80 |
NCP110..CBU |
1 | ||
| 82141-5CM90 |
NCP110..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CM90 |
NCP110..X..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CM90 |
NCP110..X..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ETC−有り |
1 | ||
| 82141-5CM90 |
NCP110..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ)&ETC−有り |
1 | ||
| 82141-5CM90 |
NCP110..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CM90 |
NCP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CM90 |
NCP110..CBU ETC−有り |
1 | ||
| 82141-5CM90 |
NCP110..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5CM90 |
NCP110..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5CM90 |
NCP110..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ETC−有り |
1 | ||
| 82141-5CM90 |
NCP110..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ)&ETC−有り |
1 | ||
| 82141-5CM90 |
NCP110..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN00 |
NCP110..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82141-5CN00 |
NCP110..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82141-5CM90 |
NCP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ETC−有り |
1 | ||
| 82141-5CN00 |
NCP110..X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5CN00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82141-5CM90 |
NCP110..CBU 寒冷地仕様&ETC−有り |
1 | ||
| 82141-5CN00 |
NCP110..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ETC−有り |
1 | ||
| 82141-5CN00 |
NCP110..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ)&ETC−有り |
1 | ||
| 82141-5CN00 |
NCP110..X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN00 |
NCP110..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5CN00 |
NCP110..X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5CN00 |
NCP110..X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ETC−有り |
1 | ||
| 82141-5CN00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82141-5CN00 |
NCP110..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ETC−有り |
1 | ||
| 82141-5CN00 |
NCP110..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ)&ETC−有り |
1 | ||
| 82141-5CN00 |
NCP110..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN00 |
NCP110..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5CN10 |
NCP110..X..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5CN10 |
NCP110..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82141-5CN00 |
NCP110..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ETC−有り |
1 | ||
| 82141-5CN10 |
NCP110..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82141-5CN10 |
NCP110..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ)&ETC−有り |
1 | ||
| 82141-5CN10 |
NCP110..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ETC−有り |
1 | ||
| 82141-5CN00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ETC−有り |
1 | ||
| 82141-5CN10 |
NCP110..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN10 |
NCP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82141-5CN10 |
NCP110..X..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5CN10 |
NCP110..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN10 |
NCP110..X..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ETC−有り |
1 | ||
| 82141-5CN10 |
NCP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN10 |
NCP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ETC−有り |
1 | ||
| 82141-5CN00 |
NCP110..X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ETC−有り |
1 | ||
| 82141-5CN10 |
NCP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82141-5CN10 |
NCP110..X..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5CN10 |
NCP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN20 |
NCP110..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82141-5CN10 |
NCP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ)&ETC−有り |
1 | ||
| 82141-5CN10 |
NCP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ETC−有り |
1 | ||
| 82141-5CN20 |
NCP110..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82141-5CN10 |
NCP110..X..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ETC−有り |
1 | ||
| 82141-5CN10 |
NCP110..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ETC−有り |
1 | ||
| 82141-5CN10 |
NCP110..X..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN20 |
NCP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN20 |
NCP110..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ETC−有り |
1 | ||
| 82141-5CN10 |
NCP110..X..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN20 |
NCP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82141-5CN20 |
NCP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82141-5CN10 |
NCP110..X..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5CN20 |
NCP110..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN20 |
NCP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82141-5CN20 |
NCP110..X..CBU 寒冷地仕様&VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5CN20 |
NCP110..X..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5CN11 |
NCP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 82141-5CN20 |
NCP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ETC−有り |
1 | ||
| 82141-5CN20 |
NCP110..X..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82141-5DX01 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82141-5DX00 |
NCP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82141-5CM91 |
NCP110..CBU |
1 | ||
| 82141-5CN12 |
NCP110..CBU |
1 | ||
| 82141-5DW90 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-52320 |
NCP11#..X..CBU ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82142-52360 |
NCP11#..X..CBU 寒冷地仕様&ﾌﾛﾝﾄｴｱｺﾝ−有り(ﾏﾆｭｱﾙｴｱｺﾝ 可変ｺﾝﾌﾟﾚｯｻ) |
1 | ||
| 82142-52340 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 82142-52330 |
NCP11#,ZSP110..CBU |
1 | ||
| 82142-52540 |
NCP11#..CBU |
1 | ||
| 82142-52550 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
NCP110..CBU |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NCP110..CBU NO.2 |
2 | ||
| 82824-22070 |
NCP11#..CBU NO.1 |
1 | ||
| 82824-52290 |
NCP11#..CBU NO.4 |
2 | ||
| 82824-52280 |
NCP11#..CBU NO.3 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NCP110..CBU NO.2 |
2 | ||
| 82824-22070 |
NCP11#..CBU NO.1 |
1 | ||
| 82824-52290 |
NCP11#..CBU NO.4 |
2 | ||
| 82824-52280 |
NCP11#..CBU NO.3 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NCP110..CBU NO.2 |
2 | ||
| 82824-22070 |
NCP11#..CBU NO.1 |
1 | ||
| 82824-52290 |
NCP11#..CBU NO.4 |
2 | ||
| 82824-52280 |
NCP11#..CBU NO.3 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NCP110..CBU NO.2 |
2 | ||
| 82824-22070 |
NCP11#..CBU NO.1 |
1 | ||
| 82824-52290 |
NCP11#..CBU NO.4 |
2 | ||
| 82824-52280 |
NCP11#..CBU NO.3 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NCP110..CBU NO.2 |
2 | ||
| 82824-22070 |
NCP11#..CBU NO.1 |
1 | ||
| 82824-52290 |
NCP11#..CBU NO.4 |
2 | ||
| 82824-52280 |
NCP11#..CBU NO.3 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 9(0707-1008)ZSP110 ; (0707- )NCP11#
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-52G40 |
NCP11#..CBU |
1 | ||
| 82151-52G50 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82151-52G41 |
NCP11#..CBU |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-52D30 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82152-52D20 |
NCP11#..CBU |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-52400 |
NCP11#..CBU |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82153-52400 |
NCP11#..CBU |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-52450 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82184-52450 |
NCP11#..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82184-52450 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82184-52440 |
NCP11#..CBU |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-52450 |
NCP11#..CBU |
1 | ||
| 82185-52460 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82185-52480 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82185-52470 |
NCP11#..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52130 |
NCP11#..CBU |
2 | ||
| 82186-52130 |
NCP11#..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
2 | ||
| 82186-52130 |
NCP11#..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(G−BOOK) |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52130 |
NCP11#..CBU |
2 | ||
| 82186-52130 |
NCP11#..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
2 | ||
| 82186-52130 |
NCP11#..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(G−BOOK) |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||

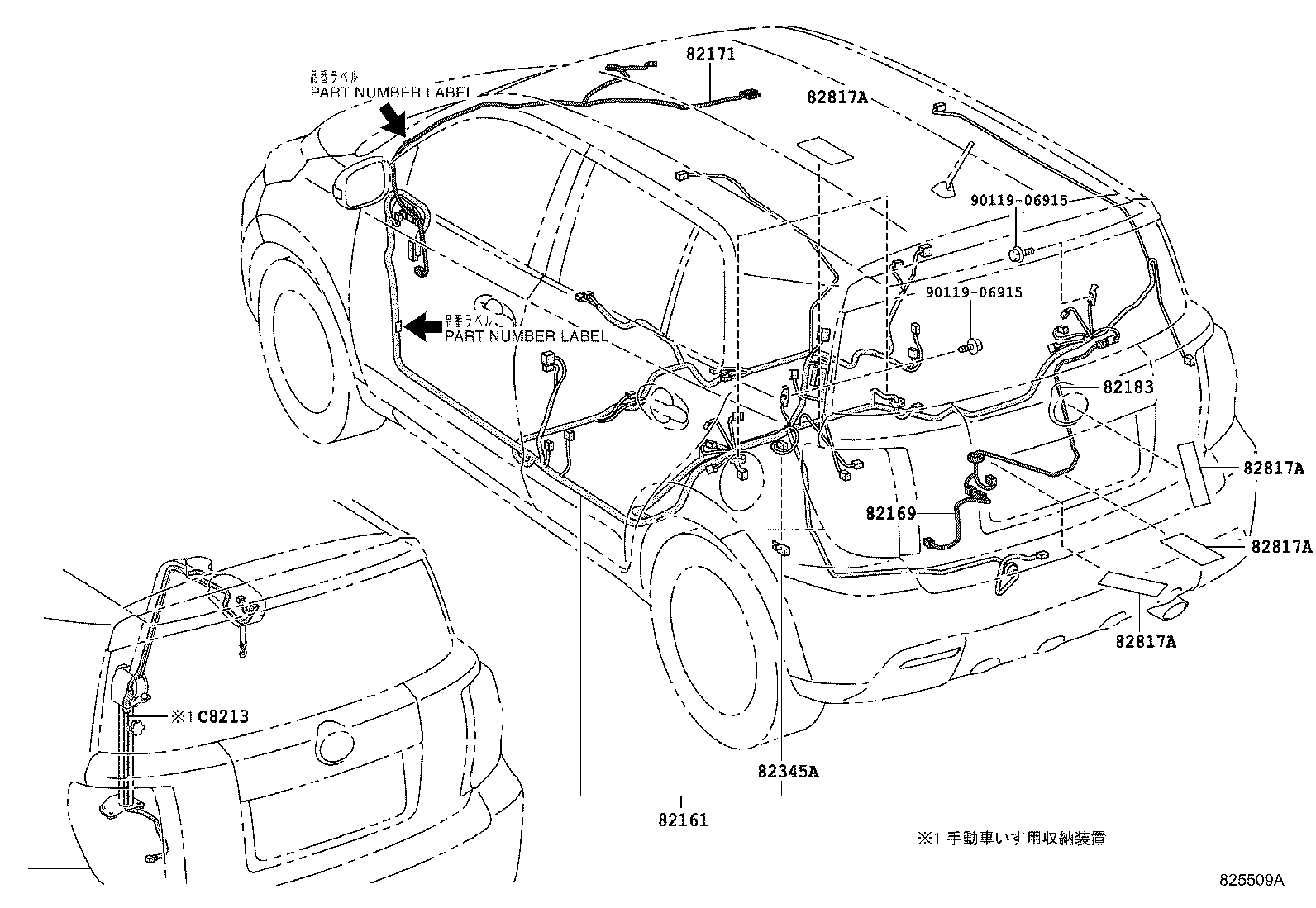

ILLUST NO. 5 OF 9(0707-1008)ZSP110 ; (0707- )NCP11#
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-52Q80 |
NCP110..CBU |
1 | ||
| 82161-52Q90 |
NCP110..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82161-52Q90 |
NCP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 82161-52R00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82161-52R00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82161-52Q90 |
NCP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82161-52Q90 |
NCP110..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 82161-52Q90 |
NCP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82161-52R00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82161-52Q90 |
NCP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82161-52Q90 |
NCP110..CBU ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82161-52R00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82161-52R00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82161-52R00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 82161-52R00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82161-5CG30 |
NCP110..CBU |
1 | ||
| 82161-52R00 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 82161-5CG31 |
NCP110..X..CBU “C Package”&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82161-5CG30 |
NCP110..X..CBU “C Package”&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82161-5CG30 |
NCP110..X..CBU “C Package”&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82161-5CG31 |
NCP110..X..CBU “C Package”&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 82161-5CG31 |
NCP110..X..CBU “C Package”&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82161-5CG21 |
NCP110..X..CBU “C Package” |
1 | ||
| 82161-5CG20 |
NCP110..X..CBU “C Package” |
1 | ||
| 82161-5CG30 |
NCP110..X..CBU “C Package”&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 82161-5CG40 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82161-5CG41 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82161-5CG31 |
NCP110..CBU |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-52370 |
NCP11#,ZSP110..CBU |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-52010 |
NCP110,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82183-52010 |
NCP110..CBU |
1 | ||
| 82345A - DIODE | ||||
| 82345-32010 |
NCP11#..CBU |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52710 |
NCP110,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| 82817-52710 |
NCP110..X..CBU “C Package”&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 82817-52710 |
NCP110..X..CBU “C Package” |
1 | ||
| 82817-52710 |
NCP110,ZSP110..CBU |
1 | ||
| 82817-52710 |
NCP110..CBU |
3 | ||
| 82817-52710 |
NCP110..X..CBU “C Package”&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82817-52710 |
NCP110..X..CBU “C Package”&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82817-52710 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52710 |
NCP110,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| 82817-52710 |
NCP110..X..CBU “C Package”&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 82817-52710 |
NCP110..X..CBU “C Package” |
1 | ||
| 82817-52710 |
NCP110,ZSP110..CBU |
1 | ||
| 82817-52710 |
NCP110..CBU |
3 | ||
| 82817-52710 |
NCP110..X..CBU “C Package”&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82817-52710 |
NCP110..X..CBU “C Package”&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82817-52710 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52710 |
NCP110,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| 82817-52710 |
NCP110..X..CBU “C Package”&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 82817-52710 |
NCP110..X..CBU “C Package” |
1 | ||
| 82817-52710 |
NCP110,ZSP110..CBU |
1 | ||
| 82817-52710 |
NCP110..CBU |
3 | ||
| 82817-52710 |
NCP110..X..CBU “C Package”&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82817-52710 |
NCP110..X..CBU “C Package”&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82817-52710 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52710 |
NCP110,ZSP110..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| 82817-52710 |
NCP110..X..CBU “C Package”&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵 |
1 | ||
| 82817-52710 |
NCP110..X..CBU “C Package” |
1 | ||
| 82817-52710 |
NCP110,ZSP110..CBU |
1 | ||
| 82817-52710 |
NCP110..CBU |
3 | ||
| 82817-52710 |
NCP110..X..CBU “C Package”&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾘﾔｺﾝﾋﾞﾈｰｼｮﾝﾗﾝﾌﾟ内蔵&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82817-52710 |
NCP110..X..CBU “C Package”&ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ) |
1 | ||
| 82817-52710 |
NCP110..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

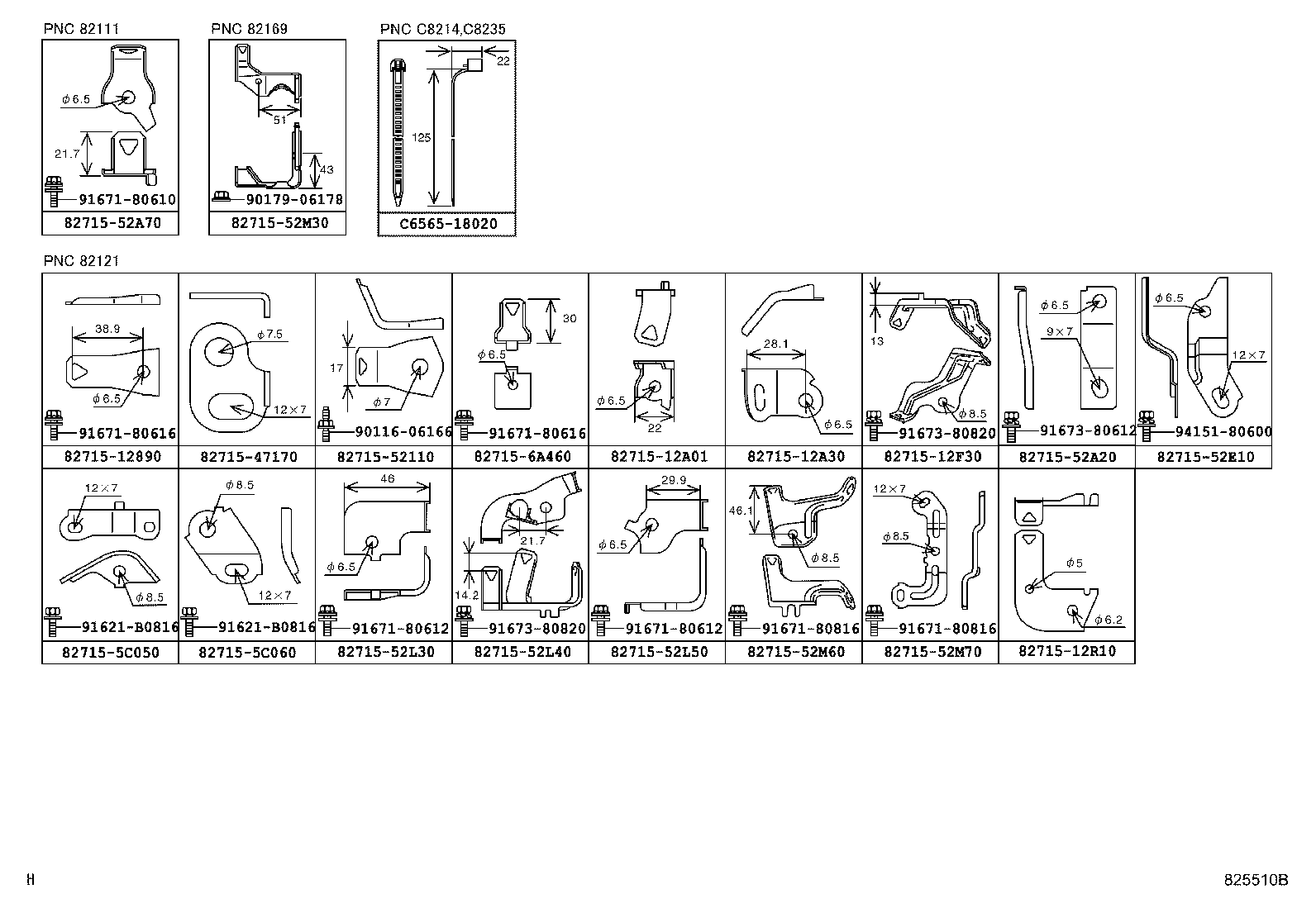

ILLUST NO. 8 OF 9(0707-1008)ZSP110 ; (0707- )NCP11#
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-12890 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12F30 | ||||
| 82715-12R10 | ||||
| 82715-47170 | ||||
| 82715-52110 | ||||
| 82715-52A20 | ||||
| 82715-52A70 | ||||
| 82715-52E10 | ||||
| 82715-52L30 | ||||
| 82715-52L40 | ||||
| 82715-52L50 | ||||
| 82715-52M30 | ||||
| 82715-52M60 | ||||
| 82715-52M70 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-6A460 | ||||
| 90116-06166 | ||||
| 90179-06178 | ||||
| 91621-B0816 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||
| C6565-18020 | ||||

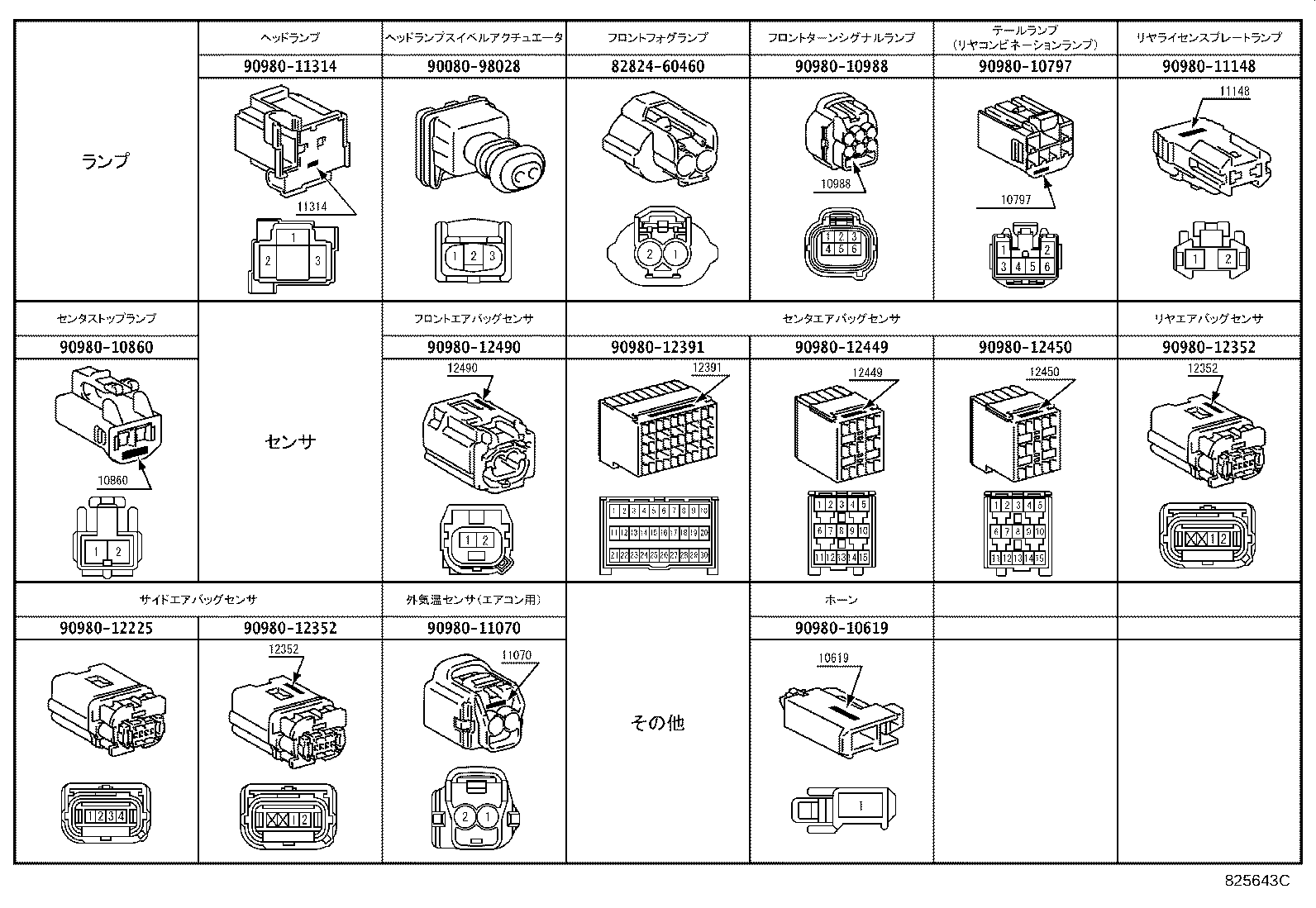

ILLUST NO. 9 OF 9(0707-1008)ZSP110 ; (0707- )NCP11#
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98028 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-10860 | ||||
| 90980-10988 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11314 | ||||
| 90980-12225 | ||||
| 90980-12352 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
ILLUST NO. 9 OF 9(0707-1008)ZSP110 ; (0707- )NCP11#
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12211 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
