NCP110-AHXEK (2007)
Toyota Ist
Production
Jul 2007
-
Apr 2016
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0707- )

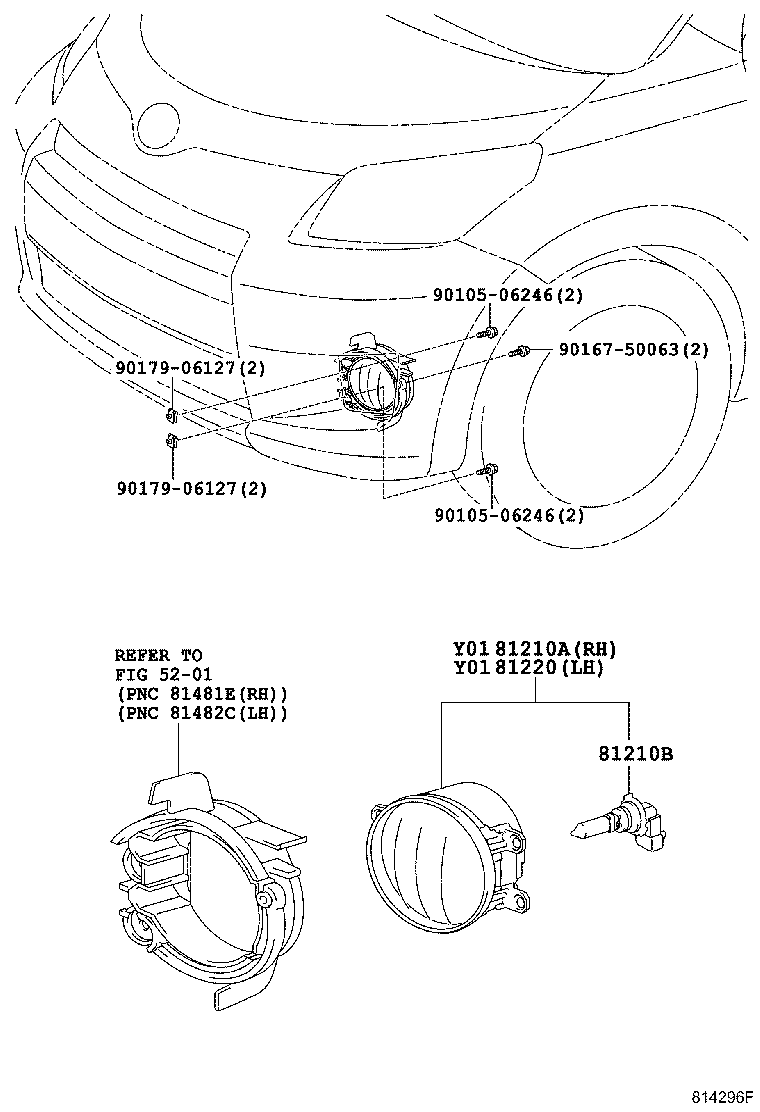

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-0D041 |
NCP11#..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP) |
1 | ||
| 81210-0D041 |
NCP11#,ZSP110..G..CBU |
1 | ||
| 81210-0D042 |
NCP11#,ZSP110..G..CBU |
1 | ||
| 81210-0D042 |
NCP11#..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP) |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13081 |
NCP11#,ZSP110..G..CBU 12V 55W,ﾊﾛｹﾞﾝ,OSRAM |
1 | ||
| 90981-13081 |
NCP11#..X..CBU 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP),OSRAM |
1 | ||
| 90981-13075 |
NCP11#,ZSP110..G..CBU 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS |
1 | ||
| 90981-13075 |
NCP11#..X..CBU 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP),PHILIPS |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-0D041 |
NCP11#..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP) |
1 | ||
| 81220-0D041 |
NCP11#,ZSP110..G..CBU |
1 | ||
| 81220-0D042 |
NCP11#..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP) |
1 | ||
| 81220-0D042 |
NCP11#,ZSP110..G..CBU |
1 | ||
| Common parts | ||||
| 90105-06246 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 5201 | ||||
