NCP110-AHXEK (2007)

Toyota Ist

Production Jul 2007 - Apr 2016
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0707-1008)ZSP110 ; (0707- )NCP11#

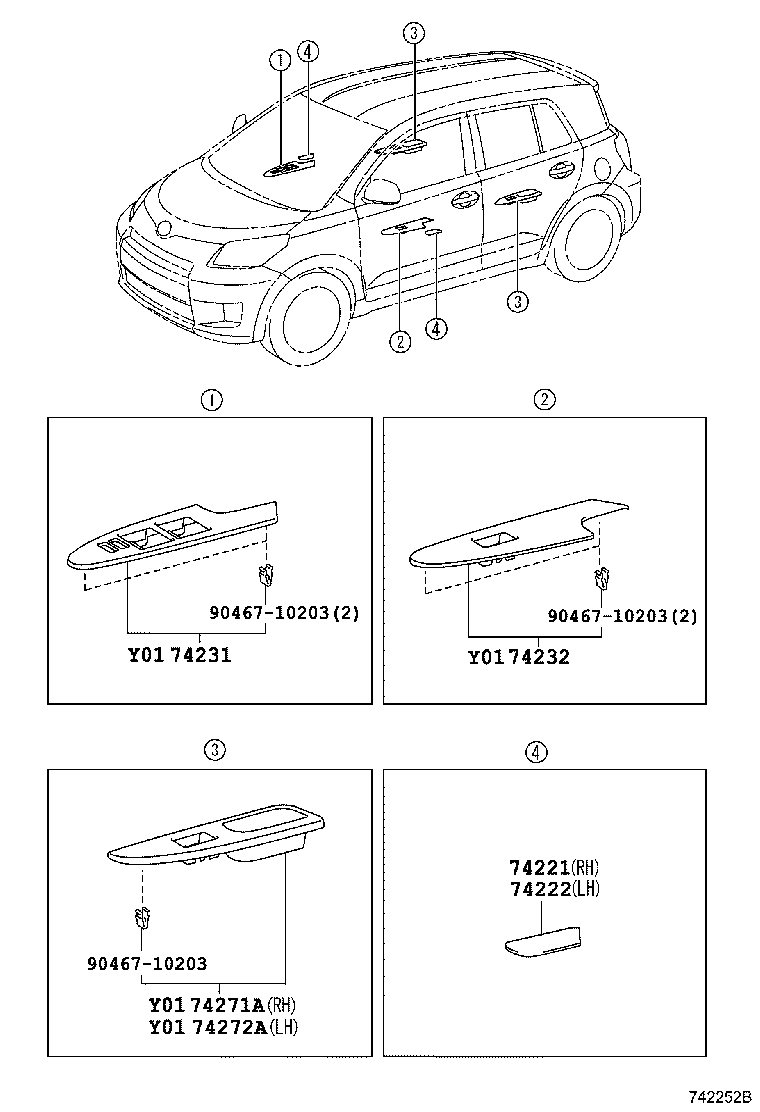

Click highlighted areas on diagram

ARMREST

diagram 74221 74222 74231 74232 74271A 74272A 9046710203 9046710203 9046710203
Part # Description Qty Price
74221 - COVER, DOOR ARMREST, RH
74221-52030

NCP11#,ZSP110..CBU

 1
74222 - COVER, DOOR ARMREST, LH
74222-52030

NCP11#,ZSP110..CBU

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-52340B0

NCP11#..G..CBU

150G“HID ｾﾚｸｼｮﾝ” *(T),SILVER,TRIM10

 1
74231-52690B0

NCP11#..CBU

GRAY,TRIM1#

 1
74231-52460C0

NCP11#,ZSP110..CBU

BLACK,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-52470B0

NCP11#..G..CBU

150G“HID ｾﾚｸｼｮﾝ” *(T),SILVER,TRIM10

 1
74232-52360C0

NCP11#,ZSP110..CBU

BLACK,TRIM1#

 1
74232-52610B0

NCP11#..CBU

GRAY,TRIM1#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-52250B0

NCP11#..CBU

GRAY,TRIM1#

 1
74271-52110C0

NCP11#,ZSP110..CBU

BLACK,TRIM1#

 1
74271-52170B0

NCP11#..G..CBU

150G“HID ｾﾚｸｼｮﾝ” *(T),SILVER,TRIM10

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-52160B0

NCP11#..G..CBU

150G“HID ｾﾚｸｼｮﾝ” *(T),SILVER,TRIM10

 1
74272-52100C0

NCP11#,ZSP110..CBU

BLACK,TRIM1#

 1
74272-52240B0

NCP11#..CBU

GRAY,TRIM1#

 1
Common parts
90467-10203

(0707-1008)ZSP110 ; (0707- )NCP11#

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74325 74336 74348B 74348C 74610A 74610A
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-52720B0

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#,ｺ−ｼﾖﾝﾗﾍﾞﾙ:MARK=LD

 1
74310-52721B0

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#,ｺ−ｼﾖﾝﾗﾍﾞﾙ:MARK=4G

 1
74320 - VISOR ASSY, LH
74320-52581B0

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#,ｺ−ｼﾖﾝﾗﾍﾞﾙ:MARK=4E

 1
74320-52580B0

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#,ｺ−ｼﾖﾝﾗﾍﾞﾙ:MARK=LE

 1
74325 - COVER, VISOR BRACKET
74317-52010B1

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#,右側

 1
74318-52020B1

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#,左側

 1
74336 - CLIP, VISOR ARM SET
74336-52010

NCP11#,ZSP110..CBU

 2
74348B - HOLDER, VISOR, RH
74348-33040B1

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#

 1
74348C - HOLDER, VISOR, LH
74348-33040B1

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#

 1
74610A - GRIP SUB-ASSY, ASSIST
74610-52030B1

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#,ｺｰﾄﾌｯｸ付き

 1
74610-52020B1

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#

 3
74610A - GRIP SUB-ASSY, ASSIST
74610-52030B1

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#,ｺｰﾄﾌｯｸ付き

 1
74610-52020B1

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#

 3
