NCP110-AHXEK (2007)

Toyota Ist

Production Jul 2007 - Apr 2016
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

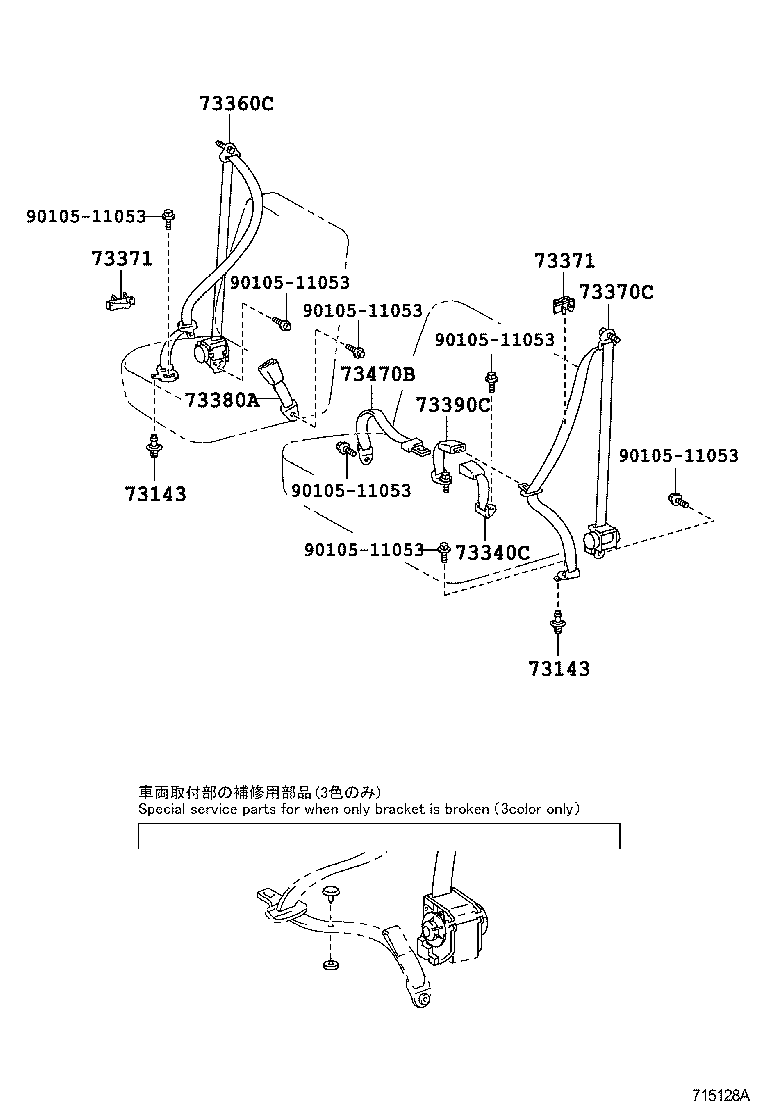

ILLUST NO. 2 OF 3(0707-1008)ZSP110 ; (0707-1206)NCP110

Click highlighted areas on diagram

ﾘﾔｼｰﾄﾍﾞﾙﾄ(ｽﾗｲﾄﾞｼｰﾄ)

diagram 73143 73143 73340C 73360C 73370C 73371 73371 73380A 73390C 73470B 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053
Part # Description Qty Price
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP11#..CBU

 2
73143-52011

NCP11#..CBU

 2
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP11#..CBU

 2
73143-52011

NCP11#..CBU

 2
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73340-52060B0

NCP110,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73340-52060C0

NCP110..CBU

BLACK,TRIM1#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-52250B0

NCP11#,ZSP110..CBU

BLACK,TRIM1#

 1
73360-52350C0

NCP11#..CBU

BLACK,TRIM1#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-52310C0

NCP11#..CBU

BLACK,TRIM1#

 1
73370-52210B0

NCP11#,ZSP110..CBU

BLACK,TRIM1#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020C0

NCP11#..CBU

BLACK,TRIM1#

 2
73371-44020B6

NCP11#,ZSP110..CBU

DK.GRAY,TRIM1#

 2
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020C0

NCP11#..CBU

BLACK,TRIM1#

 2
73371-44020B6

NCP11#,ZSP110..CBU

DK.GRAY,TRIM1#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-52110B0

NCP110,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73380-52110C0

NCP110..CBU

BLACK,TRIM1#

 1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73390-52040B0

NCP110,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73390-52040C0

NCP110..CBU

BLACK,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52380B0

NCP110,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73330-52071C0

NCP110..CBU

BLACK,TRIM1#

 1
73470-52380C0

NCP110..CBU

BLACK,TRIM1#

 1
Common parts
90105-11053

ILLUST NO. 2 OF 2(0707- )NCP110

Click highlighted areas on diagram

ﾘﾔ ｼｰﾄ

diagram 73135D 73139A 73143 73143 73310 73340C 73360C 73370C 73371 73371 73380A 73390C 73470B 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053
Part # Description Qty Price
73135D - COVER, SHOULDER BELT ANCHOR, NO.1 RH
73137-52030B0

NCP11#..CBU

LT.GRAY,TRIM1#

 1
73139A - COVER, SEAT BELT ANCHOR
73139-52050B0

NCP11#..CBU

LT.GRAY,TRIM1#

 1
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP11#..CBU

 2
73143-52011

NCP11#..CBU

 2
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP11#..CBU

 2
73143-52011

NCP11#..CBU

 2
73310 - BELT ASSY, REAR SEAT 3 POINT TYPE, RH
73310-52110C0

NCP11#..CBU

BLACK,TRIM1#

 1
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73340-52060B0

NCP110,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73340-52060C0

NCP110..CBU

BLACK,TRIM1#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-52250B0

NCP11#,ZSP110..CBU

BLACK,TRIM1#

 1
73360-52350C0

NCP11#..CBU

BLACK,TRIM1#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-52310C0

NCP11#..CBU

BLACK,TRIM1#

 1
73370-52210B0

NCP11#,ZSP110..CBU

BLACK,TRIM1#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020C0

NCP11#..CBU

BLACK,TRIM1#

 2
73371-44020B6

NCP11#,ZSP110..CBU

DK.GRAY,TRIM1#

 2
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020C0

NCP11#..CBU

BLACK,TRIM1#

 2
73371-44020B6

NCP11#,ZSP110..CBU

DK.GRAY,TRIM1#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-52110B0

NCP110,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73380-52110C0

NCP110..CBU

BLACK,TRIM1#

 1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73390-52040B0

NCP110,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73390-52040C0

NCP110..CBU

BLACK,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52380B0

NCP110,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73330-52071C0

NCP110..CBU

BLACK,TRIM1#

 1
73470-52380C0

NCP110..CBU

BLACK,TRIM1#

 1
Common parts
90105-11053

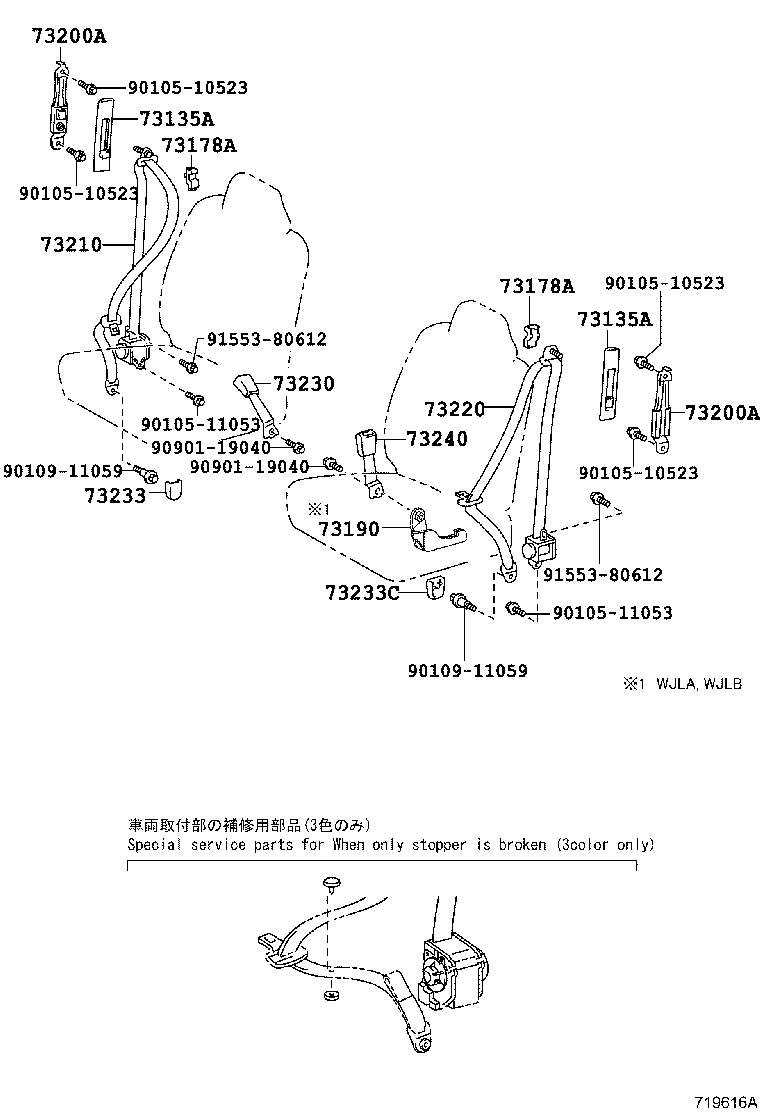

ILLUST NO. 1 OF 3(0707- )

Click highlighted areas on diagram

ﾌﾛﾝﾄｼｰﾄﾍﾞﾙﾄ

diagram 73135A 73135A 73178A 73178A 73190 73200A 73200A 73210 73220 73230 73233 73233C 73240 9010510523 9010510523 9010510523 9010510523 9010511053 9010511053 9010911059 9010911059 9090119040 9090119040 9155380612 9155380612
Part # Description Qty Price
73135A - COVER, SHOULDER BELT ANCHOR, RH
73135-52020B2

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#

 2
73135A - COVER, SHOULDER BELT ANCHOR, RH
73135-52020B2

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-52020B2

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-52020B2

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52050B2

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52050B2

NCP11#,ZSP110..CBU

LT.GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52680B0

NCP11#,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73210-52683B1

NCP11#..CBU

LT.GRAY,TRIM1#

 1
73210-52682B1

NCP11#..CBU

LT.GRAY,TRIM1#

 1
73210-52681B0

NCP11#,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73210-52681B1

NCP11#..CBU

LT.GRAY/BLACK,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52701B1

NCP11#..CBU

LT.GRAY/BLACK,TRIM1#

 1
73220-52700B0

NCP11#,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73220-52703B1

NCP11#..CBU

LT.GRAY,TRIM1#

 1
73220-52701B0

NCP11#,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73220-52702B1

NCP11#..CBU

LT.GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52492C0

NCP11#..CBU

BLACK,TRIM1#

 1
73230-52491B0

NCP11#,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73230-52491C0

NCP11#..CBU

BLACK,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-52010B1

NCP11#,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73233-60020C0

NCP11#..CBU

BLACK,TRIM1#

 1
73233-52010C0

NCP11#..CBU

BLACK,TRIM1#

 1
73233C - COVER, LAP BELT OUTER ANCHOR, LH
73233-52010C0

NCP11#..CBU

BLACK,TRIM1#

 1
73233-52010B1

NCP11#,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73233-60020C0

NCP11#..CBU

BLACK,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52501C0

NCP11#..CBU

BLACK,TRIM1#

 1
73230-52501B0

NCP11#,ZSP110..CBU

DK.GRAY,TRIM1#

 1
73230-52502C0

NCP11#..CBU

BLACK,TRIM1#

 1
Common parts
90105-10523
90105-11053
90109-11059
90901-19040
91553-80612
