NCP110-AHXEK (2007)
Toyota Ist

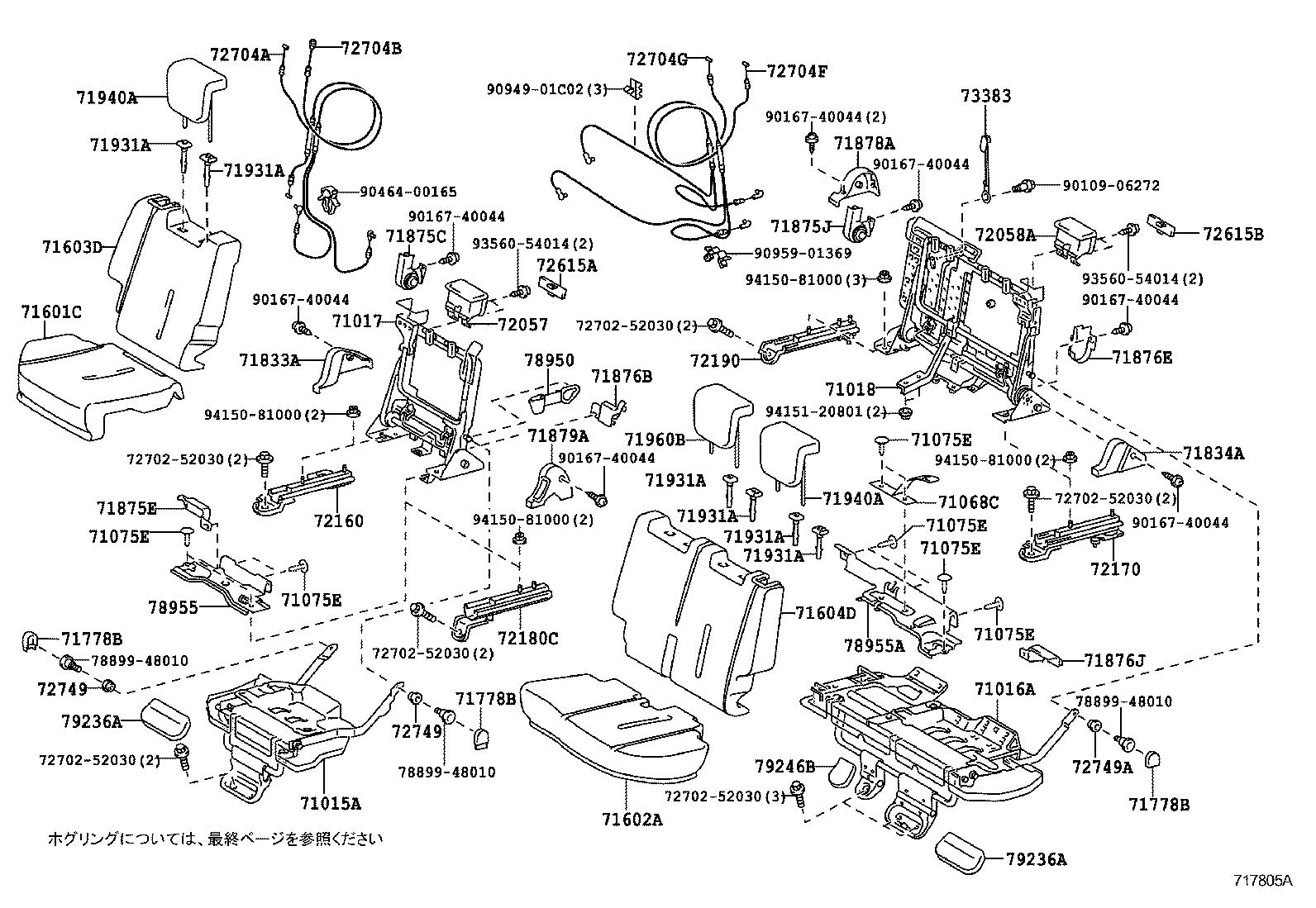

(0707-1206)NCP110,ZSP110
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-52410 |
NCP110,ZSP110..CBU |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-52060 |
NCP110,ZSP110..CBU |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52550 |
NCP110,ZSP110..CBU |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52400 |
NCP110,ZSP110..CBU |
1 | ||
| 71018-52420 |
NCP110..CBU |
1 | ||
| 71068C - PLATE SUB-ASSY, REAR SEAT LEG, LH | ||||
| 71068-52010 |
NCP110,ZSP110..CBU |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
10 | ||
| 71601C - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH | ||||
| 71601-52L50B0 |
NCP110..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),DK.GRAY,TRIM10 |
1 | ||
| 71601-52F90B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM10 |
1 | ||
| 71601-52F90B1 |
NCP110,ZSP110..CBU GRAY,TRIM11 |
1 | ||
| 71601-52F91B2 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71601-52Q20B1 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71602A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH | ||||
| 71602-52441B2 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71602-52440B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM10 |
1 | ||
| 71602-52630B0 |
NCP110..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),DK.GRAY,TRIM10 |
1 | ||
| 71602-52440B1 |
NCP110,ZSP110..CBU GRAY,TRIM11 |
1 | ||
| 71602-52820B1 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52J60B4 |
NCP110,ZSP110..CBU DK.GRAY,TRIM10 |
1 | ||
| 71603-52J61B6 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71603-52J60B5 |
NCP110,ZSP110..CBU GRAY,TRIM11 |
1 | ||
| 71603-52R70B0 |
NCP110..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),DK.GRAY,TRIM10 |
1 | ||
| 71603-52W20B0 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71603-52V50B1 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52G21B6 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71604-52G20B5 |
NCP110,ZSP110..CBU GRAY,TRIM11 |
1 | ||
| 71604-52G20B4 |
NCP110,ZSP110..CBU DK.GRAY,TRIM10 |
1 | ||
| 71604-52N10B0 |
NCP110..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),DK.GRAY,TRIM10 |
1 | ||
| 71604-52Q50B1 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71604-52R20B0 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52010B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
3 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52010B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
3 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52010B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
3 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-52060B1 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-52060B1 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52121B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52130B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71875J - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52141B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52140B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52121B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876J - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52130B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-52070B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-52090B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM10 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM11 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B7 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM11 |
2 | ||
| 71931-42020B4 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM10,11 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM10 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM11 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B7 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM11 |
2 | ||
| 71931-42020B4 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM10,11 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM10 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM11 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B7 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM11 |
2 | ||
| 71931-42020B4 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM10,11 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM10 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM11 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B7 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM11 |
2 | ||
| 71931-42020B4 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM10,11 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52491B0 |
NCP11#..CBU DK.GRAY,TRIM1# |
2 | ||
| 71940-52490B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM10 |
2 | ||
| 71940-52490B1 |
NCP11#,ZSP110..CBU GRAY,TRIM11 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52491B0 |
NCP11#..CBU DK.GRAY,TRIM1# |
2 | ||
| 71940-52490B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM10 |
2 | ||
| 71940-52490B1 |
NCP11#,ZSP110..CBU GRAY,TRIM11 |
2 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-52010B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-52010B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-52020 |
NCP110,ZSP110..CBU |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-52030 |
NCP110,ZSP110..CBU |
1 | ||
| 72180C - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72160-52030 |
NCP110,ZSP110..CBU |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72170-52020 |
NCP110,ZSP110..CBU |
1 | ||
| 72170-52080 |
NCP110..CBU |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52070B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 72615B - COVER, REAR SEAT LOCK STRIKER, RH | ||||
| 72615-52070B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-52010 |
NCP110,ZSP110..CBU |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-52150 |
NCP11#,ZSP110..CBU |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-52170 |
NCP110,ZSP110..CBU |
1 | ||
| 72704F - CABLE, REAR SEAT RECLINING CONTROL, NO.3 | ||||
| 72704-52160 |
NCP11#,ZSP110..CBU |
1 | ||
| 72704G - CABLE, REAR SEAT RECLINING CONTROL, NO.4 | ||||
| 72704-52180 |
NCP110,ZSP110..CBU |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP110,ZSP110..CBU |
2 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP110,ZSP110..CBU |
2 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP110,ZSP110..CBU |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-52030 |
NCP110,ZSP110..CBU |
1 | ||
| 78955 - COVER, REAR SEAT UNDER TRAY RH | ||||
| 78955-52010 |
NCP110,ZSP110..CBU |
1 | ||
| 78955-52010B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 78955A - COVER, REAR SEAT UNDER TRAY | ||||
| 78955-52020 |
NCP110,ZSP110..CBU |
1 | ||
| 78955-52020B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-52020C0 |
NCP110,ZSP110..CBU BLACK,TRIM1# |
2 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-52020C0 |
NCP110,ZSP110..CBU BLACK,TRIM1# |
2 | ||
| 79246B - COVER, NO.2 SEAT LEG, B | ||||
| 79246-52020C0 |
NCP110,ZSP110..CBU BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 78899-48010 | ||||
| 90167-40044 | ||||
| 90464-00165 | ||||
| 90949-01C02 | ||||
| 90959-01369 | ||||
| 93560-54014 | ||||
| 94150-81000 | ||||
| 94151-20801 | ||||

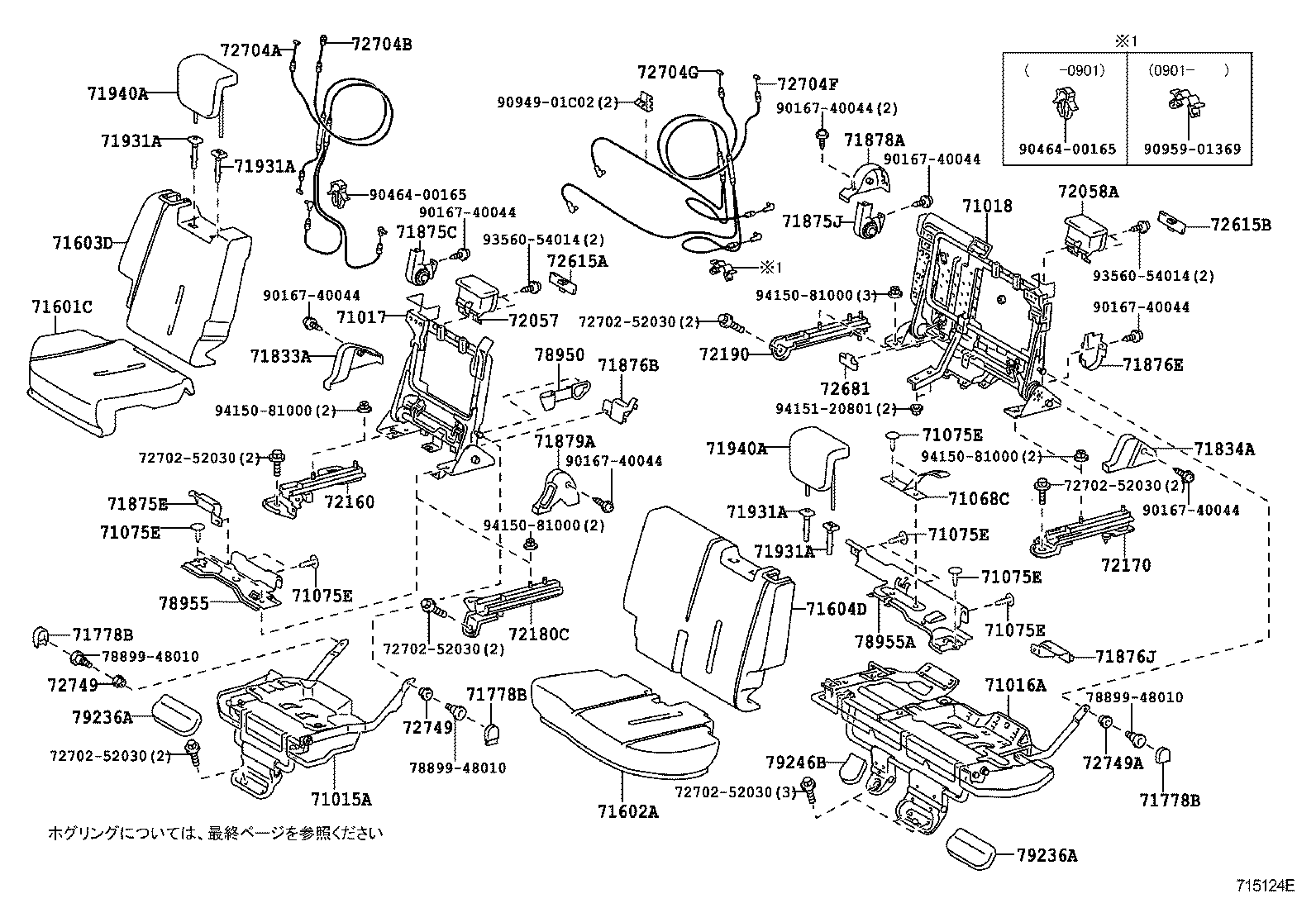

(1206- )NCP110
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-52410 |
NCP110,ZSP110..CBU |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-52060 |
NCP110,ZSP110..CBU |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52550 |
NCP110,ZSP110..CBU |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52400 |
NCP110,ZSP110..CBU |
1 | ||
| 71018-52420 |
NCP110..CBU |
1 | ||
| 71068C - PLATE SUB-ASSY, REAR SEAT LEG, LH | ||||
| 71068-52010 |
NCP110,ZSP110..CBU |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
10 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
10 | ||
| 71601C - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH | ||||
| 71601-52L50B0 |
NCP110..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),DK.GRAY,TRIM10 |
1 | ||
| 71601-52F90B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM10 |
1 | ||
| 71601-52F90B1 |
NCP110,ZSP110..CBU GRAY,TRIM11 |
1 | ||
| 71601-52F91B2 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71601-52Q20B1 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71602A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH | ||||
| 71602-52441B2 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71602-52440B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM10 |
1 | ||
| 71602-52630B0 |
NCP110..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),DK.GRAY,TRIM10 |
1 | ||
| 71602-52440B1 |
NCP110,ZSP110..CBU GRAY,TRIM11 |
1 | ||
| 71602-52820B1 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52J60B4 |
NCP110,ZSP110..CBU DK.GRAY,TRIM10 |
1 | ||
| 71603-52J61B6 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71603-52J60B5 |
NCP110,ZSP110..CBU GRAY,TRIM11 |
1 | ||
| 71603-52R70B0 |
NCP110..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),DK.GRAY,TRIM10 |
1 | ||
| 71603-52W20B0 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71603-52V50B1 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52G21B6 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71604-52G20B5 |
NCP110,ZSP110..CBU GRAY,TRIM11 |
1 | ||
| 71604-52G20B4 |
NCP110,ZSP110..CBU DK.GRAY,TRIM10 |
1 | ||
| 71604-52N10B0 |
NCP110..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),DK.GRAY,TRIM10 |
1 | ||
| 71604-52Q50B1 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71604-52R20B0 |
NCP110..CBU GRAY,TRIM1# |
1 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52010B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
3 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52010B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
3 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-52010B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
3 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-52060B1 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-52060B1 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52121B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52130B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71875J - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52141B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52140B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52121B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71876J - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52130B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-52070B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-52090B2 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM10 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM11 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B7 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM11 |
2 | ||
| 71931-42020B4 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM10,11 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM10 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM11 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B7 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM11 |
2 | ||
| 71931-42020B4 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM10,11 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM10 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM11 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B7 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM11 |
2 | ||
| 71931-42020B4 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM10,11 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM10 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM11 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B7 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM11 |
2 | ||
| 71931-42020B4 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM10,11 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM10 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM11 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B7 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM11 |
2 | ||
| 71931-42020B4 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM10,11 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM10 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B1 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM11 |
2 | ||
| 71930-52030B0 |
NCP11#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B7 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM11 |
2 | ||
| 71931-42020B4 |
NCP11#,ZSP110..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM10,11 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52491B0 |
NCP11#..CBU DK.GRAY,TRIM1# |
2 | ||
| 71940-52490B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM10 |
2 | ||
| 71940-52490B1 |
NCP11#,ZSP110..CBU GRAY,TRIM11 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52491B0 |
NCP11#..CBU DK.GRAY,TRIM1# |
2 | ||
| 71940-52490B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM10 |
2 | ||
| 71940-52490B1 |
NCP11#,ZSP110..CBU GRAY,TRIM11 |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52321B0 |
NCP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-52010B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-52010B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-52020 |
NCP110,ZSP110..CBU |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-52030 |
NCP110,ZSP110..CBU |
1 | ||
| 72180C - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72160-52030 |
NCP110,ZSP110..CBU |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72170-52020 |
NCP110,ZSP110..CBU |
1 | ||
| 72170-52080 |
NCP110..CBU |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52070B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 72615B - COVER, REAR SEAT LOCK STRIKER, RH | ||||
| 72615-52070B0 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-52150 |
NCP11#,ZSP110..CBU |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-52170 |
NCP110,ZSP110..CBU |
1 | ||
| 72704F - CABLE, REAR SEAT RECLINING CONTROL, NO.3 | ||||
| 72704-52160 |
NCP11#,ZSP110..CBU |
1 | ||
| 72704G - CABLE, REAR SEAT RECLINING CONTROL, NO.4 | ||||
| 72704-52180 |
NCP110,ZSP110..CBU |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP110,ZSP110..CBU |
2 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP110,ZSP110..CBU |
2 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP110,ZSP110..CBU |
1 | ||
| 73383 - HOOK, RR SEAT BELT | ||||
| 73383-33020 |
NCP11#..CBU |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-52030 |
NCP110,ZSP110..CBU |
1 | ||
| 78955 - COVER, REAR SEAT UNDER TRAY RH | ||||
| 78955-52010 |
NCP110,ZSP110..CBU |
1 | ||
| 78955-52010B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 78955A - COVER, REAR SEAT UNDER TRAY | ||||
| 78955-52020 |
NCP110,ZSP110..CBU |
1 | ||
| 78955-52020B0 |
NCP110,ZSP110..CBU DK.GRAY,TRIM1# |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-52020C0 |
NCP110,ZSP110..CBU BLACK,TRIM1# |
2 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-52020C0 |
NCP110,ZSP110..CBU BLACK,TRIM1# |
2 | ||
| 79246B - COVER, NO.2 SEAT LEG, B | ||||
| 79246-52020C0 |
NCP110,ZSP110..CBU BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 78899-48010 | ||||
| 90109-06272 | ||||
| 90167-40044 | ||||
| 90464-00165 | ||||
| 90949-01C02 | ||||
| 90959-01369 | ||||
| 93560-54014 | ||||
| 94150-81000 | ||||
| 94151-20801 | ||||
(0707- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
