NCP110-AHXEK (2007)
Toyota Ist

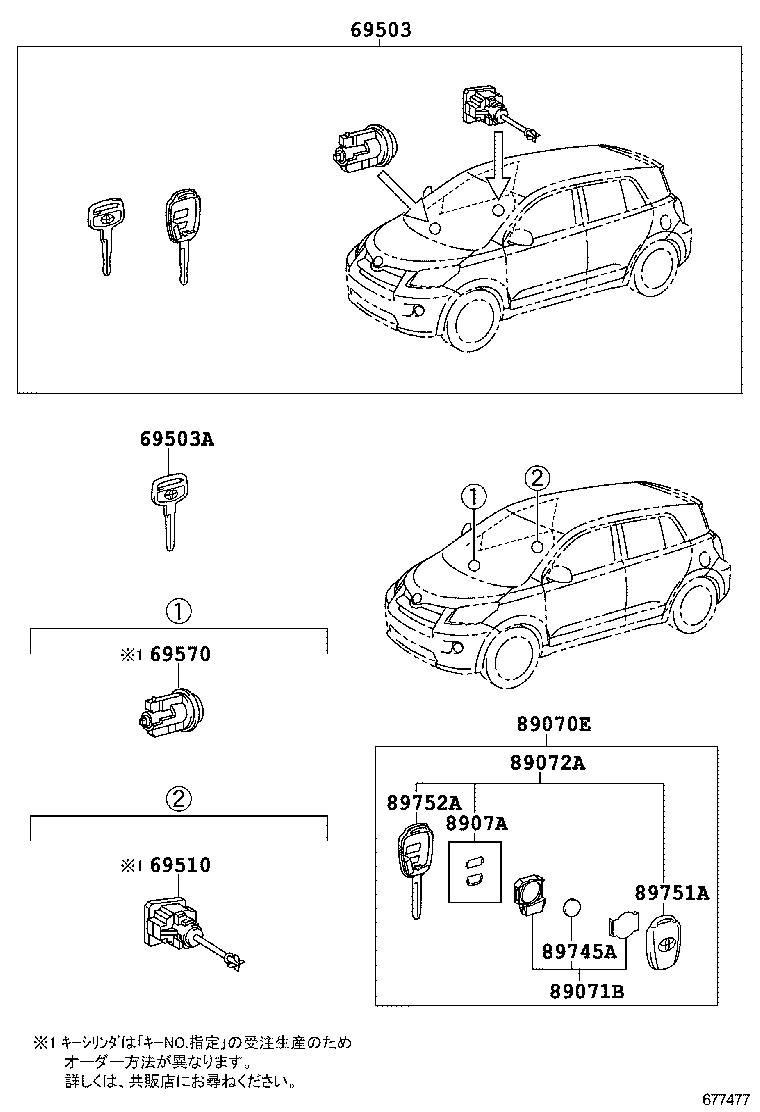

(0707-1008)ZSP110 ; (0707-1206)NCP11#
ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-52E70 |
NCP11#..CBU |
1 | ||
| 69005-5C160 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 69005-52P30 |
NCP11#..CBU |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-52120 |
NCP11#..CBU ﾏｽﾀｰｷｰ,W(*68),ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(vｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 90999-00186 |
NCP11#..CBU ﾏｽﾀｰｷｰ |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-52220 |
NCP11#..CBU |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-52080 |
NCP11#..CBU |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-52820 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),LEc付き |
1 | ||
| 89070-52820 |
NCP11#..CBU LED付き |
1 | ||
| 89070-68180 |
NCP11#..CBU |
1 | ||
| 89070-68180 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89070-68130 |
NCP11#..CBU LED無し |
1 | ||
| 89070-68130 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),LEc無し |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-52240 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89071-52200 |
NCP11#..CBU LED付き |
1 | ||
| 89071-68030 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),LEc無し |
1 | ||
| 89071-52200 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),LEc付き |
1 | ||
| 89071-52240 |
NCP11#..CBU |
1 | ||
| 89071-68030 |
NCP11#..CBU LED無し |
1 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-52420 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89072-68050 |
NCP11#..CBU |
1 | ||
| 89072-68050 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89072-52420 |
NCP11#..CBU |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-52010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 8907A-52010 |
NCP11#..CBU |
1 | ||
| 8907A-71010 |
NCP11#..CBU |
1 | ||
| 8907A-71010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-71010 |
NCP11#..CBU CR2016 |
1 | ||
| 89745-71010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89745-52020 |
NCP11#..CBU CR1632,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰg付き) |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-52140 |
NCP11#..CBU |
1 | ||
| 89751-42090 |
NCP11#..CBU |
1 | ||
| 89751-52140 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89751-42090 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-12080 |
NCP11#..CBU |
1 | ||
| 89752-68080 |
NCP11#..CBU |
1 | ||
| 89752-12080 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89752-68080 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||

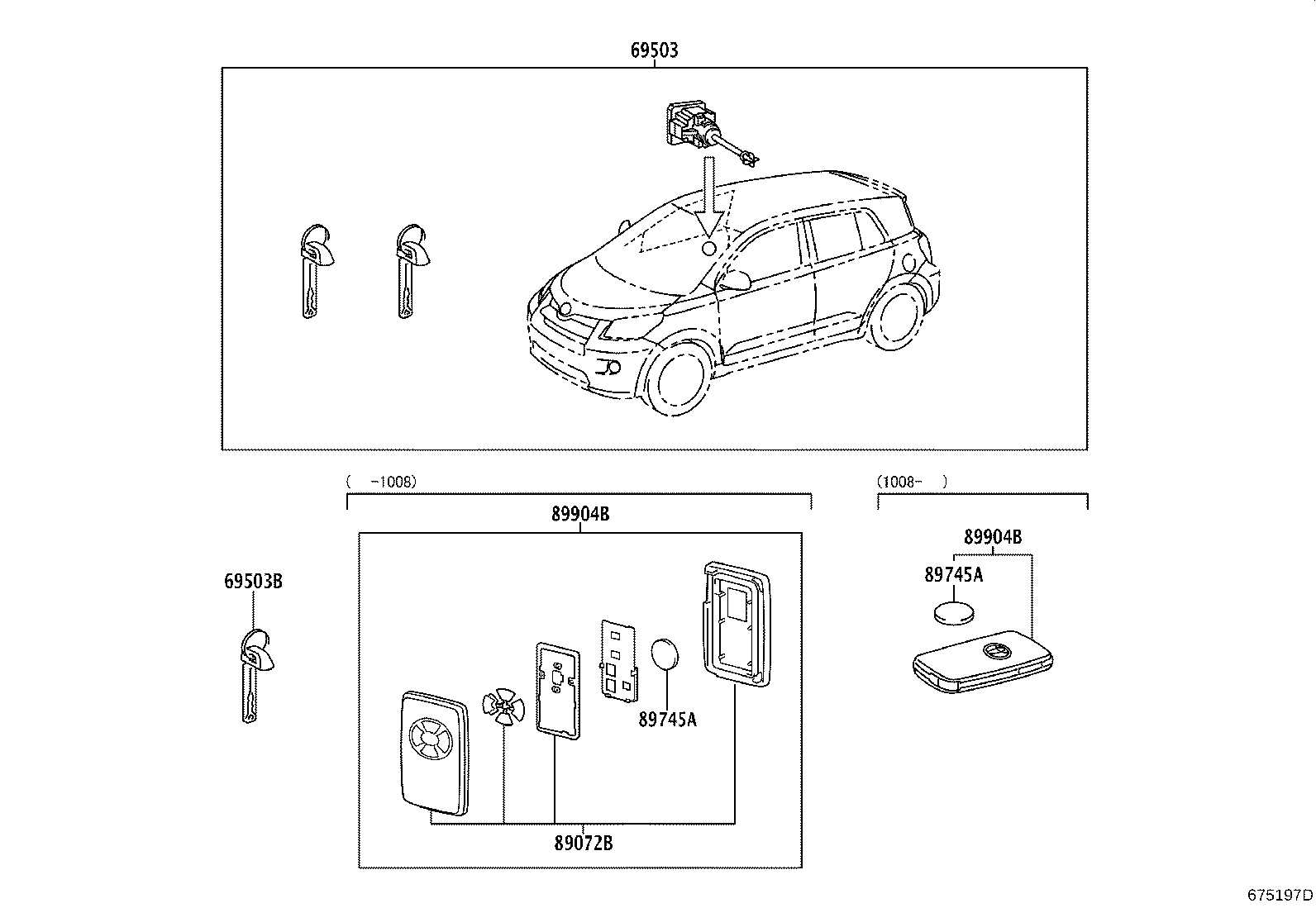

(0707-1008)ZSP110 ; (0707- )NCP11#
ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-52E70 |
NCP11#..CBU |
1 | ||
| 69005-5C160 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 69005-52P30 |
NCP11#..CBU |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-52110 |
NCP11#..CBU ﾏｽﾀｰｷｰ,W(*68),ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(vｯｼｭｽﾀｰﾄ付き) |
2 | ||
| 89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY) | ||||
| 89072-12450 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-71010 |
NCP11#..CBU CR2016 |
1 | ||
| 89745-71010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89745-52020 |
NCP11#..CBU CR1632,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰg付き) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-71010 |
NCP11#..CBU CR2016 |
1 | ||
| 89745-71010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89745-52020 |
NCP11#..CBU CR1632,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰg付き) |
1 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-52220 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
2 | ||
| 89904-52220 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
2 | ||
| 89904-52060 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-52220 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
2 | ||
| 89904-52220 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
2 | ||
| 89904-52060 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||

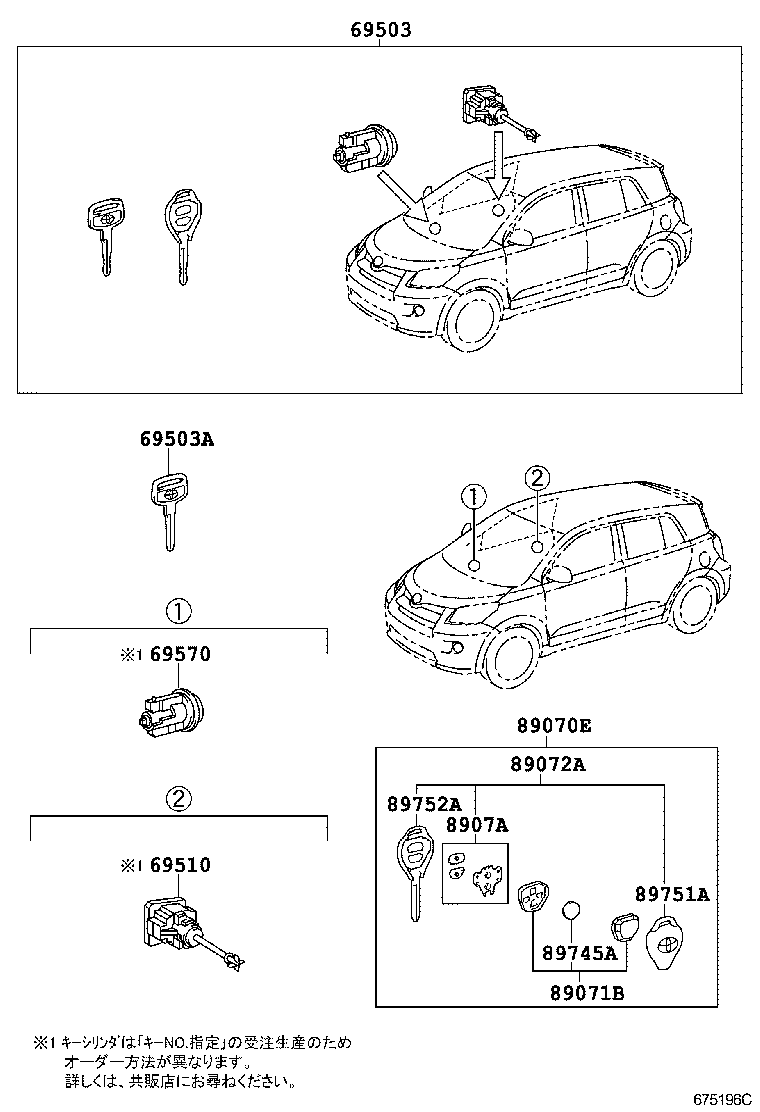

(1206- )
ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-52E70 |
NCP11#..CBU |
1 | ||
| 69005-5C160 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 69005-52P30 |
NCP11#..CBU |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-52120 |
NCP11#..CBU ﾏｽﾀｰｷｰ,W(*68),ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(vｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 90999-00186 |
NCP11#..CBU ﾏｽﾀｰｷｰ |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-52220 |
NCP11#..CBU |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-52080 |
NCP11#..CBU |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-52820 |
NCP11#..CBU LED付き |
1 | ||
| 89070-52820 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),LEc付き |
1 | ||
| 89070-68180 |
NCP11#..CBU |
1 | ||
| 89070-68180 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89070-68130 |
NCP11#..CBU LED無し |
1 | ||
| 89070-68130 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),LEc無し |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-52240 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89071-52200 |
NCP11#..CBU LED付き |
1 | ||
| 89071-68030 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),LEc無し |
1 | ||
| 89071-52200 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),LEc付き |
1 | ||
| 89071-52240 |
NCP11#..CBU |
1 | ||
| 89071-68030 |
NCP11#..CBU LED無し |
1 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-52420 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89072-68050 |
NCP11#..CBU |
1 | ||
| 89072-68050 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89072-52420 |
NCP11#..CBU |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-52010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 8907A-52010 |
NCP11#..CBU |
1 | ||
| 8907A-71010 |
NCP11#..CBU |
1 | ||
| 8907A-71010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-71010 |
NCP11#..CBU CR2016 |
1 | ||
| 89745-71010 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89745-52020 |
NCP11#..CBU CR1632,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰg付き) |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-52140 |
NCP11#..CBU |
1 | ||
| 89751-42090 |
NCP11#..CBU |
1 | ||
| 89751-52140 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89751-42090 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-12080 |
NCP11#..CBU |
1 | ||
| 89752-68080 |
NCP11#..CBU |
1 | ||
| 89752-12080 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 89752-68080 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
