NCP110-AHXEK (2007)
Toyota Ist
ILLUST NO. 2 OF 2(0707-1008)ZSP110 ; (0707- )NCP11#
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-52L31B0 |
NCP11#..CBU DK.GRAY,TRIM1# |
1 | ||
| 67630-52L32B0 |
NCP11#..CBU DK.GRAY,TRIM1# |
1 | ||
| 67630-52L30B2 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM10 |
1 | ||
| 67630-52L30B3 |
NCP11#,ZSP110..CBU LT.GRAY,TRIM11 |
1 | ||
| 67630-52T10B0 |
NCP11#..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),DK.GRAY,TRIM10 |
1 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
NCP11#,ZSP110..CBU |
14 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-52S50B0 |
NCP11#..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),DK.GRAY,TRIM10 |
1 | ||
| 67640-52P01B0 |
NCP11#..CBU DK.GRAY,TRIM1# |
1 | ||
| 67640-52P00B2 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM10 |
1 | ||
| 67640-52P02B0 |
NCP11#..CBU DK.GRAY,TRIM1# |
1 | ||
| 67640-52P00B3 |
NCP11#,ZSP110..CBU LT.GRAY,TRIM11 |
1 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67625-52110 |
NCP11#,ZSP110..CBU |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67625-52110 |
NCP11#,ZSP110..CBU |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-52140 |
NCP11#,ZSP110..CBU |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-52140 |
NCP11#,ZSP110..CBU |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-50031 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||

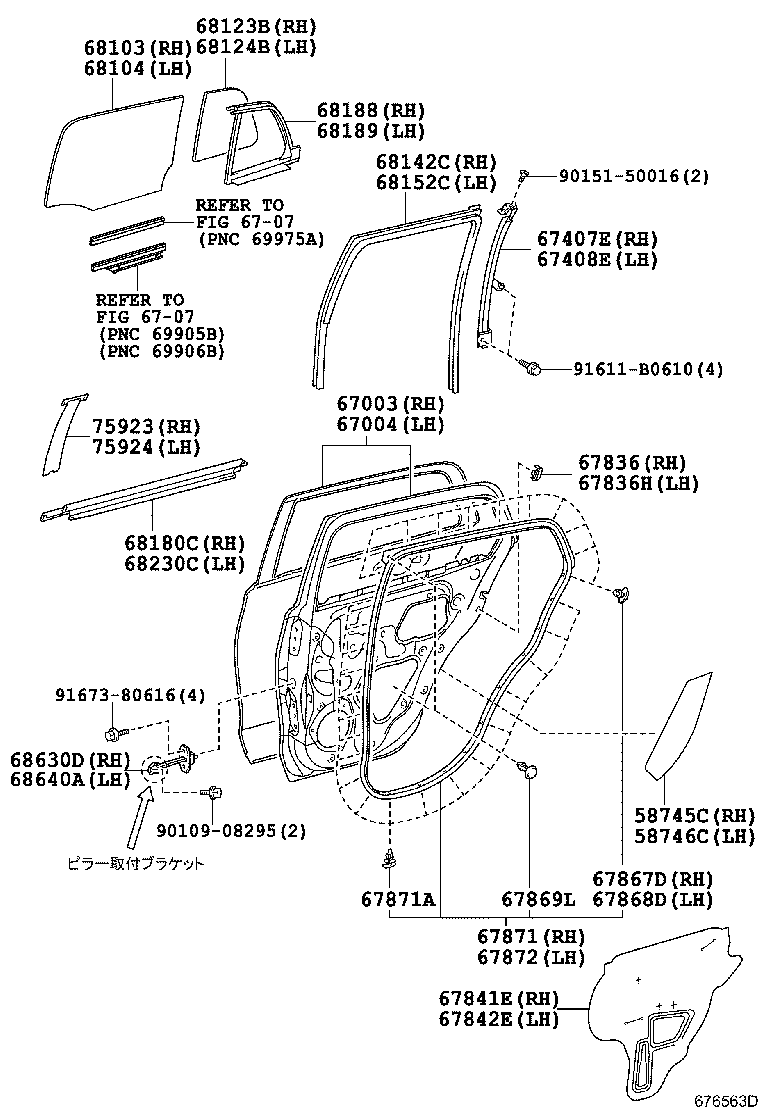

ILLUST NO. 1 OF 2(0707-1008)ZSP110 ; (0707- )NCP11#
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58745C - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 58745-52090 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 58746C - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 58746-52100 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-52410 |
NCP11#,ZSP110..CBU |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-52400 |
NCP11#,ZSP110..CBU |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-52150 |
NCP11#,ZSP110..CBU |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-52150 |
NCP11#,ZSP110..CBU |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-33030 |
NCP11#..CBU |
1 | ||
| 67836-12040 |
NCP11#,ZSP110..CBU |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
NCP11#,ZSP110..CBU |
1 | ||
| 67836-33030 |
NCP11#..CBU |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-52280 |
NCP11#,ZSP110..CBU |
1 | ||
| 67841-52270 |
NCP11#,ZSP110..CBU |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-52160 |
NCP11#,ZSP110..CBU |
1 | ||
| 67842-52170 |
NCP11#,ZSP110..CBU |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
NCP11#,ZSP110..CBU |
10 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-52010 |
NCP11#,ZSP110..CBU |
10 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 90467-06084 |
NCP11#,ZSP110..CBU |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-52160 |
NCP11#,ZSP110..CBU |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
NCP11#,ZSP110..CBU |
38 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-52180 |
NCP11#,ZSP110..CBU |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-52290 |
NCP11#..X..CBU *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ,“C Package” |
1 | ||
| 68113-52300 |
NCP11#,ZSP110..CBU *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-52300 |
NCP11#,ZSP110..CBU *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68114-52290 |
NCP11#..X..CBU *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ,“C Package” |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-52180 |
NCP11#,ZSP110..CBU *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68123-52170 |
NCP11#..X..CBU *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ,“C Package” |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-52180 |
NCP11#,ZSP110..CBU *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68124-52170 |
NCP11#..X..CBU *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ,“C Package” |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-52180 |
NCP11#,ZSP110..CBU |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-52190 |
NCP11#,ZSP110..CBU |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-52140 |
NCP11#,ZSP110..CBU |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-52090 |
NCP11#,ZSP110..CBU |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-52090 |
NCP11#,ZSP110..CBU |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-52140 |
NCP11#,ZSP110..CBU |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-52091 |
NCP11#,ZSP110..CBU ﾋﾟﾗｰ取付ﾌﾞﾗｹｯﾄ:ｼﾙﾊﾞｰ |
1 | ||
| 68630-52090 |
NCP11#,ZSP110..CBU ﾋﾟﾗｰ取付ﾌﾞﾗｹｯﾄ:ﾌﾞﾗｯｸ |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-52100 |
NCP11#,ZSP110..CBU ﾋﾟﾗｰ取付ﾌﾞﾗｹｯﾄ:ﾌﾞﾗｯｸ |
1 | ||
| 68640-52101 |
NCP11#,ZSP110..CBU ﾋﾟﾗｰ取付ﾌﾞﾗｹｯﾄ:ｼﾙﾊﾞｰ |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-52100 |
NCP11#,ZSP110..CBU |
1 | ||
| 75923-52100 |
NCP11#..CBU |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-52100 |
NCP11#,ZSP110..CBU |
1 | ||
| 75924-52100 |
NCP11#..CBU |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90151-50016 | ||||
| 91611-B0610 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6707 | ||||
