NCP110-AHXEK (2007)
Toyota Ist
ILLUST NO. 2 OF 2(0707-1008)ZSP110 ; (0707- )NCP11#
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-52160 |
NCP11#,ZSP110..CBU |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-52150 |
NCP11#,ZSP110..CBU |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-52P30B0 |
NCP11#..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),DK.GRAY,TRIM10 |
1 | ||
| 67610-5CC80B2 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM10 |
1 | ||
| 67610-5CC80B3 |
NCP11#,ZSP110..CBU LT.GRAY,TRIM11 |
1 | ||
| 67610-5CC81B0 |
NCP11#..CBU DK.GRAY,TRIM1# |
1 | ||
| 67610-5CC82B0 |
NCP11#..CBU DK.GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
NCP11#,ZSP110..CBU |
14 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07214 |
NCP11#..CBU |
2 | ||
| 90467-07201 |
NCP11#,ZSP110..CBU |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-52Z10B0 |
NCP11#..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),DK.GRAY,TRIM10 |
1 | ||
| 67620-52U21B0 |
NCP11#..CBU DK.GRAY,TRIM1# |
1 | ||
| 67620-52U20B2 |
NCP11#,ZSP110..CBU DK.GRAY,TRIM10 |
1 | ||
| 67620-52U22B0 |
NCP11#..CBU DK.GRAY,TRIM1# |
1 | ||
| 67620-52U20B3 |
NCP11#,ZSP110..CBU LT.GRAY,TRIM11 |
1 | ||
| 67625 - BRACKET, FRONT DOOR TRIM, RH | ||||
| 67625-52110 |
NCP11#,ZSP110..CBU |
1 | ||
| 67626 - BRACKET, FRONT DOOR TRIM, LH | ||||
| 67625-52110 |
NCP11#,ZSP110..CBU |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-52190 |
NCP11#,ZSP110..CBU |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-52160 |
NCP11#,ZSP110..CBU |
1 | ||
| Common parts | ||||
| 67771-12060 | ||||
| 90159-60303 | ||||
| 90164-50031 | ||||
| 90168-40025 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7401 | ||||

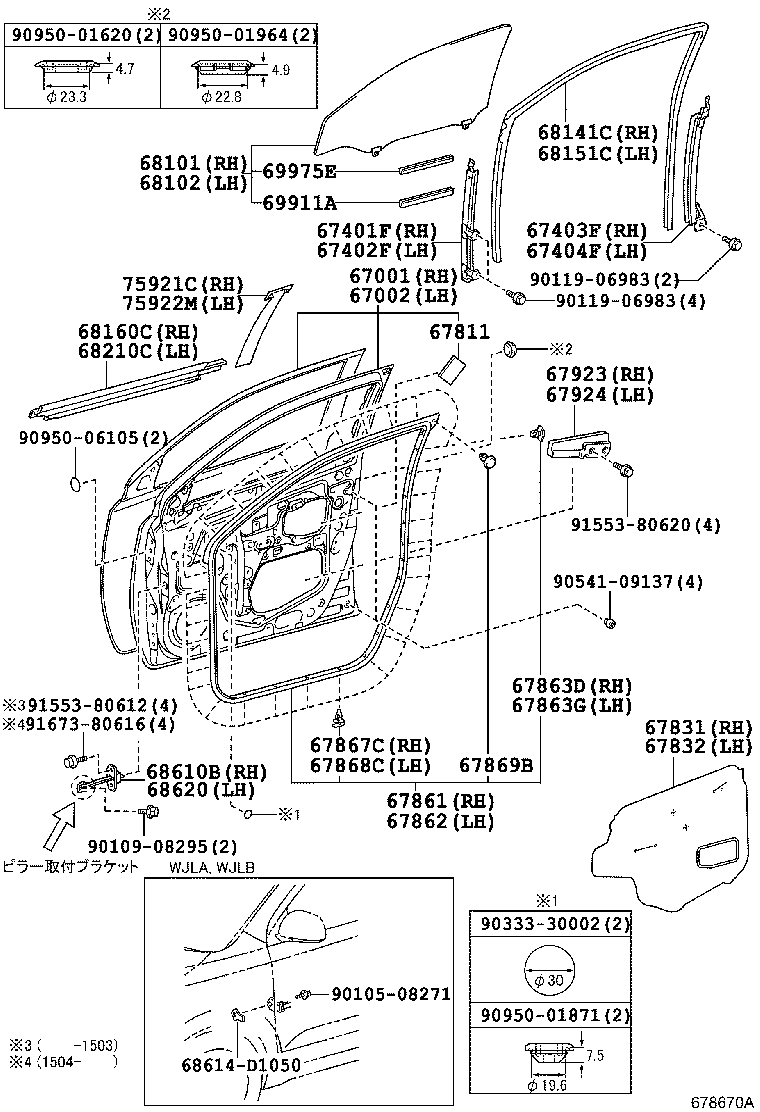

ILLUST NO. 1 OF 2(0707-1008)ZSP110 ; (0707- )NCP11#
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-52430 |
NCP11#,ZSP110..CBU |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-52430 |
NCP11#,ZSP110..CBU |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-52140 |
NCP11#,ZSP110..CBU |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-52130 |
NCP11#,ZSP110..CBU |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-52200 |
NCP11#,ZSP110..CBU |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-52170 |
NCP11#,ZSP110..CBU |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-33040 |
NCP11#,ZSP110..CBU |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-52380 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 67831-52370 |
NCP11#..CBU |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-52270 |
NCP11#..CBU |
1 | ||
| 67832-52280 |
NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き) |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-52210 |
NCP11#,ZSP110..CBU |
1 | ||
| 67861-52210 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 67861-52300 |
NCP11#..CBU |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-52200 |
NCP11#,ZSP110..CBU |
1 | ||
| 67862-52270 |
NCP11#..CBU |
1 | ||
| 67862-52200 |
NCP11#..CBU 寒冷地仕様 |
1 | ||
| 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67867-52030 |
NCP11#..CBU |
11 | ||
| 67867-52040 |
NCP11#,ZSP110..CBU |
11 | ||
| 67867-52040 |
NCP11#..CBU 寒冷地仕様 |
11 | ||
| 67863G - RETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67867-52020 |
NCP11#..CBU |
11 | ||
| 67867-52010 |
NCP11#..CBU 寒冷地仕様 |
11 | ||
| 67867-52010 |
NCP11#,ZSP110..CBU |
11 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NCP11#,ZSP110..CBU |
20 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NCP11#,ZSP110..CBU |
20 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 90467-06084 |
NCP11#,ZSP110..CBU |
2 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-52170 |
NCP11#,ZSP110..CBU |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-52180 |
NCP11#,ZSP110..CBU |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-52300 |
NCP11#,ZSP110..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 68110-52290 |
NCP11#,ZSP110..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68110-52290 |
NCP11#..X..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ,“C Package”&寒冷地仕様 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-52290 |
NCP11#,ZSP110..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68120-52300 |
NCP11#,ZSP110..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 68120-52290 |
NCP11#..X..CBU *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ,“C Package”&寒冷地仕様 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-52200 |
NCP11#,ZSP110..CBU |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-52190 |
NCP11#,ZSP110..CBU |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-52160 |
NCP11#,ZSP110..CBU |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-52160 |
NCP11#,ZSP110..CBU |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-52111 |
NCP11#,ZSP110..CBU ﾋﾟﾗｰ取付ﾌﾞﾗｹｯﾄ:ｼﾙﾊﾞｰ |
1 | ||
| 68610-52110 |
NCP11#,ZSP110..CBU ﾋﾟﾗｰ取付ﾌﾞﾗｹｯﾄ:ﾌﾞﾗｯｸ |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-52110 |
NCP11#,ZSP110..CBU ﾋﾟﾗｰ取付ﾌﾞﾗｹｯﾄ:ﾌﾞﾗｯｸ |
1 | ||
| 68620-52111 |
NCP11#,ZSP110..CBU ﾋﾟﾗｰ取付ﾌﾞﾗｹｯﾄ:ｼﾙﾊﾞｰ |
1 | ||
| 69911A - CHANNEL, FRONT DOOR GLASS, NO.1 | ||||
| 69911-20050 |
NCP11#,ZSP110..CBU |
2 | ||
| 69975E - FILLER, FRONT DOOR GLASS CHANNEL, NO.1 | ||||
| 69975-16020 |
NCP11#,ZSP110..CBU |
2 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-52110 |
NCP11#,ZSP110..CBU |
1 | ||
| 75921-52110 |
NCP11#..CBU |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-52110 |
NCP11#,ZSP110..CBU |
1 | ||
| 75922-52110 |
NCP11#..CBU |
1 | ||
| Common parts | ||||
| 68614-D1050 | ||||
| 90105-08271 | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90333-30002 | ||||
| 90541-09137 | ||||
| 90950-01620 | ||||
| 90950-01871 | ||||
| 90950-01964 | ||||
| 90950-06105 | ||||
| 91553-80612 | ||||
| 91553-80620 | ||||
| 91673-80616 | ||||
