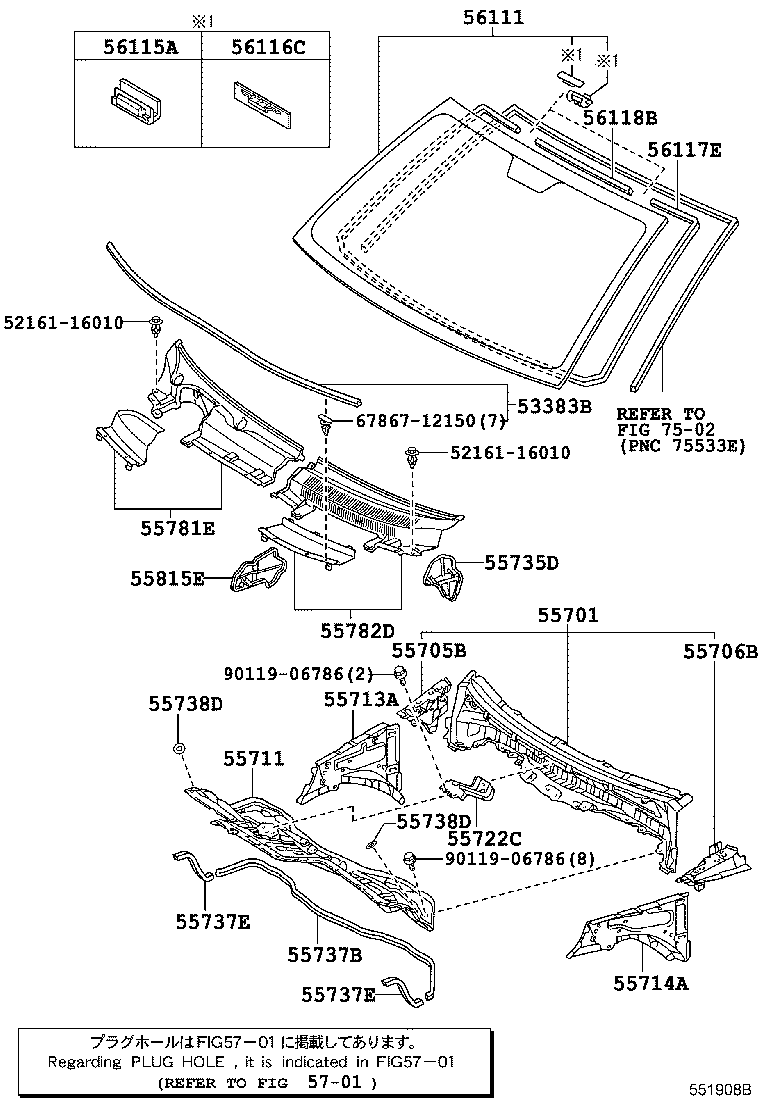

NCP110-AHXEK (2007)
Toyota Ist
(0707- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-52110 |
NCP11#,ZSP110..CBU |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-52320 |
NCP11#,ZSP110..CBU |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-52130 |
NCP11#,ZSP110..CBU |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-52130 |
NCP11#,ZSP110..CBU |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55701-52240 |
NCP11#,ZSP110..CBU |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-52110 |
NCP11#,ZSP110..CBU |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-52110 |
NCP11#,ZSP110..CBU |
1 | ||
| 55722C - BRACE, COWL TOP TO COWL, INNER | ||||
| 55722-52070 |
NCP11#,ZSP110..CBU |
1 | ||
| 55735D - SEAL, FRONT AIR SHUTTER, RH | ||||
| 55735-52060 |
NCP11#,ZSP110..CBU |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-52010 |
NCP11#,ZSP110..CBU 長さ=1295 |
1 | ||
| 55737E - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-52050 |
NCP11#,ZSP110..CBU 長さ=250.0 |
2 | ||
| 55737E - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-52050 |
NCP11#,ZSP110..CBU 長さ=250.0 |
2 | ||
| 55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-52040 |
NCP11#,ZSP110..CBU |
2 | ||
| 55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-52040 |
NCP11#,ZSP110..CBU |
2 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-52150 |
NCP11#,ZSP110..CBU |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55709-52100 |
NCP11#,ZSP110..CBU |
1 | ||
| 55709-52120 |
NCP11#,ZSP110..CBU 寒冷地仕様 |
1 | ||
| 55815E - SEAL, FRONT VENTILATOR, NO.1 | ||||
| 55815-52020 |
NCP11#,ZSP110..CBU |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-52420 |
NCP11#,ZSP110..CBU *EHL,厚さ=4.56,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 56101-52360 |
NCP11#,ZSP110..CBU *LAM,厚さ=4.56,ｸﾞﾘｰﾝ |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
NCP11#,ZSP110..CBU |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
NCP11#,ZSP110..CBU |
2 | ||
| 56117E - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-52160 |
NCP11#,ZSP110..CBU 長さ=3043,寒冷地仕様 |
1 | ||
| 56117-52160 |
NCP11#,ZSP110..CBU 長さ=3043 |
1 | ||
| 56118B - DAM, WINDOW GLASS ADHESIVE, NO.2 | ||||
| 56118-52110 |
NCP11#,ZSP110..CBU 長さ=620,寒冷地仕様 |
1 | ||
| 56118-52110 |
NCP11#,ZSP110..CBU 長さ=620 |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 67867-12150 | ||||
| 90119-06786 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7502 | ||||
