NCP110-AHXEK (2007)

Toyota Ist

Production Jul 2007 - Apr 2016
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0707- )

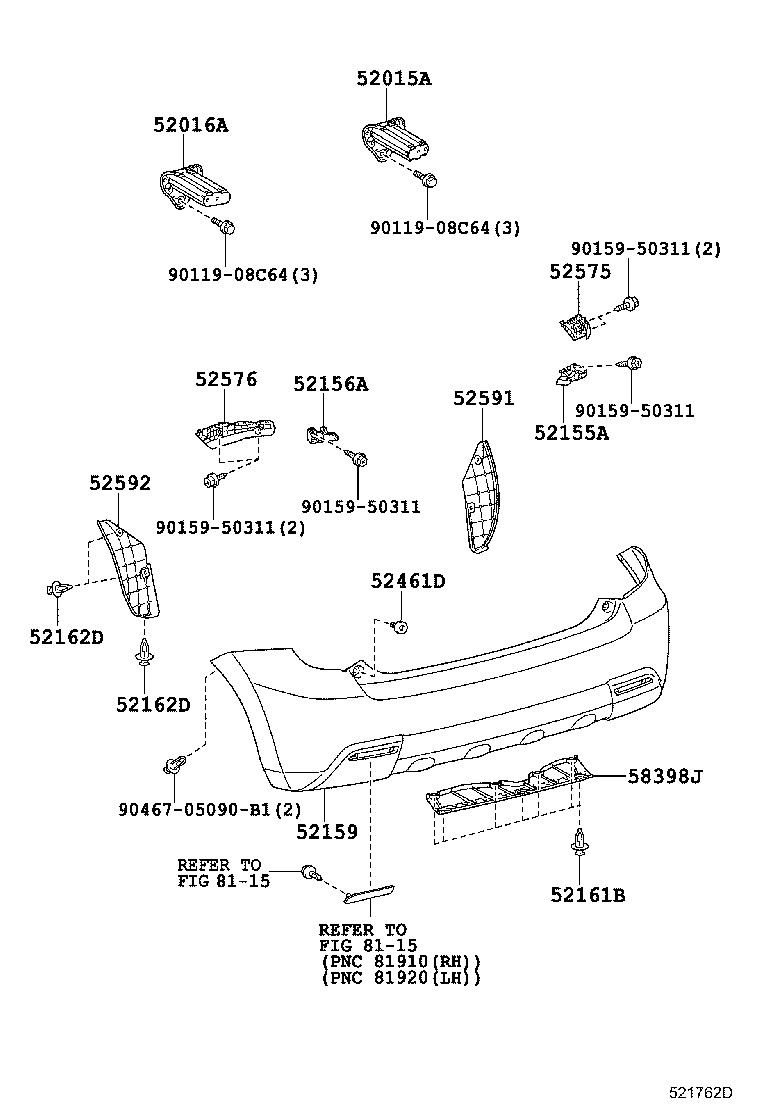

Click highlighted areas on diagram

diagram 52015A 52016A 52155A 52156A 52159 52161B 52162D 52162D 52461D 52575 52576 52591 52592 58398J 8115 8115 9011908C64 9011908C64 9015950311 9015950311 9015950311 9015950311 9046705090B1
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-52080

NCP11#,ZSP110..CBU

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-52090

NCP11#,ZSP110..CBU

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-52100

NCP11#,ZSP110..CBU

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-52100

NCP11#,ZSP110..CBU

 1
52159 - COVER, REAR BUMPER
52159-52720D0

NCP11#..G..CBU

150G“HID ｾﾚｸｼｮﾝ” *(T),SUPER RED 5,3P0

 1
52159-52720B0

NCP11#..G..CBU

150G“HID ｾﾚｸｼｮﾝ” *(T),SILVER M.M.,1E7

 1
52159-52660B0

NCP11#,ZSP110..CBU

SILVER M.M.,1E7

 1
52159-52660C0

NCP11#,ZSP110..CBU

BLACK MC.,209

 1
52159-52660J0

NCP11#,ZSP110..CBU

DK.BLUE MC.,8S6

 1
52159-52720B2

NCP11#..CBU

GRAY ME.,1G3

 1
52159-52720D1

NCP11#..CBU

RED M.M.,3R3

 1
52159-52720A0

NCP11#..G..CBU

150G“HID ｾﾚｸｼｮﾝ” *(T),WHITE PEARL CS.,070

 1
52159-52660A0

NCP11#,ZSP110..CBU

WHITE PEARL CS.,070

 1
52159-52660B1

NCP11#,ZSP110..CBU

GRAY ME.,1G3

 1
52159-52660D0

NCP11#,ZSP110..CBU

RED M.M.,3R3

 1
52159-52660K0

NCP11#,ZSP110..CBU

DEEP AMETHYST M.M.,9AH

 1
52159-52720J0

NCP11#..CBU

DK.BLUE MC.,8S6

 1
52159-52720J1

NCP11#..CBU

BLUE ME.,8T7

 1
52159-52720A0

NCP11#..CBU

WHITE PEARL CS.,070

 1
52159-52720G0

NCP11#..CBU

GREEN M.M.,6V2

 1
52159-52720C0

NCP11#..CBU

BLACK MC.,209

 1
52159-52720B1

NCP11#..CBU

SILVER ME.,1F7

 1
52159-52720E1

NCP11#..CBU

BRONZE M.M.,4T3

 1
52159-52660E0

NCP11#,ZSP110..CBU

COPPER M.M.,4T9

 1
52159-52720K0

NCP11#..CBU

DEEP AMETHYST M.M.,9AH

 1
52161B - PIECE, REAR BUMPER
52161-16010

NCP11#,ZSP110..CBU

 7
52162D - PIECE, REAR BUMPER
52161-16010

NCP11#,ZSP110..CBU

 6
52162D - PIECE, REAR BUMPER
52161-16010

NCP11#,ZSP110..CBU

 6
52461D - CUSHION, REAR BUMPER
52461-52020

NCP11#,ZSP110..CBU

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52150

NCP11#,ZSP110..CBU

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-52130

NCP11#,ZSP110..CBU

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52250

NCP11#,ZSP110..CBU

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52240

NCP11#,ZSP110..CBU

 1
58398J - COVER, FLOOR UNDER, NO.1
58398-52060

NCP11#,ZSP110..CBU

 1
Common parts
90119-08C64
90159-50311
90467-05090B1
Linked diagrams
8115
