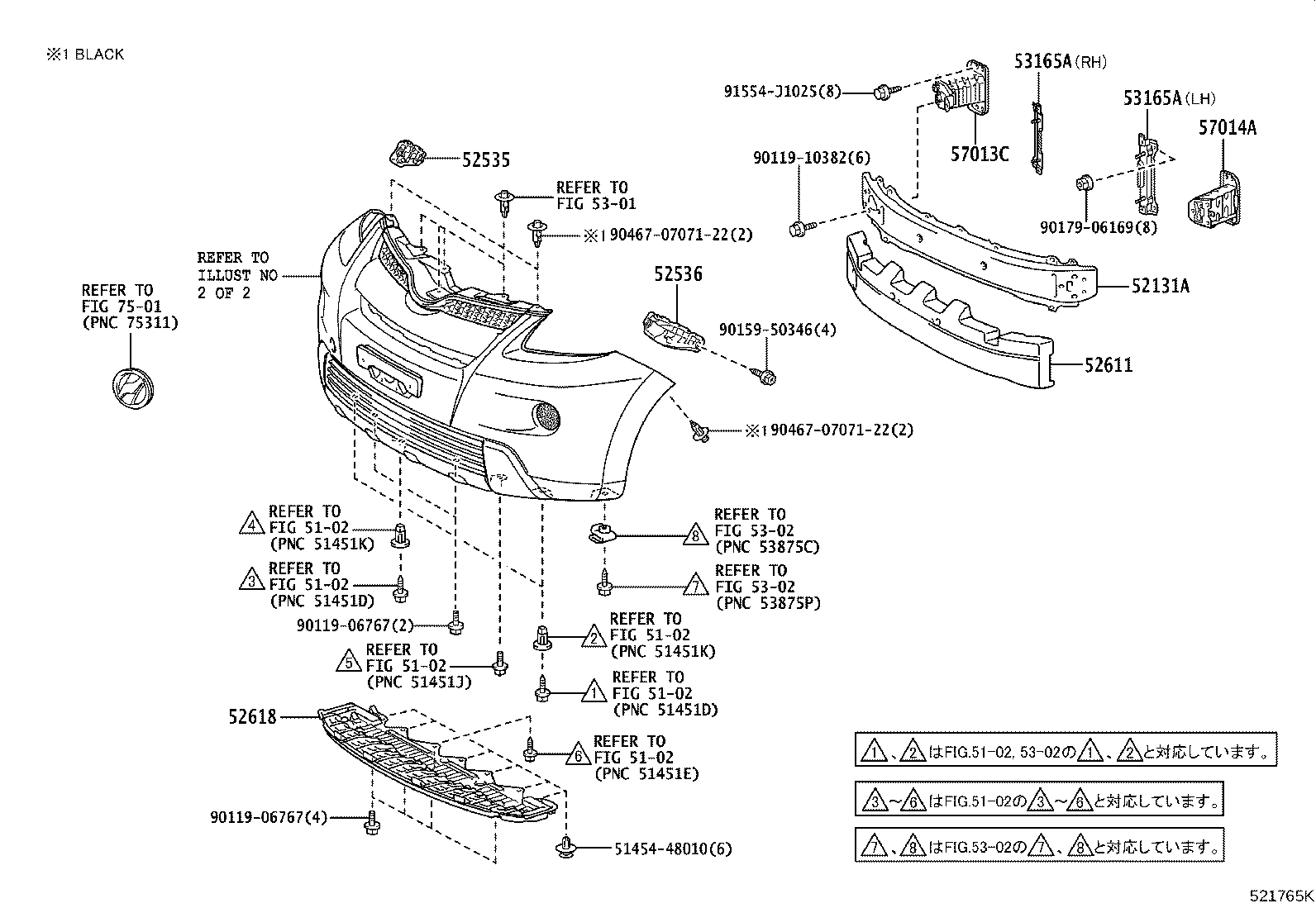

Toyota Ist NCP110 FRONT BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52131A - REINFORCEMENT, FRONT BUMPER
52131-52250	NCP11#,ZSP110..CBU	07/2007 - 04/2016	1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52140	NCP11#,ZSP110..CBU	07/2007 - 12/2999	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52150	NCP11#,ZSP110..CBU	07/2007 - 12/2999	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-52170	NCP11#,ZSP110..CBU	07/2007 - 12/2999	1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-52020	NCP11#,ZSP110..CBU	07/2007 - 12/2999	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52030	NCP11#,ZSP110..CBU	07/2007 - 04/2016	2
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52030	NCP11#,ZSP110..CBU	07/2007 - 04/2016	2
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-52020	NCP11#,ZSP110..CBU	07/2007 - 07/2012	1
57013-52021	NCP11#..CBU	08/2012 - 04/2016	1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-52020	NCP11#,ZSP110..CBU	07/2007 - 04/2016	1
Common parts
51454-48010
90119-06767
90119-10382
90159-50346
90179-06169
90467-0707122
91554-J1025
Linked diagrams
5102
5301
5302
7501

Part #	Description	Period	Qty
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-52020	NCP11#,ZSP110..CBU	11/2007 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-52510B0	NCP11#..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),SILVER M.M.,1E7	01/2009 - 07/2010	1
52119-52580A0	NCP11#,ZSP110..CBU WHITE PEARL CS.,070	07/2007 - 08/2010	1
52119-52580C0	NCP11#,ZSP110..CBU BLACK MC.,209	07/2007 - 08/2010	1
52119-52580B0	NCP11#,ZSP110..CBU SILVER M.M.,1E7	07/2007 - 08/2010	1
52119-52580K0	NCP11#,ZSP110..CBU DEEP AMETHYST M.M.,9AH	07/2007 - 08/2010	1
52119-52580B1	NCP11#,ZSP110..CBU GRAY ME.,1G3	07/2007 - 08/2010	1
52119-52580E0	NCP11#,ZSP110..CBU COPPER M.M.,4T9	07/2007 - 08/2010	1
52119-52510A0	NCP11#..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),WHITE PEARL CS.,070	01/2009 - 07/2010	1
52119-52510G0	NCP11#..CBU GREEN M.M.,6V2	08/2010 - 06/2012	1
52119-52510A0	NCP11#..CBU WHITE PEARL CS.,070	08/2010 - 04/2016	1
52119-52510J1	NCP11#..CBU BLUE ME.,8T7	06/2012 - 04/2016	1
52119-52510D0	NCP11#..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),SUPER RED 5,3P0	01/2009 - 07/2010	1
52119-52580J0	NCP11#,ZSP110..CBU DK.BLUE MC.,8S6	07/2007 - 08/2010	1
52119-52510C0	NCP11#..CBU BLACK MC.,209	08/2010 - 04/2016	1
52119-52510D1	NCP11#..CBU RED M.M.,3R3	08/2010 - 04/2016	1
52119-52580D0	NCP11#,ZSP110..CBU RED M.M.,3R3	07/2007 - 08/2010	1
52119-52510B1	NCP11#..CBU SILVER ME.,1F7	08/2010 - 04/2016	1
52119-52510J0	NCP11#..CBU DK.BLUE MC.,8S6	08/2010 - 04/2016	1
52119-52510E1	NCP11#..CBU BRONZE M.M.,4T3	08/2011 - 04/2016	1
52119-52510B2	NCP11#..CBU GRAY ME.,1G3	08/2010 - 04/2016	1
52119-52510K0	NCP11#..CBU DEEP AMETHYST M.M.,9AH	08/2010 - 04/2016	1
52127C - COVER, FRONT BUMPER HOLE
52127-52460D2	NCP11#..G..CBU 150G“HID ｾﾚｸｼｮﾝ” *(T),SUPER RED 5,3P0	01/2009 - 07/2010	1
52127-52460E0	NCP11#,ZSP110..CBU COPPER M.M.,4T9	07/2007 - 08/2010	1
52127-52460G0	NCP11#..CBU GREEN M.M.,6V2	08/2010 - 06/2012	1
52127-52460C0	NCP11#,ZSP110..CBU BLACK MC.,209	07/2007 - 04/2016	1
52127-52460K0	NCP11#,ZSP110..CBU DEEP AMETHYST M.M.,9AH	07/2007 - 04/2016	1
52127-52460B1	NCP11#,ZSP110..CBU GRAY ME.,1G3	07/2007 - 04/2016	1
52127-52460B2	NCP11#..CBU SILVER ME.,1F7	08/2010 - 04/2016	1
52127-52460B0	NCP11#,ZSP110..CBU SILVER M.M.,1E7	07/2007 - 08/2010	1
52127-52460A0	NCP11#,ZSP110..CBU WHITE PEARL CS.,070	07/2007 - 04/2016	1
52127-52460E1	NCP11#..CBU BRONZE M.M.,4T3	08/2011 - 04/2016	1
52127-52460J1	NCP11#..CBU BLUE ME.,8T7	06/2012 - 04/2016	1
52127-52460J0	NCP11#,ZSP110..CBU DK.BLUE MC.,8S6	07/2007 - 04/2016	1
52127-52460D0	NCP11#,ZSP110..CBU RED M.M.,3R3	07/2007 - 04/2016	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-52340	NCP11#,ZSP110..CBU 塗装不要	07/2007 - 04/2016	1
81481E - COVER, FOG LAMP, RH
81481-52290	NCP11#..X..CBU	07/2007 - 04/2016	1
81481-52280	NCP11#..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP)	07/2007 - 04/2016	1
81481-52280	NCP11#,ZSP110..G..CBU	07/2007 - 04/2016	1
81481E - COVER, FOG LAMP, RH
81481-52290	NCP11#..X..CBU	07/2007 - 04/2016	1
81481-52280	NCP11#..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP)	07/2007 - 04/2016	1
81481-52280	NCP11#,ZSP110..G..CBU	07/2007 - 04/2016	1
81482C - COVER, FOG LAMP, LH
81482-52210	NCP11#..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP)	07/2007 - 04/2016	1
81482-52220	NCP11#..X..CBU	07/2007 - 04/2016	1
81482-52210	NCP11#,ZSP110..G..CBU	07/2007 - 04/2016	1
81482C - COVER, FOG LAMP, LH
81482-52210	NCP11#..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(DOP)	07/2007 - 04/2016	1
81482-52220	NCP11#..X..CBU	07/2007 - 04/2016	1
81482-52210	NCP11#,ZSP110..G..CBU	07/2007 - 04/2016	1
Common parts
90179-06127
Linked diagrams
5301
8102

NCP110-AHXEK (2007)

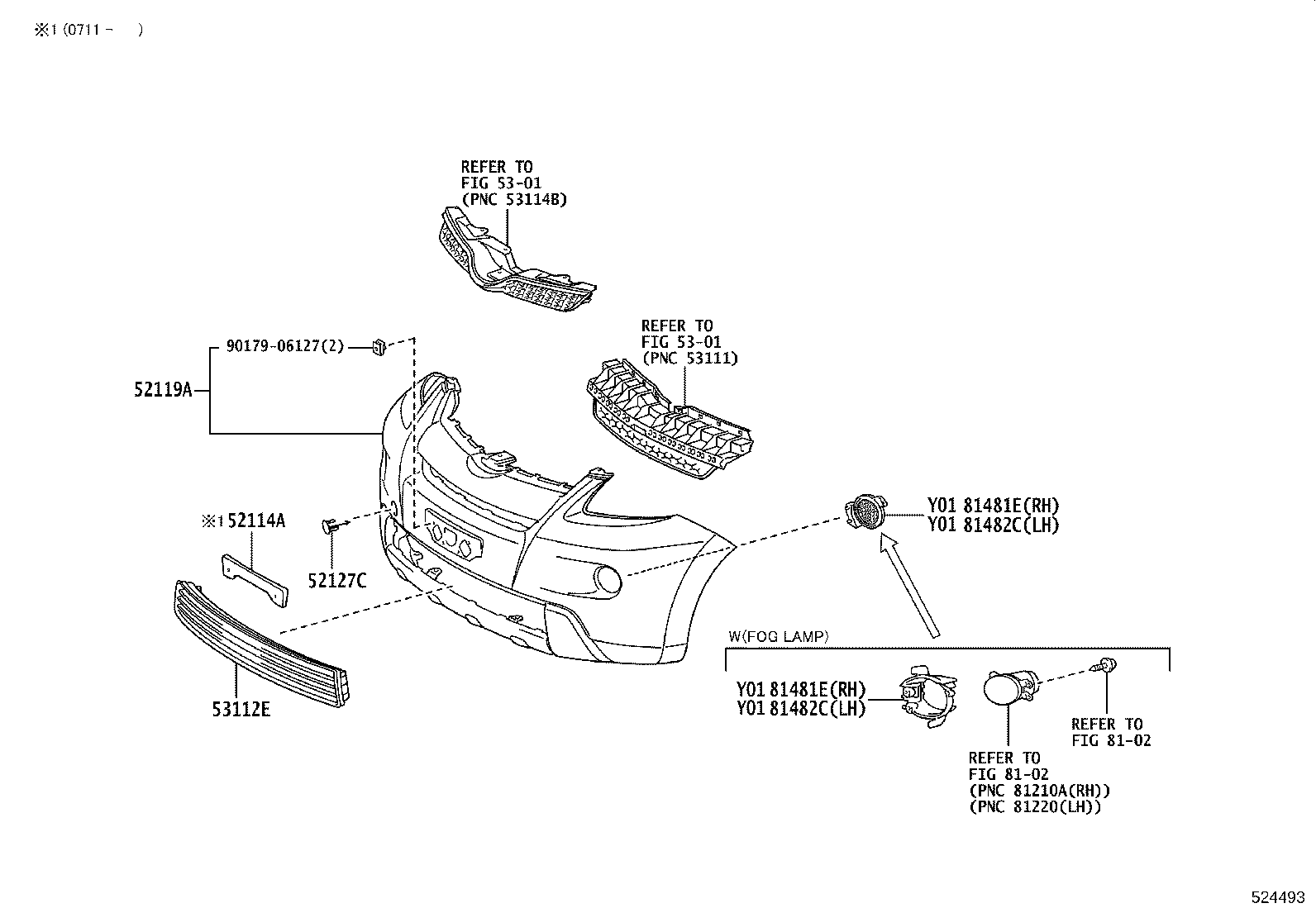

ILLUST NO. 1 OF 2(0707- )

ILLUST NO. 2 OF 2(0707- )
