NCP110-AHXEK (2007)

Toyota Ist

Production Jul 2007 - Apr 2016
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0707-1008)ZSP110 ; (0707- )NCP11#

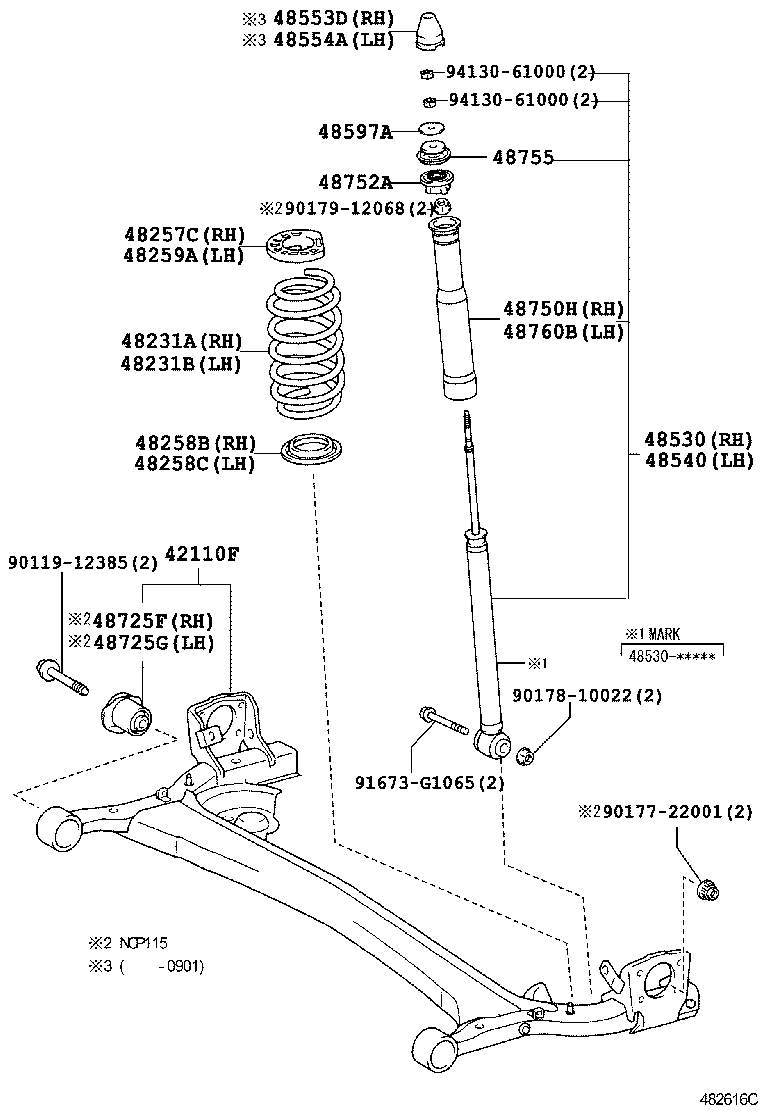

Click highlighted areas on diagram

diagram 42110F 48231A 48231B 48257C 48258B 48258C 48259A 48530 48540 48553D 48554A 48597A 48725F 48725G 48750H 48752A 48755 48760B 9011912385 9017722001 9017810022 9017912068 91673G1065 9413061000 9413061000
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42110-52332

NCP110,ZSP110..CBU

 1
42110-52331

NCP110,ZSP110..CBU

 1
48231A - SPRING, COIL, REAR RH
48231-52D00

NCP110..CBU

 1
48231B - SPRING, COIL, REAR LH
48231-52D00

NCP110..CBU

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-52010

NCP11#,ZSP110..CBU

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-52030

NCP11#,ZSP110..CBU

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-52030

NCP11#,ZSP110..CBU

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-52010

NCP11#,ZSP110..CBU

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-80435

NCP110..CBU

ﾏｰｸ 48530−52E00

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-80435

NCP110..CBU

ﾏｰｸ 48530−52E00

 1
48553D - CAP, REAR SHOCK ABSORBER, RH
48553-52010

NCP11#,ZSP110..CBU

 1
48554A - CAP, REAR SHOCK ABSORBER, LH
48553-52010

NCP11#,ZSP110..CBU

 1
48597A - RETAINER, REAR SHOCK ABSORBER CUSHION
90201-10320

NCP11#,ZSP110..CBU

 2
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-52200

NCP110..CBU

 1
48750-52100

NCP110,ZSP110..CBU

 1
48752A - STOPPER, REAR SUSPENSION SUPPORT
48752-52010

NCP110,ZSP110..CBU

 2
48755 - SUPPORT, REAR SUSPENSION
48755-52010

NCP11#,ZSP110..CBU

 2
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-52100

NCP110,ZSP110..CBU

 1
48750-52200

NCP110..CBU

 1
Common parts
90119-12385
90177-22001
90178-10022
90179-12068
91673-G1065
94130-61000
