NCP110-AHXEK (2007)
Toyota Ist
ILLUST NO. 2 OF 2(0707- )
ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52821 |
NCP110,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 44050-52800 |
NCP110,ZSP110..CBU |
1 | ||
| 44050-52822 |
NCP110..CBU |
1 | ||
| 44050-52820 |
NCP110,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NCP11#,ZSP110..CBU |
3 | ||
| 44546-12110 |
NCP11#..CBU |
4 | ||
| 44546-12110 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NCP11#,ZSP110..CBU |
3 | ||
| 44546-12110 |
NCP11#..CBU |
4 | ||
| 44546-12110 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NCP11#,ZSP110..CBU |
3 | ||
| 44546-12110 |
NCP11#..CBU |
4 | ||
| 44546-12110 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NCP11#,ZSP110..CBU |
3 | ||
| 44546-12110 |
NCP11#..CBU |
4 | ||
| 44546-12110 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
4 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52190 |
NCP11#..CBU |
1 | ||
| 44590-52190 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 44590-52180 |
NCP11#,ZSP110..CBU |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 91631-60825 | ||||
ILLUST NO. 2 OF 2(0707- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52821 |
NCP110,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 44050-52800 |
NCP110,ZSP110..CBU |
1 | ||
| 44050-52822 |
NCP110..CBU |
1 | ||
| 44050-52820 |
NCP110,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NCP11#,ZSP110..CBU |
3 | ||
| 44546-12110 |
NCP11#..CBU |
4 | ||
| 44546-12110 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NCP11#,ZSP110..CBU |
3 | ||
| 44546-12110 |
NCP11#..CBU |
4 | ||
| 44546-12110 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NCP11#,ZSP110..CBU |
3 | ||
| 44546-12110 |
NCP11#..CBU |
4 | ||
| 44546-12110 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
4 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52190 |
NCP11#..CBU |
1 | ||
| 44590-52190 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 44590-52180 |
NCP11#,ZSP110..CBU |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 91631-60825 | ||||

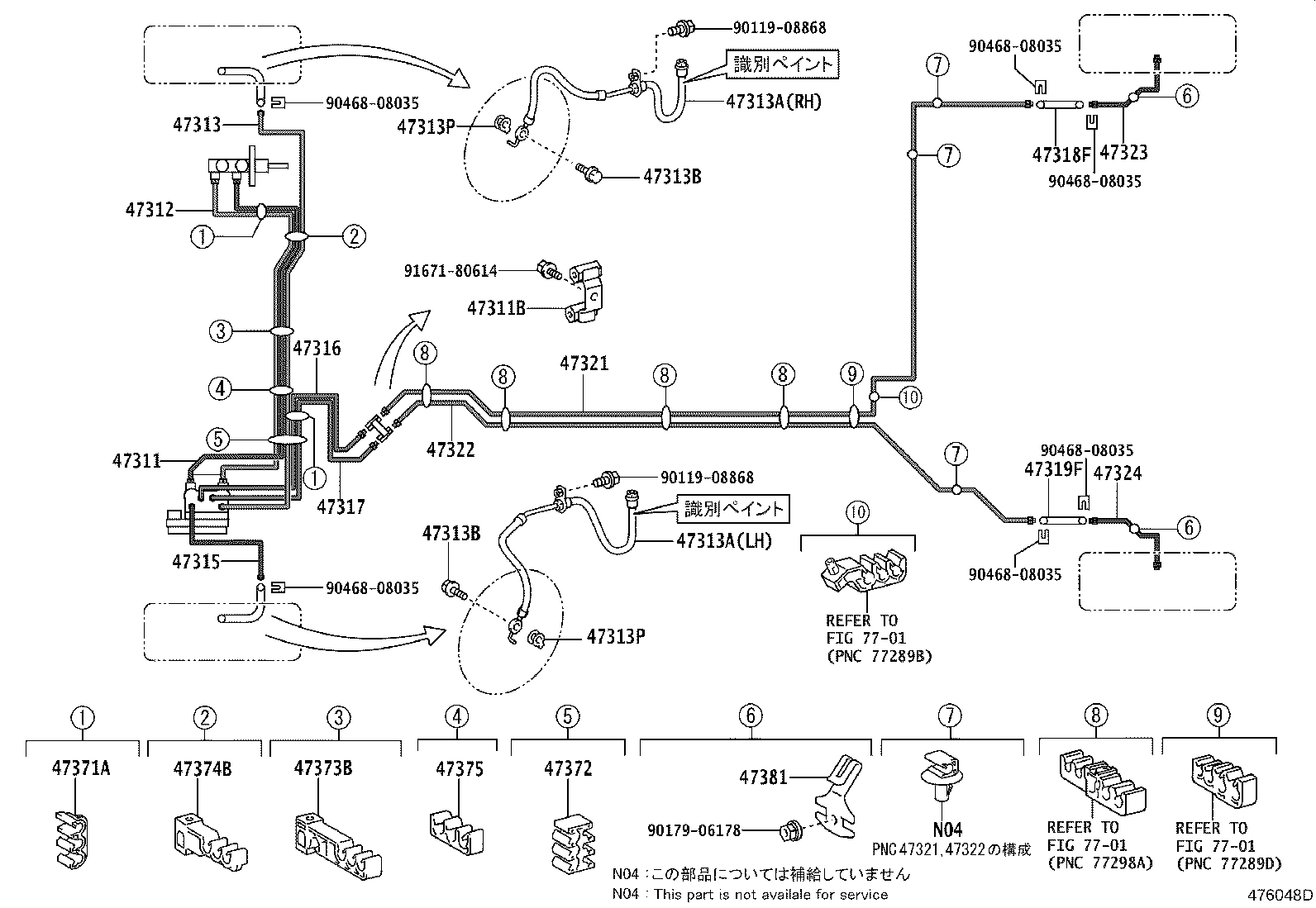

ILLUST NO. 1 OF 2(0707- )NCP110
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52320 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 47311-52320 |
NCP11#..CBU |
1 | ||
| 47311-52310 |
NCP11#..CBU |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NCP11#,ZSP110..CBU |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52280 |
NCP11#..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 47312-52280 |
NCP11#..CBU |
1 | ||
| 47312-52270 |
NCP11#..CBU |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52160 |
NCP11#,ZSP110..CBU |
1 | ||
| 47313-52170 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 47313-52170 |
NCP11#..CBU |
1 | ||
| 47313-52171 |
NCP11#..CBU |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E08 |
NCP11#,ZSP110..CBU 左側,識別ﾍﾟｲﾝﾄ=ﾋﾟﾝｸ |
1 | ||
| 90947-02G34 |
NCP11#..CBU 右側,識別ﾍﾟｲﾝﾄ=黄 |
1 | ||
| 90947-02H35 |
NCP11#..CBU 右側,識別ﾍﾟｲﾝﾄ=黄 |
1 | ||
| 90947-02E07 |
NCP11#,ZSP110..CBU 右側,識別ﾍﾟｲﾝﾄ=緑 |
1 | ||
| 90947-02G35 |
NCP11#..CBU 左側,識別ﾍﾟｲﾝﾄ=水色 |
1 | ||
| 90947-02H36 |
NCP11#..CBU 左側,識別ﾍﾟｲﾝﾄ=水色 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E08 |
NCP11#,ZSP110..CBU 左側,識別ﾍﾟｲﾝﾄ=ﾋﾟﾝｸ |
1 | ||
| 90947-02G34 |
NCP11#..CBU 右側,識別ﾍﾟｲﾝﾄ=黄 |
1 | ||
| 90947-02H35 |
NCP11#..CBU 右側,識別ﾍﾟｲﾝﾄ=黄 |
1 | ||
| 90947-02E07 |
NCP11#,ZSP110..CBU 右側,識別ﾍﾟｲﾝﾄ=緑 |
1 | ||
| 90947-02G35 |
NCP11#..CBU 左側,識別ﾍﾟｲﾝﾄ=水色 |
1 | ||
| 90947-02H36 |
NCP11#..CBU 左側,識別ﾍﾟｲﾝﾄ=水色 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP11#,ZSP110..CBU |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP11#,ZSP110..CBU |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP11#,ZSP110..CBU |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP11#,ZSP110..CBU |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52200 |
NCP11#..CBU |
1 | ||
| 47315-52200 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 47315-52190 |
NCP11#,ZSP110..CBU |
1 | ||
| 47315-52201 |
NCP11#..CBU |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52150 |
NCP11#,ZSP110..CBU |
1 | ||
| 47316-52160 |
NCP11#..CBU |
1 | ||
| 47316-52160 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52160 |
NCP11#..CBU |
1 | ||
| 47317-52150 |
NCP11#,ZSP110..CBU |
1 | ||
| 47317-52160 |
NCP11#,ZSP110..CBU VSC−有り(ﾎﾟﾝﾌﾟｱｯﾌﾟBA) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E09 |
NCP110,ZSP110..CBU |
1 | ||
| 90947-02H31 |
NCP110..CBU |
1 | ||
| 90947-02G36 |
NCP110..CBU |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E10 |
NCP110,ZSP110..CBU |
1 | ||
| 90947-02G38 |
NCP110..CBU |
1 | ||
| 90947-02H32 |
NCP110..CBU |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52271 |
NCP110..CBU |
1 | ||
| 47321-52270 |
NCP110,ZSP110..CBU |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52250 |
NCP110,ZSP110..CBU |
1 | ||
| 47322-52251 |
NCP110..CBU |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52130 |
NCP110,ZSP110..CBU |
1 | ||
| 47323-52131 |
NCP110..CBU |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52121 |
NCP110..CBU |
1 | ||
| 47324-52120 |
NCP110,ZSP110..CBU |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
NCP11#,ZSP110..CBU |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01969 |
NCP11#,ZSP110..CBU |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D27 |
NCP11#,ZSP110..CBU |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D02 |
NCP11#,ZSP110..CBU |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90464-00857 |
NCP11#,ZSP110..CBU |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-52020 |
NCP110,ZSP110..CBU |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90179-06178 | ||||
| 90468-08035 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 7701 | ||||
