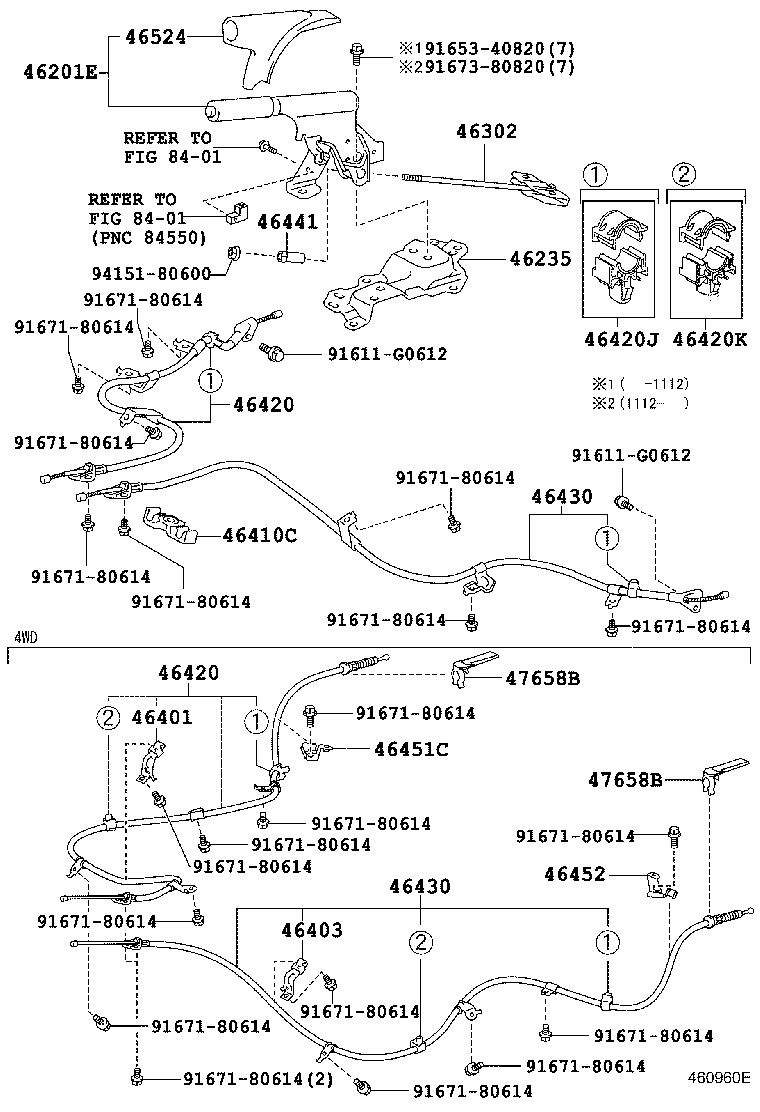

Toyota Ist NCP110 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-52070B0	NCP110,ZSP110..CBU DK.GRAY,TRIM1#	07/2007 - 04/2016	1
46235 - BRACKET, PARKING BRAKE LEVER SUPPORT
46235-52020	NCP110,ZSP110..CBU	07/2007 - 12/2999	1
46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1
46302-52030	NCP11#,ZSP110..CBU	07/2007 - 12/2999	1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-52030	NCP110,ZSP110..CBU	07/2007 - 12/2999	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-52271	NCP110..CBU	05/2012 - 04/2016	1
46420-52270	NCP110,ZSP110..CBU	07/2007 - 04/2012	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-52271	NCP110..CBU	05/2012 - 04/2016	1
46420-52270	NCP110,ZSP110..CBU	07/2007 - 04/2012	1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-52030	NCP110,ZSP110..CBU	07/2007 - 12/2999	2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-52270	NCP110,ZSP110..CBU	07/2007 - 04/2016	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-52270	NCP110,ZSP110..CBU	07/2007 - 04/2016	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-52010	NCP11#,ZSP110..CBU	07/2007 - 12/2999	1
46524 - COVER, PARKING BRAKE DUST
46524-52020	NCP110,ZSP110..CBU	07/2007 - 12/2999	1
Common parts
91611-G0612
91653-40820
91671-80614
91673-80820
94151-80600
Linked diagrams
8401

NCP110-AHXEK (2007)
