NCP110-AHXEK (2007)

Toyota Ist

Production Jul 2007 - Apr 2016
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0707- )

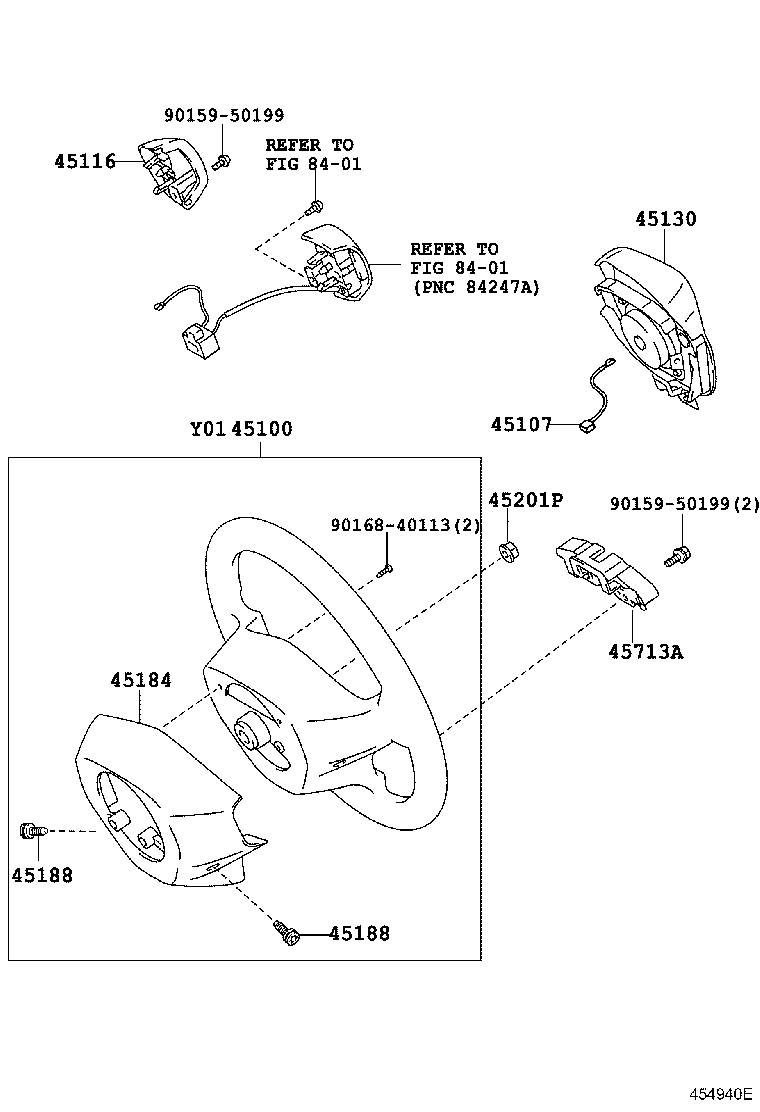

Click highlighted areas on diagram

diagram 45100 45107 45116 45130 45184 45188 45188 45201P 45713A 8401 8401 9015950199 9015950199 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-52380B0

NCP11#..X..CBU

3本ｽﾎﾟｰｸ, ｳﾚﾀﾝ,DK.GRAY,TRIM1#

 1
45100-52390B0

NCP11#,ZSP110..G..CBU

3本ｽﾎﾟｰｸ, ﾚｻﾞｰ,DK.GRAY,TRIM1#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-48010

NCP11#,ZSP110..CBU

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-52100

NCP11#..CBU

ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ)

 1
45116-52050

NCP11#,ZSP110..CBU

ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ)

 1
45130 - BUTTON ASSY, HORN
45130-52480B0

NCP11#,ZSP110..CBU

ｵｰﾃﾞｨｵ(国内)−AVN(05)汎用 6ｽﾋﾟｰｶ(DVDﾅﾋﾞ),DK.GRAY,TRIM1#

 1
45130-52470B0

NCP11#,ZSP110..CBU

DK.GRAY,TRIM1#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-52140B0

NCP11#,ZSP110..CBU

DK.GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NCP11#,ZSP110..CBU

長さ=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NCP11#,ZSP110..CBU

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

NCP11#,ZSP110..CBU

 1
45713A - DAMPER, STEERING SHAKE
45713-52040

NCP11#,ZSP110..CBU

 1
Common parts
90159-50199
90168-40113
Linked diagrams
8401
