Toyota Ist NCP110 STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
JP
IST
NCP110-AHXEK (2007)
4501 - STEERING COLUMN & SHAFT

NCP110-AHXEK (2007)

Toyota Ist

Production Jul 2007 - Apr 2016

Engine 1NZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

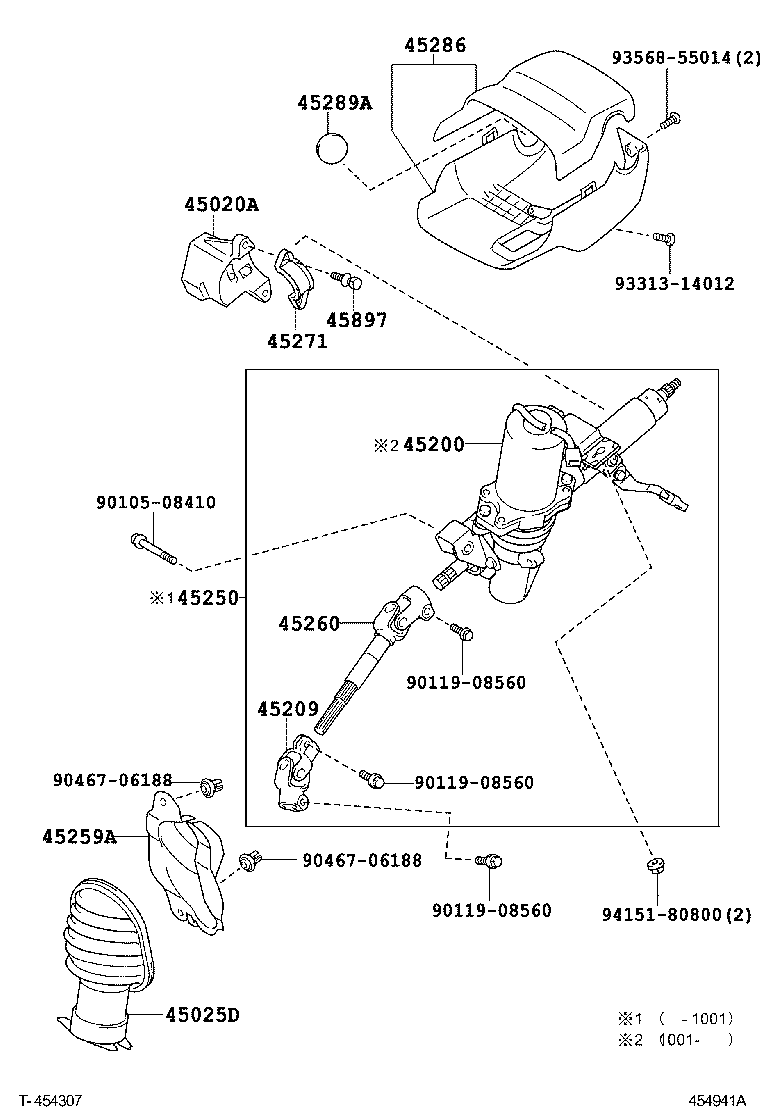

(0707- )

Click highlighted areas on diagram

ｱﾘ(ｽﾏｰﾄｷｰ)

Part #	Description	Period	Qty
45020A - ACTUATOR ASSY, STEERING LOCK
45020-52140	NCP11#..X..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	07/2007 - 12/2999	1
45020-52140	NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	07/2007 - 12/2999	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-52140	NCP110,ZSP110..CBU	07/2007 - 10/2011	1
45025-52170	NCP110..CBU	11/2011 - 12/2999	1
45200 - POST ASSY, STEERING
45200-52730	NCP11#..X..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	01/2010 - 07/2011	1
45200-52692	NCP11#..CBU	08/2011 - 12/2999	1
45200-52690	NCP11#..CBU	01/2010 - 07/2011	1
45200-52681	NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	08/2011 - 12/2999	1
45200-52680	NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	01/2010 - 07/2011	1
45200-52731	NCP11#..X..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	08/2011 - 12/2999	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-52070	NCP11#..CBU	08/2011 - 12/2999	1
45209-52070	NCP11#..CBU	07/2007 - 04/2011	1
45250 - COLUMN ASSY, STEERING
45250-52360	NCP11#..X..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	07/2007 - 12/2007	1
45250-52300	NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	07/2007 - 12/2007	1
45250-52291	NCP11#..CBU	01/2008 - 01/2010	1
45250-52290	NCP11#..CBU	07/2007 - 12/2007	1
45250-52301	NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	01/2008 - 01/2010	1
45250-52361	NCP11#..X..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	01/2008 - 01/2010	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-52010	NCP11#,ZSP110..CBU	07/2007 - 12/2999	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-52270	NCP11#..CBU	07/2007 - 04/2011	1
45260-52270	NCP11#..CBU	08/2011 - 12/2999	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030	NCP11#,ZSP110..CBU	07/2007 - 12/2999	1
45286 - COVER, STEERING COLUMN
45286-52930B0	NCP11#,ZSP110..CBU DK.GRAY,TRIM1#	07/2007 - 12/2008	1
45286-52935B0	NCP11#,ZSP110..CBU DK.GRAY,TRIM1#	12/2008 - 04/2016	1
45289A - SUPPORT, STEERING COLUMN COVER
45289-52010C0	NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),BLACK,TRIM1#	11/2011 - 04/2016	1
45289-52010B0	NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き),DK.GRAY,TRIM1#	07/2007 - 11/2011	1
45897 - BOLT, STEERING LOCK SET
45897-12020	NCP11#,ZSP110..CBU	07/2007 - 12/2999	2
Common parts
90105-08410
90119-08560
90467-06188
93313-14012
93568-55014
94151-80800

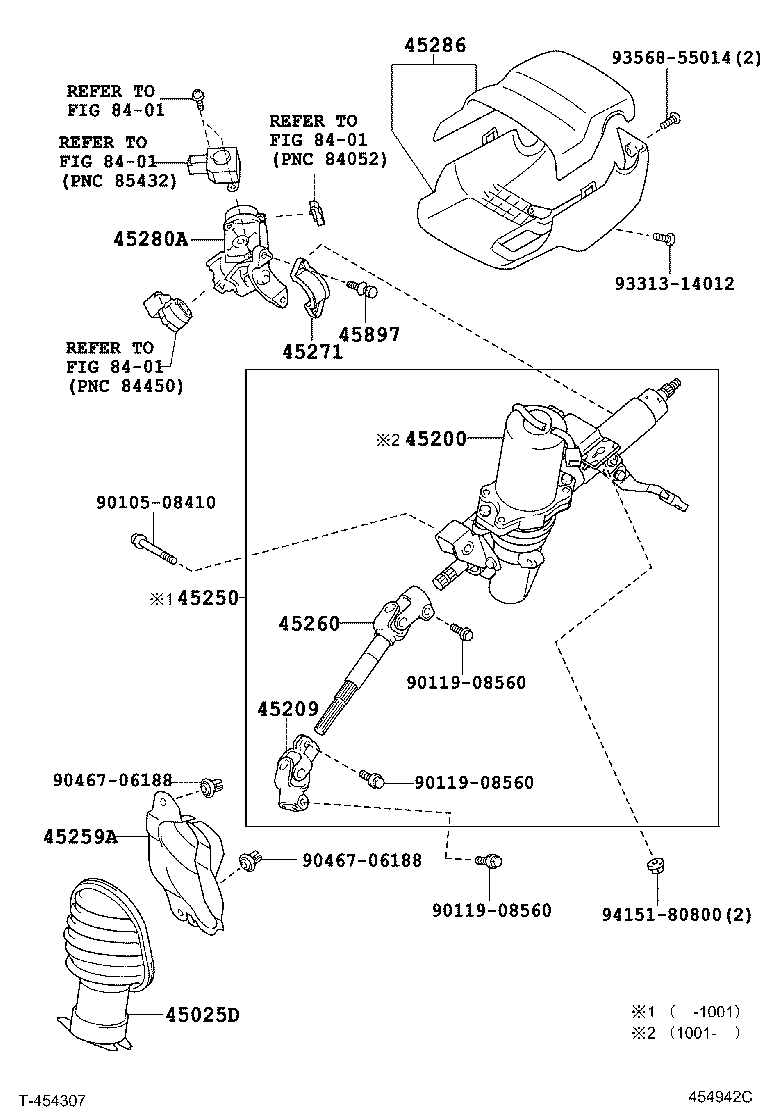

(0707- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-52140	NCP110,ZSP110..CBU	07/2007 - 10/2011	1
45025-52170	NCP110..CBU	11/2011 - 12/2999	1
45200 - POST ASSY, STEERING
45200-52730	NCP11#..X..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	01/2010 - 07/2011	1
45200-52692	NCP11#..CBU	08/2011 - 12/2999	1
45200-52690	NCP11#..CBU	01/2010 - 07/2011	1
45200-52681	NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	08/2011 - 12/2999	1
45200-52680	NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	01/2010 - 07/2011	1
45200-52731	NCP11#..X..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	08/2011 - 12/2999	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-52070	NCP11#..CBU	08/2011 - 12/2999	1
45209-52070	NCP11#..CBU	07/2007 - 04/2011	1
45250 - COLUMN ASSY, STEERING
45250-52360	NCP11#..X..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	07/2007 - 12/2007	1
45250-52300	NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	07/2007 - 12/2007	1
45250-52291	NCP11#..CBU	01/2008 - 01/2010	1
45250-52290	NCP11#..CBU	07/2007 - 12/2007	1
45250-52301	NCP11#..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	01/2008 - 01/2010	1
45250-52361	NCP11#..X..CBU ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)	01/2008 - 01/2010	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-52010	NCP11#,ZSP110..CBU	07/2007 - 12/2999	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-52270	NCP11#..CBU	07/2007 - 04/2011	1
45260-52270	NCP11#..CBU	08/2011 - 12/2999	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030	NCP11#,ZSP110..CBU	07/2007 - 12/2999	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-22520	NCP11#..CBU	08/2011 - 04/2016	1
45280-22510	NCP11#..CBU	07/2007 - 08/2011	1
45286 - COVER, STEERING COLUMN
45286-52930B0	NCP11#,ZSP110..CBU DK.GRAY,TRIM1#	07/2007 - 12/2008	1
45286-52935B0	NCP11#,ZSP110..CBU DK.GRAY,TRIM1#	12/2008 - 04/2016	1
45897 - BOLT, STEERING LOCK SET
45897-12020	NCP11#,ZSP110..CBU	07/2007 - 12/2999	2
Common parts
90105-08410
90119-08560
90467-06188
93313-14012
93568-55014
94151-80800
