NCP110-AHXEK (2007)

Toyota Ist

Production Jul 2007 - Apr 2016
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

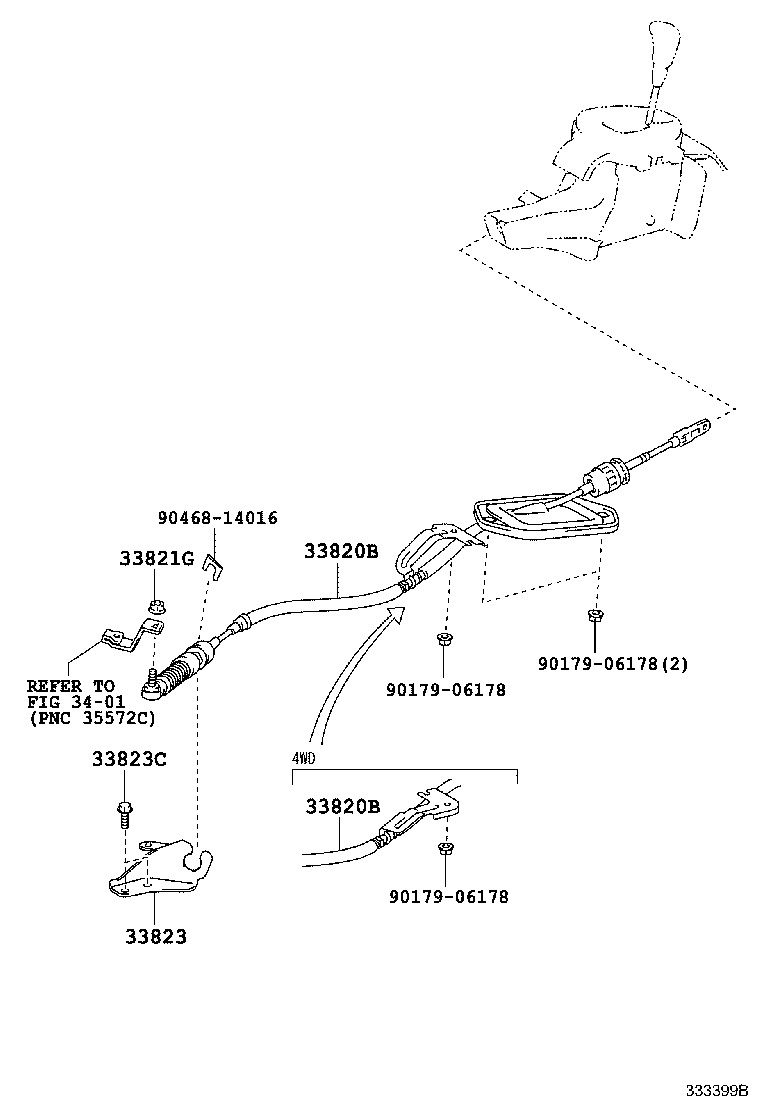

ILLUST NO. 2 OF 2(0707- )NCP11#

Click highlighted areas on diagram

diagram 33820B 33820B 33821G 33823 33823C 3401 9017906178 9017906178 9017906178 9046814016
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52560

NCP110..CBU

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52560

NCP110..CBU

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

NCP11#,ZSP110..CBU

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-52120

NCP11#..CBU

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-B0816

NCP11#..CBU

 2
Common parts
90179-06178
90468-14016
Linked diagrams
3401

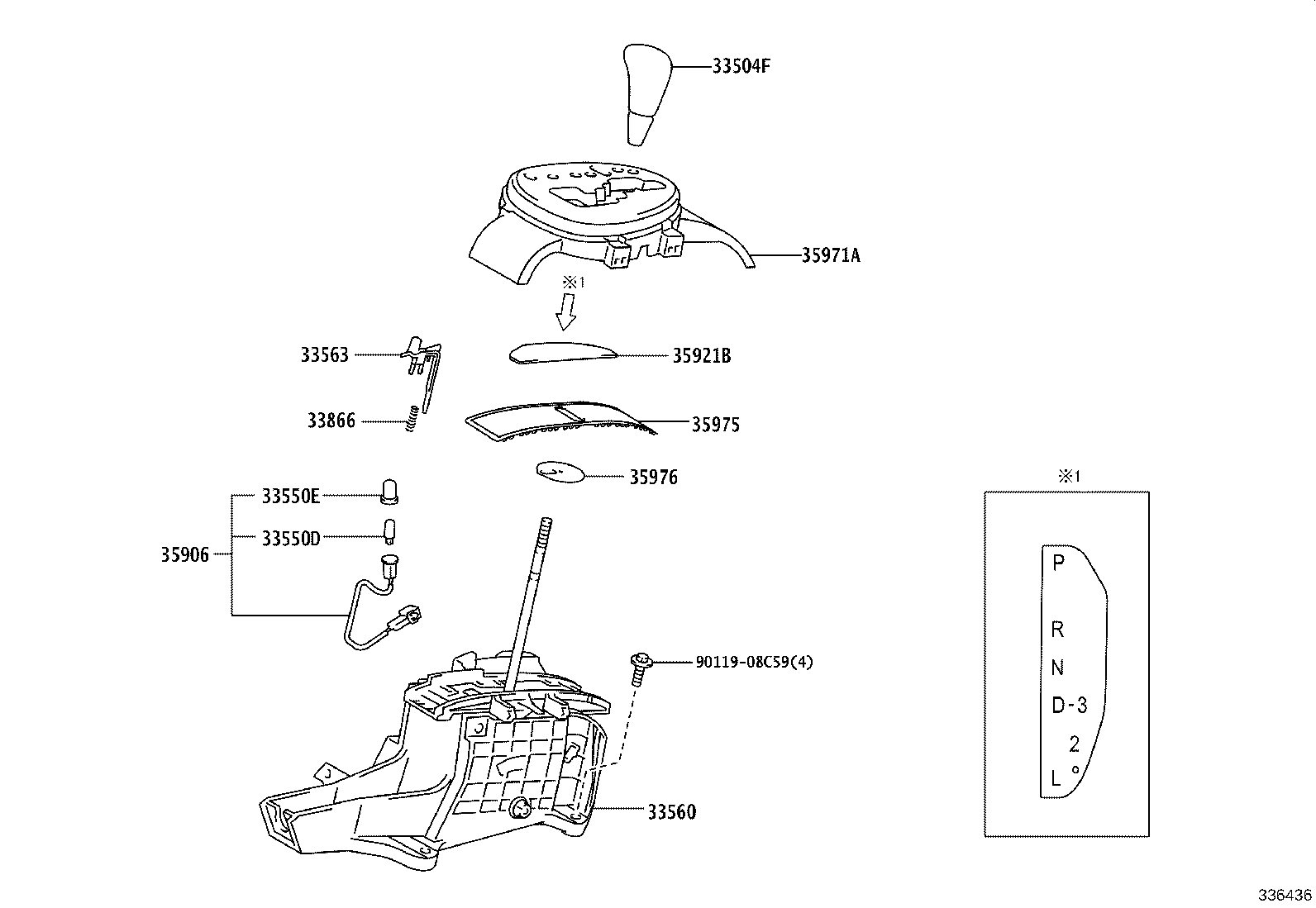

ILLUST NO. 1 OF 2(0707- )

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33560 33563 33866 35906 35921B 35971A 35975 35976 9011908C59
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-35060B0

NCP11#,ZSP110..G..CBU

DK.GRAY,TRIM1#

 1
33504-12430B0

NCP11#..X..CBU

DK.GRAY,TRIM1#

 1
33550D - BULB, POSITION INDICATOR LAMP
35955-74010

NCP11#,ZSP110..CBU

12V 1.4W

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-52010

NCP11#,ZSP110..CBU

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-52170

NCP110..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｷｰ:ﾌﾛﾝﾄ&ﾊﾞｯｸ(ﾌﾟｯｼｭｽﾀｰﾄ付き)

 1
33560-52180

NCP110..CBU

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-52080

NCP11#,ZSP110..CBU

 1
33866 - SPRING, SHIFT LOCK RELEASE
33866-52010

NCP11#,ZSP110..CBU

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-52080

NCP11#,ZSP110..CBU

 1
35921B - PLATE, CONTROL POSITION INDICATOR NO,2
35921-52070

NCP11#..CBU

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-52360

NCP11#..CBU

 1
35971-52370

NCP11#..CBU

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-52080

NCP11#,ZSP110..CBU

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-52080

NCP11#,ZSP110..CBU

 1
Common parts
90119-08C59
