NCP110-AHXEK (2007)

Toyota Ist

Production Jul 2007 - Apr 2016
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0707- )1NZFE

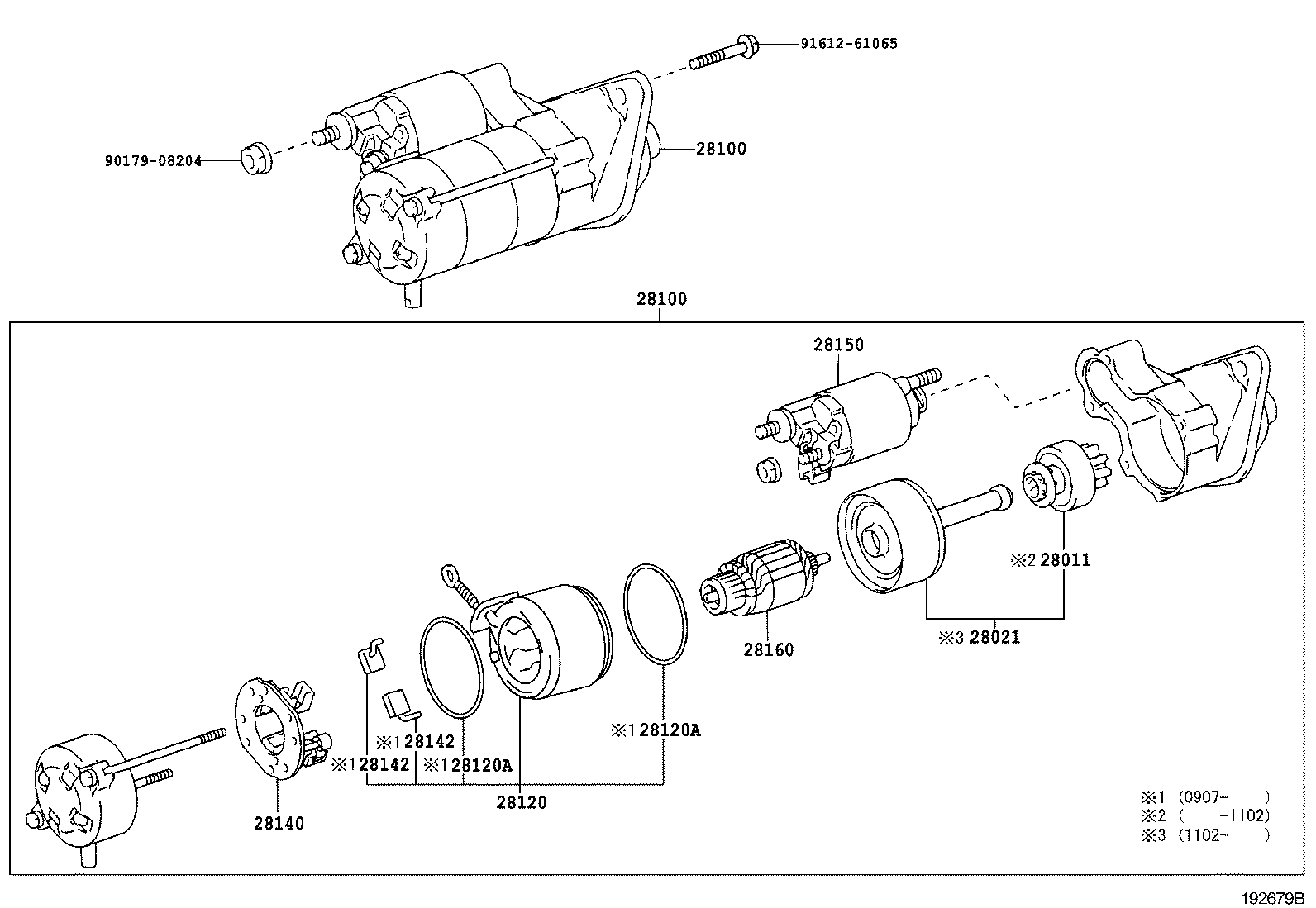

Click highlighted areas on diagram

12V 0.8KW,1.0KW

diagram 28011 28021 28100 28100 28120 28120A 28120A 28140 28142 28142 28150 28160 9017908204 9161261065
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-70020

1NZFE,2ZRFE..NCP11#,ZSP110..CBU

 1
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-70020

1NZFE..NCP11#..CBU

 1
28100 - STARTER ASSY
28100-21020

1NZFE..NCP11#..CBU

12V 0.8KW

 1
28100-21021

1NZFE..NCP11#..CBU

12V 0.8KW

 1
28100-21022

1NZFE..NCP11#..CBU

12V 0.8KW

 1
28100-21030

1NZFE..NCP11#..CBU

12V 1.0KW,寒冷地仕様

 1
28100-21031

1NZFE..NCP11#..CBU

12V 1.0KW,寒冷地仕様

 1
28100-21032

1NZFE..NCP11#..CBU

12V 1.0KW,寒冷地仕様

 1
28100 - STARTER ASSY
28100-21020

1NZFE..NCP11#..CBU

12V 0.8KW

 1
28100-21021

1NZFE..NCP11#..CBU

12V 0.8KW

 1
28100-21022

1NZFE..NCP11#..CBU

12V 0.8KW

 1
28100-21030

1NZFE..NCP11#..CBU

12V 1.0KW,寒冷地仕様

 1
28100-21031

1NZFE..NCP11#..CBU

12V 1.0KW,寒冷地仕様

 1
28100-21032

1NZFE..NCP11#..CBU

12V 1.0KW,寒冷地仕様

 1
28120 - YOKE ASSY, STARTER
28120-70020

1NZFE,2ZRFE..NCP11#,ZSP110..CBU

 1
28120-47120

1NZFE,2ZRFE..NCP11#,ZSP110..CBU

 1
28120-40130

1NZFE,2ZRFE..NCP11#,ZSP110..CBU

寒冷地仕様

 1
28120-70050

1NZFE,2ZRFE..NCP11#,ZSP110..CBU

寒冷地仕様

 1
28120A - RING, O(FOR STARTER YOKE)
90099-14092

1NZFE..NCP11#..CBU

 2
28120A - RING, O(FOR STARTER YOKE)
90099-14092

1NZFE..NCP11#..CBU

 2
28140 - HOLDER ASSY, STARTER BRUSH
28140-70020

1NZFE,2ZRFE..NCP11#,ZSP110..CBU

 1
28142 - BRUSH, STARTER
28142-70020

1NZFE..NCP11#..CBU

 2
28142 - BRUSH, STARTER
28142-70020

1NZFE..NCP11#..CBU

 2
28150 - SWITCH ASSY, MAGNET STARTER
28150-21020

1NZFE..NCP11#..CBU

 1
28160 - ARMATURE ASSY, STARTER
28160-70021

1NZFE,2ZRFE..NCP11#,ZSP110..CBU

 1
28160-70050

1NZFE,2ZRFE..NCP11#,ZSP110..CBU

寒冷地仕様

 1
Common parts
90179-08204
91612-61065
