NCP110-AHXEK (2007)
Toyota Ist
Production
Jul 2007
-
Apr 2016
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0707-1008)2ZRFE ; (0707- )1NZFE..NCP110

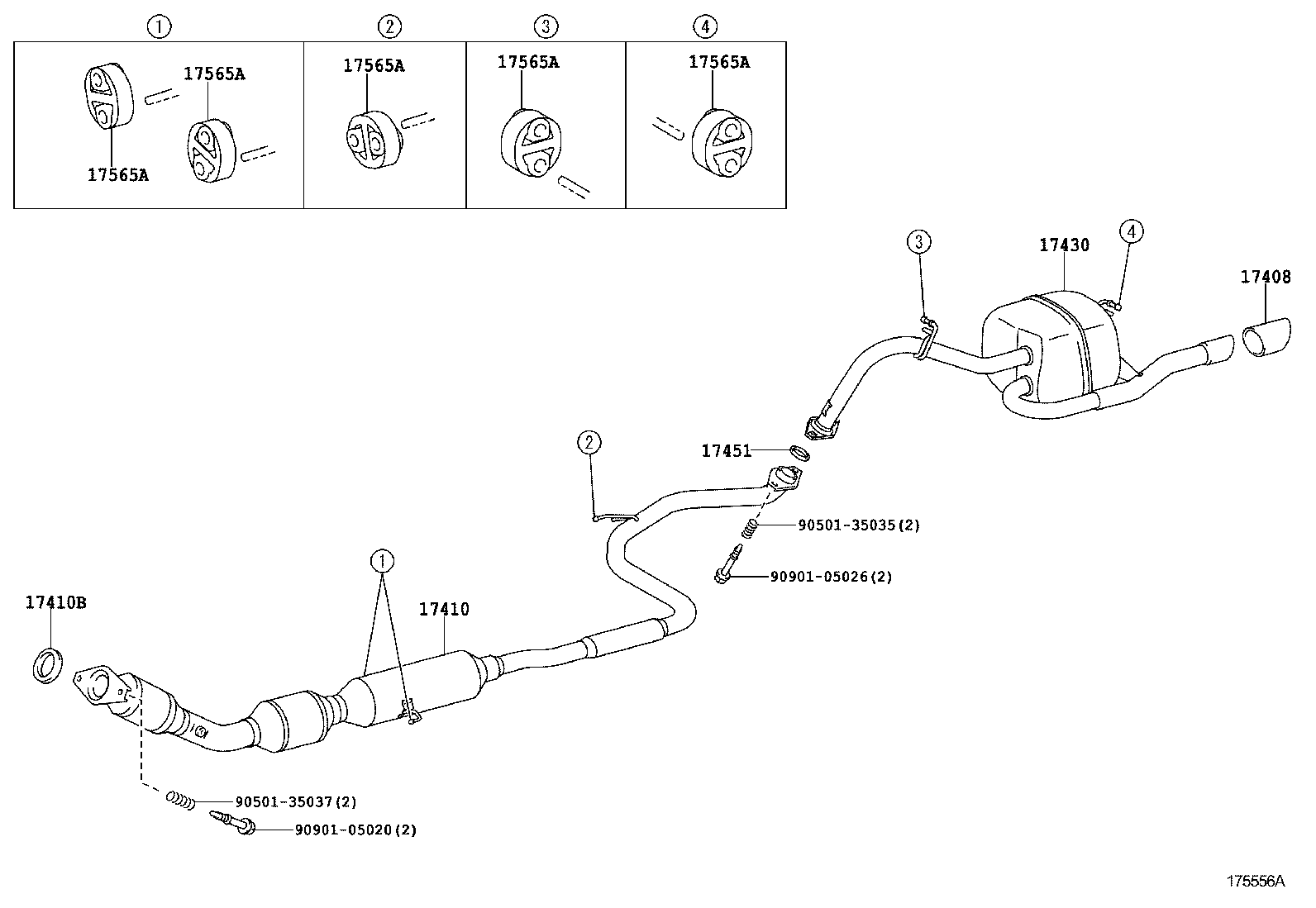

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE | ||||
| 17408-21030 |
1NZFE..NCP11#..CBU |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-21830 |
1NZFE..NCP110..CBU |
1 | ||
| 17410-21831 |
1NZFE..NCP110..CBU |
1 | ||
| 17410-21B40 |
1NZFE..NCP110..CBU |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-21070 |
1NZFE..NCP11#..CBU |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-21750 |
1NZFE..NCP110..CBU |
1 | ||
| 17430-21751 |
1NZFE..NCP110..CBU |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-23040 |
1NZFE,2ZRFE..NCP110,ZSP110..CBU |
1 | ||
| 17451-23042 |
1NZFE..NCP110..CBU |
1 | ||
| 17451-23041 |
1NZFE,2ZRFE..NCP110,ZSP110..CBU |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFE..NCP110..CBU |
5 | ||
| 17565-40010 |
1NZFE,2ZRFE..NCP110,ZSP110..CBU |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFE..NCP110..CBU |
5 | ||
| 17565-40010 |
1NZFE,2ZRFE..NCP110,ZSP110..CBU |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFE..NCP110..CBU |
5 | ||
| 17565-40010 |
1NZFE,2ZRFE..NCP110,ZSP110..CBU |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFE..NCP110..CBU |
5 | ||
| 17565-40010 |
1NZFE,2ZRFE..NCP110,ZSP110..CBU |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFE..NCP110..CBU |
5 | ||
| 17565-40010 |
1NZFE,2ZRFE..NCP110,ZSP110..CBU |
5 | ||
| Common parts | ||||
| 90501-35035 | ||||
| 90501-35037 | ||||
| 90901-05020 | ||||
| 90901-05026 | ||||
