NCP110-AHXEK (2007)
Toyota Ist
Production
Jul 2007
-
Apr 2016
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0707- )1NZFE..NCP110

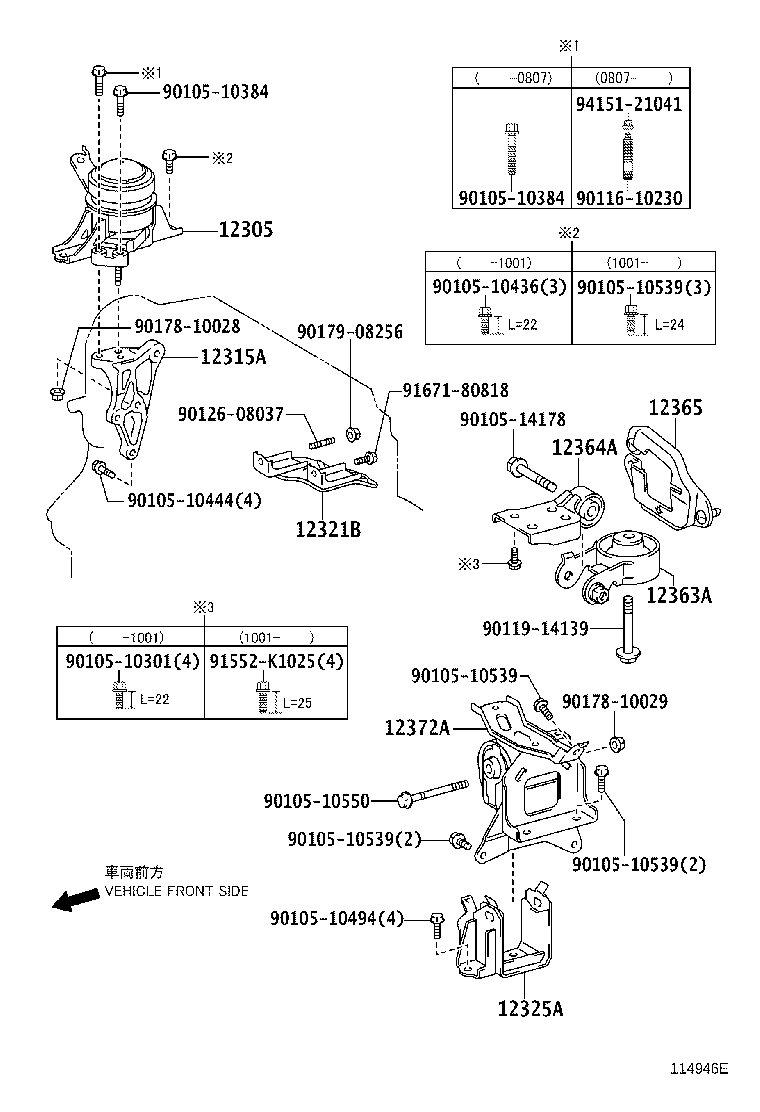

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-21370 |
1NZFE..NCP110..CBU |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-21042 |
1NZFE..NCP11#..CBU |
1 | ||
| 12315-21041 |
1NZFE..NCP11#..CBU |
1 | ||
| 12315-21043 |
1NZFE..NCP11#..CBU |
1 | ||
| 12315-21044 |
1NZFE..NCP11#..CBU |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-52020 |
1NZFE..NCP110..CBU |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-21170 |
1NZFE..NCP11#..CBU |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-21050 |
1NZFE..NCP110..CBU |
1 | ||
| 12364A - ROD, ENGINE LATERAL CONTROL | ||||
| 12364-21080 |
1NZFE..NCP110..CBU |
1 | ||
| 12365 - COVER, ENGINE MOVING CONTROL ROD | ||||
| 12365-40010 |
1NZFE..NCP11#..CBU 寒冷地仕様 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-21260 |
1NZFE..NCP110..CBU |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10384 | ||||
| 90105-10436 | ||||
| 90105-10444 | ||||
| 90105-10494 | ||||
| 90105-10539 | ||||
| 90105-10550 | ||||
| 90105-14178 | ||||
| 90116-10230 | ||||
| 90119-14139 | ||||
| 90126-08037 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90179-08256 | ||||
| 91552-K1025 | ||||
| 91671-80818 | ||||
| 94151-21041 | ||||
