ZNM10W-AWPSK (2004)

Toyota Isis

Production Sep 2004 - Sep 2009
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409- )ZGM10..L,PLTNA ; (0409- )ANM1#,ZGM11,15,ZNM10

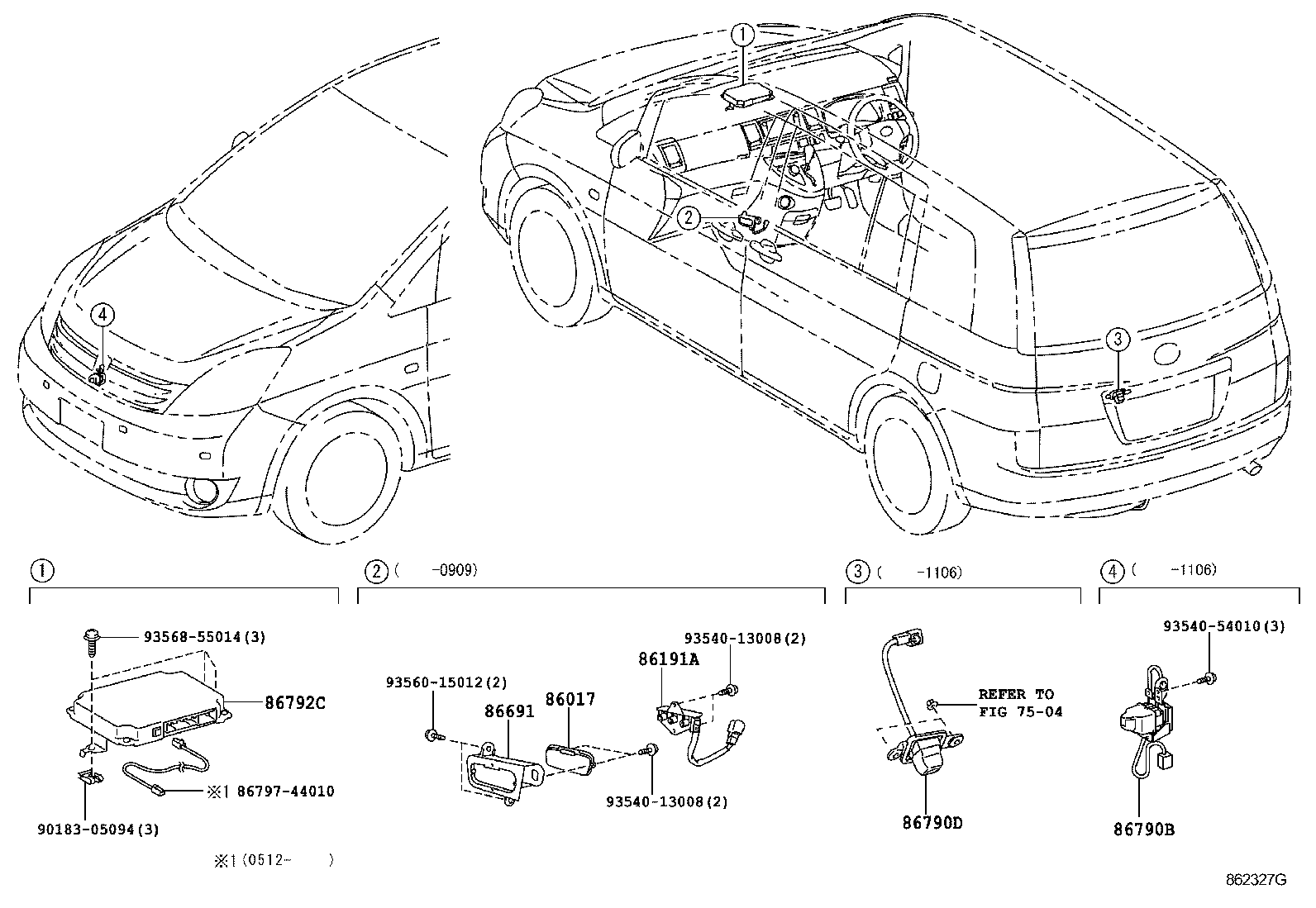

Click highlighted areas on diagram

diagram 7504 86017 86191A 86691 86790B 86790D 86792C 8679744010 9018305094 9354013008 9354013008 9354054010 9356015012 9356855014
Part # Description Qty Price
86017 - PARTS SET, VIDEO
86017-44020B0

ANM1#,ZNM10..PLTNA

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ,DK.CHARCOAL,TRIM1#

 1
86017-44020E0

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ,FAWN,TRIM4#

 1
86017-44020B1

ANM1#,ZNM10..PLTNA

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ,MD.GRAY,TRIM1#

 1
86017-44020B0

ANM1#,ZNM10..PLTNA

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ,DK.CHARCOAL,TRIM1#

 1
86017-44020E1

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ,GREGE,TRIM4#

 1
86017-44020E0

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ,FAWN,TRIM4#

 1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-68010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
86191-68010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
86691 - HOLDER, VIDEO
86691-44020

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
86691-44020

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
86790B - CAMERA ASSY, TELEVISION, FR
86790-44150

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
86790-44160

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
86790-44140

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
86790D - CAMERA ASSY, TELEVISION, RR
86790-44130

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
86790-44130

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
86792C - COMPUTER, PARKING ASSIST
86792-44120

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
86792-44130

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
86792-44100

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
Common parts
86797-44010
90183-05094
93540-13008
93540-54010
93560-15012
93568-55014
Linked diagrams
7504
