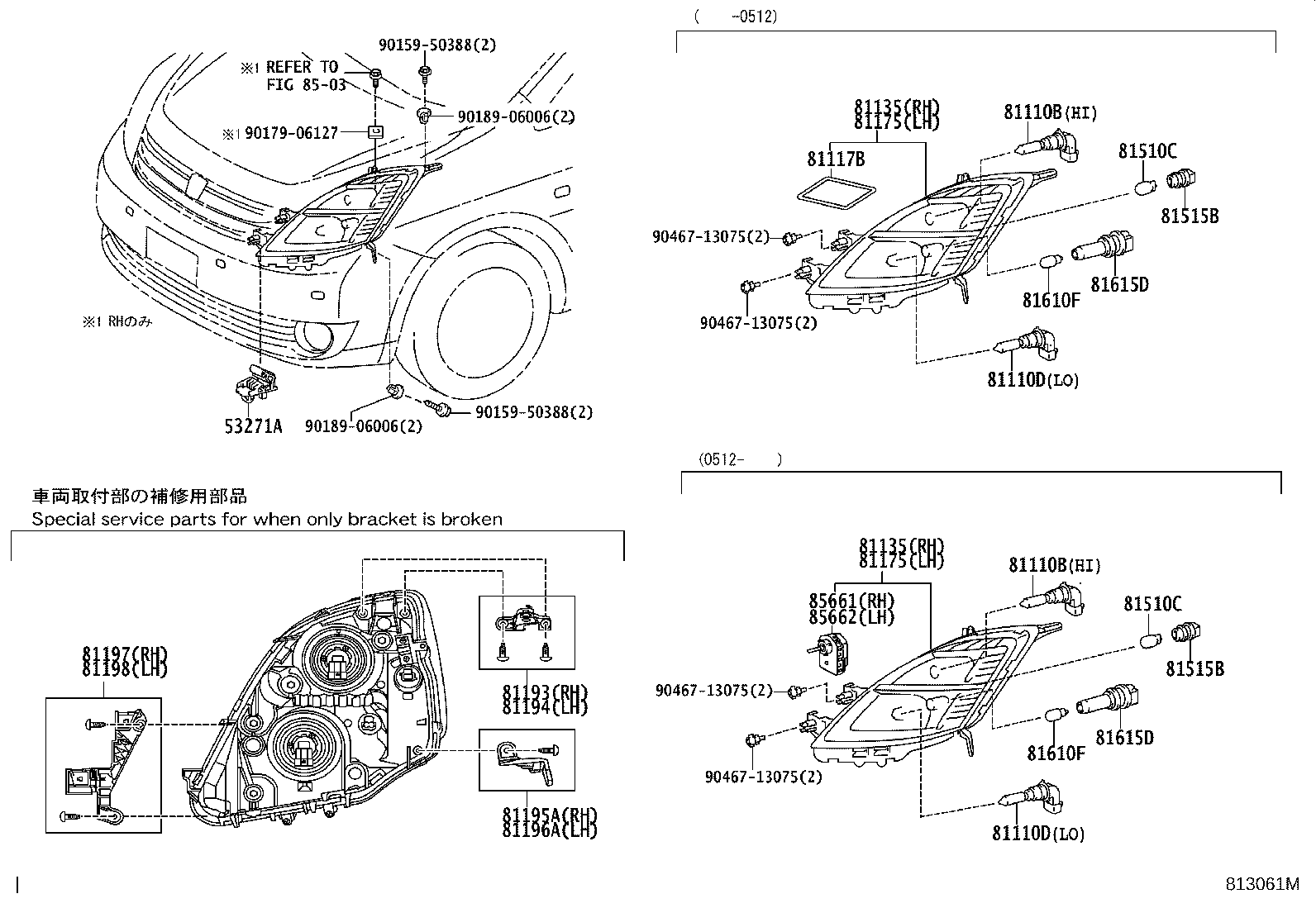

ZNM10G-AWPEK (2004)
Toyota Isis
(0409-0705)
ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-44010 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B) |
2 | ||
| 53271-44010 |
ANM1#,ZNM10 |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ANM1#,ZNM10 12V65W(SAE),60W(ECE) |
2 | ||
| 90080-81041 |
ANM1#,ZNM10 12V 65W |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ANM1#,ZNM10 12V65W(SAE),60W(ECE) |
2 | ||
| 90080-81041 |
ANM1#,ZNM10 12V 65W |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13047 |
ANM1#,ZNM10..L 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13047 |
ANM1#,ZNM10..L 12V 55W,ﾊﾛｹﾞﾝ,L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙGﾃﾞｨｼｮﾝ*(B) |
2 | ||
| 90981-13075 |
ANM1#,ZNM10..L 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13047 |
ANM1#,ZNM10..L 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13047 |
ANM1#,ZNM10..L 12V 55W,ﾊﾛｹﾞﾝ,L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙGﾃﾞｨｼｮﾝ*(B) |
2 | ||
| 90981-13075 |
ANM1#,ZNM10..L 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81117B - GASKET | ||||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 81117-68020 |
ANM1#,ZNM10..L |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-44260 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44290 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44330 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44320 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B) |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-44260 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44290 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44330 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44320 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-44260 |
ANM1#,ZNM10..L |
1 | ||
| 81170-44320 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B) |
1 | ||
| 81170-44290 |
ANM1#,ZNM10..L |
1 | ||
| 81170-44330 |
ANM1#,ZNM10..L |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-44260 |
ANM1#,ZNM10..L |
1 | ||
| 81170-44320 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B) |
1 | ||
| 81170-44290 |
ANM1#,ZNM10..L |
1 | ||
| 81170-44330 |
ANM1#,ZNM10..L |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-44060 |
ANM1#,ZNM10 |
1 | ||
| 81193-44080 |
ANM1#,ZNM10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-44080 |
ANM1#,ZNM10 |
1 | ||
| 81194-44060 |
ANM1#,ZNM10 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-44070 |
ANM1#,ZNM10 |
1 | ||
| 81193-44090 |
ANM1#,ZNM10 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-44070 |
ANM1#,ZNM10 |
1 | ||
| 81194-44090 |
ANM1#,ZNM10 |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81101-44010 |
ANM1#,ZNM10 |
1 | ||
| 81101-44020 |
ANM1#,ZNM10 |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81102-44020 |
ANM1#,ZNM10 |
1 | ||
| 81102-44010 |
ANM1#,ZNM10 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ANM1#,ZNM10..G,PLTNA 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..L 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..L 12V 21W,ｱﾝﾊﾞｰ,L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙGﾃﾞｨｼｮﾝ*(B) |
2 | ||
| 90981-15021 |
ANM1#,ZNM10 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..G,PLTNA 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ANM1#,ZNM10..G,PLTNA 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..L 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..L 12V 21W,ｱﾝﾊﾞｰ,L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙGﾃﾞｨｼｮﾝ*(B) |
2 | ||
| 90981-15021 |
ANM1#,ZNM10 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..G,PLTNA 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ANM1#,ZNM10 |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ANM1#,ZNM10 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ANM1#,ZNM10 12V 5W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ANM1#,ZNM10 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 81138-22680 |
ANM1#,ZNM10 |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 81138-22680 |
ANM1#,ZNM10 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
ANM1#,ZNM10..L |
1 | ||
| 85661-22020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 85661-12020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
ANM1#,ZNM10..L |
1 | ||
| 85661-22020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 85661-12020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| Common parts | ||||
| 90159-50388 | ||||
| 90179-06127 | ||||
| 90189-06006 | ||||
| 90467-13075 | ||||
| Linked diagrams | ||||
| 8503 | ||||

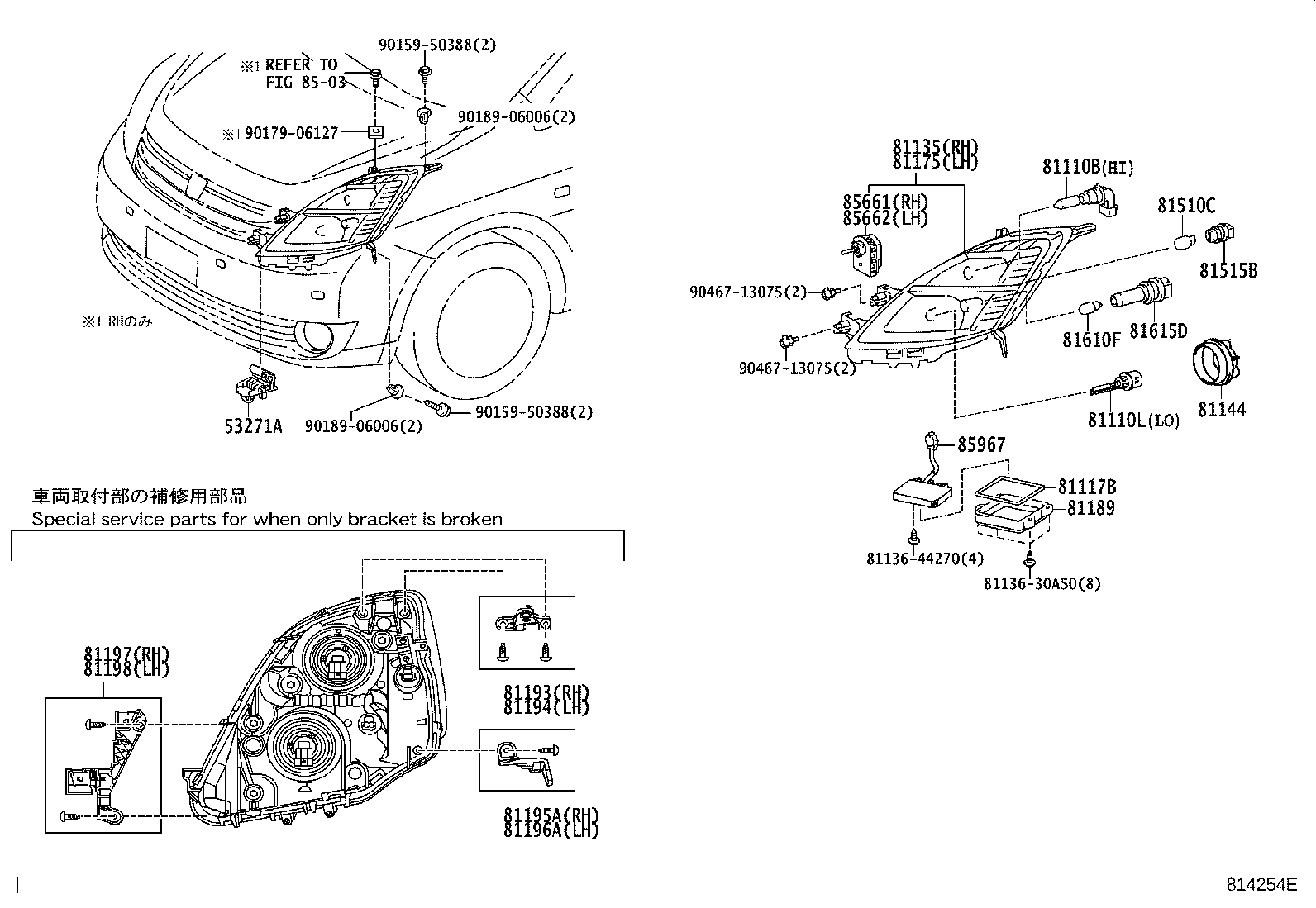

(0409-0705)
ﾃﾞｨｽﾁｬｰｼﾞ ﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-44010 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B) |
2 | ||
| 53271-44010 |
ANM1#,ZNM10 |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ANM1#,ZNM10 12V65W(SAE),60W(ECE) |
2 | ||
| 90080-81041 |
ANM1#,ZNM10 12V 65W |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20024 |
ANM1#,ZNM10..G,PLTNA 42V 35W |
2 | ||
| 90981-20023 |
ANM1#,ZNM10..G,PLTNA 45V 35W |
2 | ||
| 81117B - GASKET | ||||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 81117-68020 |
ANM1#,ZNM10..L |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-44260 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44290 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44330 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44320 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B) |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81135-44270 |
ANM1#,ZNM10..G,PLTNA |
2 | ||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 81135-24160 |
ANM1#,ZNM10 |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-44260 |
ANM1#,ZNM10..L |
1 | ||
| 81170-44320 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B) |
1 | ||
| 81170-44290 |
ANM1#,ZNM10..L |
1 | ||
| 81170-44330 |
ANM1#,ZNM10..L |
1 | ||
| 81189 - COVER, HEADLAMP | ||||
| 81189-68020 |
ANM1#,ZNM10..G,PLTNA |
2 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-44060 |
ANM1#,ZNM10 |
1 | ||
| 81193-44080 |
ANM1#,ZNM10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-44080 |
ANM1#,ZNM10 |
1 | ||
| 81194-44060 |
ANM1#,ZNM10 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-44070 |
ANM1#,ZNM10 |
1 | ||
| 81193-44090 |
ANM1#,ZNM10 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-44070 |
ANM1#,ZNM10 |
1 | ||
| 81194-44090 |
ANM1#,ZNM10 |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81101-44010 |
ANM1#,ZNM10 |
1 | ||
| 81101-44020 |
ANM1#,ZNM10 |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81102-44020 |
ANM1#,ZNM10 |
1 | ||
| 81102-44010 |
ANM1#,ZNM10 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ANM1#,ZNM10..G,PLTNA 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..L 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..L 12V 21W,ｱﾝﾊﾞｰ,L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙGﾃﾞｨｼｮﾝ*(B) |
2 | ||
| 90981-15021 |
ANM1#,ZNM10 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..G,PLTNA 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ANM1#,ZNM10 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ANM1#,ZNM10 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 81138-22680 |
ANM1#,ZNM10 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
ANM1#,ZNM10..L |
1 | ||
| 85661-22020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 85661-12020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
ANM1#,ZNM10..L |
1 | ||
| 85661-22020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 85661-12020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-41010 |
ANM1#,ZNM10..G,PLTNA |
2 | ||
| 81107-33620 |
ANM1#,ZNM10..G,PLTNA |
2 | ||
| Common parts | ||||
| 81136-30A50 | ||||
| 81136-44270 | ||||
| 90159-50388 | ||||
| 90179-06127 | ||||
| 90189-06006 | ||||
| 90467-13075 | ||||
| Linked diagrams | ||||
| 8503 | ||||
(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-44010 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B) |
2 | ||
| 53271-44010 |
ANM1#,ZNM10 |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ANM1#,ZNM10 12V65W(SAE),60W(ECE) |
2 | ||
| 90080-81041 |
ANM1#,ZNM10 12V 65W |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
ANM1#,ZNM10 12V 65W |
2 | ||
| 90981-13046 |
ANM1#,ZNM10 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13047 |
ANM1#,ZNM10..L 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13047 |
ANM1#,ZNM10..L 12V 55W,ﾊﾛｹﾞﾝ,L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙGﾃﾞｨｼｮﾝ*(B) |
2 | ||
| 90981-13075 |
ANM1#,ZNM10..L 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20024 |
ANM1#,ZNM10..G,PLTNA 42V 35W |
2 | ||
| 90981-20023 |
ANM1#,ZNM10..G,PLTNA 45V 35W |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-44260 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44290 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44330 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44320 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B) |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-44260 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44290 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44330 |
ANM1#,ZNM10..L |
1 | ||
| 81130-44320 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B) |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81135-44270 |
ANM1#,ZNM10..G,PLTNA |
2 | ||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 81135-24160 |
ANM1#,ZNM10 |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81135-44270 |
ANM1#,ZNM10..G,PLTNA |
2 | ||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 81135-24160 |
ANM1#,ZNM10 |
2 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 90075-65006 |
ANM1#,ZNM10 |
2 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 90075-65006 |
ANM1#,ZNM10 |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-44260 |
ANM1#,ZNM10..L |
1 | ||
| 81170-44320 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B) |
1 | ||
| 81170-44290 |
ANM1#,ZNM10..L |
1 | ||
| 81170-44330 |
ANM1#,ZNM10..L |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-44260 |
ANM1#,ZNM10..L |
1 | ||
| 81170-44320 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B) |
1 | ||
| 81170-44290 |
ANM1#,ZNM10..L |
1 | ||
| 81170-44330 |
ANM1#,ZNM10..L |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-44060 |
ANM1#,ZNM10 |
1 | ||
| 81193-44080 |
ANM1#,ZNM10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-44080 |
ANM1#,ZNM10 |
1 | ||
| 81194-44060 |
ANM1#,ZNM10 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-44070 |
ANM1#,ZNM10 |
1 | ||
| 81193-44090 |
ANM1#,ZNM10 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-44070 |
ANM1#,ZNM10 |
1 | ||
| 81194-44090 |
ANM1#,ZNM10 |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81101-44010 |
ANM1#,ZNM10 |
1 | ||
| 81101-44020 |
ANM1#,ZNM10 |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81102-44020 |
ANM1#,ZNM10 |
1 | ||
| 81102-44010 |
ANM1#,ZNM10 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ANM1#,ZNM10..G,PLTNA 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..L 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..L 12V 21W,ｱﾝﾊﾞｰ,L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙGﾃﾞｨｼｮﾝ*(B) |
2 | ||
| 90981-15021 |
ANM1#,ZNM10 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..G,PLTNA 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ANM1#,ZNM10..G,PLTNA 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..L 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..L 12V 21W,ｱﾝﾊﾞｰ,L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙGﾃﾞｨｼｮﾝ*(B) |
2 | ||
| 90981-15021 |
ANM1#,ZNM10 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ANM1#,ZNM10..G,PLTNA 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ANM1#,ZNM10 |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ANM1#,ZNM10 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ANM1#,ZNM10 12V 5W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ANM1#,ZNM10 12V 5W |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
ANM1#,ZNM10..L |
1 | ||
| 85661-22020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 85661-12020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
ANM1#,ZNM10..L |
1 | ||
| 85661-22020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 85661-12020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
ANM1#,ZNM10..L |
1 | ||
| 85661-22020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 85661-12020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
ANM1#,ZNM10..L |
1 | ||
| 85661-22020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 85661-12020 |
ANM1#,ZNM10..G,PLTNA |
1 | ||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 90075-99120 |
ANM1#,ZNM10..G,L |
2 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 00000-00000 |
ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ*(B),該当i番なし |
1 | ||
| 90075-99120 |
ANM1#,ZNM10..G,L |
2 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-41010 |
ANM1#,ZNM10..G,PLTNA |
2 | ||
| 81107-33620 |
ANM1#,ZNM10..G,PLTNA |
2 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90159-50388 | ||||
| 90179-06127 | ||||
| 90189-06006 | ||||
| 90467-13075 | ||||
| Linked diagrams | ||||
| 8503 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
