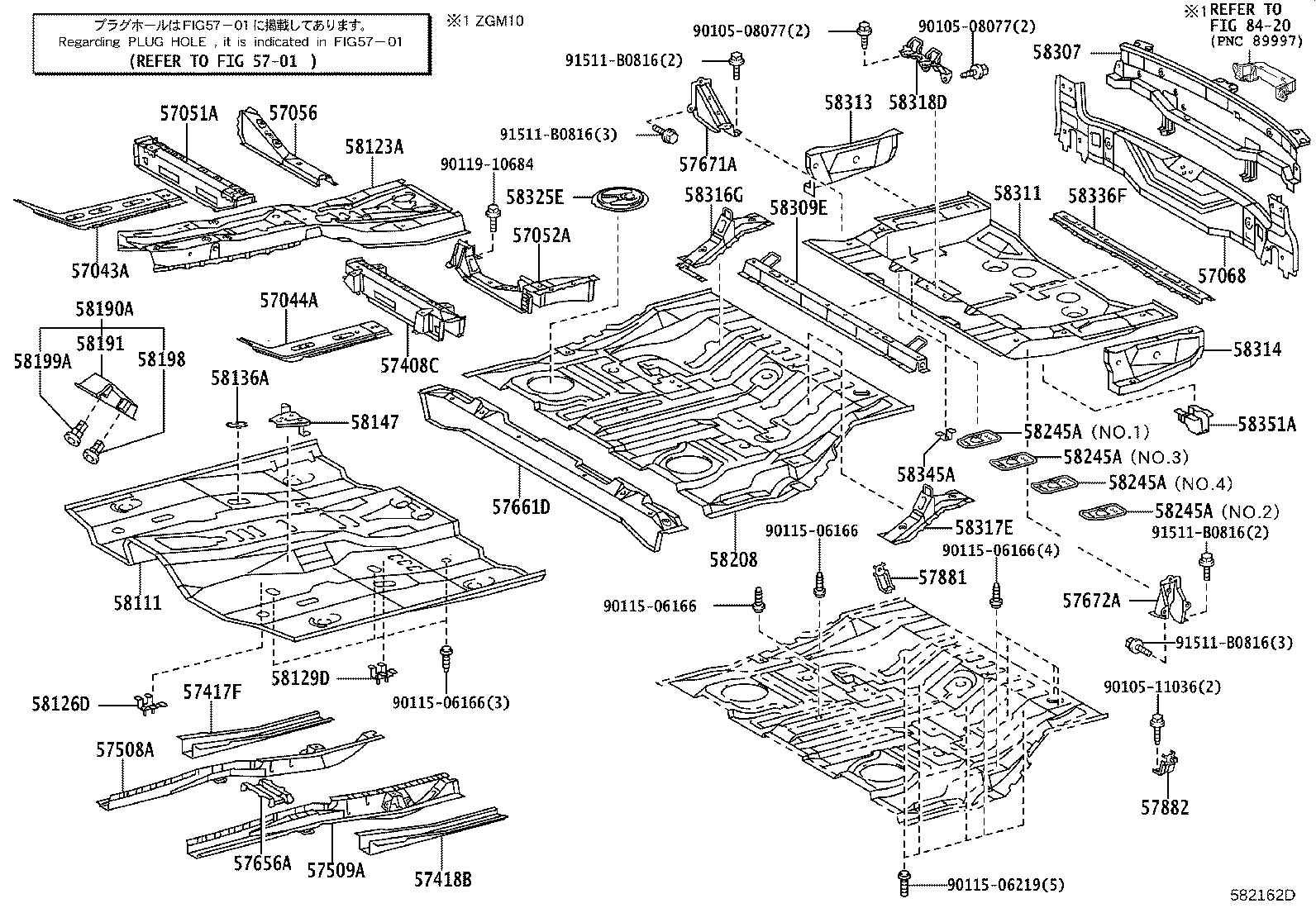

Toyota Isis ZNM10 FLOOR PAN & LOWER BACK PANEL

Part #	Description	Period	Qty
57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57043-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57044-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-44010	ANM10,ZNM10	09/2004 - 09/2009	1
57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-44010	ANM10,ZNM10	09/2004 - 09/2009	1
57056 - REINFORCEMENT SUB-ASSY, CROSS MEMBER FLOOR, NO.6
57056-44010	ANM10,ZNM10	09/2004 - 09/2009	1
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-44070	ANM1#,ZNM10	09/2004 - 09/2009	1
57408C - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-44260	ANM10,ZNM10	09/2004 - 09/2009	1
57417F - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-13020	ANM1#,ZNM10	09/2004 - 09/2009	1
57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-13020	ANM1#,ZNM10	09/2004 - 09/2009	1
57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57508-68010	ANM10,ZNM10	09/2004 - 09/2009	1
57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57509-68010	ANM10,ZNM10	09/2004 - 09/2009	1
57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1
57656-68010	ANM10,ZNM10	09/2004 - 09/2009	1
57661D - MEMBER, REAR FLOOR CROSS, FRONT
58202-44010	ANM10,ZNM10	09/2004 - 09/2009	1
57671A - STAY, REAR FLOOR SIDE MEMBER, RH
57678-44020	ANM1#,ZNM10	09/2004 - 09/2009	1
57672A - STAY, REAR FLOOR SIDE MEMBER, LH
57679-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
57881 - REINFORCEMENT, BELT ANCHOR, NO.3
57881-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
57882 - REINFORCEMENT, BELT ANCHOR, NO.4
57882-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
58111 - PAN, FRONT FLOOR
58111-44902	ANM10,ZNM10	09/2004 - 09/2009	1
58123A - SUPPORT, SHIFT & SELECT LEVER
58013-44120	ANM10,ZNM10	09/2004 - 09/2009	1
58126D - PATCH, FRONT FLOOR TO COWL BRACE MOUNTING BRACKET
58126-44010	ANM10,ZNM10	09/2004 - 09/2009	1
58129D - BRACKET, COWL MOUNTING MEMBER
58129-44010	ANM10,ZNM10	09/2004 - 09/2009	1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-33010	ANM1#,ZNM10	09/2004 - 09/2009	2
58147 - BRACKET, FRONT FLOOR HOUSING, FRONT LH
58147-44010	ANM10,ZNM10	09/2004 - 09/2009	1
58190A - REST ASSY, FRONT FLOOR FOOT
58190-68010	ANM1#,ZNM10	09/2004 - 09/2009	1
58191 - FOOTREST, FRONT FLOOR
58191-68010	ANM1#,ZNM10	09/2004 - 09/2009	1
58198 - CLIP, FOOTREST
90467-09220	ANM1#,ZNM10	09/2004 - 09/2009	1
58199A - CLIP, FOOTREST, NO.2
58199-20050	ANM1#,ZNM10	09/2004 - 09/2009	1
58208 - PAN, CENTER FLOOR
58211-44901	ANM10,ZNM10	09/2004 - 12/2005	1
58211-44903	ANM1#,ZNM10	12/2005 - 09/2009	1
58245A - BRACKET, REAR SEAT HINGE, CENTER NO.1
58245-44020	ANM1#,ZNM10 NO.2	09/2004 - 09/2009	1
58245-44030	ANM1#,ZNM10 NO.3	09/2004 - 09/2009	1
58245-44010	ANM1#,ZNM10 NO.1	09/2004 - 09/2009	1
58245-44040	ANM1#,ZNM10 NO.4	09/2004 - 09/2009	1
58245A - BRACKET, REAR SEAT HINGE, CENTER NO.1
58245-44020	ANM1#,ZNM10 NO.2	09/2004 - 09/2009	1
58245-44030	ANM1#,ZNM10 NO.3	09/2004 - 09/2009	1
58245-44010	ANM1#,ZNM10 NO.1	09/2004 - 09/2009	1
58245-44040	ANM1#,ZNM10 NO.4	09/2004 - 09/2009	1
58245A - BRACKET, REAR SEAT HINGE, CENTER NO.1
58245-44020	ANM1#,ZNM10 NO.2	09/2004 - 09/2009	1
58245-44030	ANM1#,ZNM10 NO.3	09/2004 - 09/2009	1
58245-44010	ANM1#,ZNM10 NO.1	09/2004 - 09/2009	1
58245-44040	ANM1#,ZNM10 NO.4	09/2004 - 09/2009	1
58245A - BRACKET, REAR SEAT HINGE, CENTER NO.1
58245-44020	ANM1#,ZNM10 NO.2	09/2004 - 09/2009	1
58245-44030	ANM1#,ZNM10 NO.3	09/2004 - 09/2009	1
58245-44010	ANM1#,ZNM10 NO.1	09/2004 - 09/2009	1
58245-44040	ANM1#,ZNM10 NO.4	09/2004 - 09/2009	1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-44080	ANM1#,ZNM10	09/2004 - 04/2009	1
58307-44081	ANM1#,ZNM10	05/2009 - 09/2009	1
58309E - PLATE SUB-ASSY, REAR FLOOR
58309-44010	ANM1#,ZNM10	09/2004 - 07/2009	1
58309-44011	ANM1#,ZNM10	08/2009 - 09/2009	1
58311 - PAN, REAR FLOOR
58311-44100	ANM1#,ZNM10	09/2004 - 09/2009	1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-44030	ANM1#,ZNM10	09/2004 - 09/2009	1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-44030	ANM1#,ZNM10	09/2004 - 09/2009	1
58316G - RETAINER, REAR SEAT, NO.1
58303-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
58317E - RETAINER, REAR SEAT, NO.2
58304-44050	ANM1#,ZNM10	09/2004 - 09/2009	1
58318D - RETAINER, REAR SEAT, NO.3
58318-44020	ANM1#,ZNM10	09/2004 - 09/2009	1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-44030	ANM1#,ZNM10	09/2004 - 09/2009	2
58336F - REINFORCEMENT, REAR FLOOR PAN, RH
58336-44060	ANM1#,ZNM10	09/2004 - 09/2009	1
58345A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58345-44010	ANM1#,ZNM10	09/2004 - 09/2009	1
58351A - BRACKET, SPARE WHEEL CARRIER
58351-44020	ANM1#,ZNM10	09/2004 - 09/2009	1
Common parts
90105-08077
90105-11036
90115-06166
90115-06219
90119-10684
91511-B0816
Linked diagrams
5701
8420

ZNM10G-AWPEK (2004)

(0409- )ANM10,ZGM10,11,ZNM10
