ZGM15G-AWXGP (2009)

Toyota Isis

Production Sep 2009 - Jan 2018
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0909- )

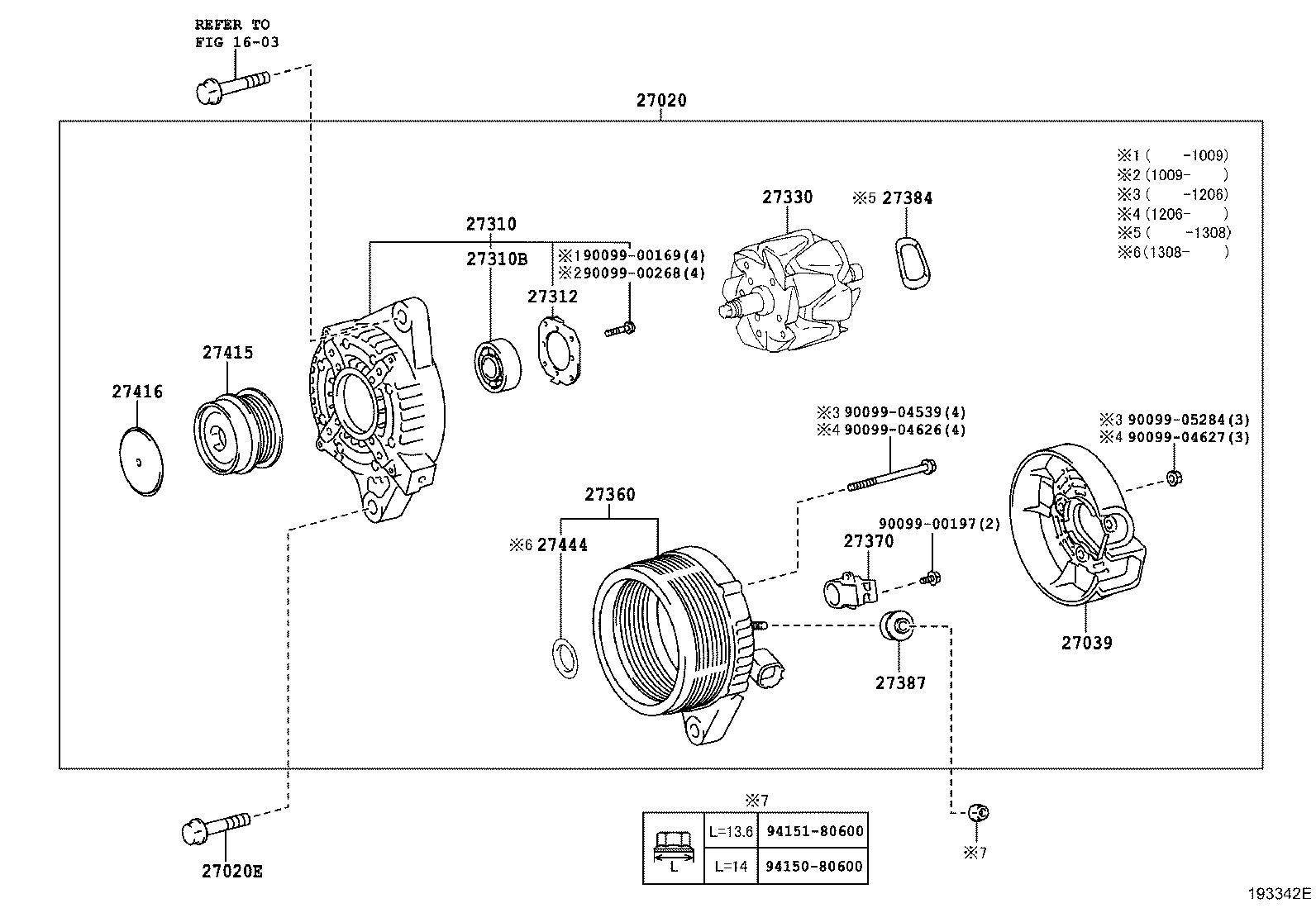

Click highlighted areas on diagram

12V 100A,130A

diagram 1603 27020 27020E 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27415 27416 27444 9009900169 9009900197 9009900268 9009904539 9009904626 9009904627 9009905284 9415080600 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-37160

2ZRFAE,3ZRFAE..ZGM11,15

12V 100A

 1
27060-37021

2ZRFAE,3ZRFAE..ZGM1#

12V 100A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10307

2ZRFAE,3ZRFAE..ZGM1#

 1
27039 - COVER, ALTERNATOR REAR END
27039-31390

2ZRFAE,3ZRFAE..ZGM1#

 1
27039-47330

2ZRFAE,3ZRFAE..ZGM1#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-37030

2ZRFAE,3ZRFAE..ZGM1#

 1
27310-37130

2ZRFAE,3ZRFAE..ZGM1#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223

2ZRFAE,3ZRFAE..ZGM1#

 1
27312 - PLATE, RETAINER
27312-72100

2ZRFAE,3ZRFAE..ZGM1#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-47330

2ZRFAE,3ZRFAE..ZGM1#

 1
27330-30070

2ZRFAE,3ZRFAE..ZGM1#

 1
27360 - COIL ASSY, ALTERNATOR
27360-37190

2ZRFAE,3ZRFAE..ZGM1#

 1
27360-37030

2ZRFAE,3ZRFAE..ZGM1#

 1
27360-37191

2ZRFAE,3ZRFAE..ZGM11,15

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

2ZRFAE,3ZRFAE..ZGM1#

 1
27384 - WASHER
27384-50030

2ZRFAE,3ZRFAE..ZGM1#

 1
27384-38130

2ZRFAE,3ZRFAE..ZGM1#

 1
27387 - INSULATOR, TERMINAL
27387-20130

2ZRFAE,3ZRFAE..ZGM1#

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0T060

2ZRFAE,3ZRFAE..ZGM1#

 1
27415-0T011

2ZRFAE,3ZRFAE..ZGM1#

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

2ZRFAE,3ZRFAE..ZGM1#

 1
27416-0W020

2ZRFAE,3ZRFAE..ZGM1#

 1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-21190

2ZRFAE,3ZRFAE..ZGM1#

 1
Common parts
90099-00169
90099-00197
90099-00268
90099-04539
90099-04626
90099-04627
90099-05284
94150-80600
94151-80600
Linked diagrams
1603
