Toyota Isis ZGM15 MANIFOLD - JDM Part Detective

ZGM15G-AWXEP (2009)

Toyota Isis

Production Sep 2009 - Jan 2018

Engine 2ZRFAE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

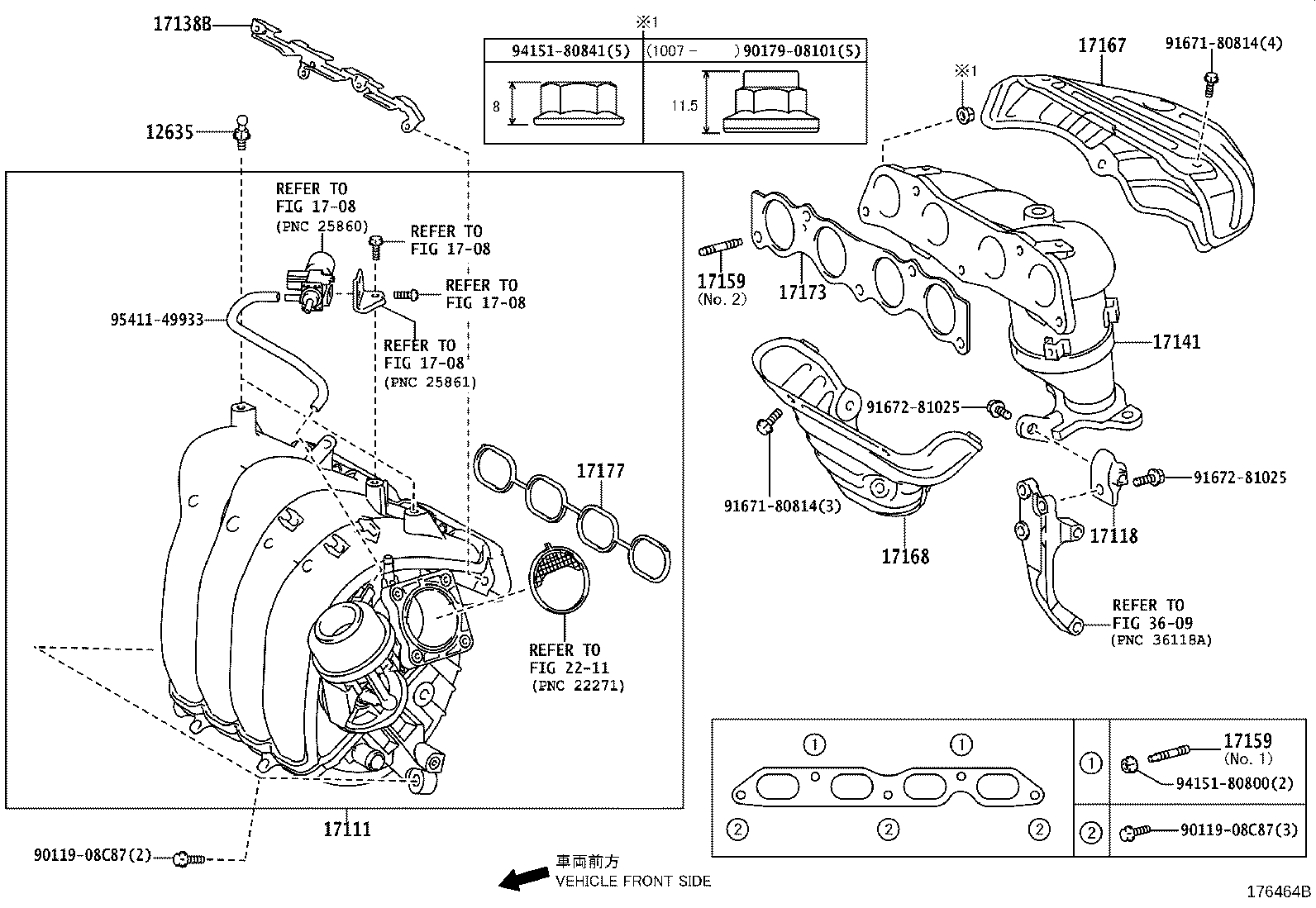

Click highlighted areas on diagram

Part #	Description	Period	Qty
12635 - JOINT, ENGINE COVER
90109-06385	2ZRFAE,3ZRFAE..ZGM1#	09/2009 - 06/2012	2
17111 - MANIFOLD, INTAKE
17120-37031	2ZRFAE,3ZRFAE..ZGM1#	06/2012 - 12/2999	1
17120-37011	2ZRFAE,3ZRFAE..ZGM1#	09/2009 - 06/2012	1
17118 - STAY, MANIFOLD
17118-37030	2ZRFAE..ZGM15	09/2009 - 12/2999	1
17138B - STAY, INTAKE MANIFOLD
17138-37011	2ZRFAE,3ZRFAE..ZGM1#	05/2013 - 12/2999	1
17138-37010	2ZRFAE,3ZRFAE..ZGM1#	09/2009 - 05/2013	1
17141 - MANIFOLD, EXHAUST
17141-37160	2ZRFAE..ZGM15	06/2012 - 12/2999	1
17141-37120	2ZRFAE..ZGM15	09/2009 - 06/2012	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	2ZRFAE,3ZRFAE..ZGM1# NO.1	09/2009 - 12/2999	2
90126-08052	2ZRFAE,3ZRFAE..ZGM1# NO.2	09/2009 - 12/2999	5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	2ZRFAE,3ZRFAE..ZGM1# NO.1	09/2009 - 12/2999	2
90126-08052	2ZRFAE,3ZRFAE..ZGM1# NO.2	09/2009 - 12/2999	5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37031	2ZRFAE..ZGM15	09/2009 - 12/2999	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37050	2ZRFAE..ZGM15	09/2009 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010	2ZRFAE,3ZRFAE..ZGM1#	09/2009 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37030	2ZRFAE,3ZRFAE..ZGM1#	09/2009 - 12/2999	1
Common parts
90119-08C87
90179-08101
91671-80814
91672-81025
94151-80800
94151-80841
95411-49933
Linked diagrams
1708
2211
3609

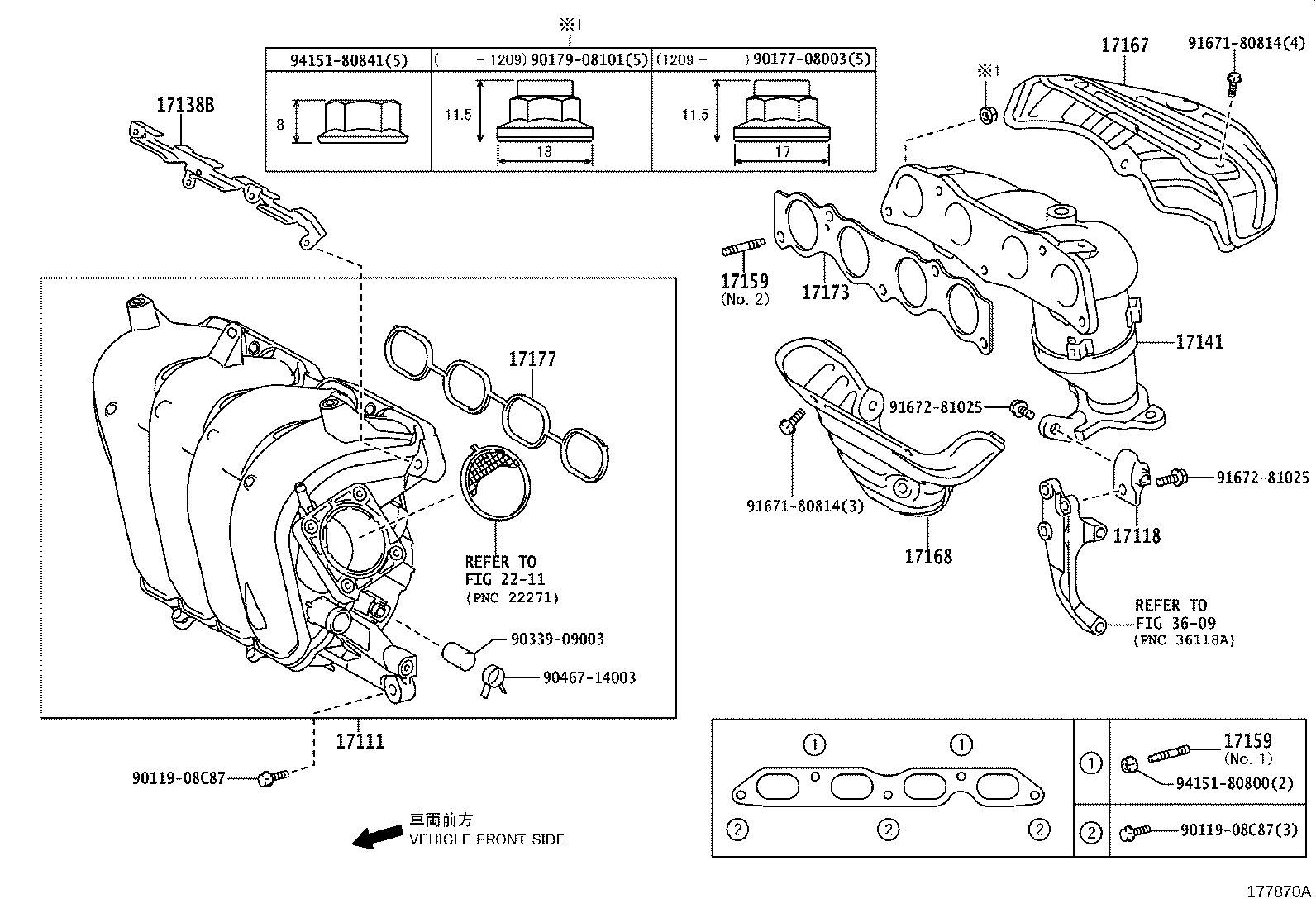

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-37031	2ZRFAE,3ZRFAE..ZGM1#	06/2012 - 12/2999	1
17120-37011	2ZRFAE,3ZRFAE..ZGM1#	09/2009 - 06/2012	1
17118 - STAY, MANIFOLD
17118-37030	2ZRFAE..ZGM15	09/2009 - 12/2999	1
17138B - STAY, INTAKE MANIFOLD
17138-37011	2ZRFAE,3ZRFAE..ZGM1#	05/2013 - 12/2999	1
17138-37010	2ZRFAE,3ZRFAE..ZGM1#	09/2009 - 05/2013	1
17141 - MANIFOLD, EXHAUST
17141-37160	2ZRFAE..ZGM15	06/2012 - 12/2999	1
17141-37120	2ZRFAE..ZGM15	09/2009 - 06/2012	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	2ZRFAE,3ZRFAE..ZGM1# NO.1	09/2009 - 12/2999	2
90126-08052	2ZRFAE,3ZRFAE..ZGM1# NO.2	09/2009 - 12/2999	5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	2ZRFAE,3ZRFAE..ZGM1# NO.1	09/2009 - 12/2999	2
90126-08052	2ZRFAE,3ZRFAE..ZGM1# NO.2	09/2009 - 12/2999	5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37031	2ZRFAE..ZGM15	09/2009 - 12/2999	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37050	2ZRFAE..ZGM15	09/2009 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010	2ZRFAE,3ZRFAE..ZGM1#	09/2009 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37030	2ZRFAE,3ZRFAE..ZGM1#	09/2009 - 12/2999	1
Common parts
90119-08C87
90177-08003
90179-08101
90339-09003
90467-14003
91671-80814
91672-81025
94151-80800
94151-80841
Linked diagrams
2211
3609
