ZGM11W-AWXSP (2009)
Toyota Isis

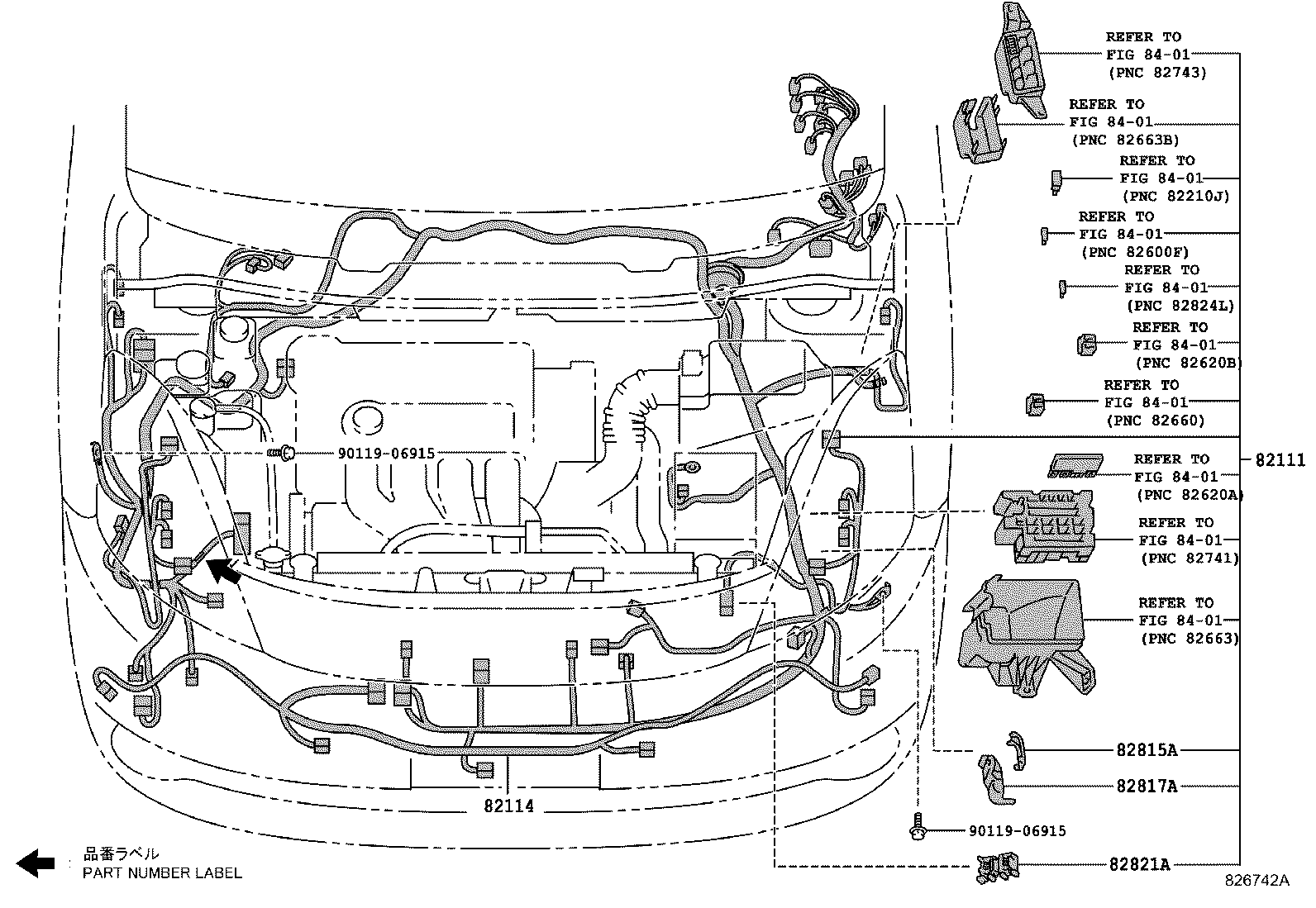

ILLUST NO. 1 OF10(0909- )
ｴﾝｼﾞﾝ ﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-44E50 |
ZGM11..PLTNA U−SELECTION *(U)&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 82111-44E50 |
ZGM11..G |
1 | ||
| 82111-44E40 |
ZGM10,11..PLTNA |
1 | ||
| 82111-44E50 |
ZGM11..PLTNA U−SELECTION *(U) |
1 | ||
| 82111-44E50 |
ZGM10,11..PLTNA ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 82111-44E20 |
ZGM10,11..L |
1 | ||
| 82111-44E60 |
ZGM11..PLTNA U−SELECTION *(U)&寒冷地仕様 |
1 | ||
| 82111-44E30 |
ZGM10,11..L 寒冷地仕様 |
1 | ||
| 82111-44E60 |
ZGM10,11..G,PLTNA 寒冷地仕様 |
1 | ||
| 82111-44E60 |
ZGM11..PLTNA U−SELECTION *(U)&寒冷地仕様&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 82111-44E50 |
ZGM10,11..PLTNA PLATANA“Limited” *(A) |
1 | ||
| 82111-44E60 |
ZGM10,11..PLTNA PLATANA“Limited” *(A)&寒冷地仕様 |
1 | ||
| 82111-44F61 |
ZGM10,11..L,PLTNA 寒冷地仕様 |
1 | ||
| 82111-44E60 |
ZGM10,11..PLTNA 寒冷地仕様&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 82111-44F80 |
ZGM10,11..PLTNA V−SELECTION *(U) |
1 | ||
| 82111-44E50 |
ZGM10,11..PLTNA PLATANA“Black Limited” *(C) |
1 | ||
| 82111-44F80 |
ZGM10,11..G |
1 | ||
| 82111-44F90 |
ZGM10,11..G 寒冷地仕様 |
1 | ||
| 82111-44E60 |
ZGM10,11..PLTNA PLATANA“Black Limited” *(C)&寒冷地仕様 |
1 | ||
| 82111-44F90 |
ZGM10,11..PLTNA V−SELECTION *(U)&寒冷地仕様 |
1 | ||
| 82111-44F80 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(A)&*POSD(右側&左側) |
1 | ||
| 82111-44F90 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(A)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82111-44F91 |
ZGM10,11..G 寒冷地仕様 |
1 | ||
| 82111-44F91 |
ZGM10,11..PLTNA V−SELECTION *(U)&寒冷地仕様 |
1 | ||
| 82111-44F72 |
ZGM10,11..PLTNA |
1 | ||
| 82111-44F71 |
ZGM10,11..PLTNA |
1 | ||
| 82111-44F62 |
ZGM10,11..L,PLTNA 寒冷地仕様 |
1 | ||
| 82111-44F81 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(D)&*POSD(右側&左側) |
1 | ||
| 82111-44F91 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(D)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82111-44F81 |
ZGM10,11..PLTNA V−SELECTION *(U) |
1 | ||
| 82111-44F81 |
ZGM10,11..G |
1 | ||
| 82111-44F63 |
ZGM10,11..L,PLTNA 寒冷地仕様 |
1 | ||
| 82111-44F64 |
ZGM10,11..L,PLTNA 寒冷地仕様 |
1 | ||
| 82111-44F92 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/BLANC”*(F)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82111-44F73 |
ZGM10,11..PLTNA |
1 | ||
| 82111-44F82 |
ZGM10,11..PLTNA V−SELECTION *(U) |
1 | ||
| 82111-44F92 |
ZGM10,11..PLTNA V−SELECTION *(U)&寒冷地仕様 |
1 | ||
| 82111-44F82 |
ZGM10,11..G |
1 | ||
| 82111-44F92 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/NOIR”*(G)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82111-44F82 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/BLANC”*(F)&*POSD(右側&左側) |
1 | ||
| 82111-44F82 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/NOIR”*(G)&*POSD(右側&左側) |
1 | ||
| 82111-44F92 |
ZGM10,11..G 寒冷地仕様 |
1 | ||
| 82111-44E50 |
ZGM11..PLTNA 品番ﾗﾍﾞﾙ=82111−44E50 |
1 | ||
| 82111-44E30 |
ZGM10,11..L 品番ﾗﾍﾞﾙ=82111−44E30 |
1 | ||
| 82111-44E60 |
ZGM10,11..G,PLTNA 品番ﾗﾍﾞﾙ=82111−44E60 |
1 | ||
| 82111-44E60 |
ZGM11..PLTNA 品番ﾗﾍﾞﾙ=82111−44E60 |
1 | ||
| 82111-44E50 |
ZGM11..G 品番ﾗﾍﾞﾙ=82111−44E50 |
1 | ||
| 82111-44E40 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44E40 |
1 | ||
| 82111-44E60 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44E60 |
1 | ||
| 82111-44E20 |
ZGM10,11..L 品番ﾗﾍﾞﾙ=82111−44E20 |
1 | ||
| 82111-44E50 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44E50 |
1 | ||
| 82111-44F90 |
ZGM10,11..G 品番ﾗﾍﾞﾙ=82111−44F90 |
1 | ||
| 82111-44E60 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44E60 |
1 | ||
| 82111-44E50 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44E50 |
1 | ||
| 82111-44F71 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44F71 |
1 | ||
| 82111-44F90 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44F90 |
1 | ||
| 82111-44F80 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44F80 |
1 | ||
| 82111-44F61 |
ZGM10,11..L,PLTNA 品番ﾗﾍﾞﾙ=82111−44F61 |
1 | ||
| 82111-44F80 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44F80 |
1 | ||
| 82111-44F80 |
ZGM10,11..G 品番ﾗﾍﾞﾙ=82111−44F80 |
1 | ||
| 82111-44F90 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44F90 |
1 | ||
| 82111-44F62 |
ZGM10,11..L,PLTNA 品番ﾗﾍﾞﾙ=82111−44F62 |
1 | ||
| 82111-44F91 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44F91 |
1 | ||
| 82111-44F81 |
ZGM10,11..G 品番ﾗﾍﾞﾙ=82111−44F81 |
1 | ||
| 82111-44F81 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44F81 |
1 | ||
| 82111-44F72 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44F72 |
1 | ||
| 82111-44F91 |
ZGM10,11..G 品番ﾗﾍﾞﾙ=82111−44F91 |
1 | ||
| 82111-44F82 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44F82 |
1 | ||
| 82111-44F82 |
ZGM10,11..G 品番ﾗﾍﾞﾙ=82111−44F82 |
1 | ||
| 82111-44F73 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44F73 |
1 | ||
| 82111-44F63 |
ZGM10,11..L,PLTNA 品番ﾗﾍﾞﾙ=82111−44F63 |
1 | ||
| 82111-44F64 |
ZGM10,11..L,PLTNA 品番ﾗﾍﾞﾙ=82111−44F64 |
1 | ||
| 82111-44F92 |
ZGM10,11..G 品番ﾗﾍﾞﾙ=82111−44F92 |
1 | ||
| 82111-44F92 |
ZGM10,11..PLTNA 品番ﾗﾍﾞﾙ=82111−44F92 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-44041 |
ZGM1#..G,L ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｸﾘｱﾗﾝｽｿﾅｰのみ) |
1 | ||
| 82114-44041 |
ZGM1#..G,L ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-44020 |
ZGM1# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-44080 |
ZGM1# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-30650 |
ZGM1# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||

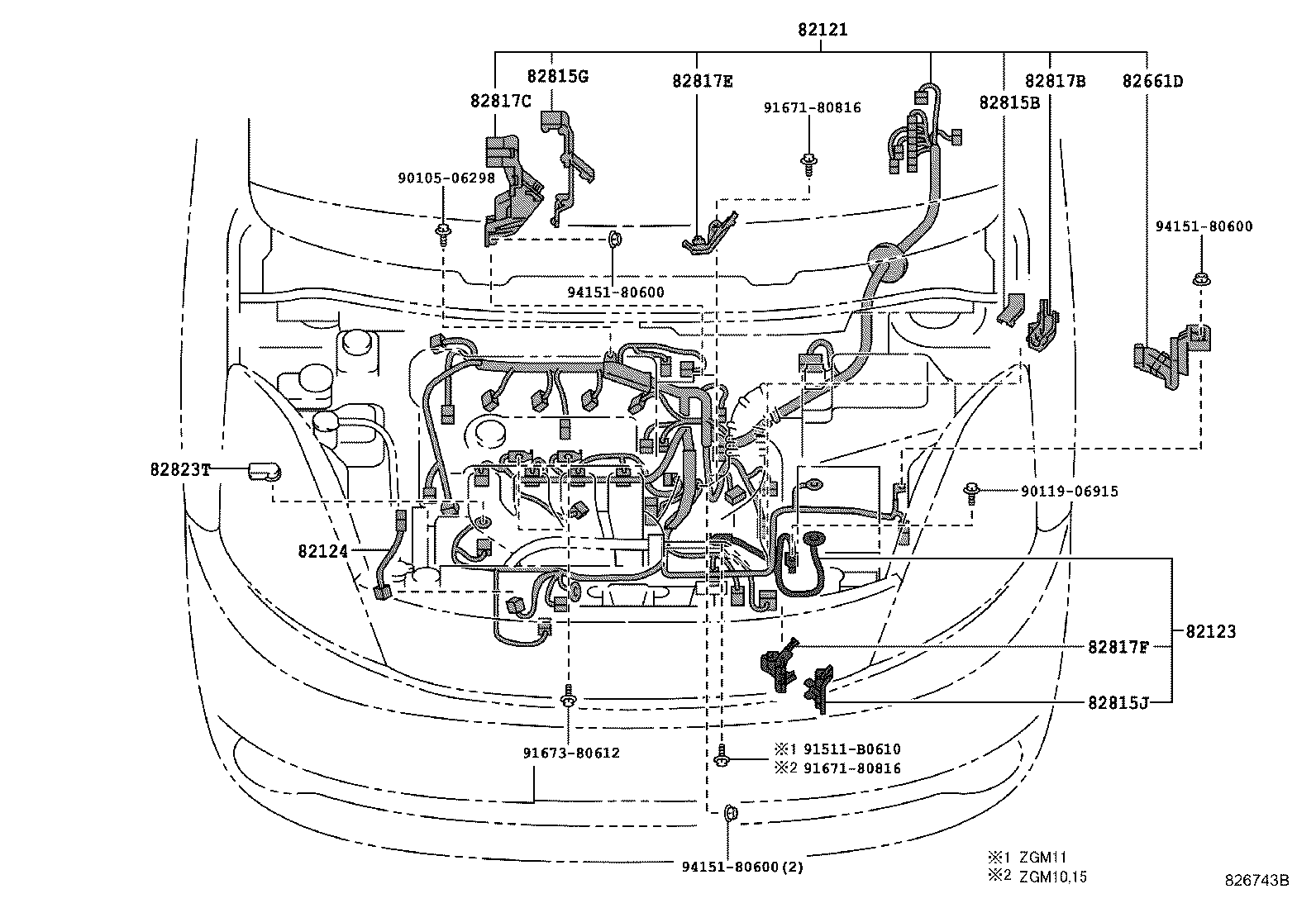

ILLUST NO. 2 OF10(0909- )
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-44732 |
ZGM11 |
1 | ||
| 82121-44731 |
ZGM11 |
1 | ||
| 82121-44730 |
ZGM11 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-44100 |
ZGM11 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02090 |
ZGM1# |
1 | ||
| 82124-12160 |
ZGM1# |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-44020 |
ZGM1# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-44030 |
ZGM1# |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-44040 |
ZGM1# |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-44050 |
ZGM1# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-44090 |
ZGM1# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-44100 |
ZGM1# |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-44110 |
ZGM1# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZGM1# |
1 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90119-06915 | ||||
| 91511-B0610 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||

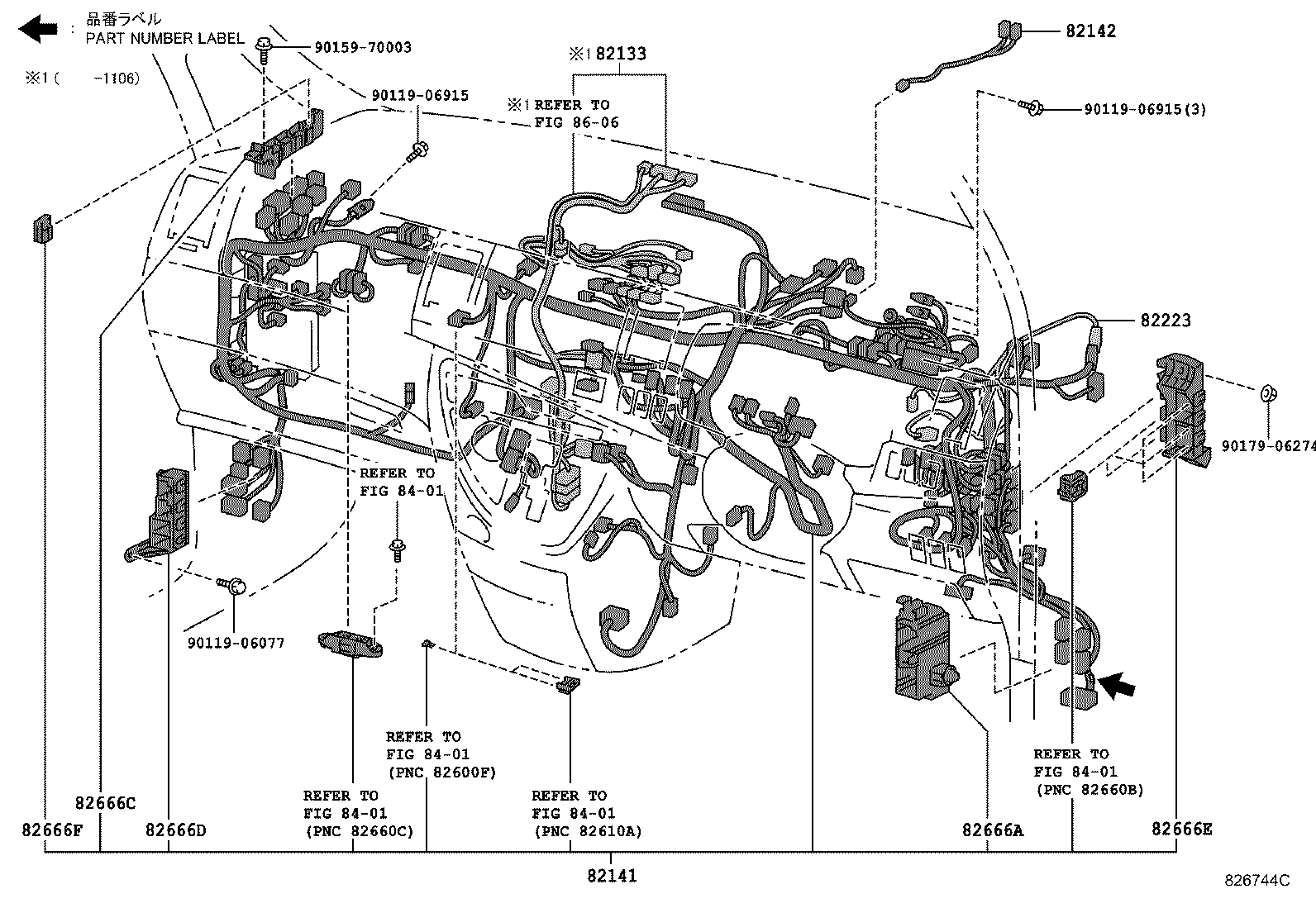

ILLUST NO. 3 OF10(0909- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-44040 |
ZGM1# ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-44200 |
ZGM11..PLTNA U−SELECTION *(U)&寒冷地仕様&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 82145-44190 |
ZGM10,11..L ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82145-44200 |
ZGM11..PLTNA U−SELECTION *(U)&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ&ETC−有り |
1 | ||
| 82145-44210 |
ZGM10,11..PLTNA |
1 | ||
| 82145-44200 |
ZGM11..PLTNA U−SELECTION *(U)&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 82145-44190 |
ZGM10,11..L ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 82145-44200 |
ZGM11..G ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 82145-44200 |
ZGM11..PLTNA U−SELECTION *(U)&寒冷地仕様&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ&ETC−有り |
1 | ||
| 82145-44200 |
ZGM11..G ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82145-44290 |
ZGM10,11..PLTNA PLATANA“Limited” *(A)&寒冷地仕様&ETC−有り |
1 | ||
| 82145-44270 |
ZGM10,11..L |
1 | ||
| 82145-44290 |
ZGM10,11..PLTNA 寒冷地仕様 |
1 | ||
| 82145-44280 |
ZGM11..PLTNA U−SELECTION *(U)&寒冷地仕様&ETC−有り |
1 | ||
| 82145-44290 |
ZGM10,11..PLTNA 寒冷地仕様&ETC−有り |
1 | ||
| 82145-44290 |
ZGM10,11..PLTNA ETC−有り |
1 | ||
| 82145-44280 |
ZGM11..PLTNA U−SELECTION *(U)&ETC−有り |
1 | ||
| 82145-44280 |
ZGM11..PLTNA U−SELECTION *(U) |
1 | ||
| 82145-44280 |
ZGM11..PLTNA U−SELECTION *(U)&寒冷地仕様 |
1 | ||
| 82145-44290 |
ZGM10,11..PLTNA PLATANA“Limited” *(A)&ETC−有り |
1 | ||
| 82145-44300 |
ZGM10,11..PLTNA ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 82145-44290 |
ZGM10,11..PLTNA PLATANA“Limited” *(A) |
1 | ||
| 82145-44300 |
ZGM10,11..PLTNA 寒冷地仕様&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 82145-44300 |
ZGM10,11..PLTNA 寒冷地仕様&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ&ETC−有り |
1 | ||
| 82145-44300 |
ZGM10,11..PLTNA ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ&ETC−有り |
1 | ||
| 82145-44290 |
ZGM10,11..PLTNA PLATANA“Black Limited” *(C)&寒冷地仕様 |
1 | ||
| 82145-44290 |
ZGM10,11..PLTNA PLATANA“Limited” *(A)&寒冷地仕様 |
1 | ||
| 82141-44J51 |
ZGM10,11..PLTNA |
1 | ||
| 82141-44J41 |
ZGM10,11..G ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82145-44290 |
ZGM10,11..PLTNA PLATANA“Black Limited” *(C)&寒冷地仕様&ETC−有り |
1 | ||
| 82145-44290 |
ZGM10,11..PLTNA PLATANA“Black Limited” *(C)&ETC−有り |
1 | ||
| 82145-44290 |
ZGM10,11..PLTNA PLATANA“Black Limited” *(C) |
1 | ||
| 82141-44J81 |
ZGM10,11..PLTNA 寒冷地仕様&ETC−有り |
1 | ||
| 82141-44J91 |
ZGM10,11..G |
1 | ||
| 82141-44J91 |
ZGM10,11..PLTNA V−SELECTION *(U)&寒冷地仕様 |
1 | ||
| 82141-44J81 |
ZGM10,11..PLTNA 寒冷地仕様 |
1 | ||
| 82141-44J81 |
ZGM10,11..PLTNA ETC−有り |
1 | ||
| 82141-44J91 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(A)&寒冷地仕様&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82141-44J91 |
ZGM10,11..PLTNA V−SELECTION *(U)&寒冷地仕様&ETC−有り |
1 | ||
| 82141-44J91 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(A)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82141-44J82 |
ZGM10,11..PLTNA 寒冷地仕様 |
1 | ||
| 82141-44J91 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(A)&*POSD(右側&左側) |
1 | ||
| 82145-44280 |
ZGM11..G |
1 | ||
| 82141-44J91 |
ZGM10,11..PLTNA V−SELECTION *(U) |
1 | ||
| 82141-44J91 |
ZGM10,11..PLTNA V−SELECTION *(U)&ETC−有り |
1 | ||
| 82141-44J91 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(A)&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82141-44J42 |
ZGM10,11..G ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82141-44J82 |
ZGM10,11..PLTNA 寒冷地仕様&ETC−有り |
1 | ||
| 82141-44J82 |
ZGM10,11..PLTNA ETC−有り |
1 | ||
| 82141-44J92 |
ZGM10,11..G |
1 | ||
| 82141-44J92 |
ZGM10,11..PLTNA V−SELECTION *(U) |
1 | ||
| 82141-44J52 |
ZGM10,11..PLTNA |
1 | ||
| 82141-44J92 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(D)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82141-44J92 |
ZGM10,11..PLTNA V−SELECTION *(U)&寒冷地仕様 |
1 | ||
| 82141-44J92 |
ZGM10,11..PLTNA V−SELECTION *(U)&ETC−有り |
1 | ||
| 82141-44J92 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(D)&*POSD(右側&左側) |
1 | ||
| 82141-44J92 |
ZGM10,11..PLTNA V−SELECTION *(U)&寒冷地仕様&ETC−有り |
1 | ||
| 82141-44J92 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(D)&寒冷地仕様&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82141-44J92 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(D)&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82141-44J83 |
ZGM10,11..PLTNA 寒冷地仕様&ETC−有り |
1 | ||
| 82141-44J83 |
ZGM10,11..PLTNA ETC−有り |
1 | ||
| 82141-44J83 |
ZGM10,11..PLTNA 寒冷地仕様 |
1 | ||
| 82141-44J43 |
ZGM10,11..G ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82141-44J53 |
ZGM11..PLTNA |
1 | ||
| 82141-44J93 |
ZGM11..PLTNA V−SELECTION *(U) |
1 | ||
| 82141-44J84 |
ZGM11..PLTNA 寒冷地仕様&ETC−有り |
1 | ||
| 82141-44J93 |
ZGM11..PLTNA V−SELECTION *(U)&寒冷地仕様&ETC−有り |
1 | ||
| 82141-44J93 |
ZGM11..PLTNA PLATANA “V−SELECTION/BLANC”*(F)&寒冷地仕様&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82141-44J93 |
ZGM11..PLTNA PLATANA “V−SELECTION/BLANC”*(F)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82141-44J93 |
ZGM11..PLTNA V−SELECTION *(U)&寒冷地仕様 |
1 | ||
| 82141-44J93 |
ZGM11..G |
1 | ||
| 82141-44J84 |
ZGM11..PLTNA ETC−有り |
1 | ||
| 82141-44J93 |
ZGM11..PLTNA PLATANA “V−SELECTION/NOIR”*(G)&寒冷地仕様&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82141-44J84 |
ZGM11..PLTNA 寒冷地仕様 |
1 | ||
| 82141-44J93 |
ZGM11..PLTNA PLATANA “V−SELECTION/NOIR”*(G)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82141-44J93 |
ZGM11..PLTNA PLATANA “V−SELECTION/BLANC”*(F)&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82141-44J93 |
ZGM11..PLTNA V−SELECTION *(U)&ETC−有り |
1 | ||
| 82141-44J93 |
ZGM11..PLTNA PLATANA “V−SELECTION/NOIR”*(G)&*POSD(右側&左側) |
1 | ||
| 82141-44J93 |
ZGM11..PLTNA PLATANA “V−SELECTION/NOIR”*(G)&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82141-44J93 |
ZGM11..PLTNA PLATANA “V−SELECTION/BLANC”*(F)&*POSD(右側&左側) |
1 | ||
| 82145-44200 |
ZGM11..G ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ;ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82145-44190 |
ZGM10,11..L ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ;ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82145-44210 |
ZGM10,11..PLTNA |
1 | ||
| 82145-44280 |
ZGM11..PLTNA U−SELECTION *(U);U−SELECTION *(U)&寒冷地仕様;U−SELECTION *(U)&寒冷地仕様&ETC−有り;U−SELECTION *iU)&ETC−有り |
1 | ||
| 82145-44270 |
ZGM10,11..L |
1 | ||
| 82145-44290 |
ZGM10,11..PLTNA 寒冷地仕様;寒冷地仕様&ETC−有り;ETC−有り;PLATANA“Limited”@*(A);PLATANA“Limited” *(A)&寒冷地仕様;PLATANA“kimited” *(A)&寒冷地仕様&ETC−有り;PLATANA“Limited” *(A)&ETC−有り |
1 | ||
| 82145-44280 |
ZGM11..G |
1 | ||
| 82145-44290 |
ZGM10,11..PLTNA PLATANA“Black Limited” *(C);PLATANA“Black@Limited” *(C)&寒冷地仕様;PLATANA“Black Limited” *(C)&寒冷地仕様&ETC−有り;PLATANA“Black Limitedh *(C)&ETC−有り |
1 | ||
| 82145-44300 |
ZGM10,11..PLTNA 寒冷地仕様&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ;寒冷地仕様&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟ[ｶ&ETC−有り;ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ;ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ&dTC−有り |
1 | ||
| 82141-44J41 |
ZGM10,11..G ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82141-44J51 |
ZGM10,11..PLTNA |
1 | ||
| 82141-44J81 |
ZGM10,11..PLTNA 寒冷地仕様;寒冷地仕様&ETC−有り;ETC−有り |
1 | ||
| 82141-44J91 |
ZGM10,11..PLTNA V−SELECTION *(U);V−SELECTION *(U)&寒冷地仕様;V−SELECTION *(U)&寒冷地仕様&ETC−有り;V−SELECTION *iU)&ETC−有り |
1 | ||
| 82145-44200 |
ZGM11..PLTNA U−SELECTION *(U)&寒冷地仕様&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ;U−rELECTION *(U)&寒冷地仕様&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ&ETC−Lり;U−SELECTION *(U)&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ;U−SELEbTION *(U)&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ&ETC−有り |
1 | ||
| 82141-44J91 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(A)&寒冷地仕様&*POSD(右側&左側);“V−SELECTION WHITE INTdRIOR PACKAGE”*(A)&*POSD(右側&左側);“V−SELECTION WHITE INTERIOR PACKAGE”*(A)&寒冷地仕様&*POSD(右側&左側)&ETC−有り;“V−SELECTION WHITE INTERInR PACKAGE”*(A)&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82141-44J91 |
ZGM10,11..G |
1 | ||
| 82141-44J82 |
ZGM10,11..PLTNA 寒冷地仕様;寒冷地仕様&ETC−有り;ETC−有り |
1 | ||
| 82141-44J52 |
ZGM10,11..PLTNA |
1 | ||
| 82141-44J42 |
ZGM10,11..G ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82141-44J92 |
ZGM10,11..PLTNA V−SELECTION *(U);V−SELECTION *(U)&寒冷地仕様;V−SELECTION *(U)&寒冷地仕様&ETC−有り;V−SELECTION *iU)&ETC−有り;“V−SELECTION WHITE INTERIOR PACKAGE”*(D)&寒冷地仕様&*POSD(右側&左側);“V−SELECTION@WHITE INTERIOR PACKAGE”*(D)&寒冷地仕様&*POSD(E側&左側)&ETC−有り;“V−SELECTION WHITE INTERIORPACKAGE”*(D)&*POSD(右側&左側);“V−SELECTION WHhTE INTERIOR PACKAGE”*(D)&*POSD(右側&左側)&ETb−有り |
1 | ||
| 82141-44J92 |
ZGM10,11..G |
1 | ||
| 82141-44J83 |
ZGM10,11..PLTNA 寒冷地仕様;寒冷地仕様&ETC−有り;ETC−有り |
1 | ||
| 82141-44J43 |
ZGM10,11..G ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82141-44J84 |
ZGM11..PLTNA 寒冷地仕様;寒冷地仕様&ETC−有り;ETC−有り |
1 | ||
| 82141-44J93 |
ZGM11..G |
1 | ||
| 82141-44J93 |
ZGM11..PLTNA V−SELECTION *(U);V−SELECTION *(U)&寒冷地仕様;V−SELECTION *(U)&寒冷地仕様&ETC−有り;V−SELECTION *iU)&ETC−有り;PLATANA “V−SELECTION/BLANC”*(F)&寒冷地仕様&*POSD(右側&左側);PLATANA “V−SELECTION/aLANC”*(F)&寒冷地仕様&*POSD(右側&左側)&ETC−有り;PLATANA “V−SELECTION/BLANC”*(F)&*POSD(右側&左側);PkATANA “V−SELECTION/BLANC”*(F)&*POSD(右側&左､)&ETC−有り;PLATANA “V−SELECTION/NOIR”*(G)&寒冷地仕様&*POSD(右側&左側);PLATANA “V−SELECTION/NOhR”*(G)&寒冷地仕様&*POSD(右側&左側)&ETC−有り;PLATANA“V−SELECTION/NOIR”*(G)&*POSD(右側&左側);PLATAmA “V−SELECTION/NOIR”*(G)&*POSD(右側&左側)&ETb−有り |
1 | ||
| 82141-44J53 |
ZGM11..PLTNA |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-44040 |
ZGM1#..PLTNA |
1 | ||
| 82142-44040 |
ZGM1#..G |
1 | ||
| 82142-44040 |
ZGM10,11..PLTNA V−SELECTION *(U)&寒冷地仕様 |
1 | ||
| 82142-44040 |
ZGM1#..PLTNA V−SELECTION *(U) |
1 | ||
| 82142-44040 |
ZGM10,11..PLTNA V−SELECTION *(U)&寒冷地仕様&ETC−有り |
1 | ||
| 82142-44031 |
ZGM1#..PLTNA |
1 | ||
| 82142-44040 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(A)&寒冷地仕様&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82142-44040 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(A)&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82142-44031 |
ZGM1#..L |
1 | ||
| 82142-44041 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(D)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82142-44041 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(D)&寒冷地仕様&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82142-44032 |
ZGM1#..L,PLTNA |
1 | ||
| 82142-44040 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(A)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82142-44040 |
ZGM10,11..PLTNA V−SELECTION *(U)&ETC−有り |
1 | ||
| 82142-44041 |
ZGM1#..PLTNA V−SELECTION *(U) |
1 | ||
| 82142-44040 |
ZGM1#..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(A)&*POSD(右側&左側) |
1 | ||
| 82142-44041 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(D)&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82142-44041 |
ZGM1#..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(D)&*POSD(右側&左側) |
1 | ||
| 82142-44041 |
ZGM10,11..PLTNA V−SELECTION *(U)&ETC−有り |
1 | ||
| 82142-44041 |
ZGM1#..PLTNA PLATANA “V−SELECTION/BLANC”*(F)&*POSD(右側&左側) |
1 | ||
| 82142-44041 |
ZGM1#..G |
1 | ||
| 82142-44041 |
ZGM10,11..PLTNA V−SELECTION *(U)&寒冷地仕様&ETC−有り |
1 | ||
| 82142-44041 |
ZGM10,11..PLTNA V−SELECTION *(U)&寒冷地仕様 |
1 | ||
| 82142-44041 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/BLANC”*(F)&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82142-44041 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/NOIR”*(G)&寒冷地仕様&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82142-44041 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/BLANC”*(F)&寒冷地仕様&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82142-44041 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/NOIR”*(G)&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82142-44041 |
ZGM1#..PLTNA PLATANA “V−SELECTION/NOIR”*(G)&*POSD(右側&左側) |
1 | ||
| 82142-44041 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/BLANC”*(F)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82142-44041 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/NOIR”*(G)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-44031 |
ZGM1# |
1 | ||
| 82223-44032 |
ZGM1# |
1 | ||
| 82223-44030 |
ZGM1# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-44201 |
ZGM1# |
1 | ||
| 82666-44200 |
ZGM1# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-44210 |
ZGM1# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-44220 |
ZGM1# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-68020 |
ZGM1# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26080 |
ZGM11..PLTNA U−SELECTION *(U)&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ&ETC−有り |
1 | ||
| 82666-26080 |
ZGM15;ZGM10,11..G,L ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 82666-26080 |
ZGM11..PLTNA U−SELECTION *(U)&寒冷地仕様&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 82666-26080 |
ZGM1#..G,L ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(D)&*POSD(右側&左側) |
1 | ||
| 82666-26080 |
ZGM11..PLTNA U−SELECTION *(U)&寒冷地仕様&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ&ETC−有り |
1 | ||
| 82666-26080 |
ZGM15;ZGM10,11..G,L |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(D)&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82666-26080 |
ZGM11..PLTNA U−SELECTION *(U)&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA 寒冷地仕様 |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(D)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA “V−SELECTION WHITE INTERIOR PACKAGE”*(D)&寒冷地仕様&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA ETC−有り |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA V−SELECTION *(U) |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/NOIR”*(G)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA 寒冷地仕様&ETC−有り |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA V−SELECTION *(U)&寒冷地仕様 |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/BLANC”*(F)&寒冷地仕様&*POSD(右側&左側) |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA V−SELECTION *(U)&寒冷地仕様&ETC−有り |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/NOIR”*(G)&寒冷地仕様&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA V−SELECTION *(U)&ETC−有り |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/BLANC”*(F)&寒冷地仕様&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/BLANC”*(F)&*POSD(右側&左側) |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/NOIR”*(G)&*POSD(右側&左側)&ETC−有り |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/NOIR”*(G)&*POSD(右側&左側) |
1 | ||
| 82666-26080 |
ZGM10,11..PLTNA PLATANA “V−SELECTION/BLANC”*(F)&*POSD(右側&左側)&ETC−有り |
1 | ||
| Common parts | ||||
| 90119-06077 | ||||
| 90119-06915 | ||||
| 90159-70003 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8606 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
