ZGM11G-AWXGP (2009)

Toyota Isis

Production Sep 2009 - Jan 2018
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0909- )

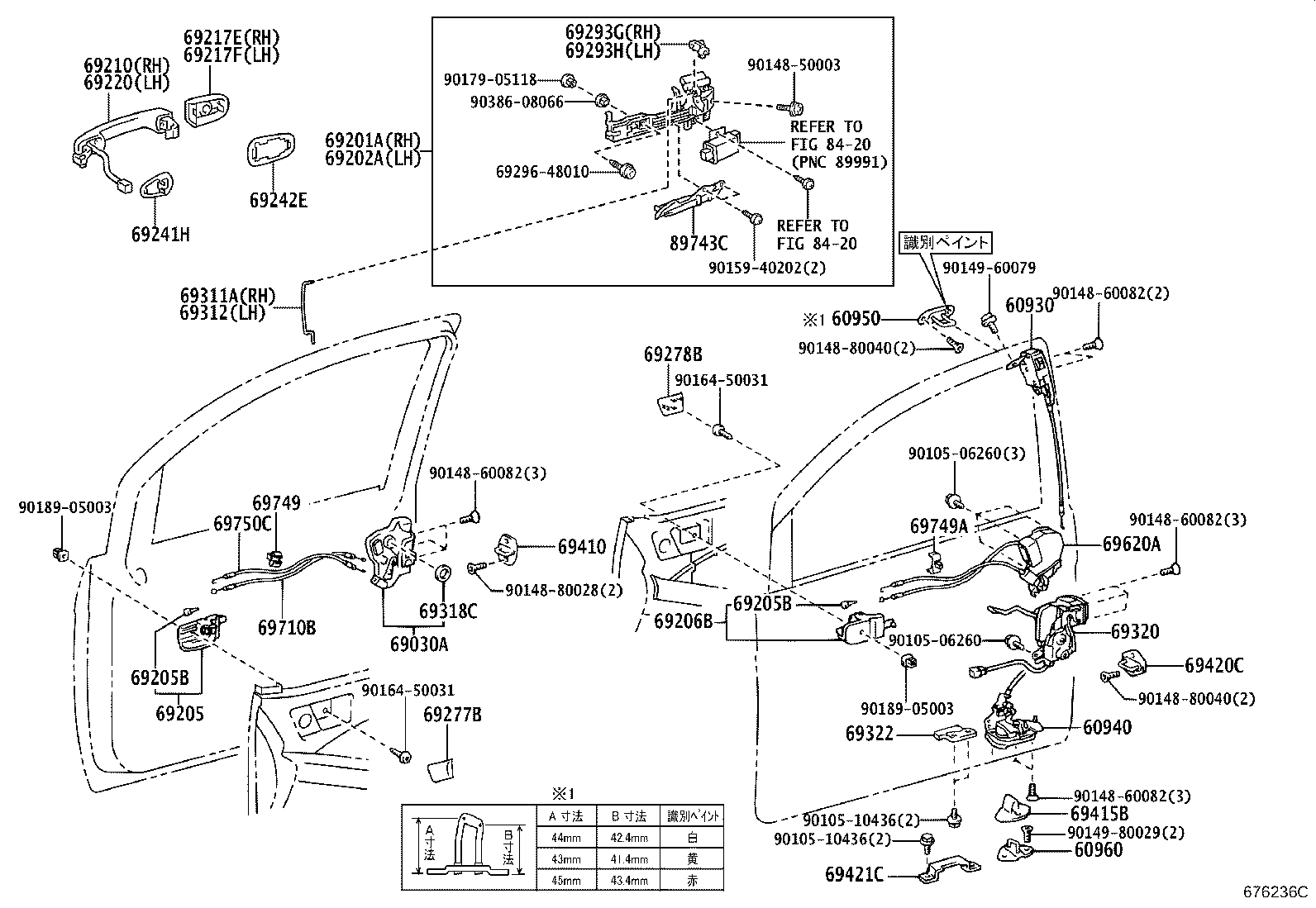

Click highlighted areas on diagram

diagram 60930 60940 60950 60960 69030A 69201A 69202A 69205 69205B 69205B 69206B 69210 69217E 69217F 69220 69241H 69242E 69277B 69278B 69293G 69293H 6929648010 69311A 69312 69318C 69320 69322 69410 69415B 69420C 69421C 69620A 69710B 69749 69749A 69750C 8420 8420 89743C 9010506260 9010506260 9010510436 9010510436 9014850003 9014860082 9014860082 9014860082 9014860082 9014880028 9014880040 9014880040 9014960079 9014980029 9015940202 9016450031 9016450031 9017905118 9018905003 9018905003 9038608066
Part # Description Qty Price
60930 - LOCK ASSY, FRONT DOOR, UPPER LH
60930-44010

ZGM1#

 1
60940 - LOCK ASSY, FRONT DOOR, LOWER LH
60940-44010

ZGM1#

 1
60950 - STRIKER ASSY, FRONT DOOR UPPER LOCK
60950-46012

ZGM1#

ﾎﾜｲﾄ ﾍﾟｲﾝﾄ

 1
60950-46032

ZGM1#

ﾚｯﾄﾞ ﾍﾟｲﾝﾄ

 1
60950-46022

ZGM1#

ｲｴﾛｰ ﾍﾟｲﾝﾄ

 1
60960 - STRIKER ASSY, FRONT DOOR LOWER LOCK
60960-46011

ZGM1#

 1
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-33241

ZGM1#

 1
69030-42210

ZGM1#

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-44030

ZGM1#

 1
69201-30040

ZGM1#

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-44030

ZGM1#

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-47020E1

ZGM1#..G

GREGE,TRIM4#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04014

ZGM1#

 2
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04014

ZGM1#

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-47020E1

ZGM1#..G

GREGE,TRIM4#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-44030R3

ZGM1#..G,L

LT.BLUE M.M.,8S7

 1
69210-44030H3

ZGM1#..G,L

TURQUOISE M.M.,779

 1
69210-44030C2

ZGM11,15;ZGM10..PLTNA

BLACK MC.,209

 1
69210-44030F4

ZGM1#..G,L

SILKY GOLD M.M.,5A4

 1
69210-44030B0

ZGM1#

SILVER ME.,1F7

 1
69210-44030E8

ZGM1#..G,L

BEIGE ME.,4T8

 1
69210-44030J2

ZGM1#

DK.BLUE MC.,8S6

 1
69210-44030A6

ZGM1#

WHITE PEARL CS.,070

 1
69210-44030C1

ZGM1#

BLACK,202

 1
69210-44030L0

ZGM1#..G,L

DK. BROWN M.M.,4U3

 1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69217-28010V4

ZGM1#..G,L

LT.BLUE M.M.,8S7

 1
69217-28010C0

ZGM11,15;ZGM10..PLTNA

BLACK MC.,209

 1
69217-28010H3

ZGM1#..G,L

TURQUOISE M.M.,779

 1
69217-28010L1

ZGM1#..G,L

BEIGE ME.,4T8

 1
69217-28010A3

ZGM1#

WHITE PEARL CS.,070

 1
69217-28010F8

ZGM1#..G,L

SILKY GOLD M.M.,5A4

 1
69217-28010R9

ZGM1#

DK.BLUE MC.,8S6

 1
69217-28010L7

ZGM1#..G,L

DK. BROWN M.M.,4U3

 1
69217-28010C1

ZGM1#

BLACK,202

 1
69217-28010P2

ZGM1#

SILVER ME.,1F7

 1
69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH
69217-60020P0

ZGM1#

SILVER ME.,1F7

 1
69217-60020H3

ZGM1#..G,L

TURQUOISE M.M.,779

 1
69217-60020L1

ZGM1#..G,L

BEIGE ME.,4T8

 1
69217-60020C1

ZGM11,15;ZGM10..PLTNA

BLACK MC.,209

 1
69217-60020F6

ZGM1#..G,L

SILKY GOLD M.M.,5A4

 1
69217-60020V0

ZGM1#..G,L

LT.BLUE M.M.,8S7

 1
69217-60020R5

ZGM1#

DK.BLUE MC.,8S6

 1
69217-60020A1

ZGM1#

WHITE PEARL CS.,070

 1
69217-60020L7

ZGM1#..G,L

DK. BROWN M.M.,4U3

 1
69217-60020C0

ZGM1#

BLACK,202

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-44030C2

ZGM11,15;ZGM10..PLTNA

BLACK MC.,209

 1
69210-44030R3

ZGM1#..G,L

LT.BLUE M.M.,8S7

 1
69210-44030F4

ZGM1#..G,L

SILKY GOLD M.M.,5A4

 1
69210-44030H3

ZGM1#..G,L

TURQUOISE M.M.,779

 1
69210-44030B0

ZGM1#

SILVER ME.,1F7

 1
69210-44030E8

ZGM1#..G,L

BEIGE ME.,4T8

 1
69210-44030J2

ZGM1#

DK.BLUE MC.,8S6

 1
69210-44030A6

ZGM1#

WHITE PEARL CS.,070

 1
69210-44030C1

ZGM1#

BLACK,202

 1
69210-44030L0

ZGM1#..G,L

DK. BROWN M.M.,4U3

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-28060

ZGM1#

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-28020

ZGM1#

 2
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-47020E1

ZGM1#

GREGE,TRIM4#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-47020E1

ZGM1#

GREGE,TRIM4#

 1
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030

ZGM1#

 1
69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040

ZGM1#

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-44060

ZGM1#

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-44060

ZGM1#

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

ZGM1#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-44061

ZGM1#

 1
69322 - STOP, FRONT DOOR LOWER LOCK
69322-46010

ZGM1#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-46010

ZGM1#

 1
69415B - COVER, DOOR LOCK STRIKER, FRONT
69415-46020E2

ZGM1#

GREGE,TRIM4#

 1
69420C - PLATE ASSY, DOOR LOCK STRIKER
69420-46011

ZGM1#

 1
69421C - CATCH, DOOR LOCK STRIKER PLATE
69421-46010

ZGM1#

 1
69620A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, LH
69620-44010

ZGM1#

 1
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-44030

ZGM1#

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-32040

ZGM1#

 1
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-32040

ZGM1#

 1
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-44040

ZGM1#

 1
89743C - BRACKET, ELECTRICAL KEY WIRE HARNESS
89743-68010

ZGM1#

右側

 1
89743-44020

ZGM1#

右側

 1
89743-44010

ZGM1#

左側

 1
Common parts
69296-48010
90105-06260
90105-10436
90148-50003
90148-60082
90148-80028
90148-80040
90149-60079
90149-80029
90159-40202
90164-50031
90179-05118
90189-05003
90386-08066
Linked diagrams
8420
