ZGM11G-AWXEP (2009)

Toyota Isis

Production Sep 2009 - Jun 2011
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0409-1310)

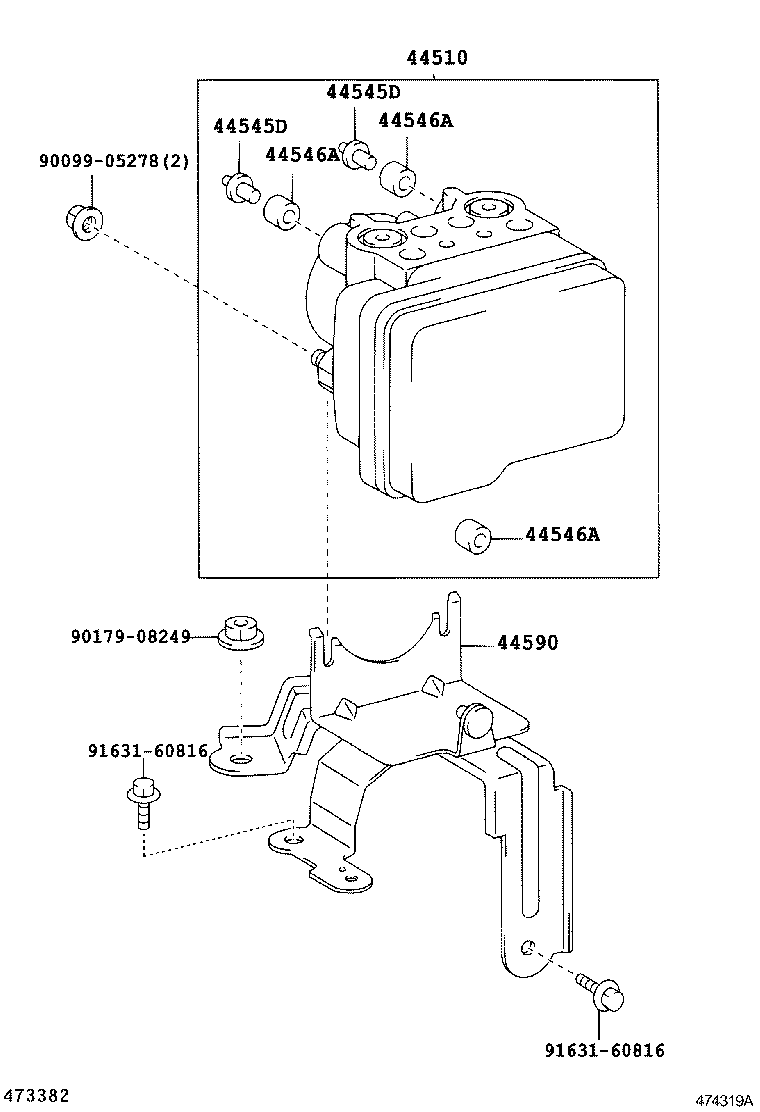

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9009905278 9017908249 9163160816 9163160816
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-44230

ZGM10,11

 1
Common parts
90099-05278
90179-08249
91631-60816
