ZGM11G-AWXEP (2009)

Toyota Isis

Production Sep 2009 - Jun 2011
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0909- )ZGM10,11

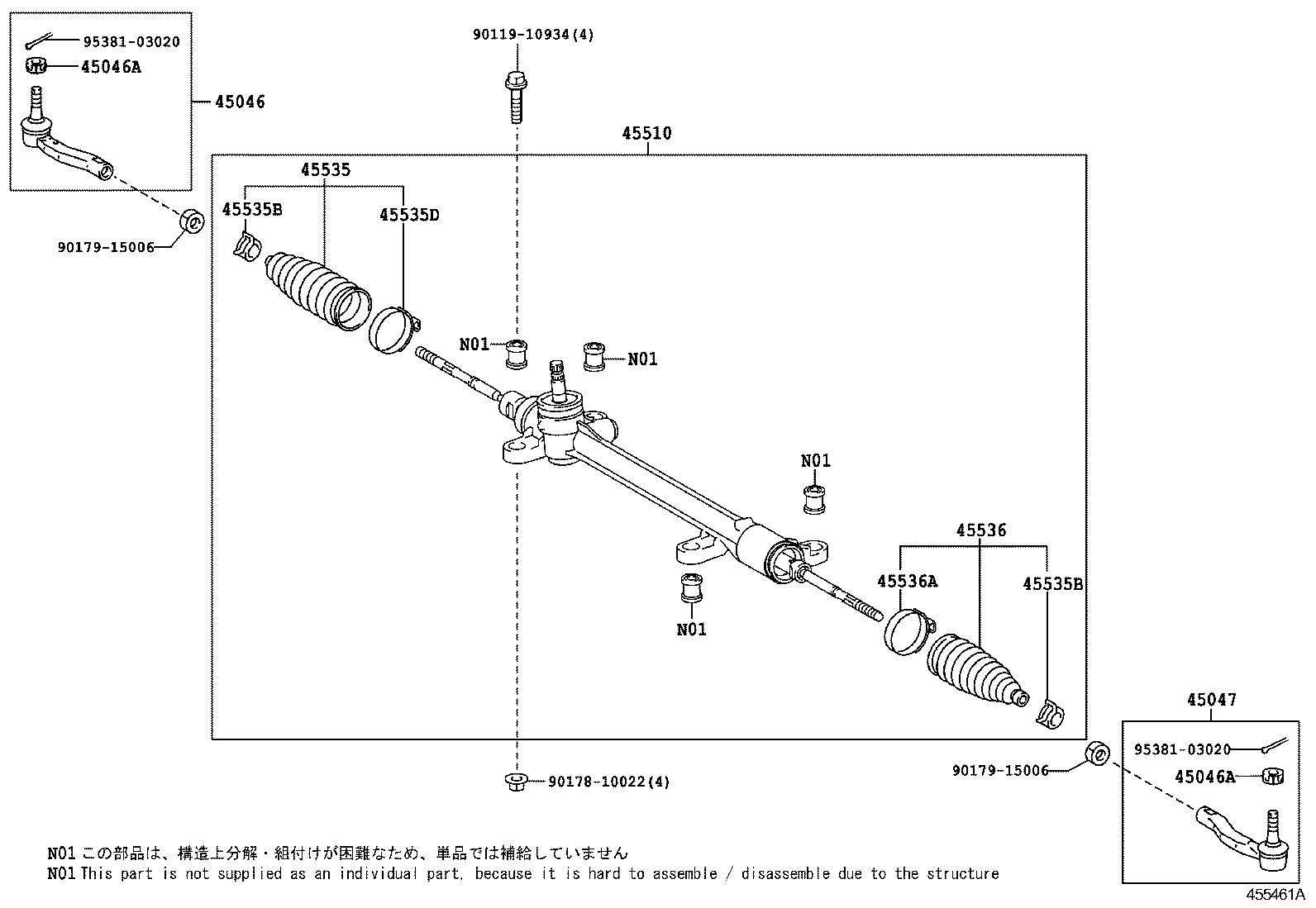

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45510 45535 45535B 45535B 45535D 45536 45536A 9011910934 9017810022 9017915006 9017915006 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-59205

ZGM10,11

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ZGM1#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ZGM1#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-59145

ZGM10,11

 1
45535 - BOOT, STEERING RACK, NO.1
45535-29015

ZGM10,11

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ZGM1#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ZGM1#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-52010

ZGM1#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-29015

ZGM10,11

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-52010

ZGM1#

 1
Common parts
90119-10934
90178-10022
90179-15006
95381-03020
