ZGM10G-AWXEP (2009)

Toyota Isis

Production Sep 2009 - Jan 2018
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0909- )

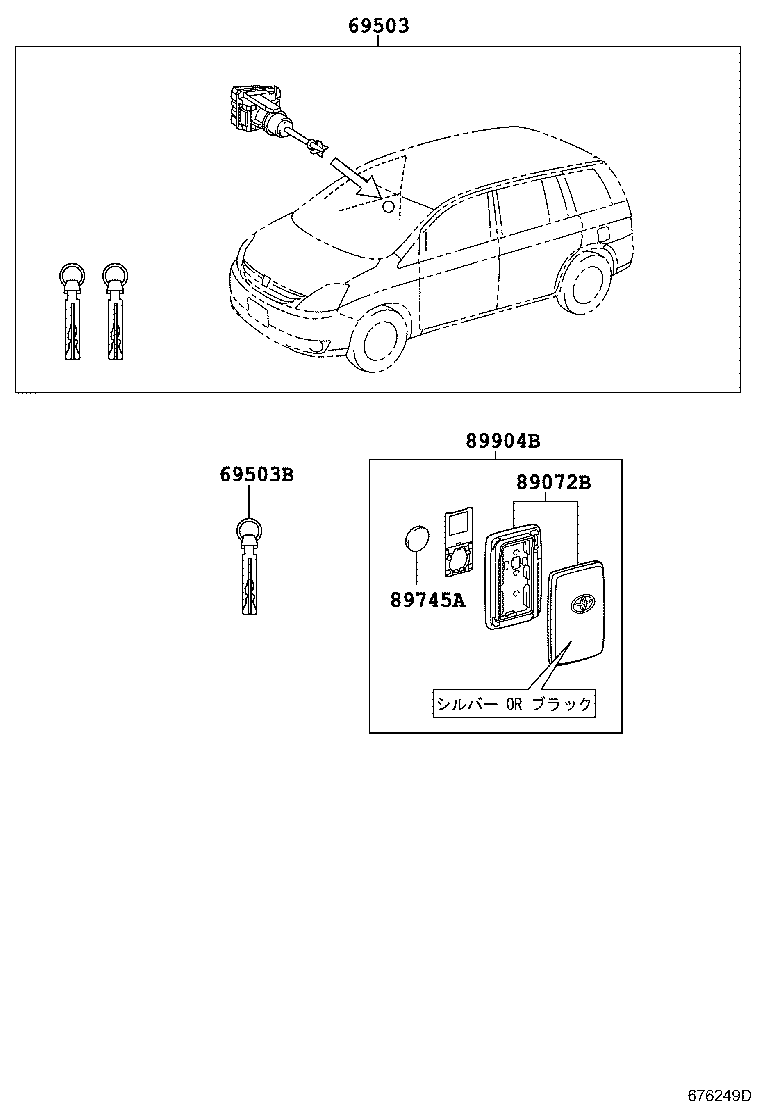

Click highlighted areas on diagram

diagram 69503 69503B 89072B 89745A 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-28B60

ZGM1#

 1
69503B - KEY, CUT
69515-52110

ZGM1#

ﾏｽﾀｰｷｰ,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-58060

ZGM1#

ﾌﾞﾗｯｸ

 2
89072-28560

ZGM1#

ｼﾙﾊﾞｰ

 2
89072-58070

ZGM1#..G

*POSD(右側&左側)

 2
89072-58060

ZGM1#

 2
89072-58070

ZGM10,15..L

*POSD(右側&左側)

 2
89072-58080

ZGM10,11..G

*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)

 2
89745A - BATTERY, TRANSMITTER
89745-52020

ZGM1#

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-28290

ZGM1#

ﾌﾞﾗｯｸ

 2
89904-28032

ZGM1#

ｼﾙﾊﾞｰ

 2
89904-28440

ZGM1#..G

*POSD(右側&左側)

 2
89904-28440

ZGM10,15..L

*POSD(右側&左側)

 2
89904-28450

ZGM1#

 2
89904-28430

ZGM10,11..G

*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)

 2
