ZGM10G-AWXEP (2009)
Toyota Isis
Production
Sep 2009
-
Jan 2018
Engine
2ZRFAE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

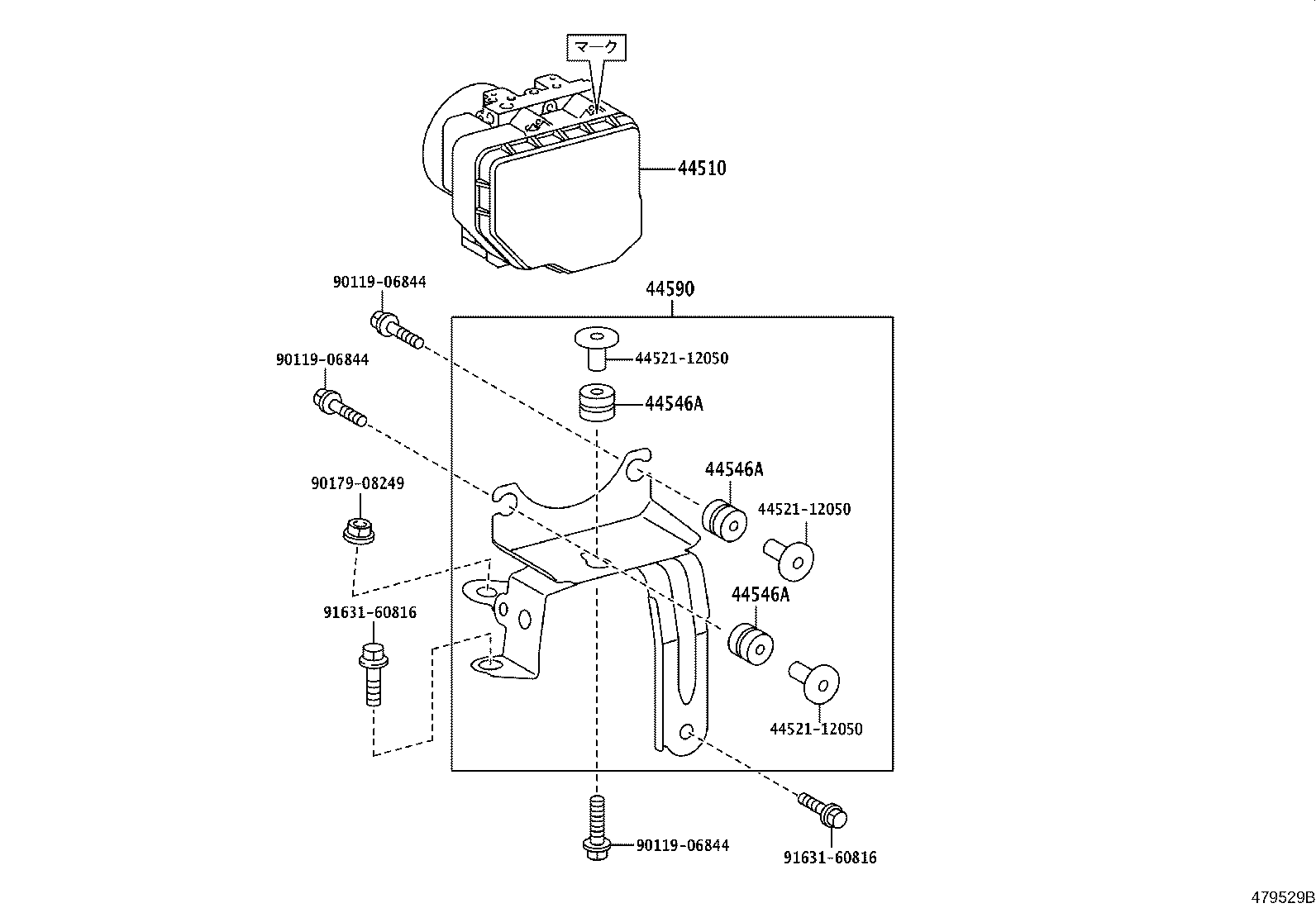

ILLUST NO. 2 OF 2(0409-1310)
Click highlighted areas on diagram
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-44230 |
ZGM10,11 |
1 | ||
| 44050-44261 |
ZGM10 ﾏｰｸ=44540−44071 |
1 | ||
| 44050-44262 |
ZGM10 ﾏｰｸ=44540−44072 |
1 | ||
| 44050-44231 |
ZGM10,11 |
1 | ||
| 44050-44260 |
ZGM10 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42070 |
ZGM1# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42070 |
ZGM1# |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42070 |
ZGM1# |
3 | ||
| 44546-12110 |
ZGM1# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42070 |
ZGM1# |
3 | ||
| 44546-12110 |
ZGM1# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42070 |
ZGM1# |
3 | ||
| 44546-12110 |
ZGM1# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-44100 |
ZGM1# |
1 | ||
| 44590-44080 |
ZGM1# |
1 | ||
| Common parts | ||||
| 90099-05278 | ||||
| 90179-08249 | ||||
| 91631-60816 | ||||
ILLUST NO. 2 OF 2(1310- )
Click highlighted areas on diagram
ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-44230 |
ZGM10,11 |
1 | ||
| 44050-44261 |
ZGM10 ﾏｰｸ=44540−44071 |
1 | ||
| 44050-44262 |
ZGM10 ﾏｰｸ=44540−44072 |
1 | ||
| 44050-44231 |
ZGM10,11 |
1 | ||
| 44050-44260 |
ZGM10 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42070 |
ZGM1# |
3 | ||
| 44546-12110 |
ZGM1# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42070 |
ZGM1# |
3 | ||
| 44546-12110 |
ZGM1# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42070 |
ZGM1# |
3 | ||
| 44546-12110 |
ZGM1# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-44100 |
ZGM1# |
1 | ||
| 44590-44080 |
ZGM1# |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 90179-08249 | ||||
| 91631-60816 | ||||

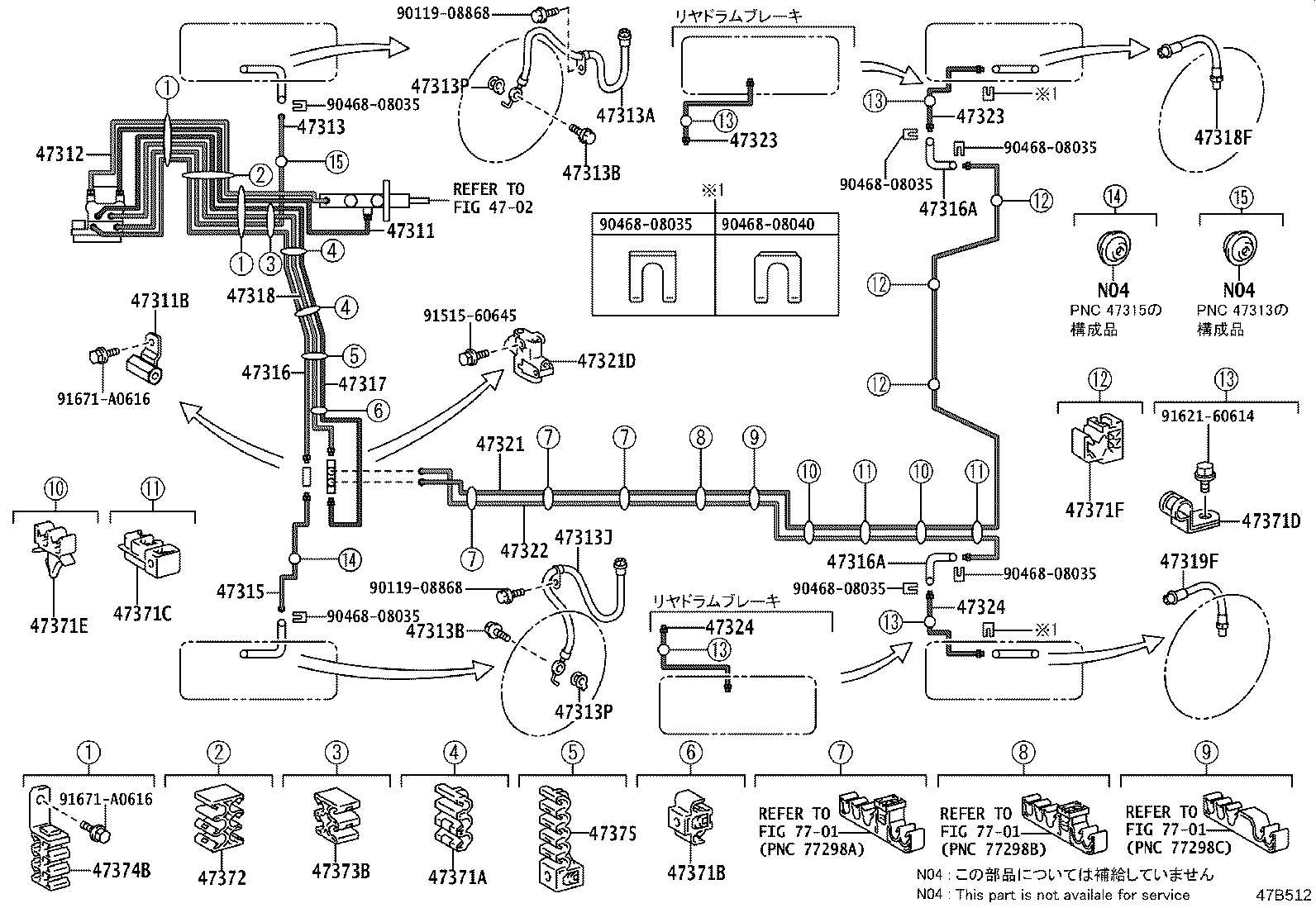

ILLUST NO. 1 OF 2(0909-1310)
Click highlighted areas on diagram
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-44200 |
ZGM1# |
1 | ||
| 47311-44220 |
ZGM1# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10167 |
ZGM1# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-44180 |
ZGM1# |
1 | ||
| 47312-44160 |
ZGM1# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-44140 |
ZGM1# |
1 | ||
| 47313-44110 |
ZGM1# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C77 |
ZGM1# |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZGM1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZGM1# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02C78 |
ZGM1# |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZGM1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZGM1# |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-44070 |
ZGM1# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-44150 |
ZGM1# |
1 | ||
| 47316-44170 |
ZGM1# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02C80 |
ZGM1# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02C80 |
ZGM1# |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-44160 |
ZGM1# |
1 | ||
| 47317-44180 |
ZGM1# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-44010 |
ZGM1# |
1 | ||
| 47318-44030 |
ZGM1# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-44060 |
ZGM1# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
ZGM1# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-44060 |
ZGM1# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28350 |
ZGM10 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28350 |
ZGM10 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28250 |
ZGM10 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28250 |
ZGM10 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
ZGM1# |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D04 |
ZGM1# |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 77299-32030 |
ZGM1# |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08694 |
ZGM1# |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07012 |
ZGM1# |
2 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01B45 |
ZGM1# |
3 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00880 |
ZGM1# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00883 |
ZGM1# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-12050 |
ZGM1# |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01C56 |
ZGM1# |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91515-60645 | ||||
| 91621-60614 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

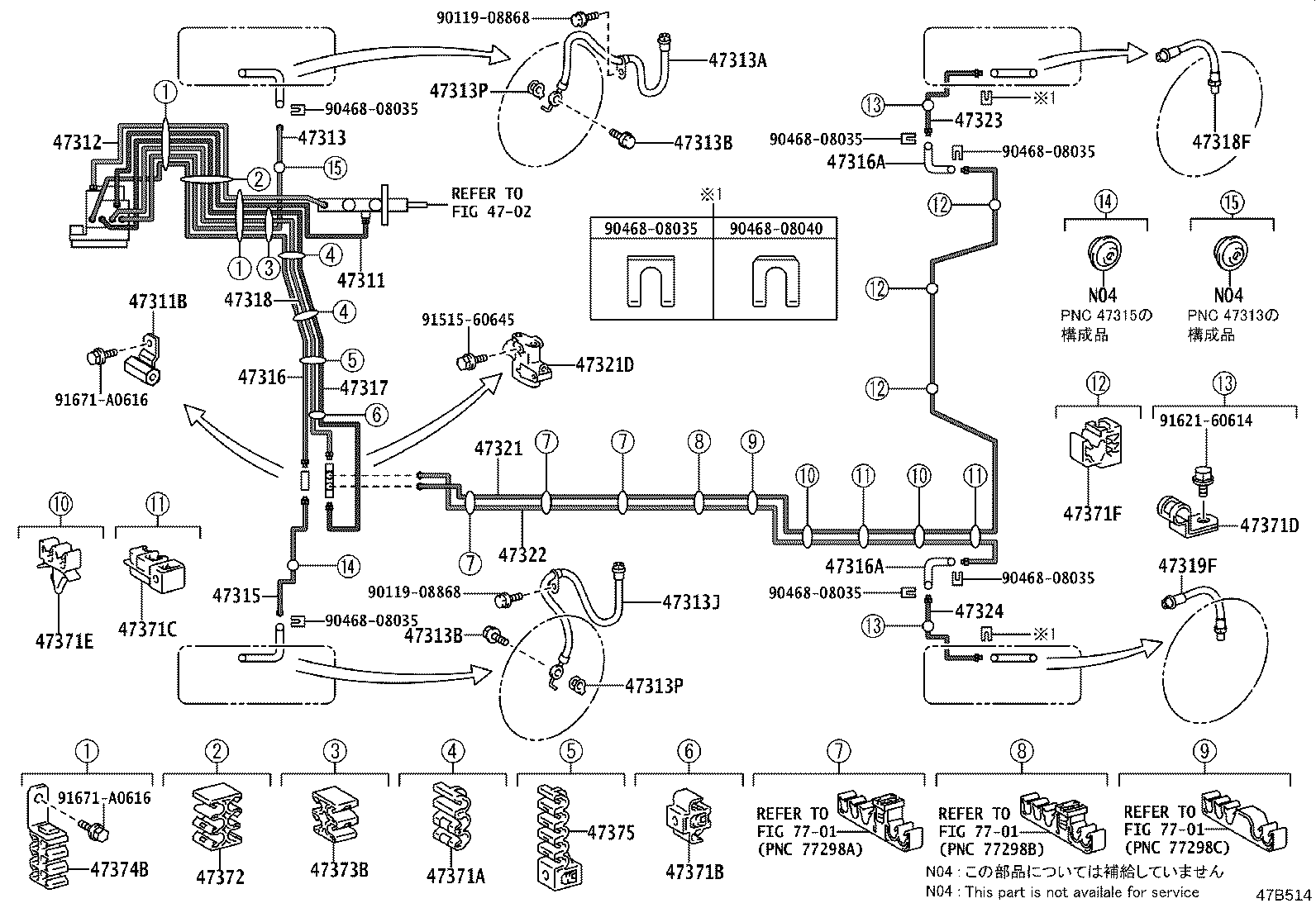

ILLUST NO. 1 OF 2(1310- )
Click highlighted areas on diagram
ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-44200 |
ZGM1# |
1 | ||
| 47311-44220 |
ZGM1# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10167 |
ZGM1# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-44180 |
ZGM1# |
1 | ||
| 47312-44160 |
ZGM1# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-44140 |
ZGM1# |
1 | ||
| 47313-44110 |
ZGM1# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C77 |
ZGM1# |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZGM1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZGM1# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02C78 |
ZGM1# |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZGM1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZGM1# |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-44070 |
ZGM1# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-44150 |
ZGM1# |
1 | ||
| 47316-44170 |
ZGM1# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02C80 |
ZGM1# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02C80 |
ZGM1# |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-44160 |
ZGM1# |
1 | ||
| 47317-44180 |
ZGM1# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-44010 |
ZGM1# |
1 | ||
| 47318-44030 |
ZGM1# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-44060 |
ZGM1# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
ZGM1# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-44060 |
ZGM1# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28350 |
ZGM10 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28250 |
ZGM10 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
ZGM1# |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D04 |
ZGM1# |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 77299-32030 |
ZGM1# |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08694 |
ZGM1# |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07012 |
ZGM1# |
2 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01B45 |
ZGM1# |
3 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00880 |
ZGM1# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00883 |
ZGM1# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-12050 |
ZGM1# |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01C56 |
ZGM1# |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91515-60645 | ||||
| 91621-60614 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
