ZGM10G-AWXEP (2009)

Toyota Isis

Production Sep 2009 - Jan 2018
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0909-1206)

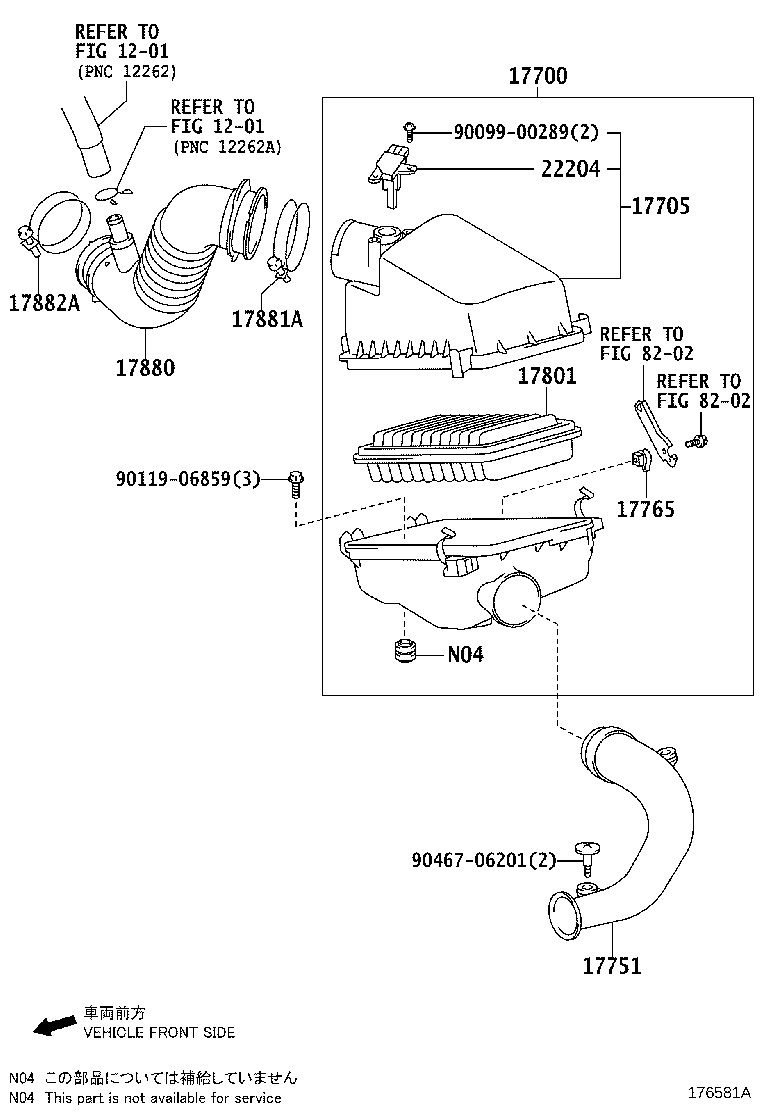

Click highlighted areas on diagram

diagram 1201 1201 17700 17705 17751 17765 17801 17880 17881A 17882A 22204 8202 8202 9009900289 9011906859 9046706201
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-37270

2ZRFAE,3ZRFAE..ZGM1#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-37150

2ZRFAE,3ZRFAE..ZGM1#

 1
17705-37151

2ZRFAE,3ZRFAE..ZGM1#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-22100

2ZRFAE,3ZRFAE..ZGM1#

 1
17765 - STAY, AIR CLEANER, NO.1
17706-21010

2ZRFAE,3ZRFAE..ZGM1#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-22020

2ZRFAE,3ZRFAE..ZGM1#

 1
17880 - HOSE ASSY, AIR CLEANER
17880-37170

2ZRFAE,3ZRFAE..ZGM1#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

2ZRFAE,3ZRFAE..ZGM1#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

2ZRFAE,3ZRFAE..ZGM1#

 1
96111-10750

2ZRFAE,3ZRFAE..ZGM1#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-28010

2ZRFAE,3ZRFAE..ZGM1#

 1
22204-37010

2ZRFAE,3ZRFAE..ZGM1#

 1
Common parts
90099-00289
90119-06859
90467-06201
Linked diagrams
1201
8202

(1206- )

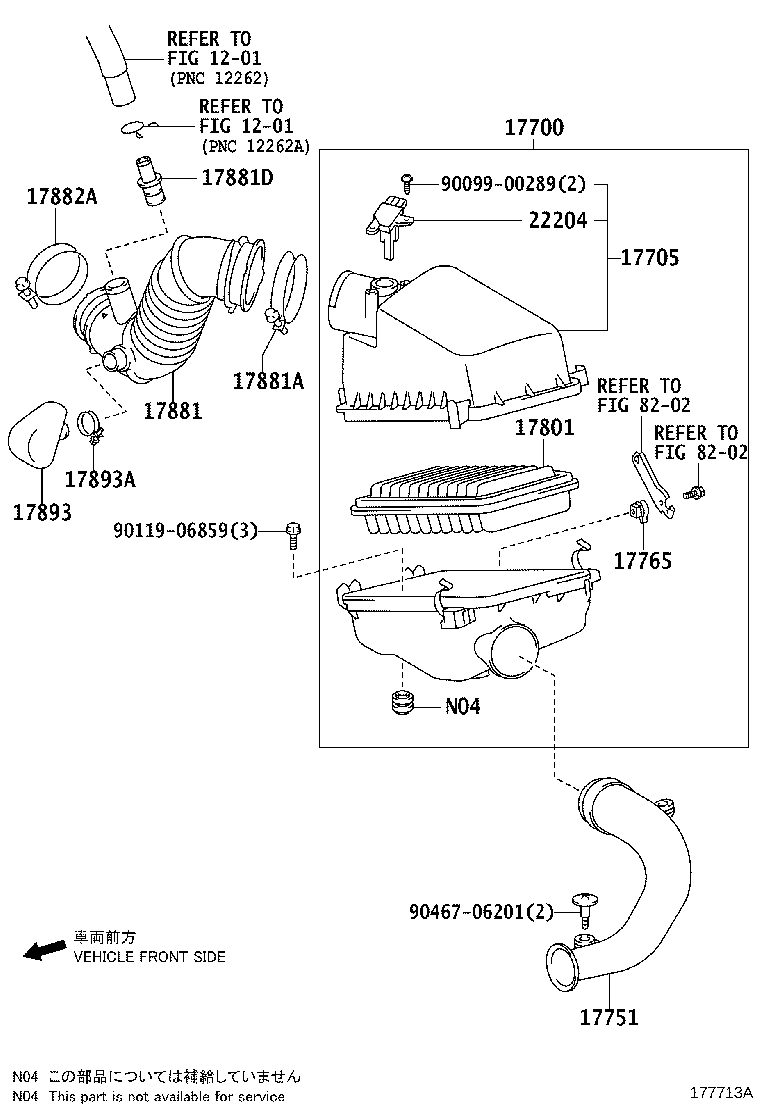

Click highlighted areas on diagram

diagram 1201 1201 17700 17705 17751 17765 17801 17881 17881A 17881D 17882A 17893 17893A 22204 8202 8202 9009900289 9011906859 9046706201
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-37270

2ZRFAE,3ZRFAE..ZGM1#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-37150

2ZRFAE,3ZRFAE..ZGM1#

 1
17705-37151

2ZRFAE,3ZRFAE..ZGM1#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-22100

2ZRFAE,3ZRFAE..ZGM1#

 1
17765 - STAY, AIR CLEANER, NO.1
17706-21010

2ZRFAE,3ZRFAE..ZGM1#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-22020

2ZRFAE,3ZRFAE..ZGM1#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-37250

2ZRFAE,3ZRFAE..ZGM1#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

2ZRFAE,3ZRFAE..ZGM1#

 1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
12229-21010

2ZRFAE,3ZRFAE..ZGM1#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

2ZRFAE,3ZRFAE..ZGM1#

 1
96111-10750

2ZRFAE,3ZRFAE..ZGM1#

 1
17893 - RESONATOR, INTAKE AIR
17893-37090

2ZRFAE,3ZRFAE..ZGM1#

 1
17893A - CLAMP, HOSE
96111-10400

2ZRFAE,3ZRFAE..ZGM1#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-28010

2ZRFAE,3ZRFAE..ZGM1#

 1
22204-37010

2ZRFAE,3ZRFAE..ZGM1#

 1
Common parts
90099-00289
90119-06859
90467-06201
Linked diagrams
1201
8202
