ANM15W-AWXSH (2004)

Toyota Isis

Production Sep 2004 - Sep 2009
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409- )

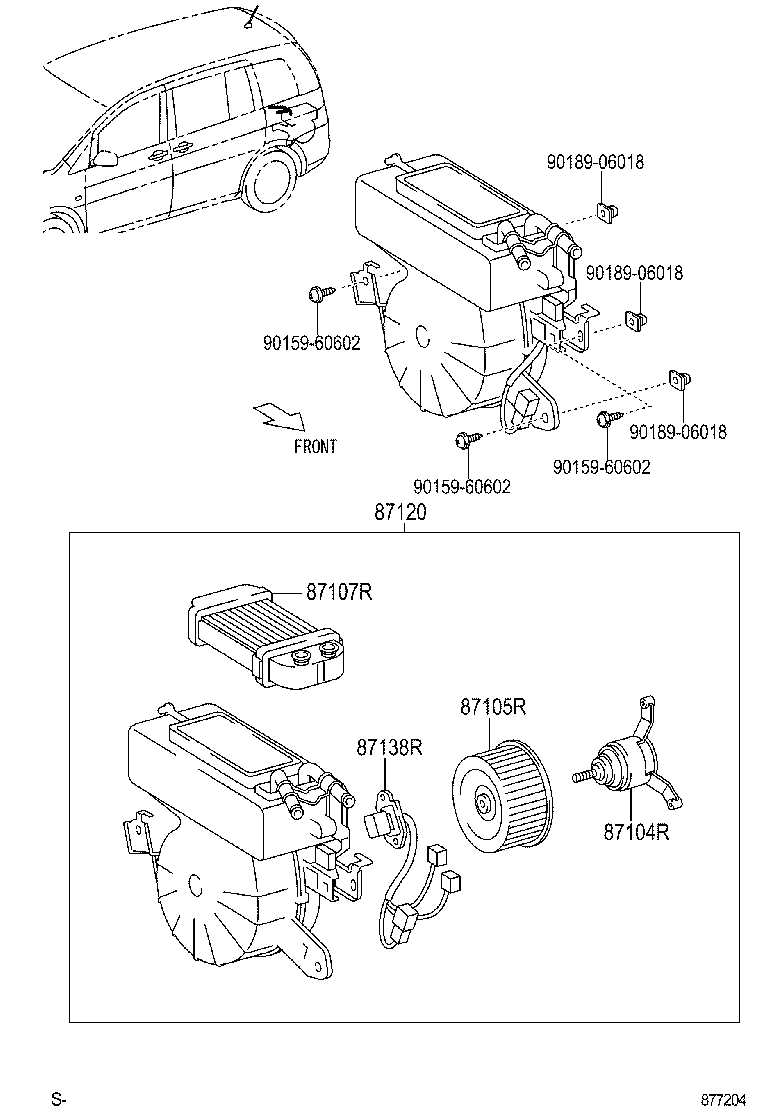

Click highlighted areas on diagram

diagram 87104R 87105R 87107R 87120 87138R 9015960602 9015960602 9015960602 9018906018 9018906018 9018906018
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-44090

ANM1#,ZNM10

寒冷地仕様

 1
87104-44080

ANM1#,ZNM10

寒冷地仕様

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-28030

ANM1#,ZNM10

寒冷地仕様

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-44060

ANM1#,ZNM10

寒冷地仕様

 1
87120 - HEATER ASSY, REAR
87110-44060

ANM1#,ZNM10

寒冷地仕様

 1
87138R - RESISTOR, REAR HEATER BLOWER
87138-44040

ANM1#,ZNM10

寒冷地仕様

 1
Common parts
90159-60602
90189-06018
