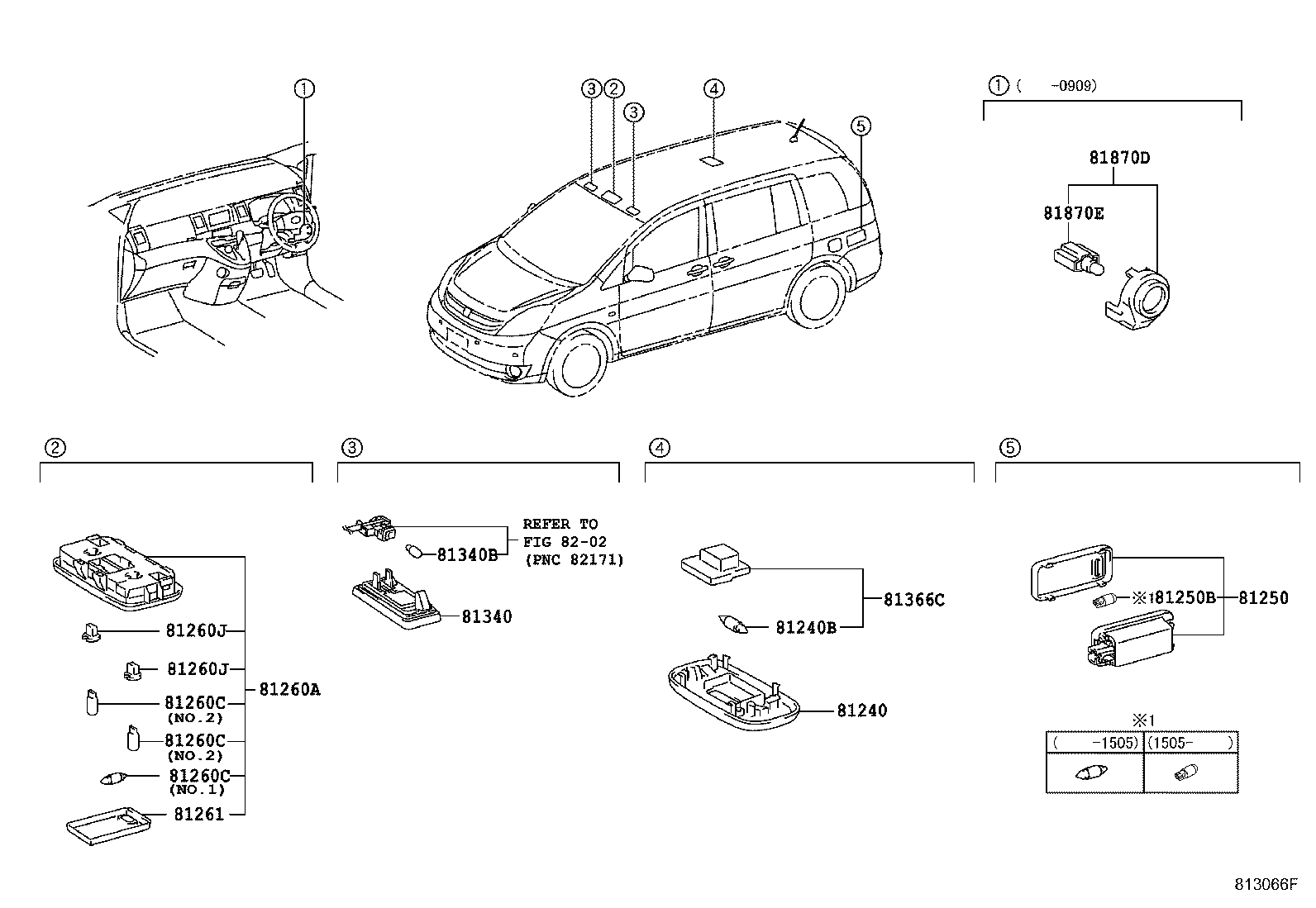

Toyota Isis ANM15 INTERIOR LAMP - JDM Part Detective

Part #	Description	Period	Qty
81240 - LAMP ASSY, ROOM, NO.1
81240-68010B0	ANM1#,ZNM10..PLTNA LT.GRAY,TRIM1#	09/2004 - 04/2007	1
81240-68010E0	ANM1#,ZNM10 FAWN,TRIM4#	09/2004 - 04/2007	1
81240-52040E0	ANM1#,ZNM10 GREGE,TRIM4#	05/2007 - 09/2009	1
81240-52040B1	ANM1#,ZNM10..PLTNA LT.GRAY,TRIM1#	05/2007 - 09/2009	1
81240B - BULB, ROOM LAMP, NO.1
90981-14011	ANM1#,ZNM10 12V 8W	09/2004 - 09/2009	1
81250 - LAMP ASSY, ROOM, NO.2
81250-48010	ANM1#,ZNM10	09/2004 - 09/2009	1
81250B - BULB, ROOM LAMP, NO.2
99132-13050	ANM1#,ZNM10 12V 5W	09/2004 - 09/2009	1
81260A - LAMP ASSY, MAP
81260-44020E1	ANM1#,ZNM10 GREGE,TRIM4#	05/2007 - 09/2009	1
81260-44020B0	ANM1#,ZNM10..PLTNA LT.GRAY,TRIM1#	09/2004 - 09/2009	1
81260-44020E0	ANM1#,ZNM10 FAWN,TRIM4#	09/2004 - 05/2007	1
81260C - BULB(FOR MAP LAMP)
99132-12050	ANM1#,ZNM10 12V 5W,NO.2	09/2004 - 09/2009	2
90981-14011	ANM1#,ZNM10 12V 8W,NO.1	09/2004 - 09/2009	1
81260C - BULB(FOR MAP LAMP)
99132-12050	ANM1#,ZNM10 12V 5W,NO.2	09/2004 - 09/2009	2
90981-14011	ANM1#,ZNM10 12V 8W,NO.1	09/2004 - 09/2009	1
81260C - BULB(FOR MAP LAMP)
99132-12050	ANM1#,ZNM10 12V 5W,NO.2	09/2004 - 09/2009	2
90981-14011	ANM1#,ZNM10 12V 8W,NO.1	09/2004 - 09/2009	1
81260J - SOCKET, BULB(FOR MAP LAMP)
83101-20040	ANM1#,ZNM10	09/2004 - 09/2009	2
81260J - SOCKET, BULB(FOR MAP LAMP)
83101-20040	ANM1#,ZNM10	09/2004 - 09/2009	2
81261 - LENS AND COVER, MAP LAMP
81265-44020	ANM1#,ZNM10	09/2004 - 09/2009	1
81340 - LAMP ASSY, VANITY
81340-30100E0	ANM1#,ZNM10..PLTNA G−Edition (A) or PLATANA “Limited” (C),FAWN,TRIM4#	12/2005 - 05/2007	2
81340-30100E0	ANM1#,ZNM10..L L“G−ｴﾃﾞｨｼｮﾝ”(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ(B),FAWN,TRIM4#	08/2006 - 05/2007	2
81340-30100B0	ANM1#,ZNM10..PLTNA G−Edition (A) or PLATANA “Limited” (C),LT.GRAY,TRIM1#	12/2005 - 05/2007	2
81340-30100B0	ANM1#..PLTNA U−SELECTION *(U),LT.GRAY,TRIM1#	05/2007 - 09/2009	2
81340B - BULB (FOR VANITY LAMP)
90981-11062	ANM1#,ZNM10..L 12V 8W,L“G−ｴﾃﾞｨｼｮﾝ”*(D) OR 60THｽﾍﾟｼｬﾙｴﾃﾞｨｼｮﾝ磨iB)	08/2006 - 05/2007	2
90981-11062	ANM1#..PLTNA 12V 8W,U−SELECTION *(U)	05/2007 - 09/2009	2
90981-11062	ANM1#,ZNM10..PLTNA 12V 8W,G−Edition (A) or PLATANA “Limitedh (C)	12/2005 - 05/2007	2
81366C - BASE, ROOM LAMP SWITCH
81366-68010	ANM1#,ZNM10	09/2004 - 09/2009	1
81870D - LAMP ASSY, KEY CYLINDER
81870-12020	ANM1#,ZNM10..PLTNA	09/2004 - 05/2007	1
81870-12020	ANM1#,ZNM10..L	09/2004 - 09/2009	1
81870E - BULB, KEY CYLINDER LAMP
90010-01056	ANM1#,ZNM10..PLTNA 14V 1.4W	09/2004 - 05/2007	1
90010-01056	ANM1#,ZNM10..L 14V 1.4W	09/2004 - 09/2009	1
Linked diagrams
8202

ANM15W-AWXSH (2004)

(0409- )
