ANM15W-AWXSH (2004)

Toyota Isis

Production Sep 2004 - Sep 2009

Engine 1AZFSE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0409-0909)1AZFSE..ANM15

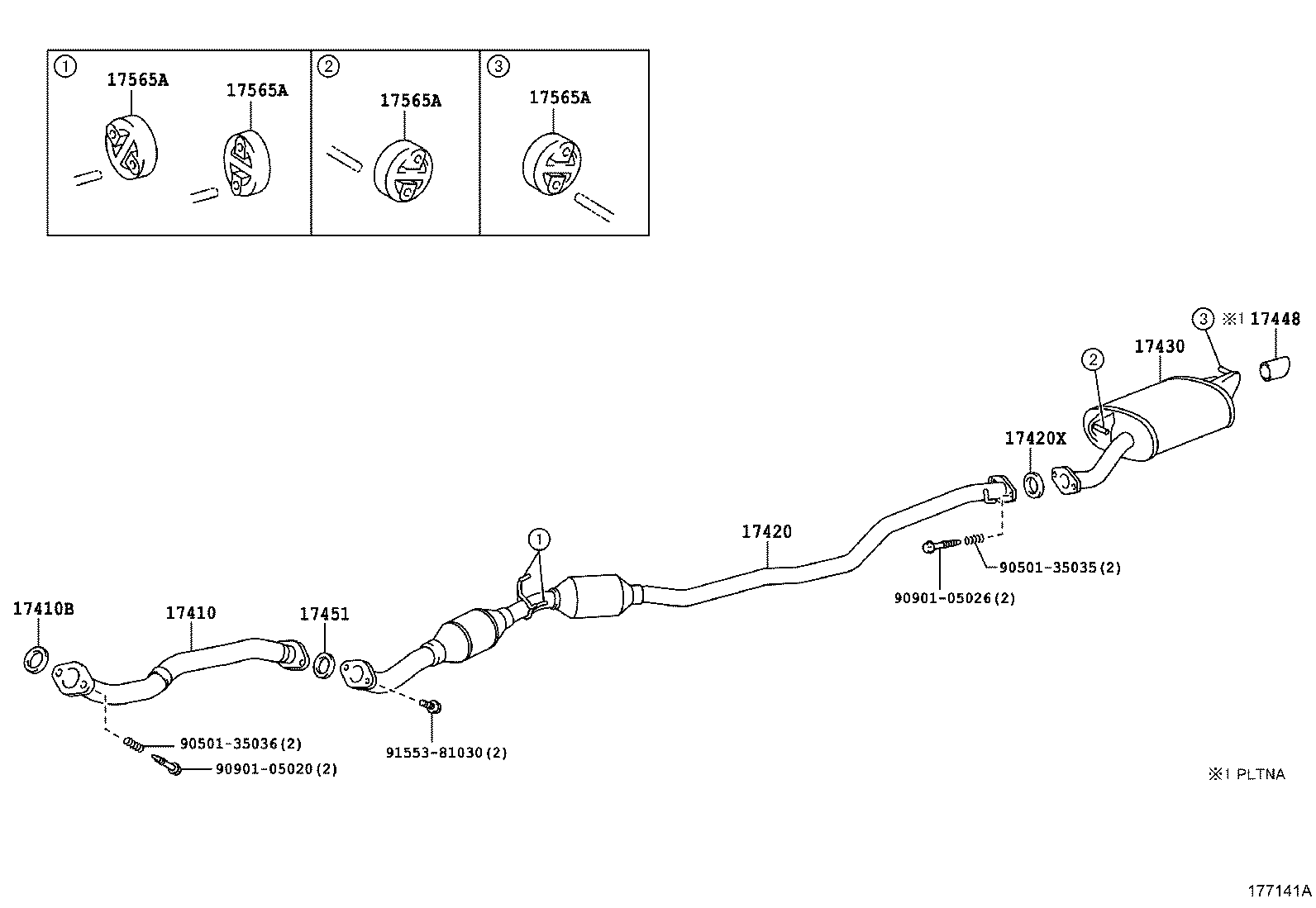

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-28510	1AZFSE..ANM15	09/2004 - 09/2009	1
17410B - GASKET, EXHAUST PIPE
17451-74040	1AZFSE..ANM1#	09/2004 - 09/2009	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-28540	1AZFSE..ANM15	09/2004 - 12/2005	1
17420-28740	1AZFSE..ANM15	12/2005 - 09/2009	1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-28031	1AZFSE,1ZZFE..ANM1#,ZNM10	01/2008 - 09/2009	1
17451-28030	1AZFSE,1ZZFE..ANM1#,ZNM10	09/2004 - 12/2007	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-28640	1AZFSE..ANM15	09/2004 - 05/2006	1
17430-28641	1AZFSE..ANM15	06/2006 - 09/2009	1
17448 - BAFFLE, TAIL PIPE
17448-74080	1AZFSE,1ZZFE..ANM1#,ZNM10..PLTNA	09/2004 - 09/2009	1
17451 - GASKET, EXHAUST PIPE
90917-06078	1AZFSE..ANM1#	09/2004 - 09/2009	1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040	1AZFSE..ANM15	09/2004 - 09/2009	4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040	1AZFSE..ANM15	09/2004 - 09/2009	4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040	1AZFSE..ANM15	09/2004 - 09/2009	4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040	1AZFSE..ANM15	09/2004 - 09/2009	4
Common parts
90501-35035
90501-35036
90901-05020
90901-05026
91553-81030
