ANM15G-AWXGH (2004)
Toyota Isis

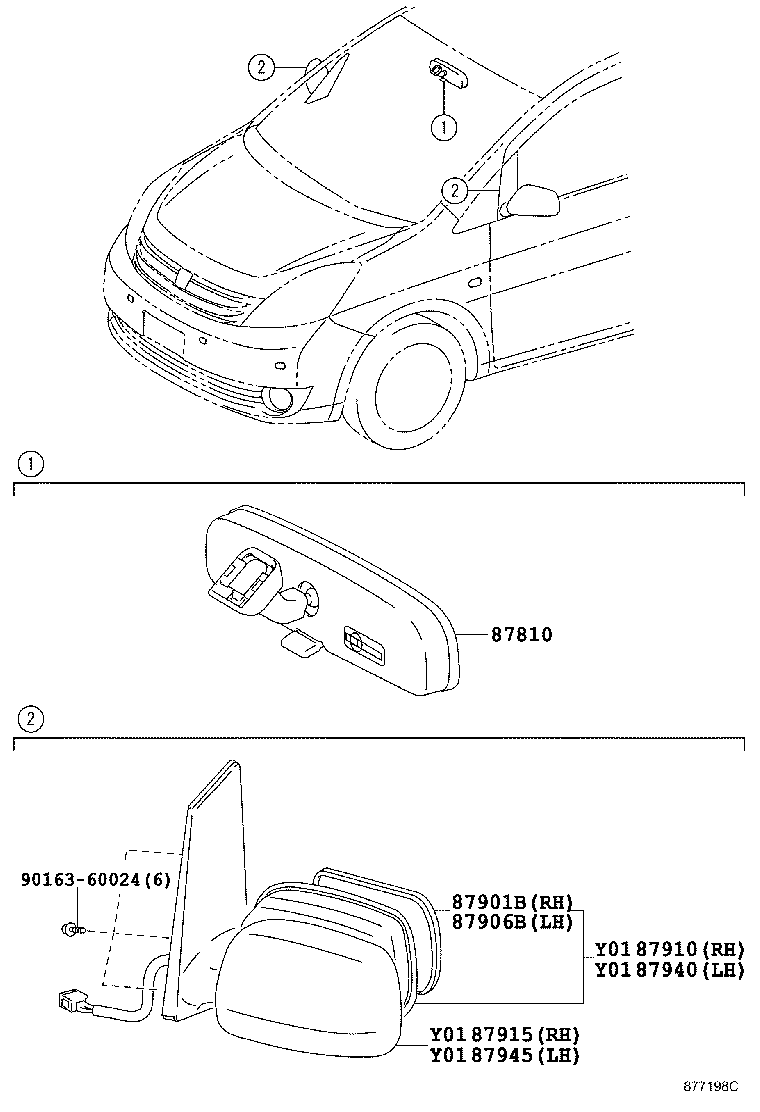

ILLUST NO. 1 OF 2(0409-0705)
ｲﾝﾅﾘﾔﾋﾞｭｰﾐﾗｰ & ｱｳﾀﾘﾔﾋﾞｭｰﾐﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52041 |
ANM1#,ZNM10 |
1 | ||
| 87810-52040 |
ANM1#,ZNM10 |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-44340 |
ANM1#,ZNM10 |
1 | ||
| 87931-47080 |
ANM1#,ZNM10 塗装不要 |
1 | ||
| 87931-44350 |
ANM1#,ZNM10 寒冷地仕様 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-22A20 |
ANM1#,ZNM10 |
1 | ||
| 87961-47080 |
ANM1#,ZNM10 塗装不要 |
1 | ||
| 87961-44360 |
ANM1#,ZNM10 寒冷地仕様 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-44350 |
ANM1#,ZNM10 塗装不要,寒冷地仕様 |
1 | ||
| 87910-44340 |
ANM1#,ZNM10 塗装不要 |
1 | ||
| 87910-44240 |
ANM1#,ZNM10 塗装不要 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-68010A5 |
ANM1#,ZNM10 WHITE PEARL CS.,073 |
1 | ||
| 87915-68010C0 |
ANM1#,ZNM10 BLACK MC.,209 ,211 |
1 | ||
| 87915-68010E1 |
ANM1#,ZNM10..G,L BEIGE ME.,4M9 |
1 | ||
| 87915-68010B7 |
ANM1#,ZNM10 SILVER ME.,1F7 |
1 | ||
| 87915-68010D0 |
ANM1#,ZNM10..G,L BORDEAUX MC.,3P2 |
1 | ||
| 87915-22050B0 |
ANM1#,ZNM10 SILVER ME.,1F7 |
1 | ||
| 87915-22050G0 |
ANM1#,ZNM10..G,L LT.GREEN ME.,6U5 |
1 | ||
| 87915-22050C1 |
ANM1#,ZNM10 BLACK MC.,209 |
1 | ||
| 87915-22050A2 |
ANM1#,ZNM10 WHITE PEARL CS.,070 |
1 | ||
| 87915-68010J7 |
ANM1#,ZNM10 GRAYISH BLUE ME.,8N6 |
1 | ||
| 87915-22050J3 |
ANM1#,ZNM10..G,L LT.BLUE M.M.,8S7 |
1 | ||
| 87915-68010J8 |
ANM1#,ZNM10 DK.BLUE MC.,8S6 |
1 | ||
| 87915-22050J0 |
ANM1#,ZNM10 DK.BLUE MC.,8S6 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-44350 |
ANM1#,ZNM10 塗装不要 |
1 | ||
| 87940-44240 |
ANM1#,ZNM10 塗装不要 |
1 | ||
| 87940-44360 |
ANM1#,ZNM10 塗装不要,寒冷地仕様 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-68010B7 |
ANM1#,ZNM10 SILVER ME.,1F7 |
1 | ||
| 87945-68010A5 |
ANM1#,ZNM10 WHITE PEARL CS.,073 |
1 | ||
| 87945-68010D0 |
ANM1#,ZNM10..G,L BORDEAUX MC.,3P2 |
1 | ||
| 87945-68010J7 |
ANM1#,ZNM10 GRAYISH BLUE ME.,8N6 |
1 | ||
| 87945-68010J8 |
ANM1#,ZNM10 DK.BLUE MC.,8S6 |
1 | ||
| 87945-22030G0 |
ANM1#,ZNM10..G,L LT.GREEN ME.,6U5 |
1 | ||
| 87945-22030J0 |
ANM1#,ZNM10 DK.BLUE MC.,8S6 |
1 | ||
| 87945-22030A2 |
ANM1#,ZNM10 WHITE PEARL CS.,070 |
1 | ||
| 87945-68010C0 |
ANM1#,ZNM10 BLACK MC.,209 ,211 |
1 | ||
| 87945-68010E1 |
ANM1#,ZNM10..G,L BEIGE ME.,4M9 |
1 | ||
| 87945-22030J3 |
ANM1#,ZNM10..G,L LT.BLUE M.M.,8S7 |
1 | ||
| 87945-22030C1 |
ANM1#,ZNM10 BLACK MC.,209 |
1 | ||
| 87945-22030B0 |
ANM1#,ZNM10 SILVER ME.,1F7 |
1 | ||
| Common parts | ||||
| 90163-60024 | ||||

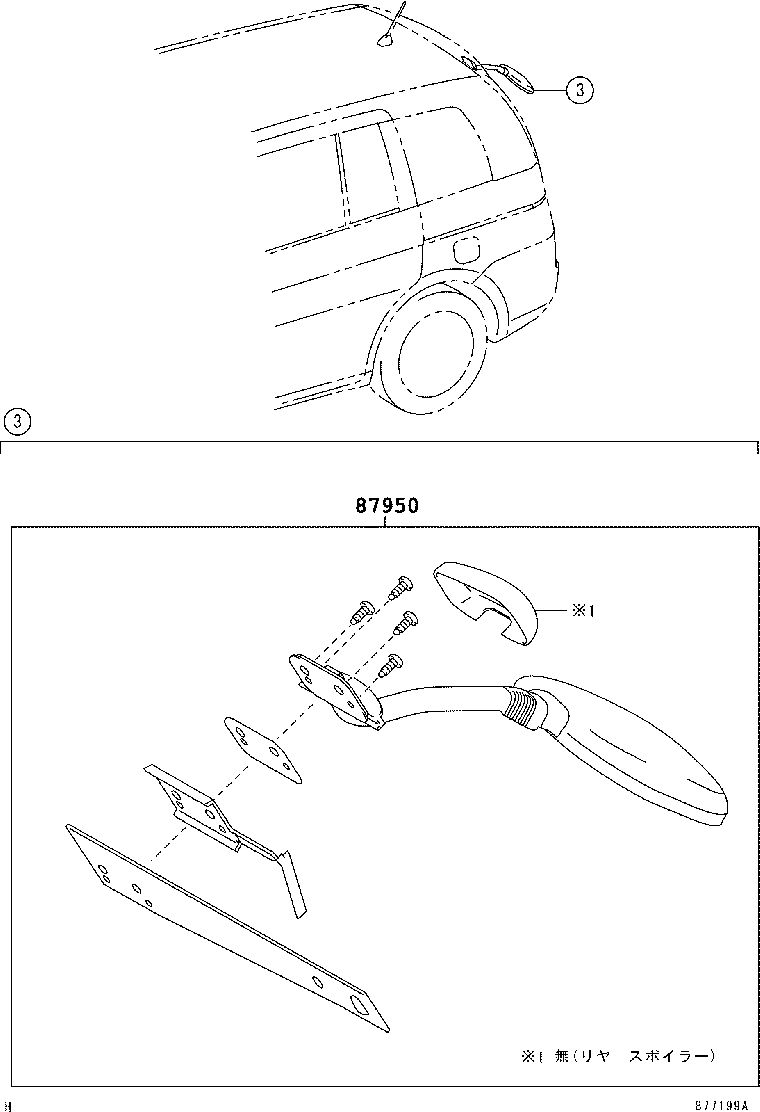

ILLUST NO. 2 OF 2(0409-0705)
ｱｳﾀｱﾝﾀﾞﾘﾔﾋﾞｭｰﾐﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-44010 |
ANM1#..G,L ﾘﾔｽﾎﾟｲﾗ−有り&ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−有り |
1 | ||
| 87950-44010 |
ANM1#..G,L ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−有り |
1 | ||
| 87950-44020 |
ANM1#..G,L ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−有り |
1 | ||

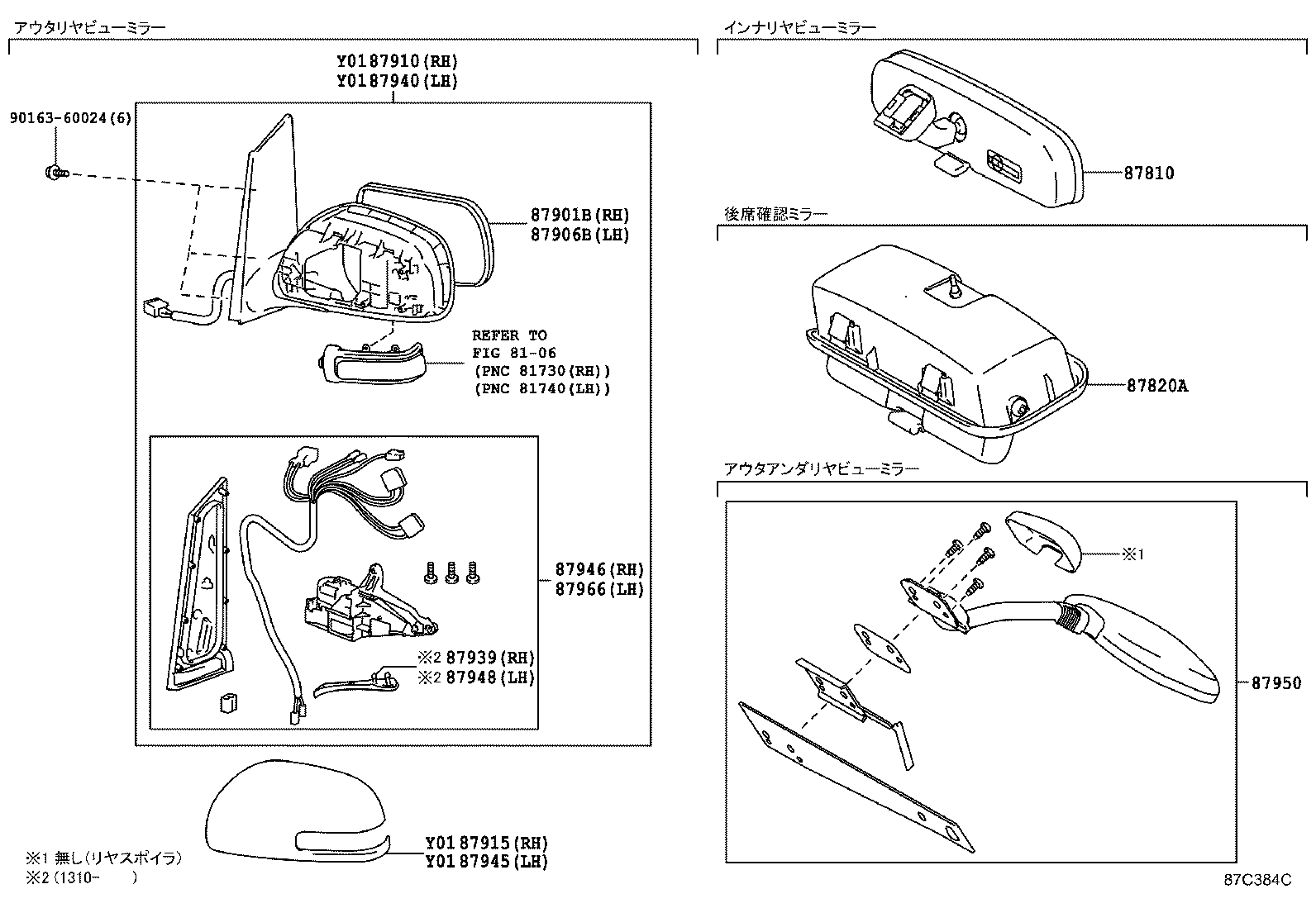

(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52041 |
ANM1#,ZNM10 |
1 | ||
| 87810-52040 |
ANM1#,ZNM10 |
1 | ||
| 87820A - MIRROR ASSY, INNER REAR CONVERSATION | ||||
| 87820-44010E0 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-44340 |
ANM1#,ZNM10 |
1 | ||
| 87931-47080 |
ANM1#,ZNM10 塗装不要 |
1 | ||
| 87931-44350 |
ANM1#,ZNM10 寒冷地仕様 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-22A20 |
ANM1#,ZNM10 |
1 | ||
| 87961-47080 |
ANM1#,ZNM10 塗装不要 |
1 | ||
| 87961-44360 |
ANM1#,ZNM10 寒冷地仕様 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-44350 |
ANM1#,ZNM10 塗装不要,寒冷地仕様 |
1 | ||
| 87910-44340 |
ANM1#,ZNM10 塗装不要 |
1 | ||
| 87910-44240 |
ANM1#,ZNM10 塗装不要 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-68010A5 |
ANM1#,ZNM10 WHITE PEARL CS.,073 |
1 | ||
| 87915-68010C0 |
ANM1#,ZNM10 BLACK MC.,209 ,211 |
1 | ||
| 87915-68010E1 |
ANM1#,ZNM10..G,L BEIGE ME.,4M9 |
1 | ||
| 87915-68010B7 |
ANM1#,ZNM10 SILVER ME.,1F7 |
1 | ||
| 87915-68010D0 |
ANM1#,ZNM10..G,L BORDEAUX MC.,3P2 |
1 | ||
| 87915-22050B0 |
ANM1#,ZNM10 SILVER ME.,1F7 |
1 | ||
| 87915-22050G0 |
ANM1#,ZNM10..G,L LT.GREEN ME.,6U5 |
1 | ||
| 87915-22050C1 |
ANM1#,ZNM10 BLACK MC.,209 |
1 | ||
| 87915-22050A2 |
ANM1#,ZNM10 WHITE PEARL CS.,070 |
1 | ||
| 87915-68010J7 |
ANM1#,ZNM10 GRAYISH BLUE ME.,8N6 |
1 | ||
| 87915-22050J3 |
ANM1#,ZNM10..G,L LT.BLUE M.M.,8S7 |
1 | ||
| 87915-68010J8 |
ANM1#,ZNM10 DK.BLUE MC.,8S6 |
1 | ||
| 87915-22050J0 |
ANM1#,ZNM10 DK.BLUE MC.,8S6 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-44350 |
ANM1#,ZNM10 塗装不要 |
1 | ||
| 87940-44240 |
ANM1#,ZNM10 塗装不要 |
1 | ||
| 87940-44360 |
ANM1#,ZNM10 塗装不要,寒冷地仕様 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-68010B7 |
ANM1#,ZNM10 SILVER ME.,1F7 |
1 | ||
| 87945-68010A5 |
ANM1#,ZNM10 WHITE PEARL CS.,073 |
1 | ||
| 87945-68010D0 |
ANM1#,ZNM10..G,L BORDEAUX MC.,3P2 |
1 | ||
| 87945-68010J7 |
ANM1#,ZNM10 GRAYISH BLUE ME.,8N6 |
1 | ||
| 87945-68010J8 |
ANM1#,ZNM10 DK.BLUE MC.,8S6 |
1 | ||
| 87945-22030G0 |
ANM1#,ZNM10..G,L LT.GREEN ME.,6U5 |
1 | ||
| 87945-22030J0 |
ANM1#,ZNM10 DK.BLUE MC.,8S6 |
1 | ||
| 87945-22030A2 |
ANM1#,ZNM10 WHITE PEARL CS.,070 |
1 | ||
| 87945-68010C0 |
ANM1#,ZNM10 BLACK MC.,209 ,211 |
1 | ||
| 87945-68010E1 |
ANM1#,ZNM10..G,L BEIGE ME.,4M9 |
1 | ||
| 87945-22030J3 |
ANM1#,ZNM10..G,L LT.BLUE M.M.,8S7 |
1 | ||
| 87945-22030C1 |
ANM1#,ZNM10 BLACK MC.,209 |
1 | ||
| 87945-22030B0 |
ANM1#,ZNM10 SILVER ME.,1F7 |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-44350 |
ANM1#,ZNM10 寒冷地仕様 |
1 | ||
| 87946-44340 |
ANM1#,ZNM10 |
1 | ||
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-44010 |
ANM1#..G,L ﾘﾔｽﾎﾟｲﾗ−有り&ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−有り |
1 | ||
| 87950-44010 |
ANM1#..G,L ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−有り |
1 | ||
| 87950-44020 |
ANM1#..G,L ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−有り |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-44340 |
ANM1#,ZNM10 |
1 | ||
| 87966-44360 |
ANM1#,ZNM10 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 90163-60024 | ||||
| Linked diagrams | ||||
| 8106 | ||||
