ANM15G-AWXGH (2004)
Toyota Isis

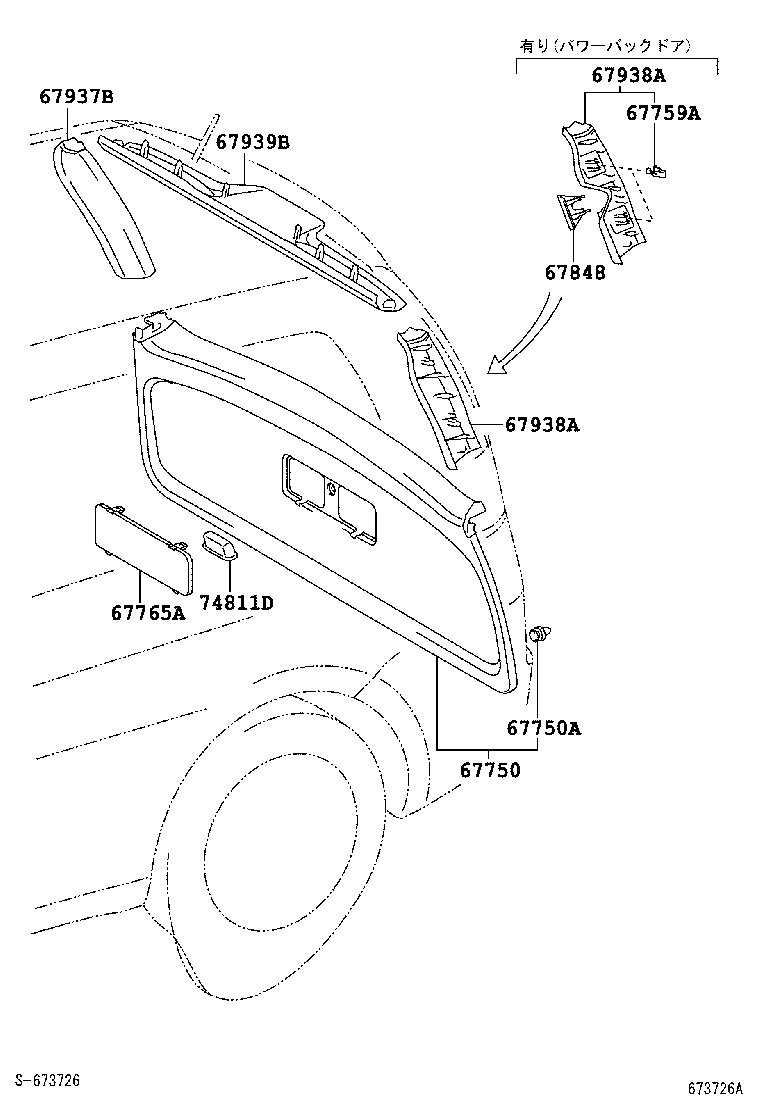

ILLUST NO. 2 OF 2(0409- )
ﾄﾞｱ ﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-44070E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 67750-44070E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
ANM1#,ZNM10 |
11 | ||
| 67759A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90468-05125 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
2 | ||
| 67765A - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67765-44010E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 67765-44010E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-44040E0 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),FAWN,TRIM4# |
1 | ||
| 67848-44040E1 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),GREGE,TRIM4# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-44010E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 67937-44010E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-44020E0 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),FAWN,TRIM4# |
1 | ||
| 67938-44020E1 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),GREGE,TRIM4# |
1 | ||
| 67938-44010E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 67938-44010E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-44020E0 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),FAWN,TRIM4# |
1 | ||
| 67938-44020E1 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),GREGE,TRIM4# |
1 | ||
| 67938-44010E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 67938-44010E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-44010E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 67939-44010E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 74811D - HANDLE, DOOR PULL | ||||
| 74811-13010E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 74811-13010E3 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||

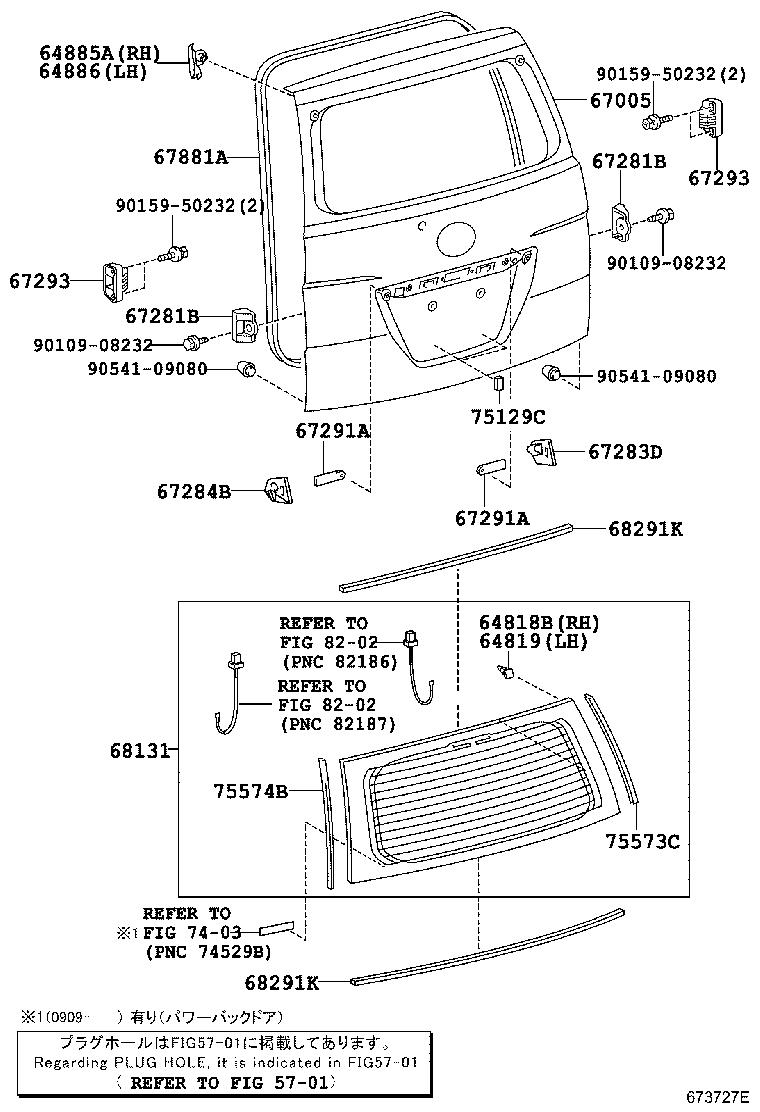

ILLUST NO. 1 OF 2(0409- )
ﾄﾞｱ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-44030 |
ANM1#,ZNM10 |
1 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-44030 |
ANM1#,ZNM10 |
1 | ||
| 64885A - CHANNEL, BACK WINDOW GLASS, RH | ||||
| 64885-44020 |
ANM1#,ZNM10 |
1 | ||
| 64886 - CHANNEL, BACK WINDOW GLASS, LH | ||||
| 64886-44020 |
ANM1#,ZNM10 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-44180 |
ANM1#,ZNM10..G,L ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ |
1 | ||
| 67005-44190 |
ANM1#..G ﾘﾔｽﾎﾟｲﾗ−有り&*POSD(右側&左側)&ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ |
1 | ||
| 67005-44220 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ |
1 | ||
| 67005-44180 |
ANM1#..G *POSD(右側&左側)&ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ |
1 | ||
| 67005-44170 |
ANM1#,ZNM10..G,L ﾘﾔｽﾎﾟｲﾗ−有り |
1 | ||
| 67005-44190 |
ANM1#,ZNM10..G,L ﾘﾔｽﾎﾟｲﾗ−有り&ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ |
1 | ||
| 67005-44210 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 67005-44240 |
ANM1#..G U−SELECTION *(U)&ﾘﾔｽﾎﾟｲﾗ−有り&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 67005-44160 |
ANM1#,ZNM10..G,L |
1 | ||
| 67005-44170 |
ANM1#,ZNM10..G,L ﾘﾔｽﾎﾟｲﾗ−有り&*POSD(右側&左側)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ |
1 | ||
| 67005-44190 |
ANM1#,ZNM10..G,L ﾘﾔｽﾎﾟｲﾗ−有り&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 67005-44230 |
ANM1#..G U−SELECTION *(U)&ﾘﾔｽﾎﾟｲﾗ−有り&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ |
1 | ||
| 67005-44180 |
ANM1#,ZNM10..G,L *POSD(右側&左側)&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 67005-44170 |
ANM1#..G ﾘﾔｽﾎﾟｲﾗ−有り&*POSD(右側&左側) |
1 | ||
| 67005-44220 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 67005-44180 |
ANM1#,ZNM10..G,L ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 67005-44171 |
ANM1#;ZNM10..PLTNA |
1 | ||
| 67005-44190 |
ANM1#,ZNM10..G,L ﾘﾔｽﾎﾟｲﾗ−有り&*POSD(右側&左側)&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 67005-44160 |
ANM1#,ZNM10..G,L *POSD(右側&左側)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ |
1 | ||
| 67005-44230 |
ANM1#..G U−SELECTION *(U)&ﾘﾔｽﾎﾟｲﾗ−有り&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 67005-44231 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 67005-44241 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 67005-44210 |
ANM1#..G *POSD(右側&左側) |
1 | ||
| 67005-44191 |
ANM1#;ZNM10..PLTNA ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ |
1 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-52010 |
ANM1#,ZNM10 |
2 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-52010 |
ANM1#,ZNM10 |
2 | ||
| 67283D - PLATE, BACK DOOR LOWER STOPPER, RH | ||||
| 67283-44010 |
ANM1#,ZNM10 |
1 | ||
| 67284B - PLATE, BACK DOOR LOWER STOPPER, LH | ||||
| 67284-44010 |
ANM1#,ZNM10 |
1 | ||
| 67291A - BRACKET, BACK DOOR STOPPER | ||||
| 67291-44010 |
ANM1#,ZNM10 |
2 | ||
| 67291A - BRACKET, BACK DOOR STOPPER | ||||
| 67291-44010 |
ANM1#,ZNM10 |
2 | ||
| 67293 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 67293-52030 |
ANM1#,ZNM10 |
2 | ||
| 67293 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 67293-52030 |
ANM1#,ZNM10 |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-44050 |
ANM1#,ZNM10 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-44450 |
ANM1#,ZNM10 *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68291K - DAM KIT, BACK WINDOW GLASS | ||||
| 64813-44010 |
ANM1#,ZNM10 上側 |
1 | ||
| 64814-44010 |
ANM1#,ZNM10 下側 |
1 | ||
| 68291K - DAM KIT, BACK WINDOW GLASS | ||||
| 64813-44010 |
ANM1#,ZNM10 上側 |
1 | ||
| 64814-44010 |
ANM1#,ZNM10 下側 |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-13020 |
ANM1#,ZNM10 |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-44040 |
ANM1#,ZNM10 |
1 | ||
| 75574B - MOULDING, BACK WINDOW, OUTSIDE LH | ||||
| 75574-44020 |
ANM1#,ZNM10 |
1 | ||
| Common parts | ||||
| 90109-08232 | ||||
| 90159-50232 | ||||
| 90541-09080 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7403 | ||||
| 8202 | ||||
