Toyota Isis ANM15 ROOF HEADLINING & SILENCER PAD

Part #	Description	Period	Qty
63310 - HEADLINING ASSY, ROOF
63310-44230E0	ANM1#..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),FAWN,TRIM4#	09/2004 - 04/2007	1
63310-44210E0	ANM1#..G FAWN,TRIM4#	09/2004 - 04/2007	1
63310-44300E1	ANM1#..G GREGE,TRIM4#	05/2007 - 09/2009	1
63310-44310E1	ANM1#..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4#	05/2007 - 09/2009	1
63310 - HEADLINING ASSY, ROOF
63310-44230E0	ANM1#..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),FAWN,TRIM4#	09/2004 - 04/2007	1
63310-44210E0	ANM1#..G FAWN,TRIM4#	09/2004 - 04/2007	1
63310-44300E1	ANM1#..G GREGE,TRIM4#	05/2007 - 09/2009	1
63310-44310E1	ANM1#..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4#	05/2007 - 09/2009	1
63310D - CLIP, ROOF HEADLINING
90467-05021E8	ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),FAWN,TRIM4#	09/2004 - 05/2007	6
90467-05021E8	ANM1#,ZNM10 FAWN,TRIM4#	09/2004 - 05/2007	7
90467-05021E9	ANM1#,ZNM10 GREGE,TRIM4#	05/2007 - 09/2009	7
90467-05021E9	ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4#	05/2007 - 09/2009	6
63310D - CLIP, ROOF HEADLINING
90467-05021E8	ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),FAWN,TRIM4#	09/2004 - 05/2007	6
90467-05021E8	ANM1#,ZNM10 FAWN,TRIM4#	09/2004 - 05/2007	7
90467-05021E9	ANM1#,ZNM10 GREGE,TRIM4#	05/2007 - 09/2009	7
90467-05021E9	ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4#	05/2007 - 09/2009	6
63341 - PAD, ROOF SILENCER, NO.1
63341-16010	ANM1#,ZNM10	09/2004 - 06/2006	4
63341-16010	ANM1#,ZNM10	06/2006 - 09/2008	3
63341-12330	ANM1#,ZNM10	10/2008 - 09/2009	3
63341 - PAD, ROOF SILENCER, NO.1
63341-16010	ANM1#,ZNM10	09/2004 - 06/2006	4
63341-16010	ANM1#,ZNM10	06/2006 - 09/2008	3
63341-12330	ANM1#,ZNM10	10/2008 - 09/2009	3
63341 - PAD, ROOF SILENCER, NO.1
63341-16010	ANM1#,ZNM10	06/2006 - 09/2008	3
63341-16010	ANM1#,ZNM10	09/2004 - 06/2006	4
63341-12330	ANM1#,ZNM10	10/2008 - 09/2009	3
63341 - PAD, ROOF SILENCER, NO.1
63341-16010	ANM1#,ZNM10	06/2006 - 09/2008	3
63341-16010	ANM1#,ZNM10	09/2004 - 06/2006	4
63341-12330	ANM1#,ZNM10	10/2008 - 09/2009	3
63341 - PAD, ROOF SILENCER, NO.1
63341-16010	ANM1#,ZNM10	06/2006 - 09/2008	3
63341-16010	ANM1#,ZNM10	09/2004 - 06/2006	4
63341-12330	ANM1#,ZNM10	10/2008 - 09/2009	3
63341 - PAD, ROOF SILENCER, NO.1
63341-16010	ANM1#,ZNM10	06/2006 - 09/2008	3
63341-16010	ANM1#,ZNM10	09/2004 - 06/2006	4
63341-12330	ANM1#,ZNM10	10/2008 - 09/2009	3
63341 - PAD, ROOF SILENCER, NO.1
63341-16010	ANM1#,ZNM10	09/2004 - 06/2006	4
63341-16010	ANM1#,ZNM10	06/2006 - 09/2008	3
63341-12330	ANM1#,ZNM10	10/2008 - 09/2009	3
63341 - PAD, ROOF SILENCER, NO.1
63341-16010	ANM1#,ZNM10	09/2004 - 06/2006	4
63341-16010	ANM1#,ZNM10	06/2006 - 09/2008	3
63341-12330	ANM1#,ZNM10	10/2008 - 09/2009	3
66413B - SPACER, SIDE RAIL, FRONT RH
66413-44030	ANM1#,ZNM10	09/2004 - 09/2009	1
66414A - SPACER, SIDE RAIL, REAR RH
66414-44040	ANM1#,ZNM10	09/2004 - 09/2009	1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-44040	ANM1#,ZNM10	09/2004 - 09/2009	1
66416 - SPACER, SIDE RAIL, REAR NO.3 RH
66416-44030	ANM1#,ZNM10	09/2004 - 09/2009	1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-44030	ANM1#,ZNM10	09/2004 - 09/2009	1
66424 - SPACER, SIDE RAIL, REAR LH
66424-44040	ANM1#,ZNM10	09/2004 - 09/2009	1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-44030	ANM1#,ZNM10	09/2004 - 09/2009	1
66426B - SPACER, SIDE RAIL, REAR NO.3 LH
66426-44020	ANM1#,ZNM10	09/2004 - 09/2009	1

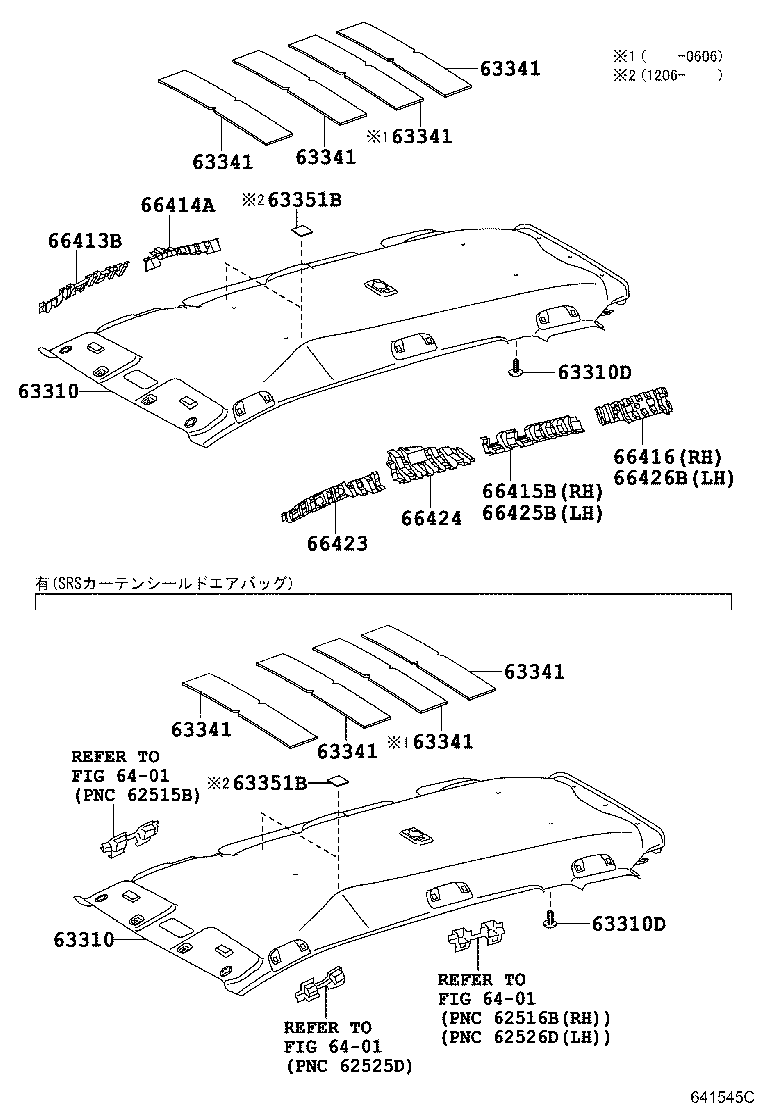

Linked diagrams
6401

ANM15G-AWXGH (2004)

(0409- )
