ANM15G-AWXGH (2004)

Toyota Isis

Production Sep 2004 - Sep 2009
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409- )

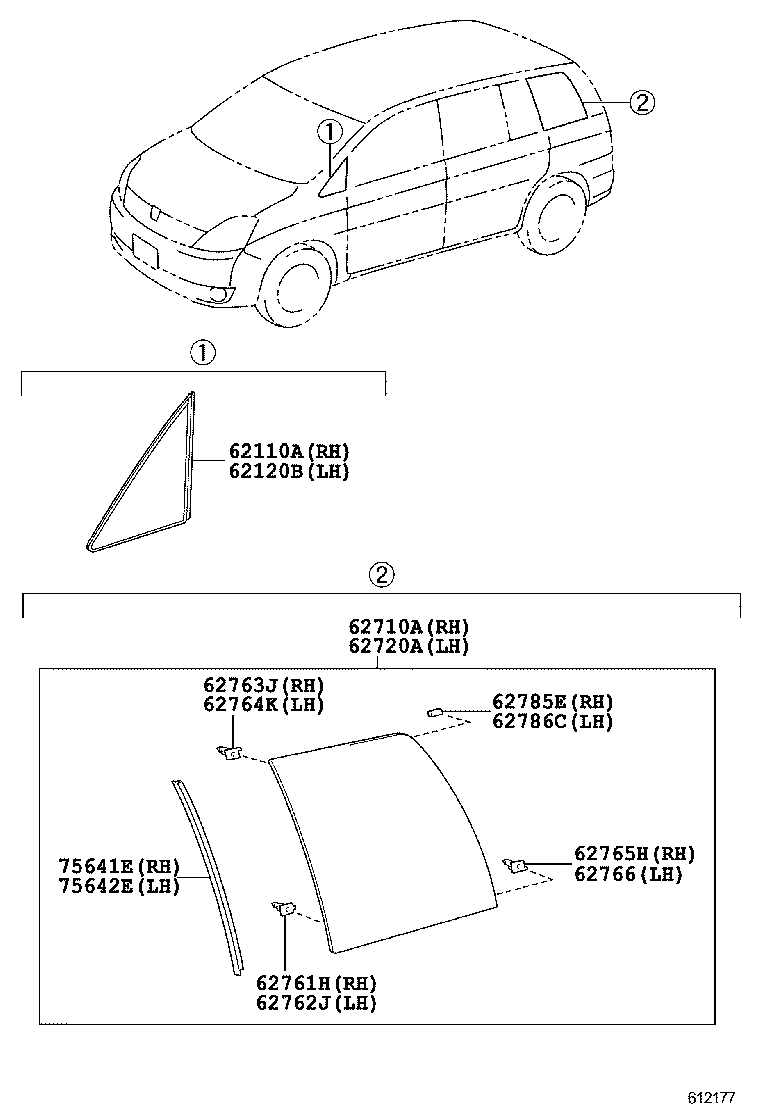

Click highlighted areas on diagram

diagram 62110A 62120B 62710A 62720A 62761H 62762J 62763J 62764K 62765H 62766 62785E 62786C 75641E 75642E
Part # Description Qty Price
62110A - WINDOW ASSY, FRONT SIDE FIX, RH
62110-44060

ANM1#,ZNM10

 1
62120B - WINDOW ASSY, FRONT SIDE FIX, LH
62120-44060

ANM1#,ZNM10

 1
62710A - WINDOW ASSY, QUARTER, RH
62710-44280

ANM1#,ZNM10

*TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ

 1
62710-44290

ANM1#,ZNM10

*TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
62710-44290

ANM1#,ZNM10

*TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮ刀{6ｽﾋﾟｰｶ

 1
62720A - WINDOW ASSY, QUARTER, LH
62720-44260

ANM1#,ZNM10

*TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮ刀{6ｽﾋﾟｰｶ

 1
62720-44250

ANM1#,ZNM10

*TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ

 1
62720-44260

ANM1#,ZNM10

*TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
62761H - RETAINER, QUARTER WINDOW GLASS, FRONT
62761-44010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
62761-44010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
62761-44010

ANM1#,ZNM10

 1
62762J - RETAINER, QUARTER WINDOW GLASS, FRONT LH
62762-44010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
62762-44010

ANM1#,ZNM10

 1
62762-44010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
62763J - RETAINER, QUARTER WINDOW GLASS, UPPER
62763-44010

ANM1#,ZNM10

 1
62763-44010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
62763-44010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
62764K - RETAINER, QUARTER WINDOW GLASS, UPPER
62764-44010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
62764-44010

ANM1#,ZNM10

 1
62764-44010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
62765H - RETAINER, QUARTER WINDOW GLASS, LOWER
62765-44010

ANM1#,ZNM10

 1
62765-44010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
62765-44010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
62766 - RETAINER, QUARTER WINDOW GLASS, LOWER LH
62766-44010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
62766-44010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
62766-44010

ANM1#,ZNM10

 1
62785E - SPACER, QUARTER WINDOW GLASS, RH
62785-60030

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
62785-60030

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
62785-60030

ANM1#,ZNM10

 1
62786C - SPACER, QUARTER WINDOW GLASS LH
62785-60030

ANM1#,ZNM10

 1
62785-60030

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
62785-60030

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
75641E - MOULDING, QUARTER WINDOW, RH
75641-44020

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
75641-44020

ANM1#,ZNM10

 1
75641-44020

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
75642E - MOULDING, QUARTER WINDOW, LH
75642-44010

ANM1#,ZNM10

 1
75642-44010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ

 1
75642-44010

ANM1#,ZNM10

ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ

 1
