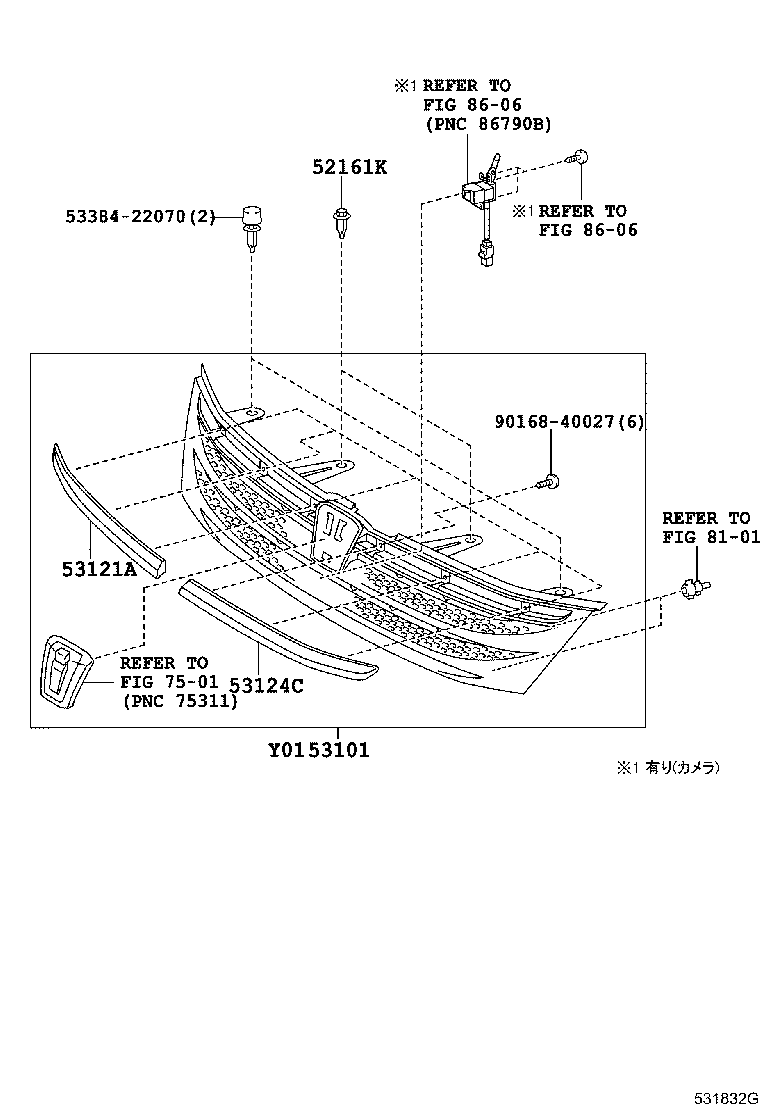

Toyota Isis ANM15 RADIATOR GRILLE

Part #	Description	Period	Qty
52161K - PIECE, FRONT BUMPER
52161-16010	ANM1#,ZNM10	09/2004 - 09/2009	2
53101 - GRILLE SUB-ASSY, RADIATOR
53101-44230	ANM1#,ZNM10..G,L ﾒｯｷ,ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ	09/2004 - 12/2005	1
53101-44270	ANM1#,ZNM10..G,L ﾒｯｷ	05/2007 - 09/2009	1
53101-44230	ANM1#,ZNM10..G,L ﾒｯｷ,ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ	12/2005 - 05/2007	1
53101-44180	ANM1#,ZNM10..G,L ﾒｯｷ	09/2004 - 05/2007	1
53101-44280	ANM1#,ZNM10..G,L ﾒｯｷ,ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ	05/2007 - 09/2009	1
53121A - MOULDING, RADIATOR GRILLE
53121-44030	ANM1#,ZNM10..G,L ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ	09/2004 - 12/2005	1
53121-44030	ANM1#,ZNM10..G,L	09/2004 - 08/2006	1
53121-44030	ANM1#,ZNM10 ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ	12/2005 - 05/2007	1
53121-44030	ANM1#,ZNM10..G,L	08/2006 - 05/2007	1
53124C - MOULDING, RADIATOR GRILLE, UPPER LH
53124-44010	ANM1#,ZNM10..G,L	08/2006 - 05/2007	1
53124-44010	ANM1#,ZNM10..G,L	09/2004 - 08/2006	1
53124-44010	ANM1#,ZNM10 ｵｰﾃﾞｨｵ−AVN+6ｽﾋﾟｰｶ	12/2005 - 05/2007	1
53124-44010	ANM1#,ZNM10..G,L ｵｰﾃﾞｨｵ−G−BOOK対応DVDﾅﾋﾞｹﾞｰｼｮﾝ+6ｽﾋﾟｰｶ	09/2004 - 07/2005	1
Common parts
53384-22070
90168-40027
Linked diagrams
7501
8101
8606

ANM15G-AWXGH (2004)
