Toyota Isis ANM15 BRAKE MASTER CYLINDER

ANM15G-AWXGH (2004)

Toyota Isis

Production Sep 2004 - Sep 2009

Engine 1AZFSE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

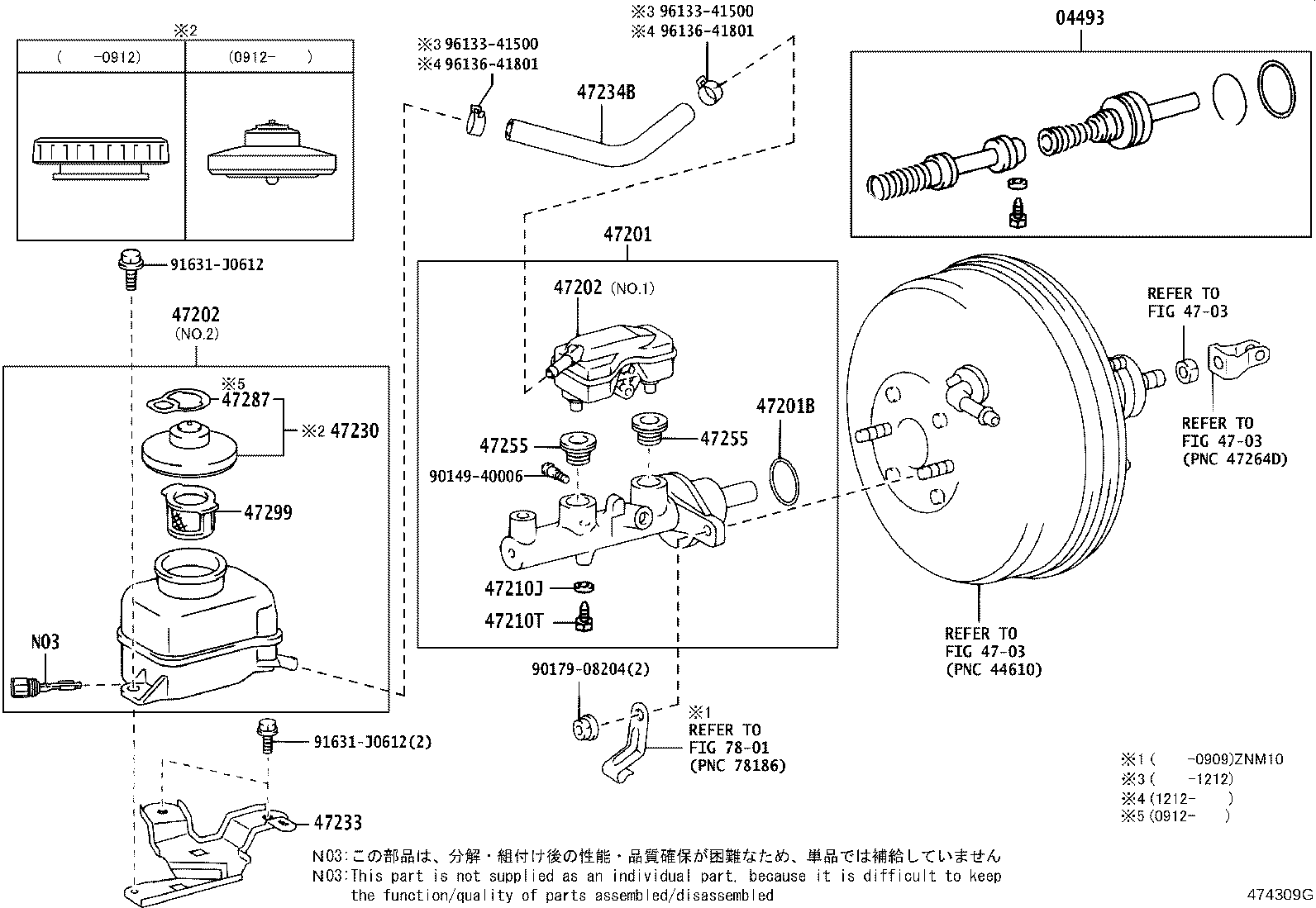

Click highlighted areas on diagram

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-33110	ANM1#,ZNM10	09/2004 - 09/2009	1
04493-33120	ANM15 VSC−有り	09/2004 - 09/2009	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-68020	ANM15 VSC−有り	09/2004 - 09/2009	1
47201-68010	ANM1#,ZNM10	09/2004 - 09/2009	1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059	ANM1#,ZNM10	09/2004 - 09/2009	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-68010	ANM1#,ZNM10 NO.1	09/2004 - 09/2009	1
47220-48130	ANM1#,ZNM10 NO.2	09/2004 - 09/2009	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-68010	ANM1#,ZNM10 NO.1	09/2004 - 09/2009	1
47220-48130	ANM1#,ZNM10 NO.2	09/2004 - 09/2009	1
47210J - GASKET(FOR MASTER CYLINDER)
90029-43001	ANM1#,ZNM10	09/2004 - 09/2009	1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077	ANM1#,ZNM10	09/2004 - 09/2009	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20100	ANM1#,ZNM10	09/2004 - 09/2009	1
47233 - BRACKET, RESERVOIR
47233-68010	ANM1#,ZNM10	09/2004 - 09/2009	1
47234B - TUBE, RESERVOIR, NO.1
47234-68020	ANM1#	09/2004 - 09/2009	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	ANM1#,ZNM10	09/2004 - 09/2009	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	ANM1#,ZNM10	09/2004 - 09/2009	2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060	ANM1#,ZNM10	09/2004 - 09/2009	1
Common parts
90149-40006
90179-08204
91631-J0612
96133-41500
96136-41801
Linked diagrams
4703
7801

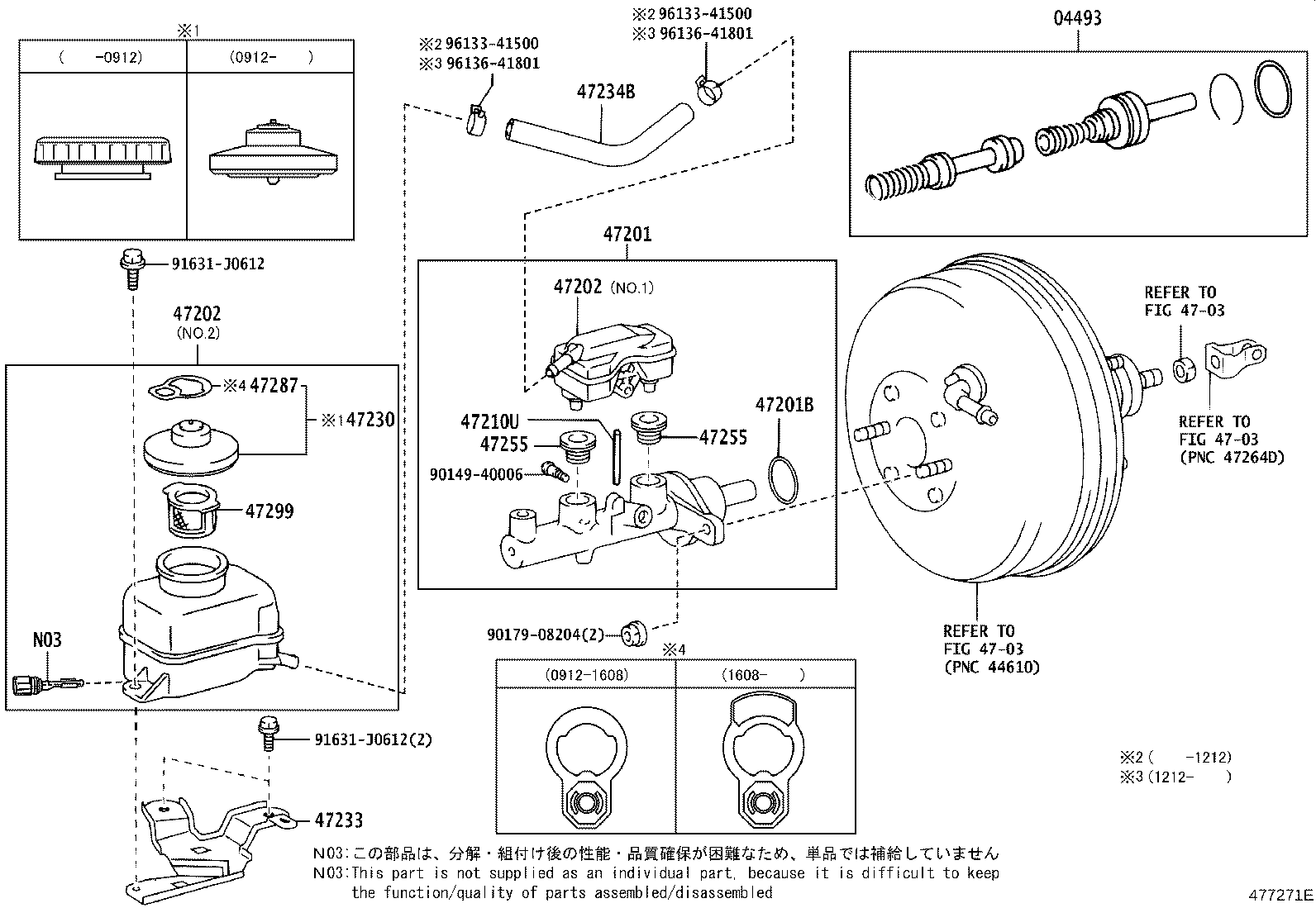

Click highlighted areas on diagram

ｱﾘ(VSC)

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-33110	ANM1#,ZNM10	09/2004 - 09/2009	1
04493-33120	ANM15 VSC−有り	09/2004 - 09/2009	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-68020	ANM15 VSC−有り	09/2004 - 09/2009	1
47201-68010	ANM1#,ZNM10	09/2004 - 09/2009	1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059	ANM1#,ZNM10	09/2004 - 09/2009	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-68010	ANM1#,ZNM10 NO.1	09/2004 - 09/2009	1
47220-48130	ANM1#,ZNM10 NO.2	09/2004 - 09/2009	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-68010	ANM1#,ZNM10 NO.1	09/2004 - 09/2009	1
47220-48130	ANM1#,ZNM10 NO.2	09/2004 - 09/2009	1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90029-14204	ANM15 VSC−有り	09/2004 - 09/2009	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20100	ANM1#,ZNM10	09/2004 - 09/2009	1
47233 - BRACKET, RESERVOIR
47233-68010	ANM1#,ZNM10	09/2004 - 09/2009	1
47234B - TUBE, RESERVOIR, NO.1
47234-68020	ANM1#	09/2004 - 09/2009	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	ANM1#,ZNM10	09/2004 - 09/2009	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	ANM1#,ZNM10	09/2004 - 09/2009	2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060	ANM1#,ZNM10	09/2004 - 09/2009	1
Common parts
90149-40006
90179-08204
91631-J0612
96133-41500
96136-41801
Linked diagrams
4703
