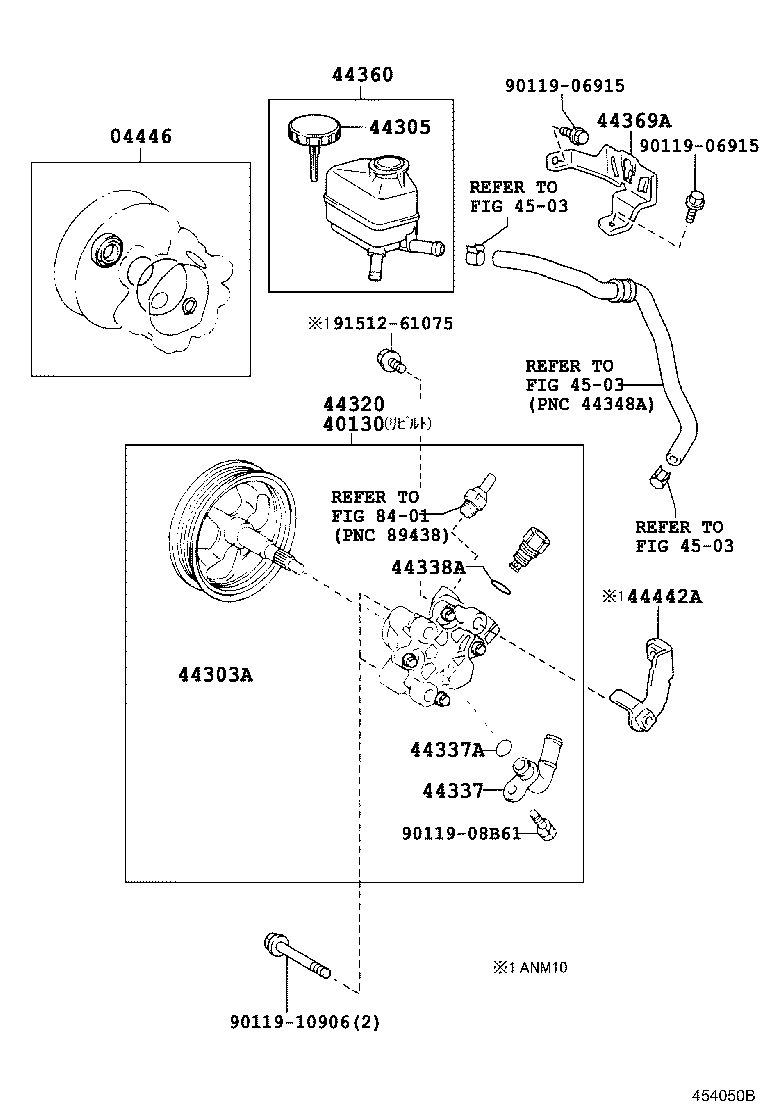

Toyota Isis ANM15 VANE PUMP & RESERVOIR (POWER STEERING)

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-32050	ANM15;ANM10..PLTNA	09/2004 - 12/2999	1
40130 - PUMP ASSY,VANE REBUILT
40130-44140	ANM15;ANM10..PLTNA	09/2004 - 09/2009	1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-28010	ANM15;ANM10..PLTNA	09/2004 - 12/2999	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-20050	ANM15;ANM10..PLTNA	12/2007 - 12/2999	1
44305-20041	ANM15;ANM10..PLTNA	09/2004 - 11/2007	1
44320 - PUMP ASSY, VANE
44310-44140	ANM15;ANM10..PLTNA	09/2004 - 09/2009	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-48010	ANM15;ANM10..PLTNA	01/2005 - 12/2999	1
44337-32110	ANM15;ANM10..PLTNA	09/2004 - 12/2004	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11020	ANM15;ANM10..PLTNA	09/2004 - 12/2999	1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-18009	ANM15;ANM10..PLTNA 外径=22,内径=18.6	09/2004 - 12/2999	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-44040	ANM15;ANM10..PLTNA	01/2005 - 09/2009	1
44360-20150	ANM15;ANM10..PLTNA	09/2004 - 12/2004	1
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-20060	ANM15;ANM10..PLTNA	09/2004 - 12/2999	1
Common parts
90119-06915
90119-08B61
90119-10906
91512-61075
Linked diagrams
4503
8401

ANM15G-AWXGH (2004)
