ANM15G-AWXGH (2004)

Toyota Isis

Production Sep 2004 - Sep 2009
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409- )

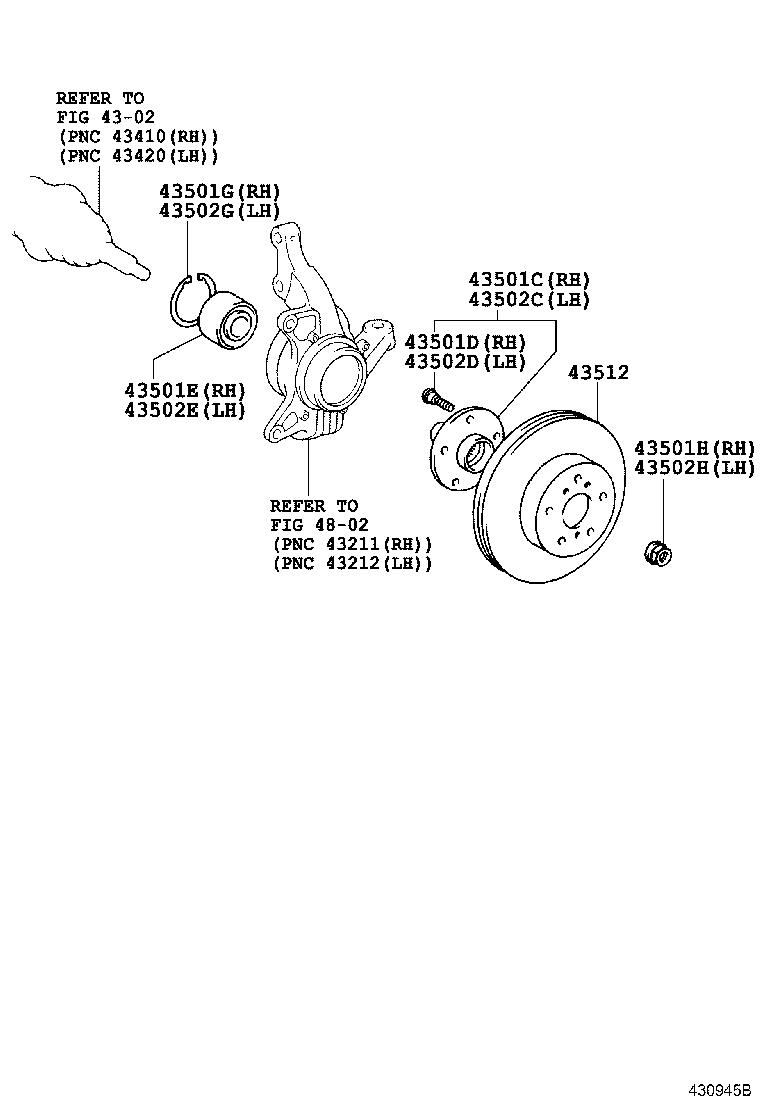

Click highlighted areas on diagram

diagram 4302 43501C 43501D 43501E 43501G 43501H 43502C 43502D 43502E 43502G 43502H 43512 4802
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-42020

ANM1#,ZNM10

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02070

ANM1#,ZNM10

 5
43501E - BEARING (FOR FRONT AXLE HUB RH)
90369-43009

ANM1#,ZNM10

 1
43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90521-88001

ANM1#,ZNM10

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90177-22001

ANM1#,ZNM10

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-42020

ANM1#,ZNM10

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02070

ANM1#,ZNM10

 5
43502E - BEARING (FOR FRONT AXLE HUB LH)
90369-43009

ANM1#,ZNM10

 1
43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90521-88001

ANM1#,ZNM10

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90177-22001

ANM1#,ZNM10

 1
43512 - DISC, FRONT
43512-44011

ANM1#,ZNM10

 2
Linked diagrams
4302
4802
