ANM10W-AWXSH (2004)

Toyota Isis

Production Sep 2004 - Sep 2009
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409-1206)ZGM10..PLTNA ; (0409-1206)ANM1#,ZGM11,15..G,PLTNA ; (1108-1206)ZGM10..G

Click highlighted areas on diagram

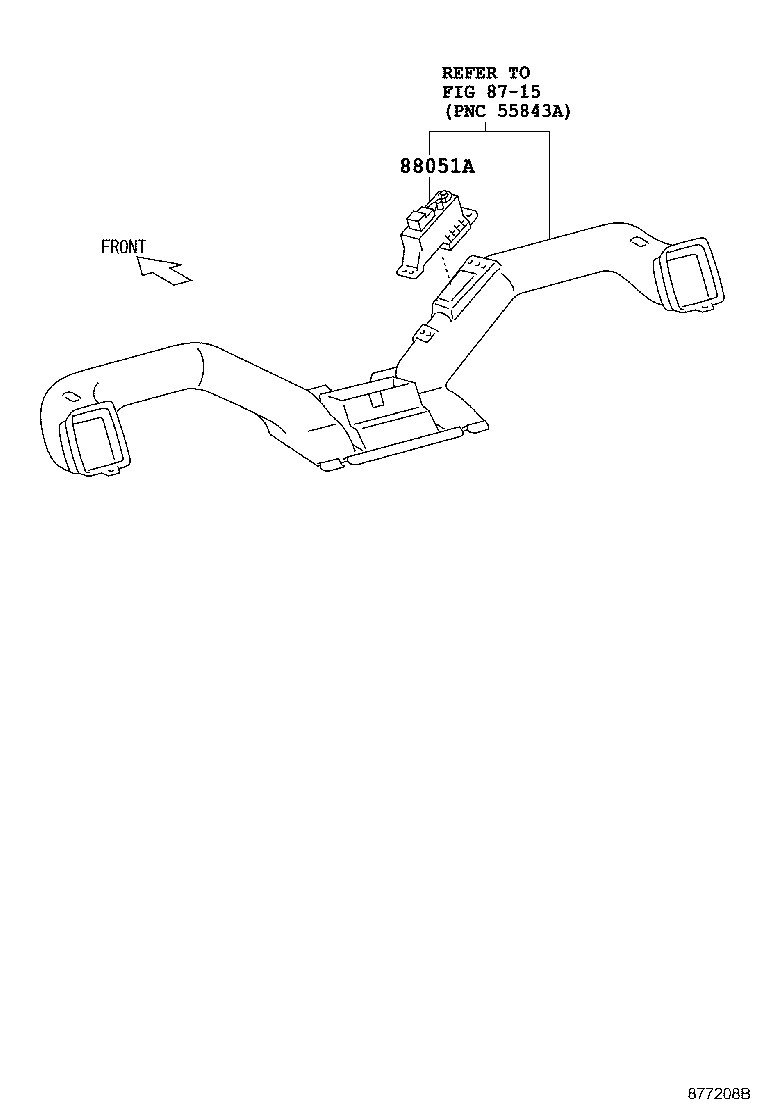

ｼﾞｮｷﾝｲｵﾝ & ﾏｲﾅｽｲｵﾝ ﾊｯｾｲｿｳﾁ

diagram 8715 88051A
Part # Description Qty Price
88051A - GENERATOR SUB-ASSY,ION
88051-52010

ANM1#..PLTNA

U−SELECTION *(U)

 1
Linked diagrams
8715
