ANM10W-AWXSH (2004)

Toyota Isis

Production Sep 2004 - Sep 2009
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409- )

Click highlighted areas on diagram

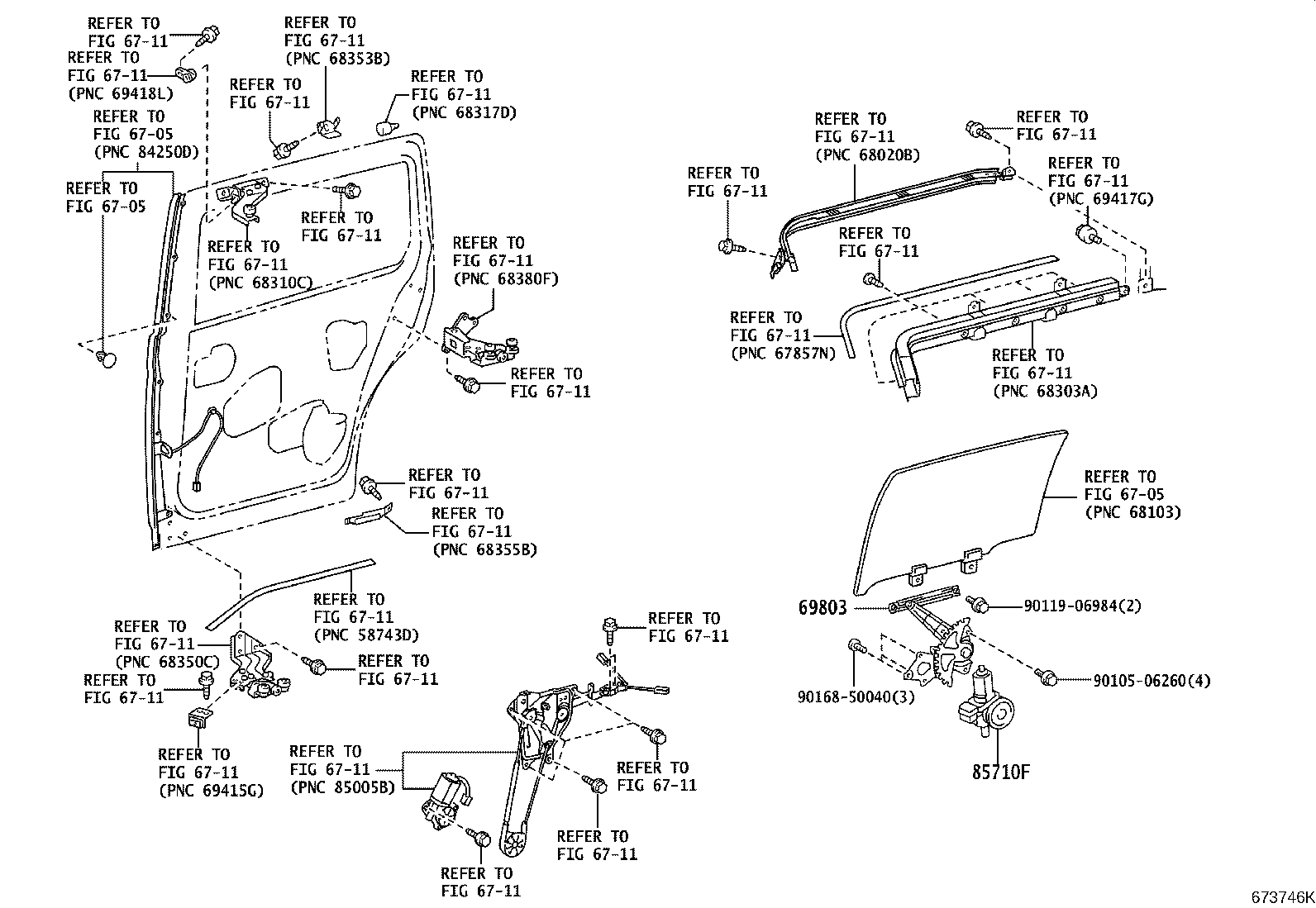

ﾗｲﾄ

diagram 6705 6705 6705 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 69803 85710F 9010506260 9011906984 9016850040
Part # Description Qty Price
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-44030

ANM1#,ZNM10

 1
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-46030

ANM1#,ZNM10

 1
Common parts
90105-06260
90119-06984
90168-50040
Linked diagrams
6705
6711

(0409- )

Click highlighted areas on diagram

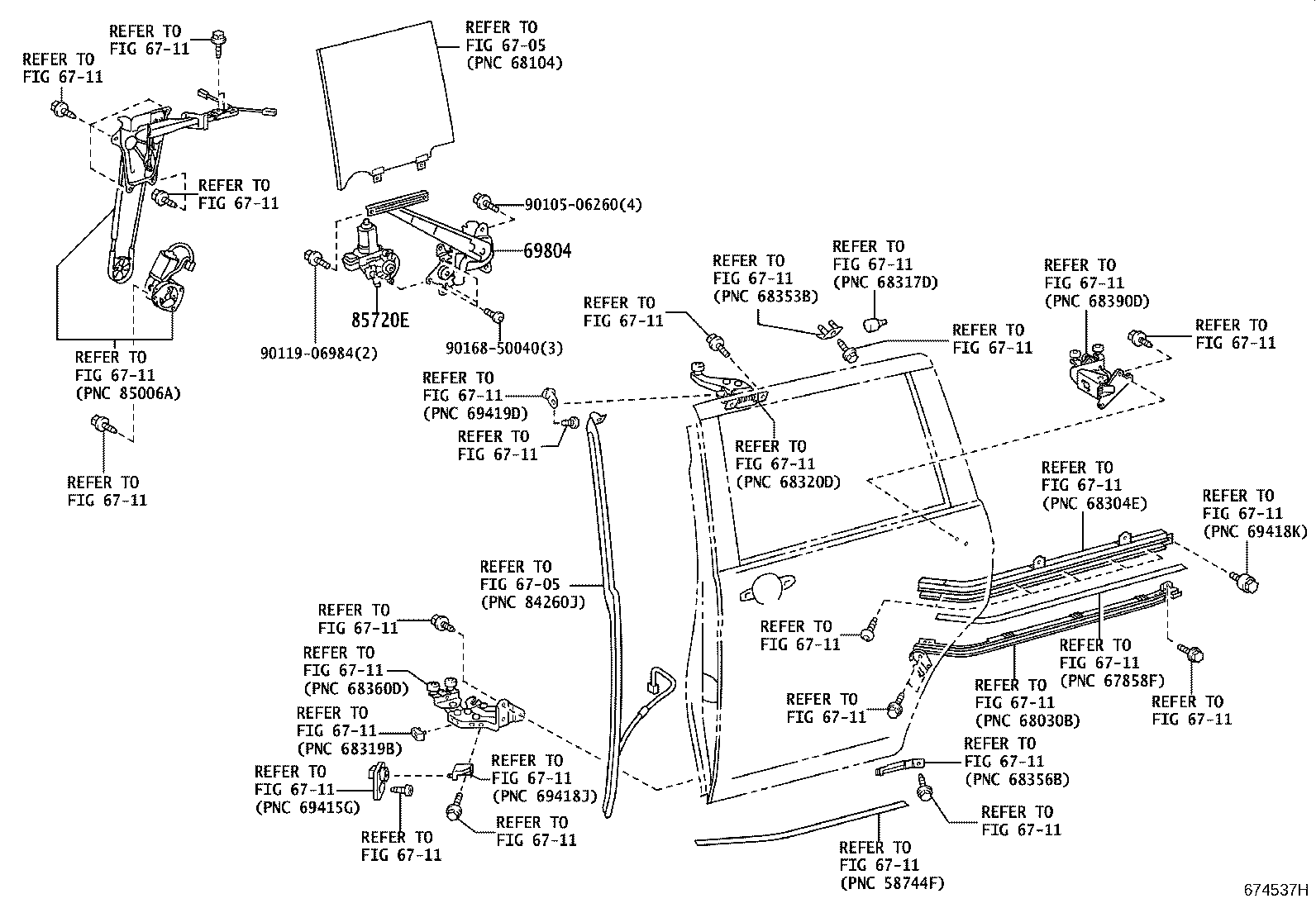

ﾚﾌﾄ

diagram 6705 6705 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 69804 85720E 9010506260 9011906984 9016850040
Part # Description Qty Price
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-44030

ANM1#,ZNM10

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-46030

ANM1#,ZNM10

 1
Common parts
90105-06260
90119-06984
90168-50040
Linked diagrams
6705
6711
