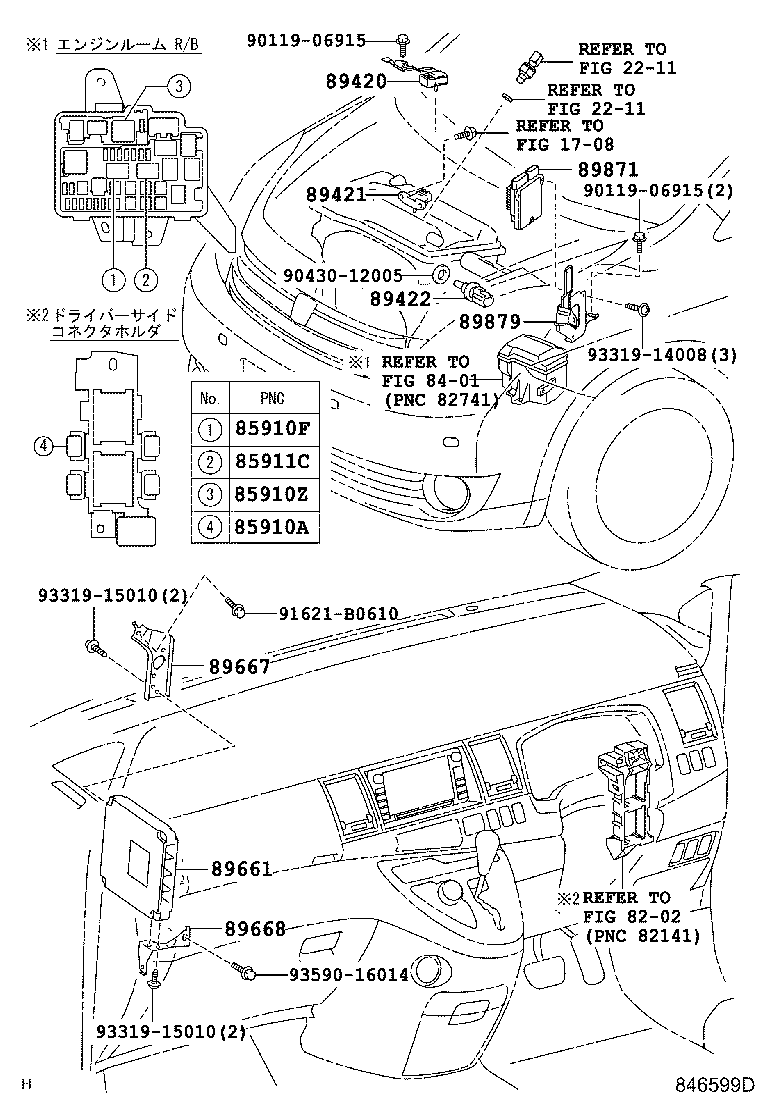

Toyota Isis ANM10 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02027	ANM1#,ZNM10	09/2004 - 09/2009	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02027	ANM1#,ZNM10	09/2004 - 09/2009	1
85910Z - RELAY, INJECTION (FOR EFI)
90987-02027	ANM1#	09/2004 - 09/2009	1
85911C - RELAY, EFI 2
90987-02027	ANM1#	09/2004 - 09/2009	1
89420 - SENSOR ASSY, VACUUM
89420-68010	ANM1#	09/2004 - 09/2009	1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-20190	ANM1#	09/2004 - 09/2009	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030	ANM1#	09/2004 - 09/2009	1
89661 - COMPUTER, ENGINE CONTROL
89661-44490	ANM10..G,L FUJITSU TEN	09/2004 - 12/2005	1
89661-44580	ANM10..G,L FUJITSU TEN	12/2005 - 09/2009	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-68010	ANM1#	12/2005 - 09/2009	1
89667-68010	ANM1#	09/2004 - 11/2005	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-68010	ANM1#	09/2004 - 11/2005	1
89668-68010	ANM1#	12/2005 - 09/2009	1
89871 - DRIVER, INJECTOR
89871-28010	ANM1#	09/2004 - 09/2009	1
89879 - BRACKET, INJECTOR DRIVER
89879-20100	ANM1#	09/2004 - 09/2009	1
Common parts
90119-06915
90430-12005
91621-B0610
93319-14008
93319-15010
93590-16014
Linked diagrams
1708
2211
8202
8401

ANM10G-AWXGH (2004)
