ANM10G-AWXGH (2004)

Toyota Isis

Production Sep 2004 - Sep 2009
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409- )

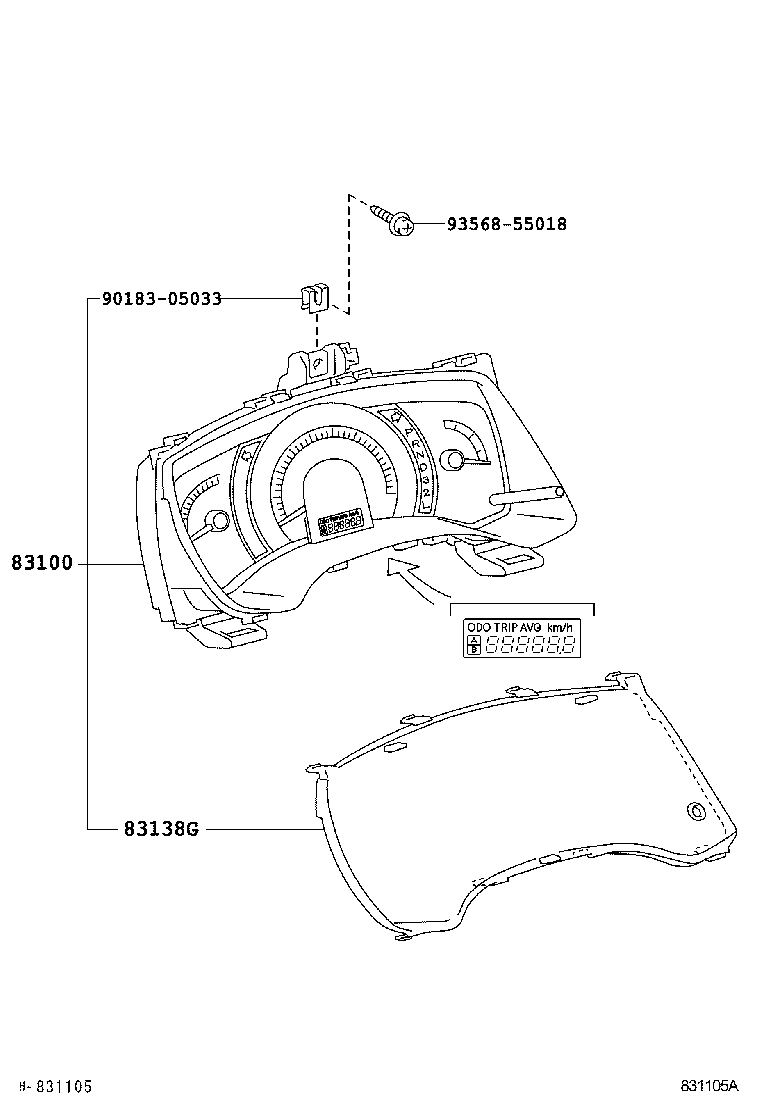

Click highlighted areas on diagram

diagram 83100 83138G 9018305033 9356855018
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-44B30

ANM1#..G

YAZAKI

 1
83800-44D00

ANM1#..G

YAZAKI

 1
83800-44B31

ANM1#..G

YAZAKI

 1
83138G - GLASS, COMBINATION METER
83852-44C70

ANM1#,ZNM10..G,PLTNA

 1
83852-44B30

ANM1#..G

 1
Common parts
90183-05033
93568-55018
