ANM10G-AWXGH (2004)
Toyota Isis

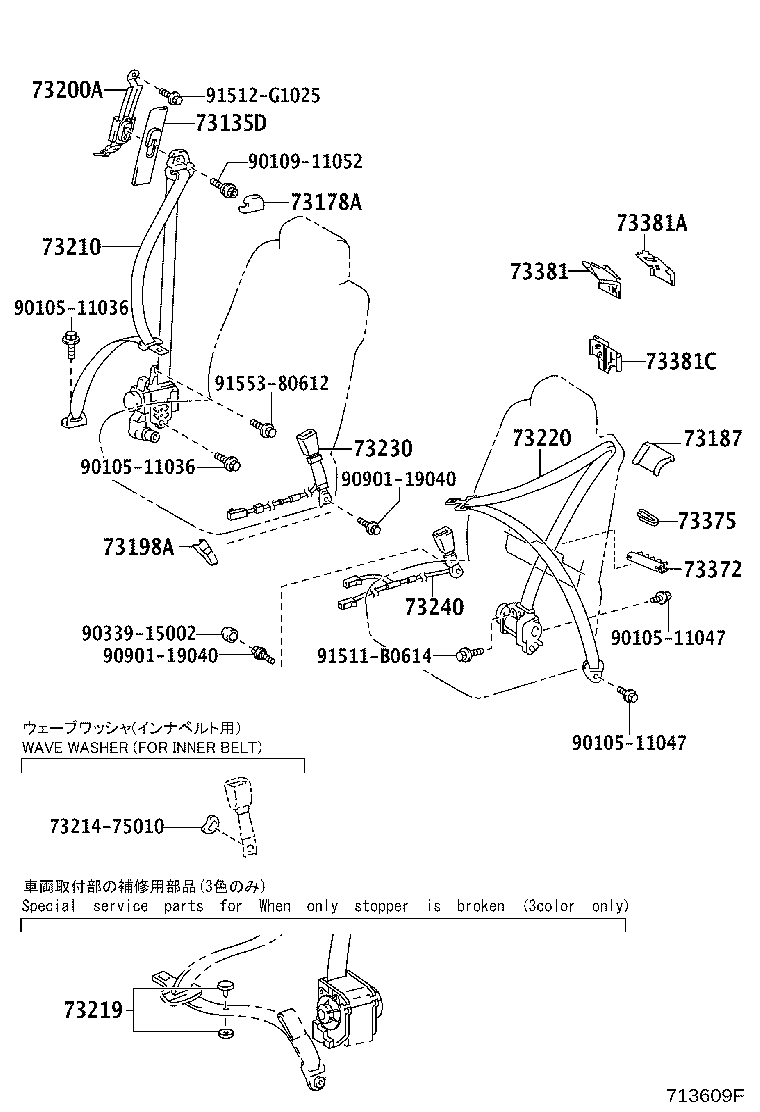

ILLUST NO. 1 OF 3(0409- )
ﾌﾛﾝﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135D - COVER, SHOULDER BELT ANCHOR, NO.1 RH | ||||
| 73237-28010E0 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),FAWN,TRIM4# |
1 | ||
| 73237-28010E1 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 73135-28020E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73135-28020E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020E1 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73178-33020E4 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73187 - GUIDE, FRONT SEAT SHOULDER BELT | ||||
| 73187-46010B1 |
ANM1#,ZNM10..G,L DK.GRAY,TRIM1# |
1 | ||
| 73187-46010E1 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73187-46010 |
ANM1#,ZNM10 |
1 | ||
| 73198A - COVER, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73198-68010E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73198-68010E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-52010E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73200-52010E2 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-44140E2 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73210-44140E1 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ANM1#,ZNM10 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
ANM1#,ZNM10 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
ANM1#,ZNM10 ｸﾞﾚｰ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-44030E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73220-44030E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-68010E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73230-68010E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-44030E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73240-44030E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73372-46010 |
ANM1#,ZNM10 |
1 | ||
| 73375 - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-46010E1 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73375-46010E2 |
ANM1#,ZNM10..G,L GREGE,TRIM4# |
1 | ||
| 73381 - HOLDER, REAR SEAT BELT | ||||
| 73381-44010 |
ANM1#,ZNM10 |
1 | ||
| 73381A - HOLDER, REAR SEAT BELT NO.2 | ||||
| 73381-44020 |
ANM1#,ZNM10 |
1 | ||
| 73381C - HOLDER, SEAT BELT | ||||
| 73381-44030 |
ANM1#,ZNM10 |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-11036 | ||||
| 90105-11047 | ||||
| 90109-11052 | ||||
| 90339-15002 | ||||
| 90901-19040 | ||||
| 91511-B0614 | ||||
| 91512-G1025 | ||||
| 91553-80612 | ||||

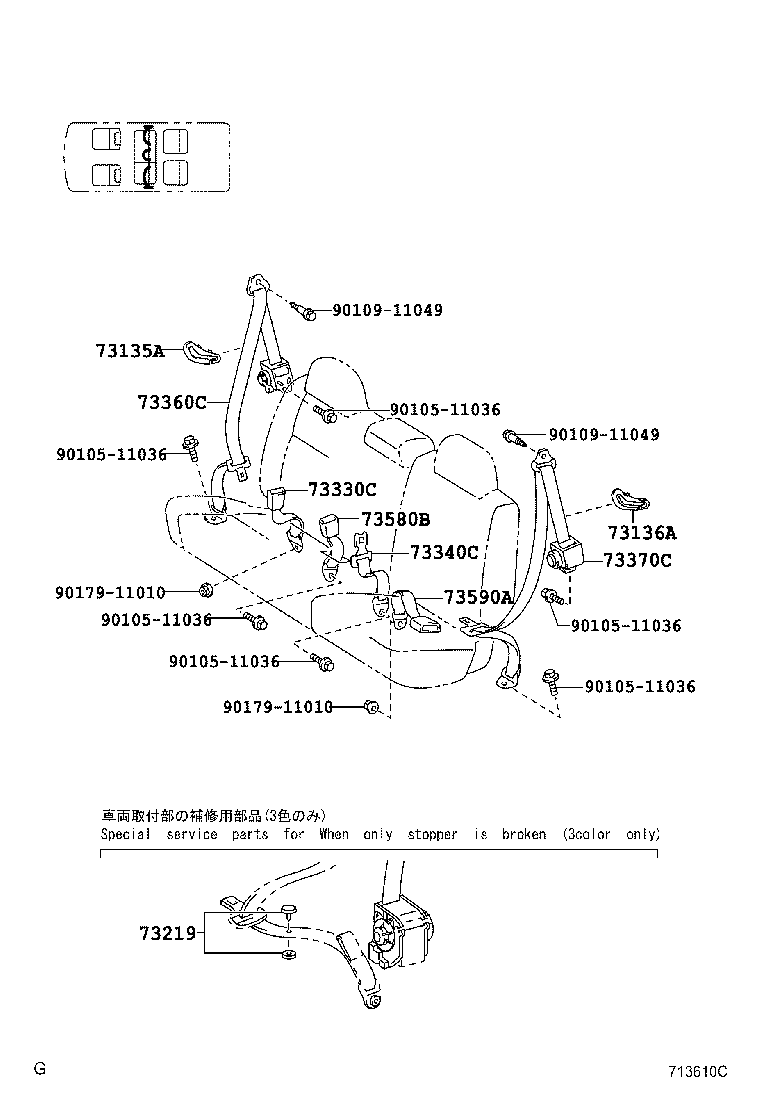

ILLUST NO. 2 OF 3(0409-1206)
ﾘﾔNO.1ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73135-44010E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73135-44010E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73136-44010E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73136-44010E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ANM1#,ZNM10 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
ANM1#,ZNM10 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
ANM1#,ZNM10 ｸﾞﾚｰ |
1 | ||
| 73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH | ||||
| 73340-44020E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73340-44020E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH | ||||
| 73350-44060E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73350-44060E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-44050E1 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73360-44050E2 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-44050E1 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73370-44050E2 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73580B - BELT ASSY, REAR SEAT, INNER RH | ||||
| 73380-44100E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73380-44100E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73590A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73580-13030E2 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73580-13030E1 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90109-11049 | ||||
| 90179-11010 | ||||

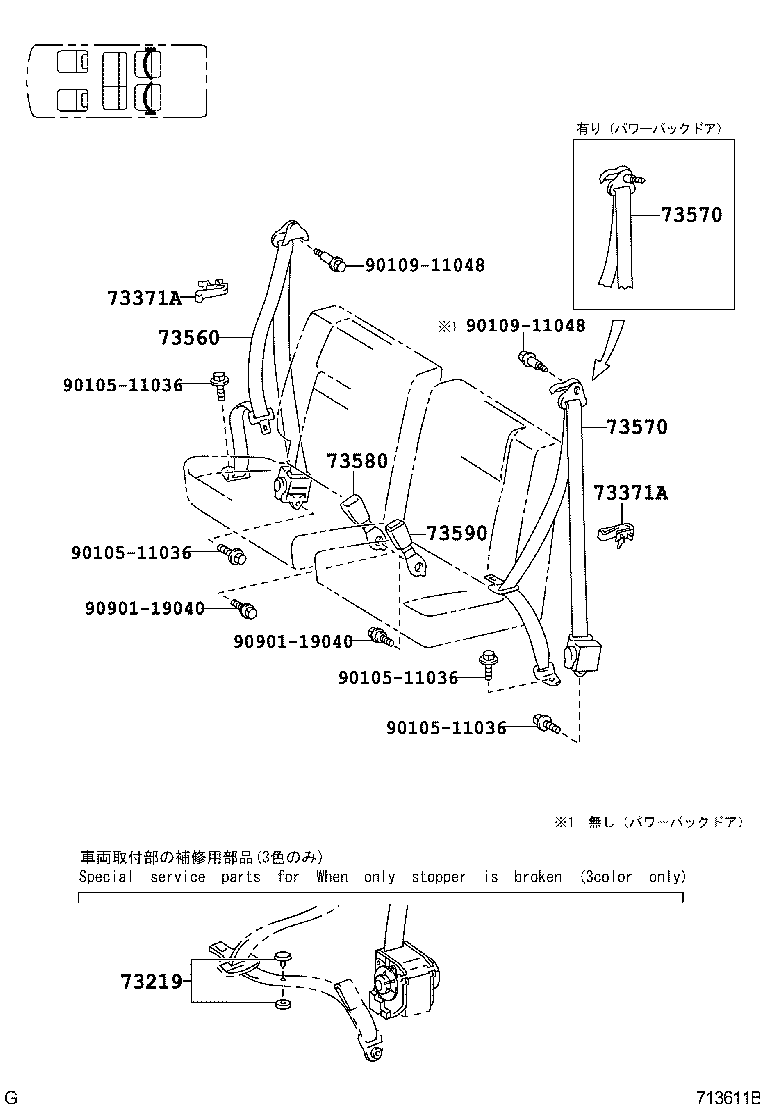

ILLUST NO. 3 OF 3(0409- )
ﾘﾔNO.2ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ANM1#,ZNM10 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
ANM1#,ZNM10 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
ANM1#,ZNM10 ｸﾞﾚｰ |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020E2 |
ANM1#,ZNM10 FAWN,TRIM4# |
2 | ||
| 73371-44020E3 |
ANM1#,ZNM10 GREGE,TRIM4# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020E2 |
ANM1#,ZNM10 FAWN,TRIM4# |
2 | ||
| 73371-44020E3 |
ANM1#,ZNM10 GREGE,TRIM4# |
2 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-44060E1 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73560-44060E2 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-44070E2 |
ANM1#..G *POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),GREGE,TRIM4# |
1 | ||
| 73570-44070E1 |
ANM1#..G *POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),FAWN,TRIM4# |
1 | ||
| 73570-44060E1 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73570-44060E2 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-44070E2 |
ANM1#..G *POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),GREGE,TRIM4# |
1 | ||
| 73570-44070E1 |
ANM1#..G *POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),FAWN,TRIM4# |
1 | ||
| 73570-44060E1 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73570-44060E2 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-44050E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73580-44050E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73590-44020E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 73590-44020E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90109-11048 | ||||
| 90901-19040 | ||||
