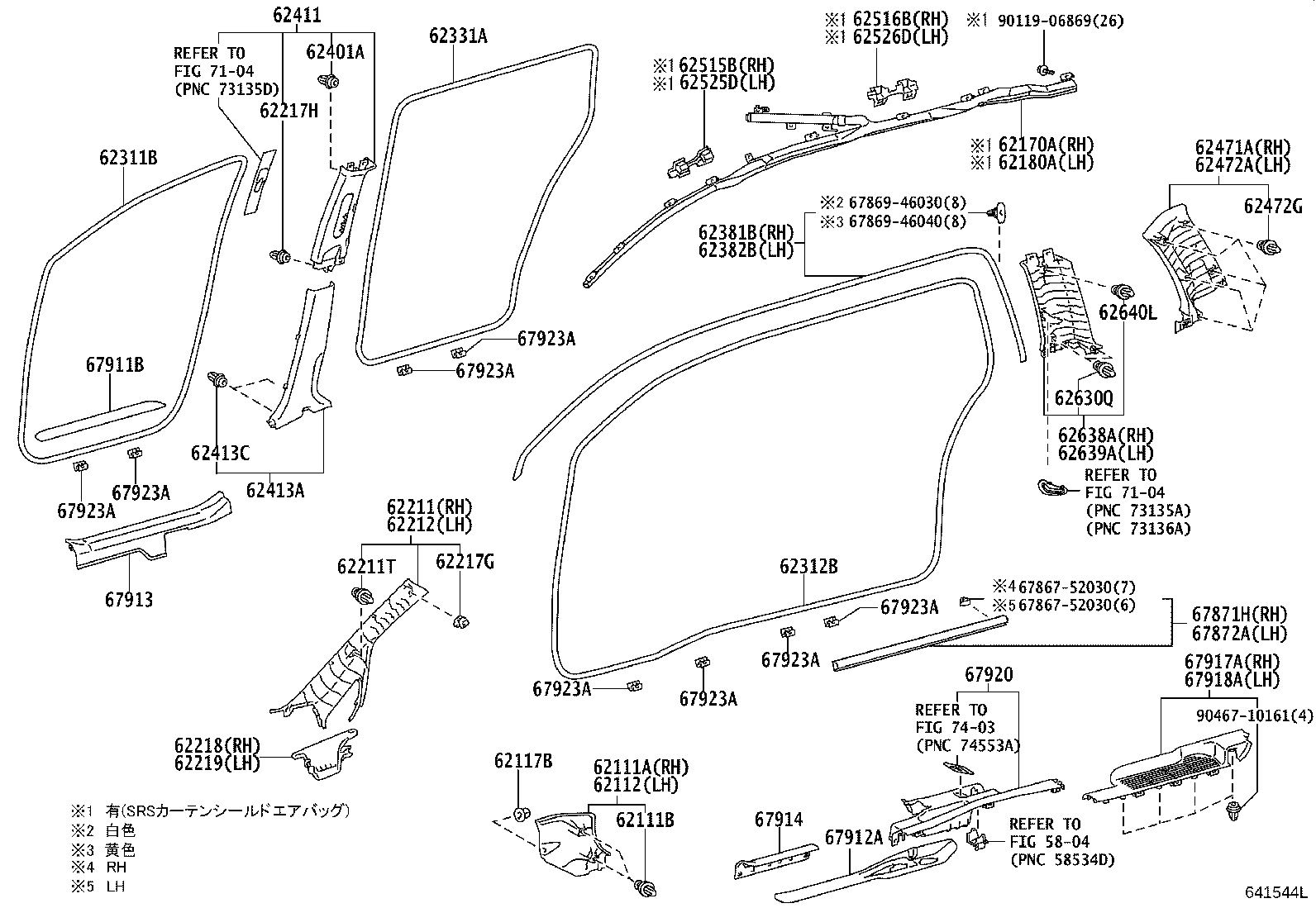

ANM10G-AWXGH (2004)
Toyota Isis
(0409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62113-44010E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62113-44010E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
ANM1#,ZNM10 右側 |
2 | ||
| 90467-10148 |
ANM1#,ZNM10 左側 |
2 | ||
| 90467-10161 |
ANM1#,ZNM10 左側 |
2 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62114-44010E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62114-44010E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06158E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
2 | ||
| 90467-06158E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-44041 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-44031 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-44060E0 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),FAWN,TRIM4# |
1 | ||
| 62210-44050E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62210-44060E1 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 62210-44050E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10161 |
ANM1#,ZNM10 |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-44060E0 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),FAWN,TRIM4# |
1 | ||
| 62220-44050E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62220-44050E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62220-44060E1 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90950-08004 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),右側 |
1 | ||
| 90950-08005 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),左側 |
1 | ||
| 62217-44020 |
ANM1#,ZNM10 左側 |
1 | ||
| 62217-52010 |
ANM1#,ZNM10 右側 |
1 | ||
| 90950-08005 |
ANM1#,ZNM10 左側 |
1 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 90467-10148 |
ANM1#,ZNM10 |
1 | ||
| 62218 - PIECE, FRONT PILLAR GARNISH CORNER, RH | ||||
| 62218-44030E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62218-44030E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62219 - PIECE, FRONT PILLAR GARNISH CORNER, LH | ||||
| 62219-44030E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62219-44030E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-44050E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62311-44051E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62311-44050E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-44050E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62312-44051E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62312-44050E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-44051E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62331-44050E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62331-44050E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62381B - WEATHERSTRIP, ROOF SIDE RAIL, RH | ||||
| 62381-44020 |
ANM1#,ZNM10 寒冷地仕様 |
1 | ||
| 62381-44010 |
ANM1#,ZNM10 |
1 | ||
| 62382B - WEATHERSTRIP, ROOF SIDE RAIL, LH | ||||
| 62382-44010 |
ANM1#,ZNM10 |
1 | ||
| 62382-44020 |
ANM1#,ZNM10 寒冷地仕様 |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10167 |
ANM1#,ZNM10 |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-44070E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62410-44080E0 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),FAWN,TRIM4# |
1 | ||
| 62410-44070E2 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62410-44080E2 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-44050E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62413-44050E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
ANM1#,ZNM10 |
2 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-44070E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62471-44070E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-44070E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62472-44080E0 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),FAWN,TRIM4# |
1 | ||
| 62472-44080E0 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),FAWN,TRIM4# |
1 | ||
| 62472-44080E1 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),GREGE,TRIM4# |
1 | ||
| 62472-44080E1 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 62472-44070E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62472G - CLIP(FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
ANM1#,ZNM10 |
10 | ||
| 62515B - COVER, SIDE TRIM BASE, NO.1 RH | ||||
| 62515-44010 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 62516B - COVER, SIDE TRIM BASE, NO.2 RH | ||||
| 62516-44010 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 62525D - COVER, SIDE TRIM BASE, NO.1 LH | ||||
| 62525-44020 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 62526D - COVER, SIDE TRIM BASE, NO.2 LH | ||||
| 62526-44020 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 90467-10161 |
ANM1#,ZNM10 |
4 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-44030E0 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),FAWN,TRIM4# |
1 | ||
| 62638-44030E1 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 62638-44030E0 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),FAWN,TRIM4# |
1 | ||
| 62638-44020E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62638-44030E1 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 62638-44020E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-44020E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 62639-44030E0 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),FAWN,TRIM4# |
1 | ||
| 62639-44030E0 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),FAWN,TRIM4# |
1 | ||
| 62639-44020E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 62639-44030E1 |
ANM1#,ZNM10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 62639-44030E1 |
ANM1#..G U−SELECTION *(U)&*POSD(右側&左側)&有り(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM4# |
1 | ||
| 62640L - CLIP(FOR QUARTER TRIM) | ||||
| 90467-10167 |
ANM1#,ZNM10 |
2 | ||
| 67871H - WEATHERSTRIP, SLIDE DOOR, NO.1 RH | ||||
| 75631-44010 |
ANM1#,ZNM10 |
1 | ||
| 67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH | ||||
| 75641-44010 |
ANM1#,ZNM10 |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-44060E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 67911-44060E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-44060E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 67912-44060E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-44030E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 67913-44030E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-44030E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 67914-44030E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-44040E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 67917-44040E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-44030E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 67918-44030E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 67920 - PLATE ASSY, DOOR SCUFF, LH | ||||
| 67934-44010E1 |
ANM1#,ZNM10 GREGE,TRIM4# |
1 | ||
| 67934-44010E0 |
ANM1#,ZNM10 FAWN,TRIM4# |
1 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-46020 |
ANM1#,ZNM10 |
8 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-46020 |
ANM1#,ZNM10 |
8 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-46020 |
ANM1#,ZNM10 |
8 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-46020 |
ANM1#,ZNM10 |
8 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-46020 |
ANM1#,ZNM10 |
8 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-46020 |
ANM1#,ZNM10 |
8 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-46020 |
ANM1#,ZNM10 |
8 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-46020 |
ANM1#,ZNM10 |
8 | ||
| Common parts | ||||
| 67867-52030 | ||||
| 67869-46030 | ||||
| 67869-46040 | ||||
| 90119-06869 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 5804 | ||||
| 7104 | ||||
| 7403 | ||||
